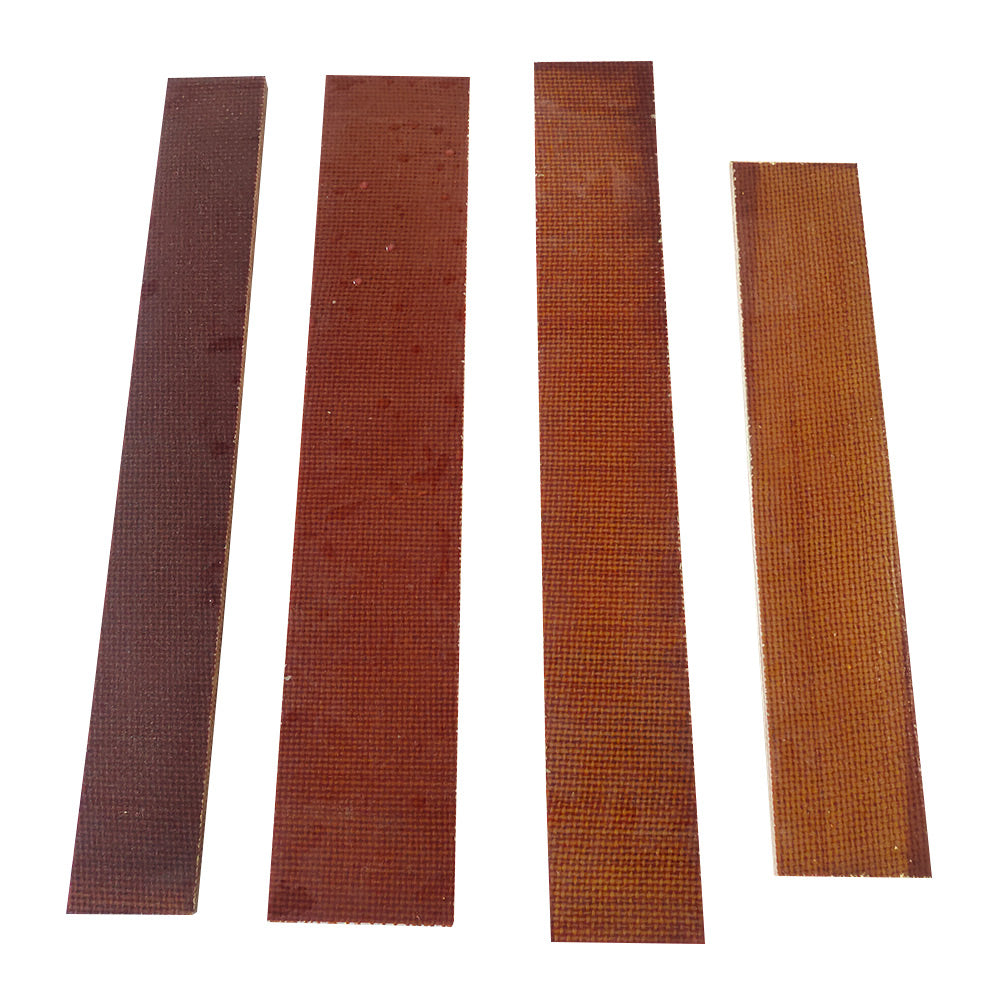

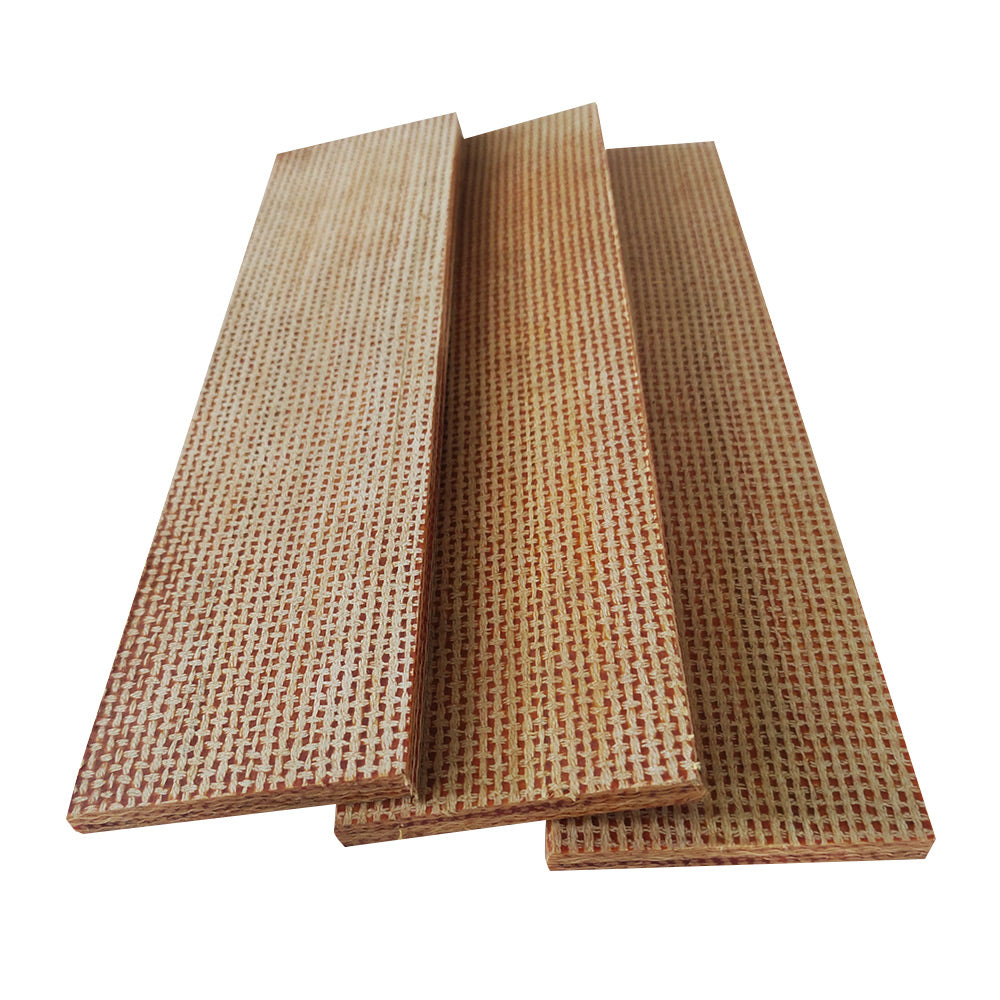

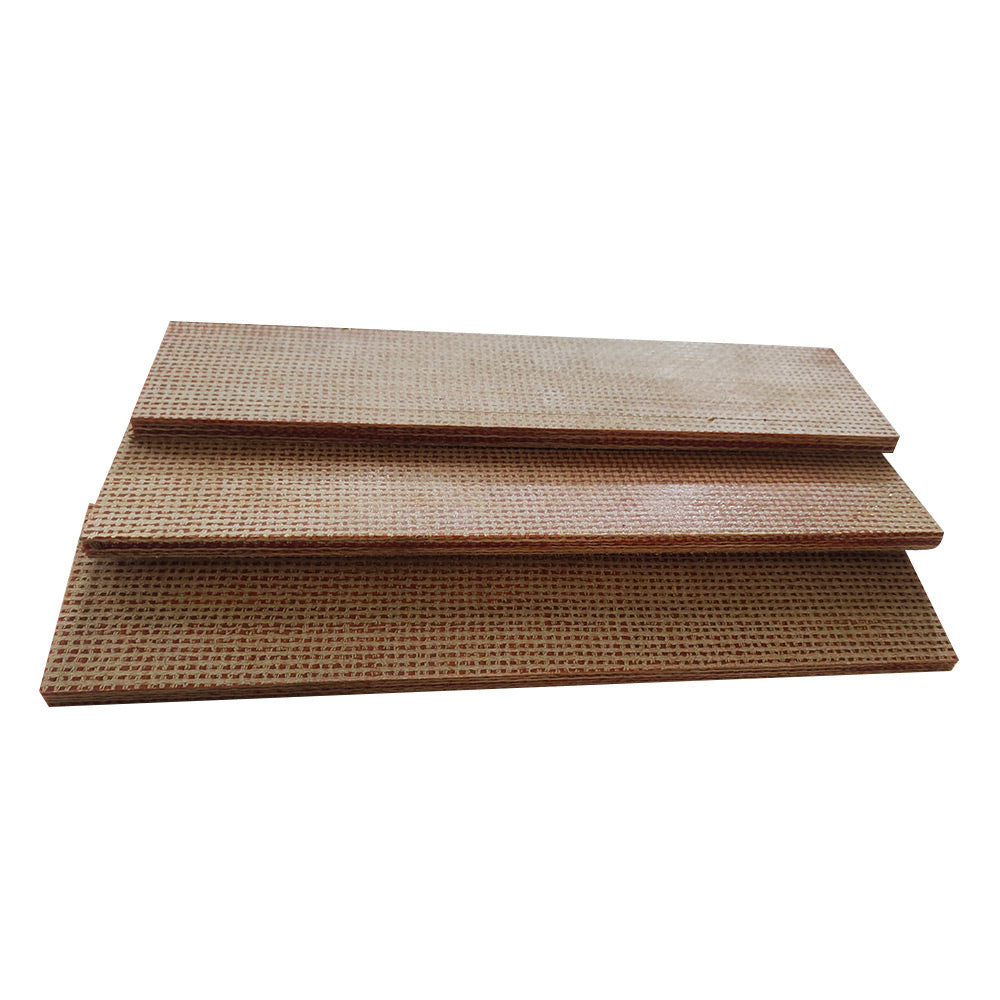

Aramid fiber laminate

Aramid Fiber Cloth Laminate is a high-performance material composed of modified phenolic resin reinforced with aramid fiber cloth. Known for its exceptional durability, this laminate offers excellent temperature resistance, outstanding fatigue resistance, and highly effective self-lubricating properties. It is specifically engineered to ensure smooth operation, durability, and reduced maintenance costs in demanding industrial environments.

Features & Advantages Our Aramid Fiber Laminate delivers superior performance through a combination of key properties:

• Low wear rates and low coefficient of friction

• High temperature resistance and superior mechanical strength

• Excellent dimensional stability and outstanding resilience

• Good chemical resistance

• High strength-to-weight ratio

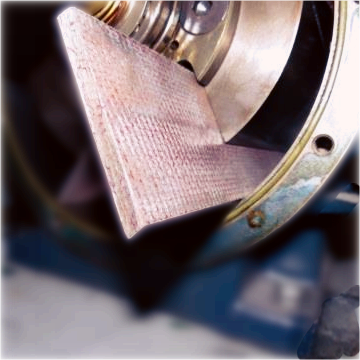

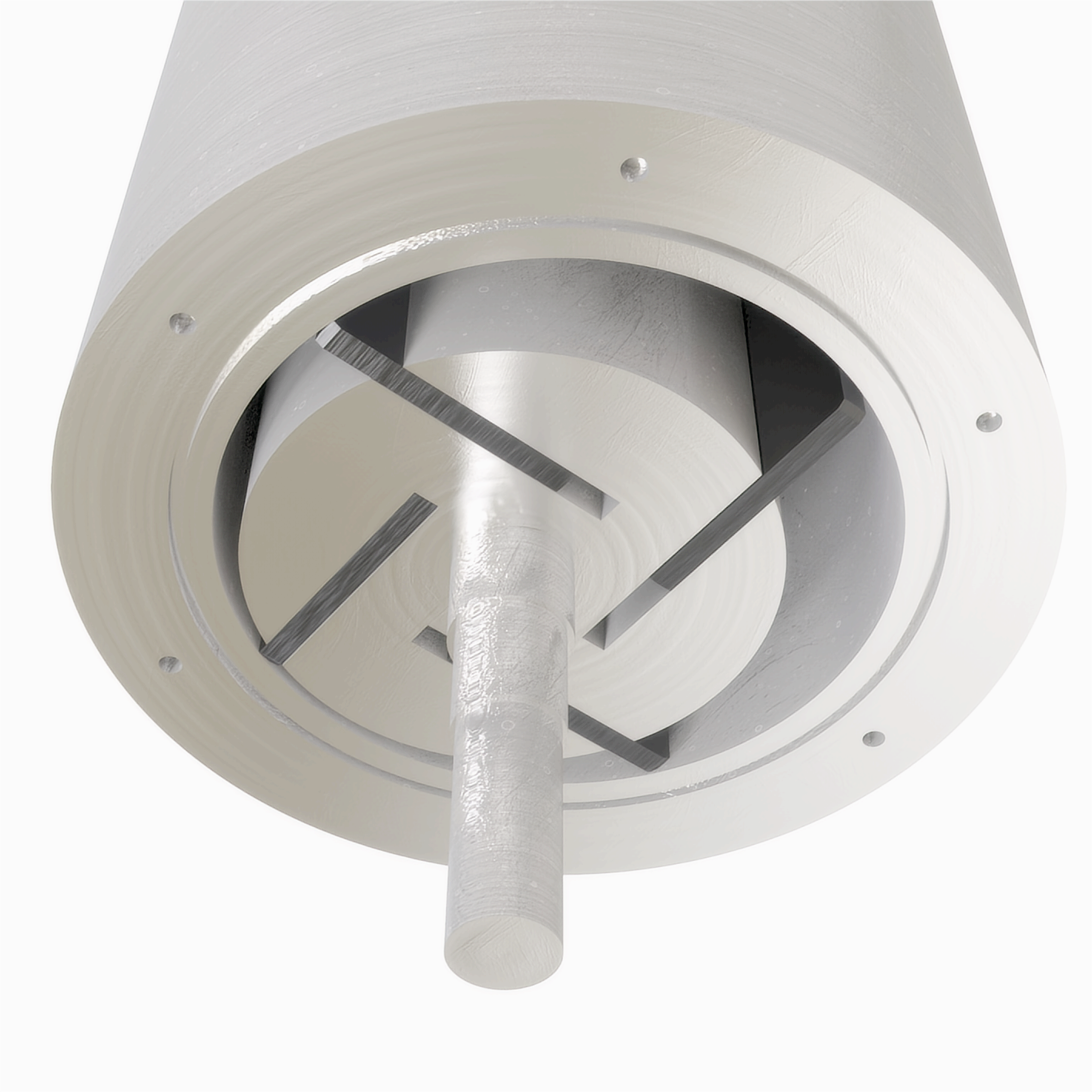

Industrial Applications Thanks to its robust characteristics and self-lubricating nature, this material is widely used in rotary vacuum pumps and compressors across various sectors, including:

• Milking pumps, manure pumps, and planters

• Oil suction pumps and underground oil equipment

• Water treatment equipment

• Weather equipment

• Construction and mining equipment

Basic Specifications

• Thickness Range: 0.3mm - 150mm

• Standard Sizes: 1020 x 1220mm, 1220 x 2440mm

• Standard Color: Brown
