Solder Pallet Materials

Solder Pallet Materials

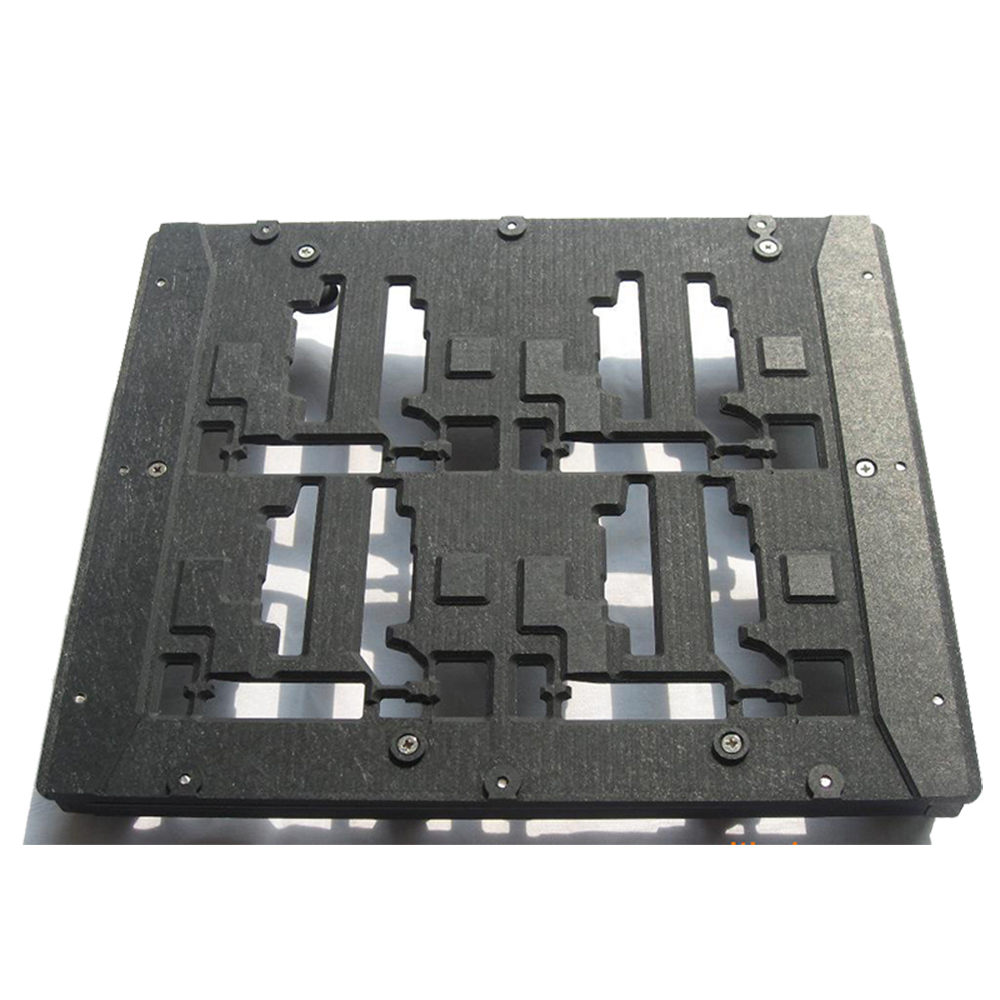

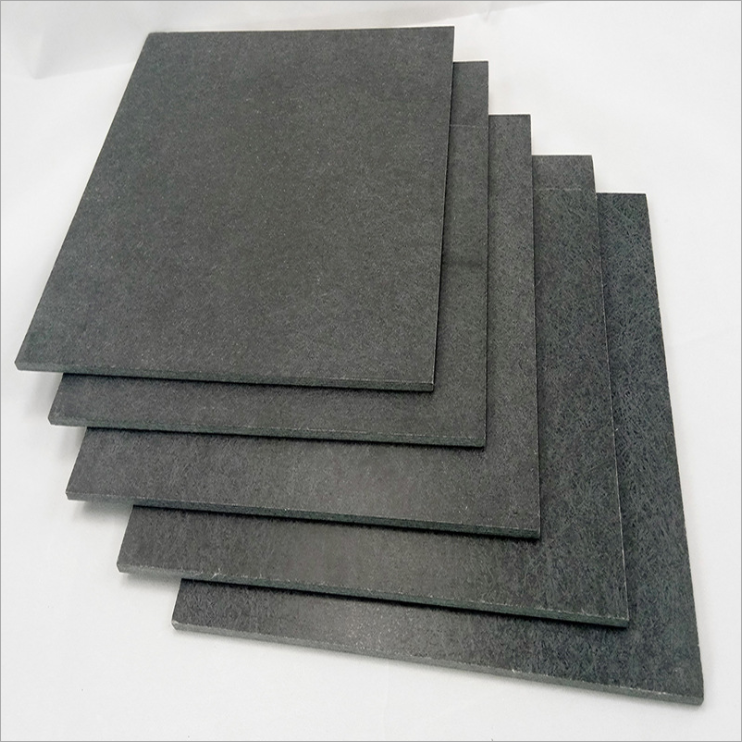

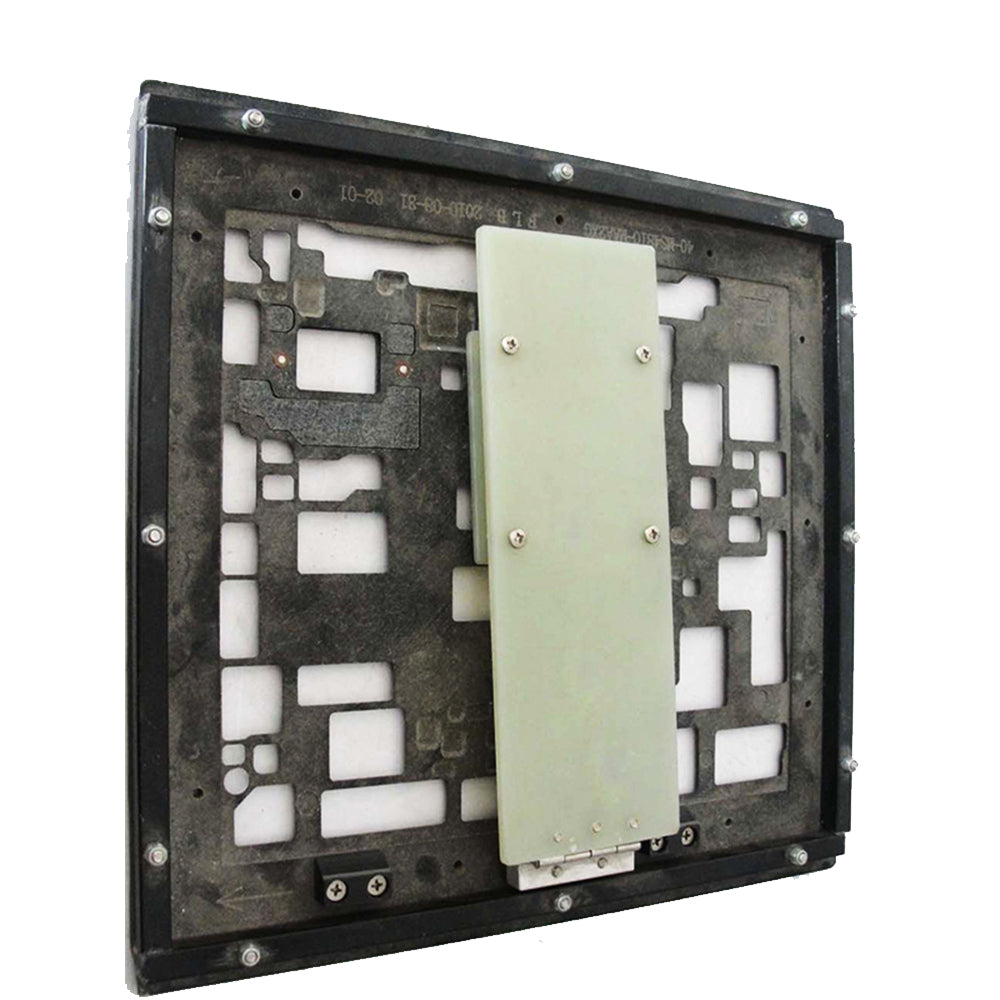

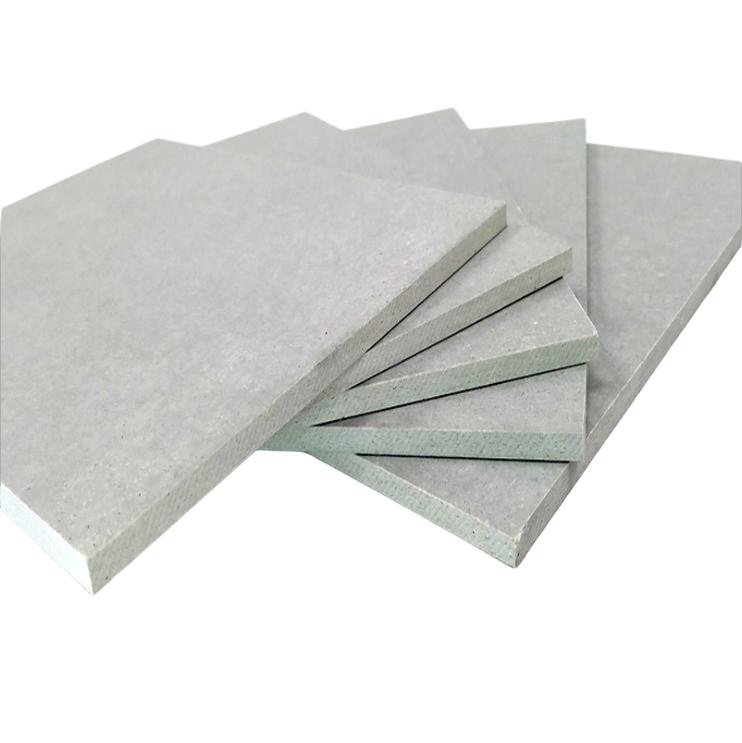

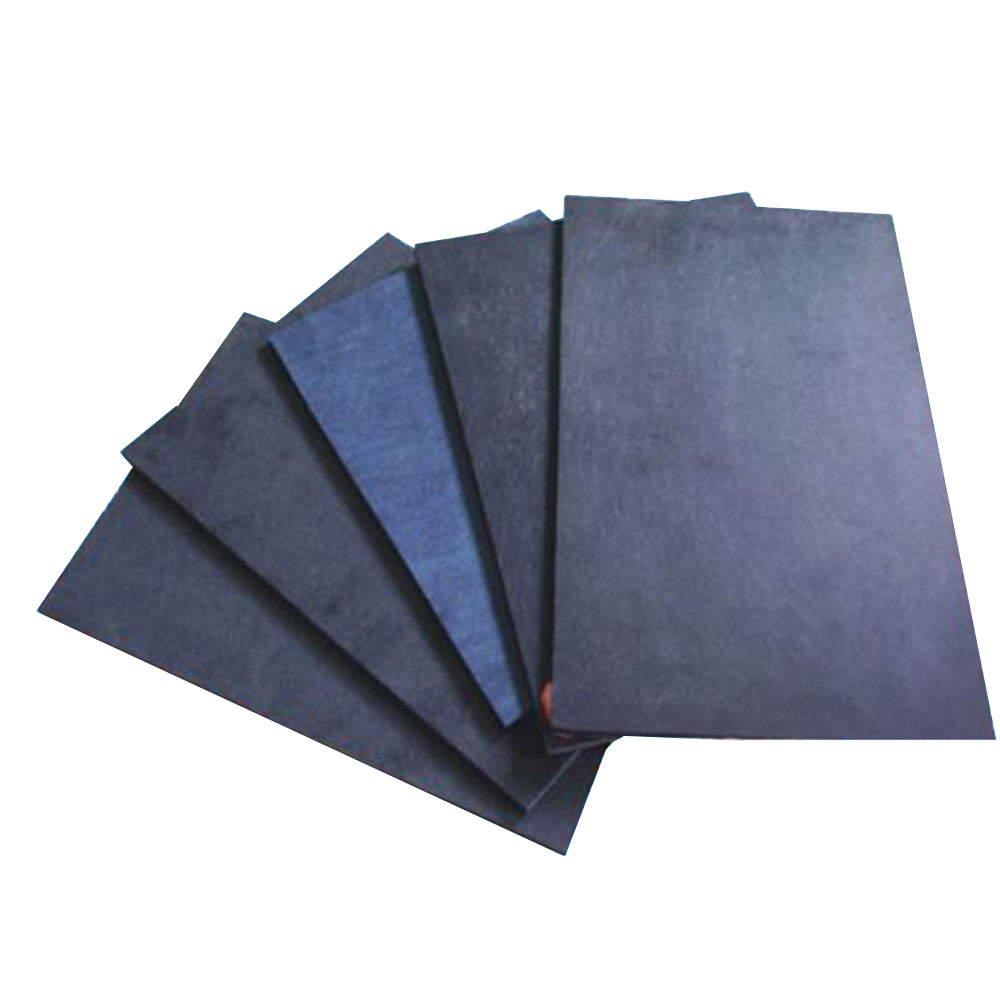

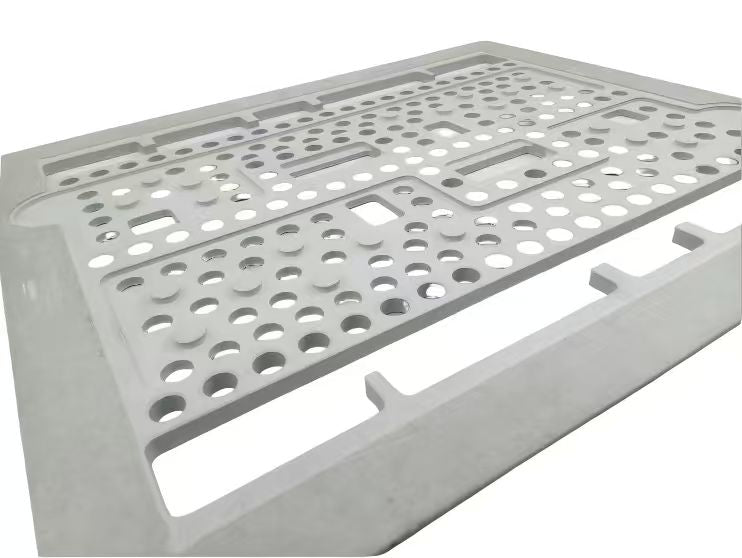

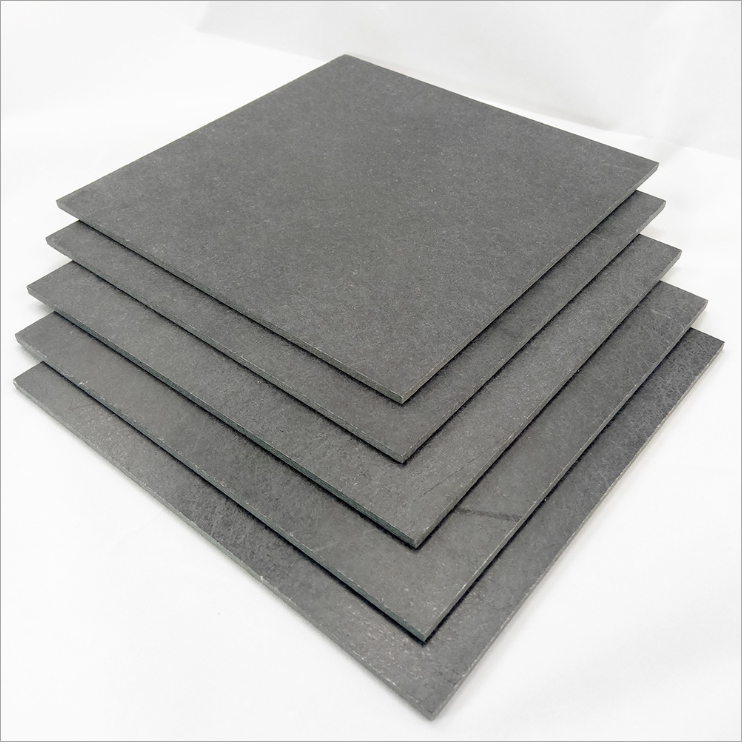

Solder Pallet Material is a heavy-duty, glass fiber-reinforced plastic constructed from premium glass fibers combined with high-performance resins. Known for its extreme physical strength, this material delivers excellent electrical, thermal, and chemical properties alongside outstanding machinability. It is specifically designed and highly recommended for manufacturing solder pallets used in the wave-soldering applications of printed circuit boards (PCBs).

Key Advantages & Features

  • High-Temperature Resistance: Performs reliably at a normal continuous working temperature of 280°C. It can also withstand intermittent maximum temperatures of up to 350°C (or 360°C for short durations of 10~20 seconds).

  • Thermal & Dimensional Stability: Features low thermal conductivity and maintains exceptional dimensional stability even at high temperatures.

  • Excellent Machinability: Easily designed and precision-machined into highly intricate soldering pallets suitable for the most complex PCBs.

  • Extended Service Life: Highly durable and capable of being reused approximately 20,000 times in demanding high-temperature environments.

Basic Specifications

  • Thickness Range: 3mm - 100mm

  • Standard Sizes: 1020 x 1220mm, 1220 x 2440mm

  • Temperature Resistance: 280°C (Continuous)

  • Standard Colors: Grey and Black
CNC Machining & Customization Capabilities
  • Custom Machining Scope: Custom cut-to-size panels and CNC components based on drawings (PDF, DWG, STEP).
  • Max Equipment Processing Area: Up to 2500mm × 2500mm (facility equipment limit).
  • Machining Thickness: Machinable thickness strictly per raw material stock limits or custom stacked/molded specs.
  • Machining Accuracy: Standard tolerance ±0.1mm; Precision tolerance up to ±0.02mm.
Quality Certificates & Compliance
  • ISO 9001 Certification: Certificate No. 04425Q10157R2S (Valid to Feb 17, 2028)
  • UL Recognition: UL File No. E538818
Ordering & Logistics Information
  • Minimum Order Quantity (MOQ):
    • Sheets & Rods: 500 kg
    • Tubes: 100 kg
    • CNC Machined Parts: 100 pcs
  • Lead Time: Quoted individually per project specifications and order volume.
  • Samples: Material samples are available upon request for testing and evaluation.

Trade & Bulk Inquiry

Connect with our specialist for tailored custom pricing and technical support.

Send Inquiry for the product →

Frequently asked questions
Which international standards does your material comply with?

Our materials comply with IEC, NEMA, DIN, ASTM, and UL standards. We provide direct equivalents to NEMA grades (e.g., G10, FR4, G11, G7, GPO-3) and IEC EPGC series.
Do you provide custom CNC machining services based on drawings?

Yes. Operating over 100 CNC machining centers, we manufacture custom-shaped parts from your drawings (PDF, DWG, STEP) with machining accuracy up to ±0.05mm.
Under which quality management system do you operate?

Production runs under an ISO 9001 compliant quality system. In-house test reports for electrical, mechanical, and thermal properties as well as CoC certificates are available upon request.
What is your Minimum Order Quantity (MOQ) and lead time?

Our products are manufactured at our Beijing production facility. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.
How much does shipping cost?

Shipping is calculated based on your location and the items in your order. You will always know the shipping price before you purchase.
