Phenolic Cotton Rod

Phenolic Cotton Rod

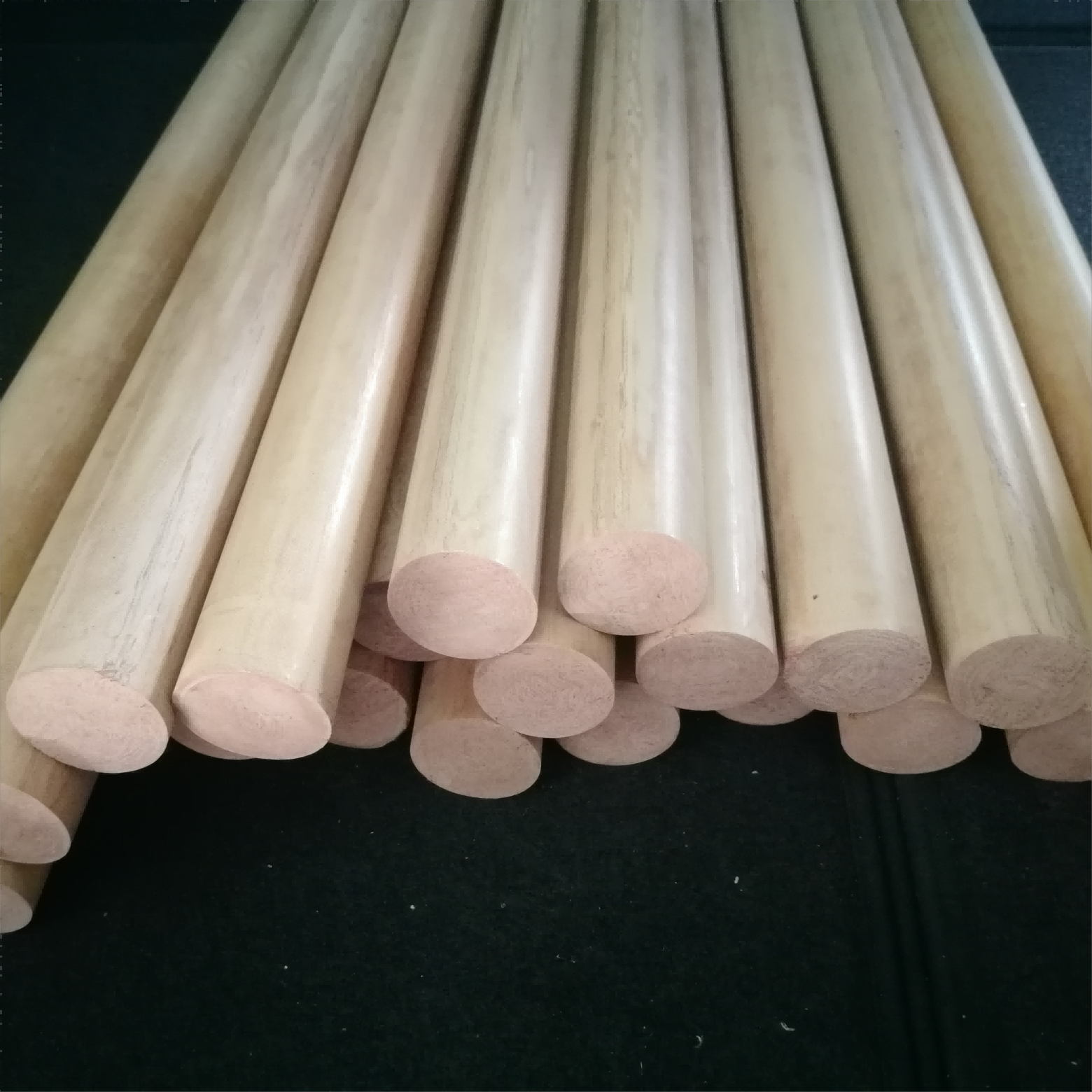

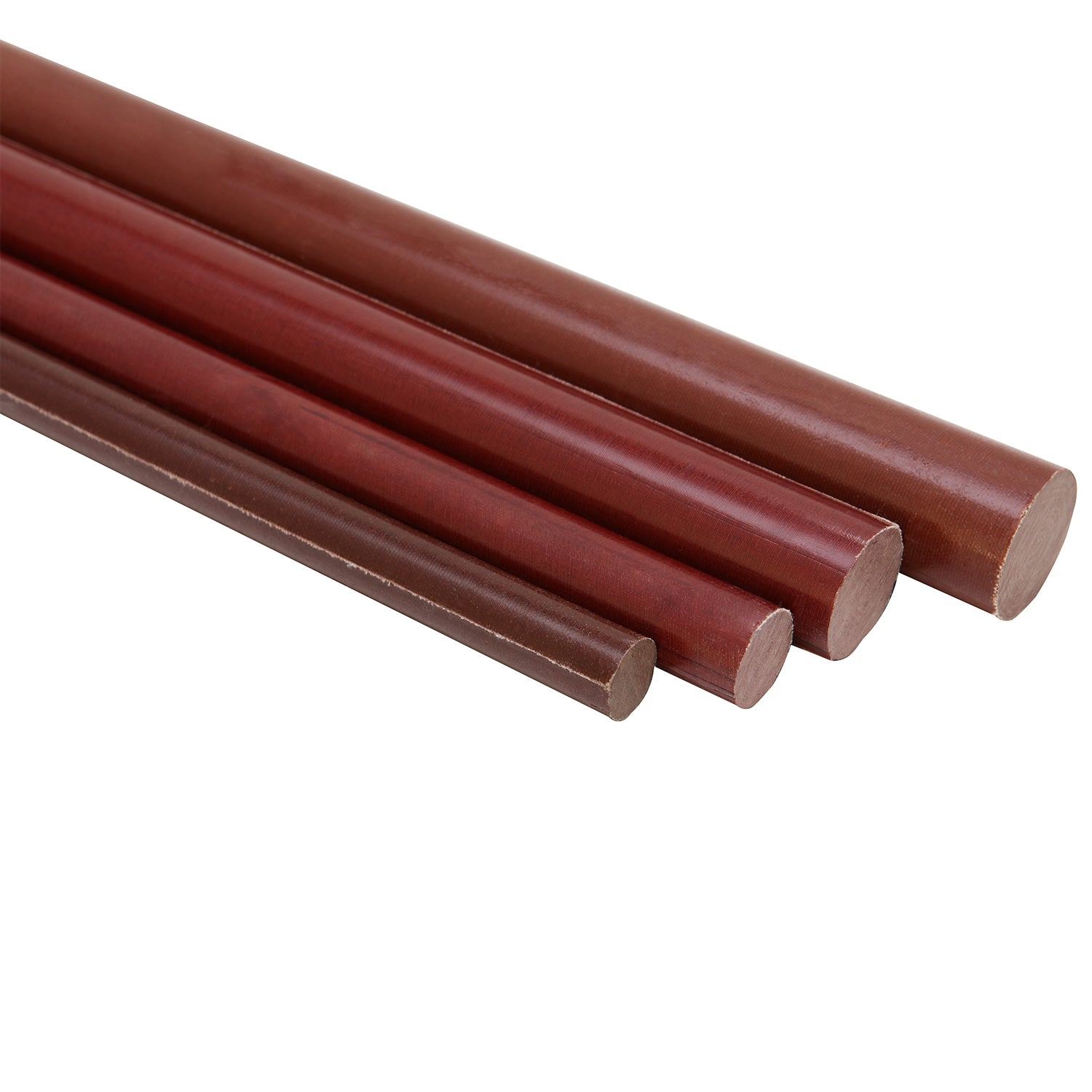

The Phenolic Cotton Rod is manufactured from high-quality cotton fabric impregnated with phenolic resin. The material is first heated into a prepreg and rolled into a rod shape. Finally, it is placed into molds of various diameters and cured under high temperature and pressure to form a rigid laminated rod. This robust material is perfectly suited for both mechanical and electrical applications.

Standards and Classifications We produce Phenolic Cotton Rods that strictly comply with international standards to meet various industrial requirements:

  • GOST Standard: 3721, 3722, 3723, 3724, 3725

  • IEC Standard: PFCC41, PFCC42, PFCC43

  • NEMA Standard: C, CE, L, LE

Type Characteristics

  • 3722, 3723, 3724, 3725: These grades are similar to NEMA Grades C, CE, L, and LE, respectively. They are primarily intended for mechanical and electrical applications, with grade 3725 specifically allowing for fine processing.

  • PFCC41, PFCC42, PFCC43: These are IEC Grades, categorized by fabric type. PFCC41 is made with fine cloth, PFCC42 with coarse cloth, and PFCC43 with extra coarse cloth.

Specifications

  • Diameter Range: 6mm - 200mm

  • Standard Length: 1000mm

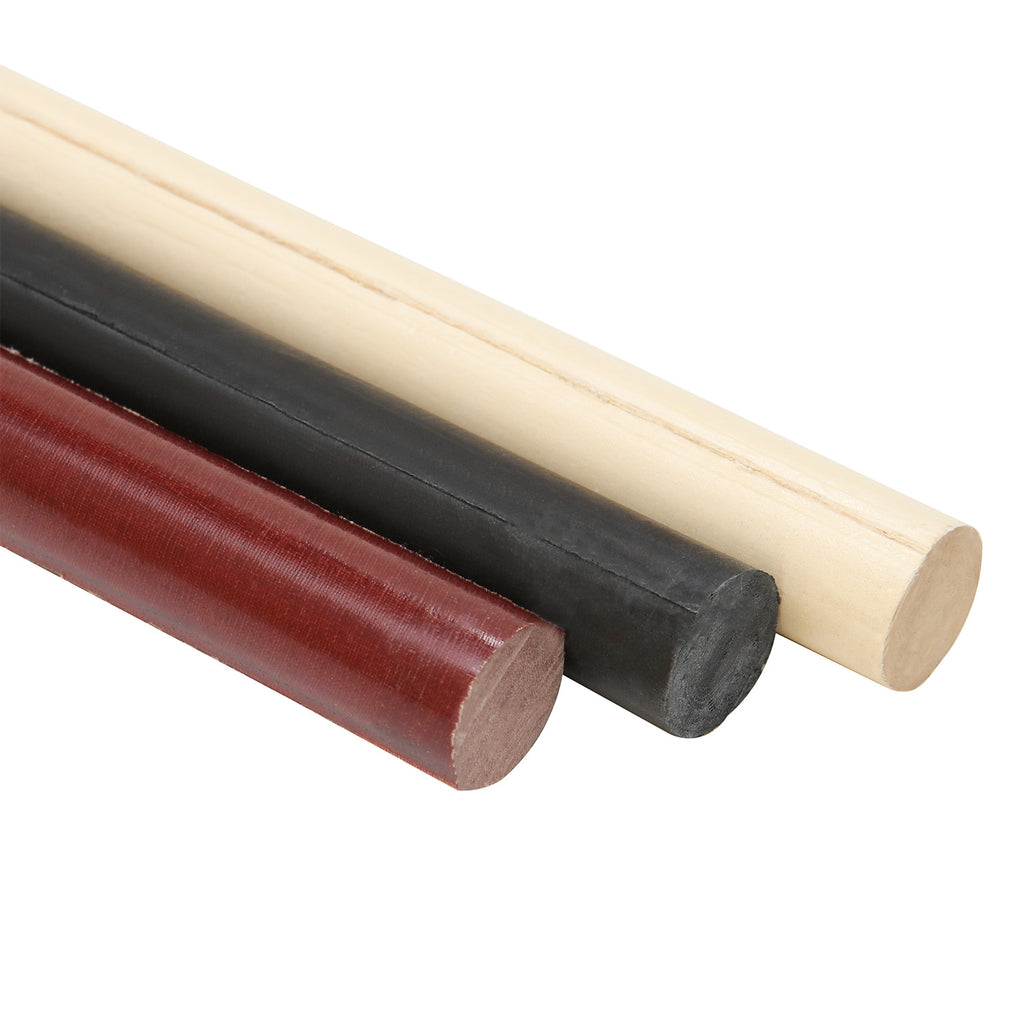

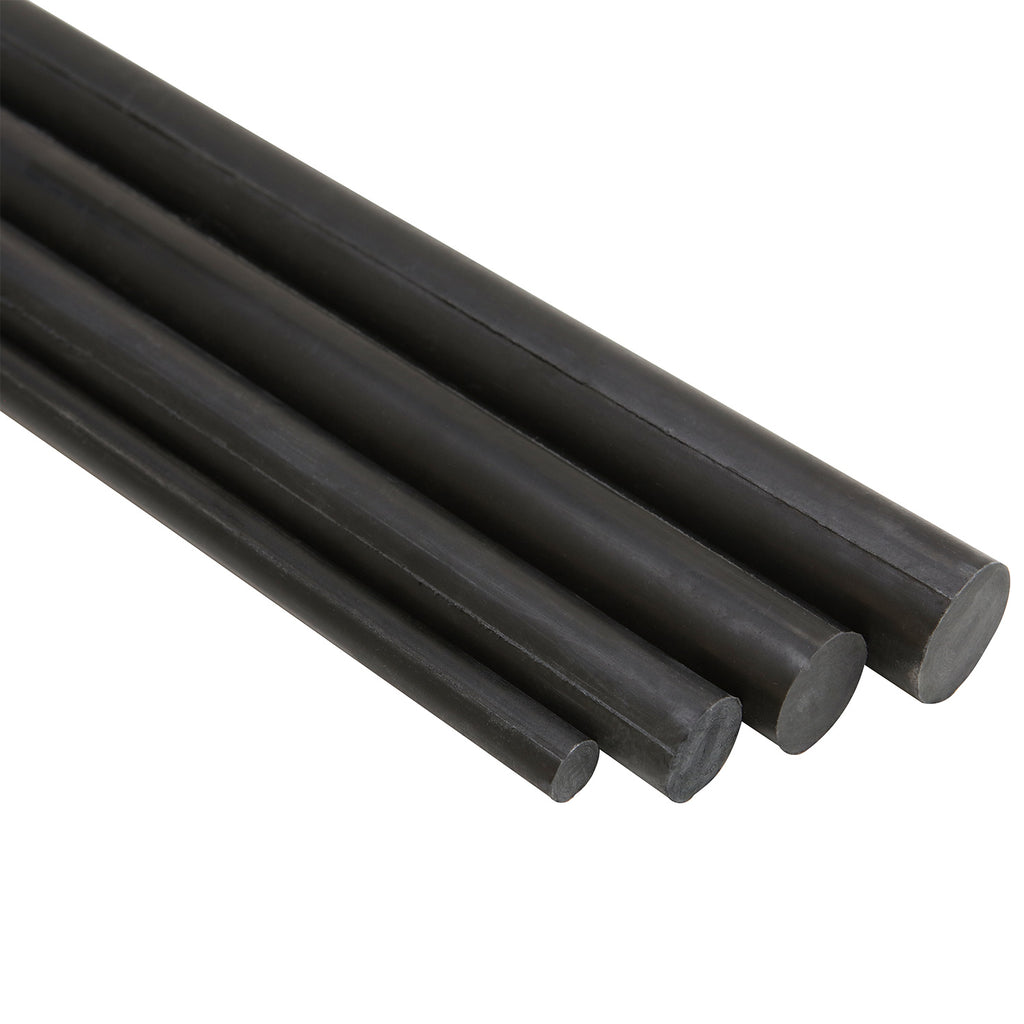

  • Available Colors: Natural, Black, White
CNC Machining & Customization Capabilities
  • Custom Machining Scope: Custom cut-to-size panels and CNC components based on drawings (PDF, DWG, STEP).
  • Max Equipment Processing Area: Up to 2500mm × 2500mm (facility equipment limit).
  • Machining Thickness: Machinable thickness strictly per raw material stock limits or custom stacked/molded specs.
  • Machining Accuracy: Standard tolerance ±0.1mm; Precision tolerance up to ±0.02mm.
Quality Certificates & Compliance
  • ISO 9001 Certification: Certificate No. 04425Q10157R2S (Valid to Feb 17, 2028)
  • UL Recognition: UL File No. E538818
Ordering & Logistics Information
  • Minimum Order Quantity (MOQ):
    • Sheets & Rods: 500 kg
    • Tubes: 100 kg
    • CNC Machined Parts: 100 pcs
  • Lead Time: Quoted individually per project specifications and order volume.
  • Samples: Material samples are available upon request for testing and evaluation.

Trade & Bulk Inquiry

Connect with our specialist for tailored custom pricing and technical support.

Send Inquiry for the product →

Frequently asked questions
Which international standards does your material comply with?

Our materials comply with IEC, NEMA, DIN, ASTM, and UL standards. We provide direct equivalents to NEMA grades (e.g., G10, FR4, G11, G7, GPO-3) and IEC EPGC series.
Do you provide custom CNC machining services based on drawings?

Yes. Operating over 100 CNC machining centers, we manufacture custom-shaped parts from your drawings (PDF, DWG, STEP) with machining accuracy up to ±0.05mm.
Under which quality management system do you operate?

Production runs under an ISO 9001 compliant quality system. In-house test reports for electrical, mechanical, and thermal properties as well as CoC certificates are available upon request.
What is your Minimum Order Quantity (MOQ) and lead time?

Our products are manufactured at our Beijing production facility. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.
How much does shipping cost?

Shipping is calculated based on your location and the items in your order. You will always know the shipping price before you purchase.
