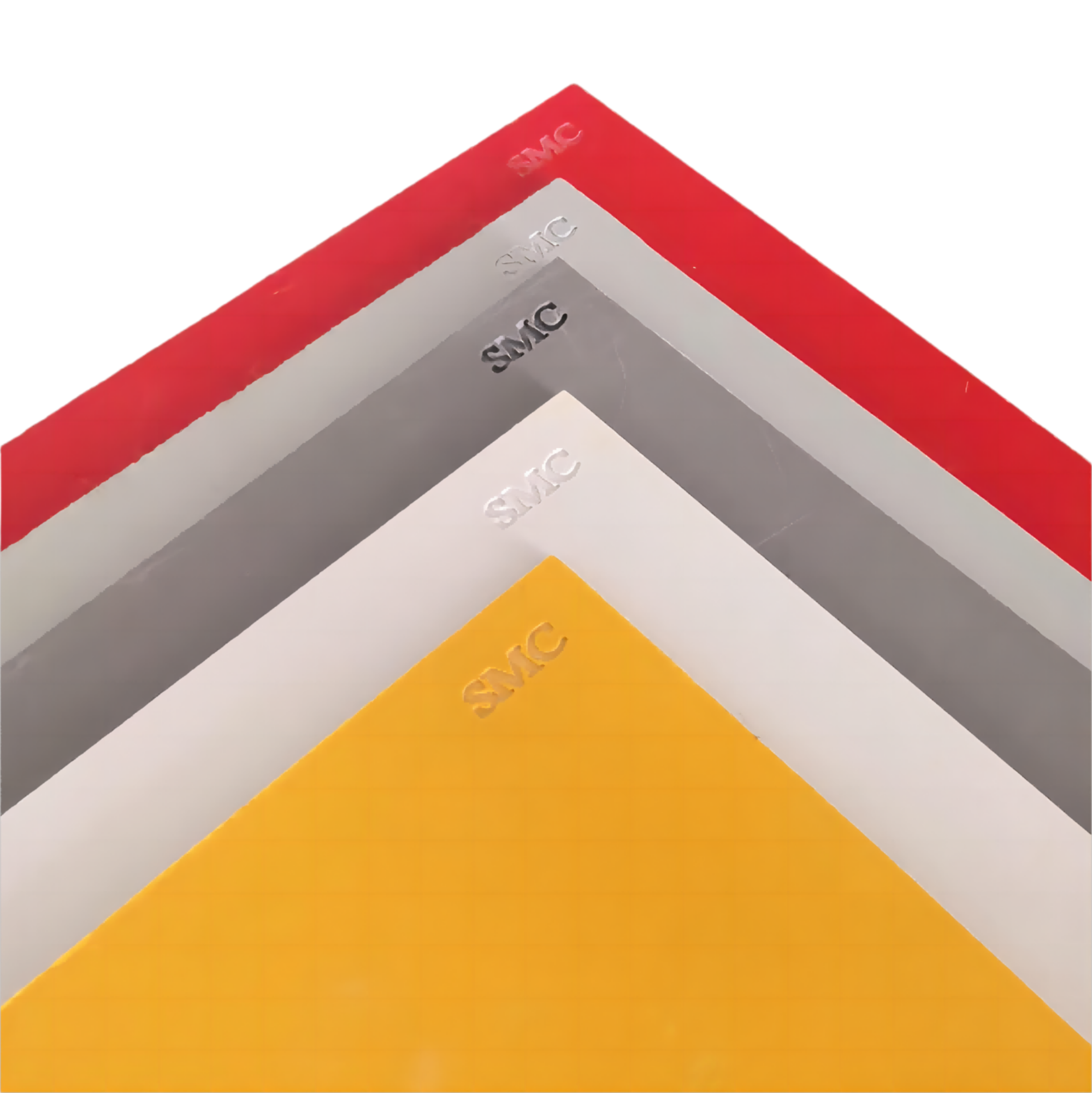

  • SMC molding plates in red, gray, white, and yellow

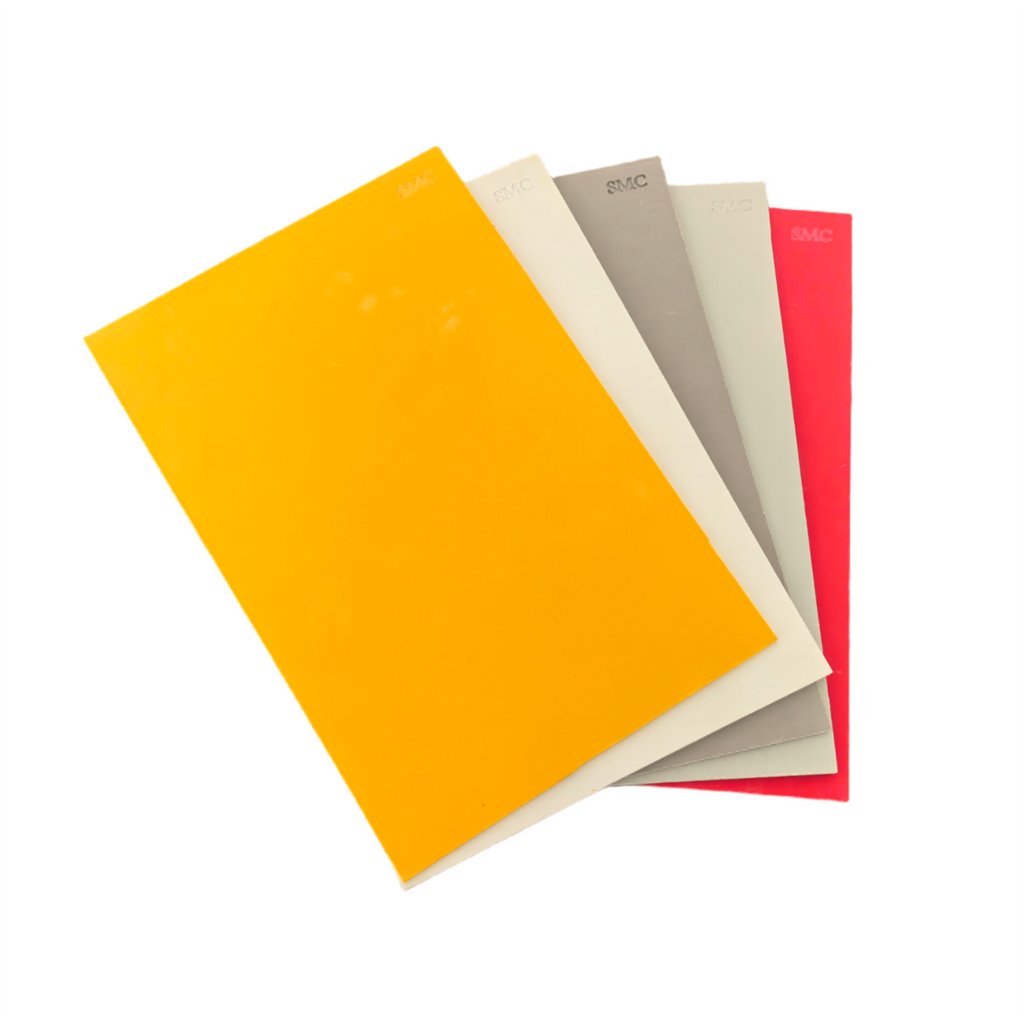

  • SMC molding plates in yellow, cream, gray, and red

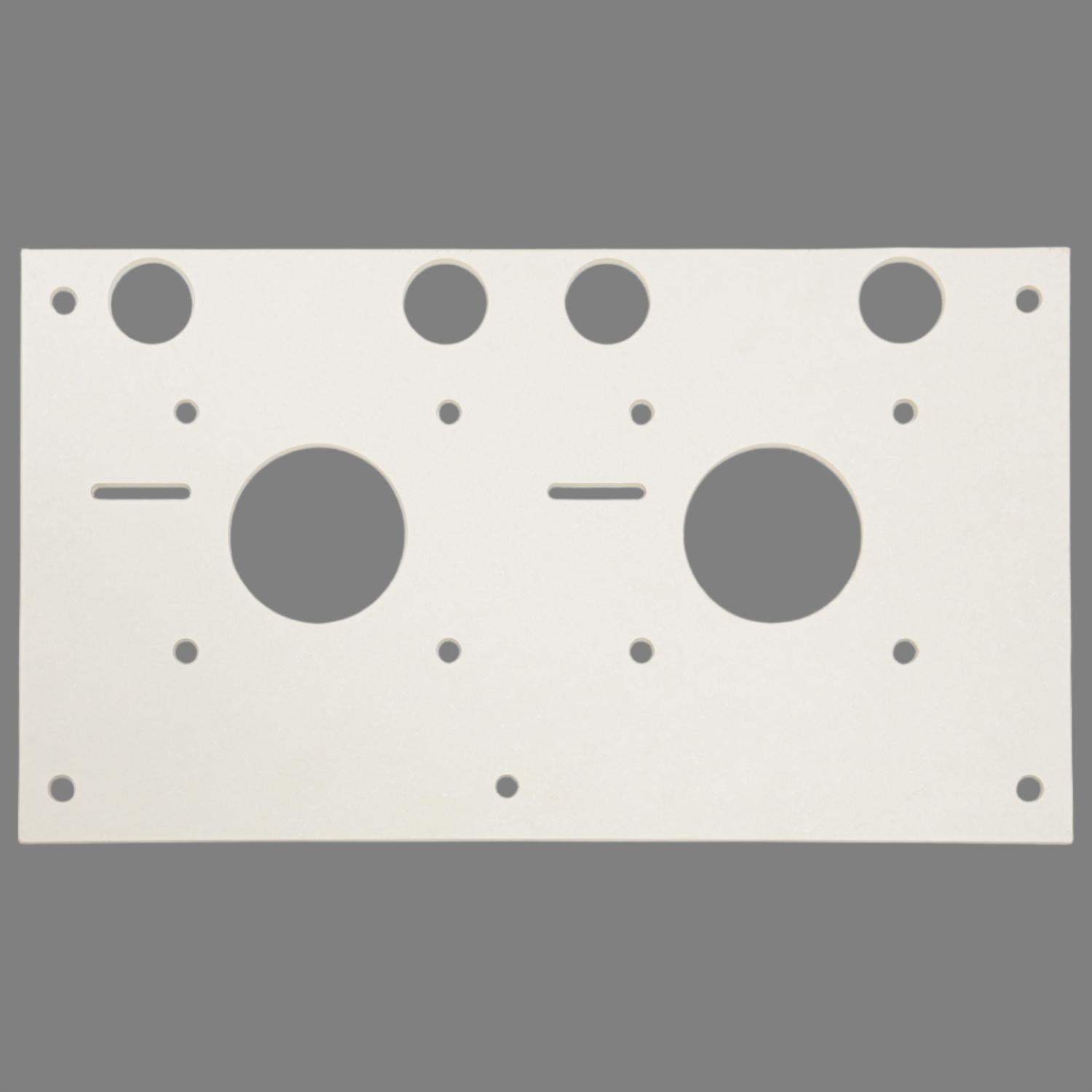

  • SMC molded switchgear mounting panel with multiple circular cutouts and drilled holes

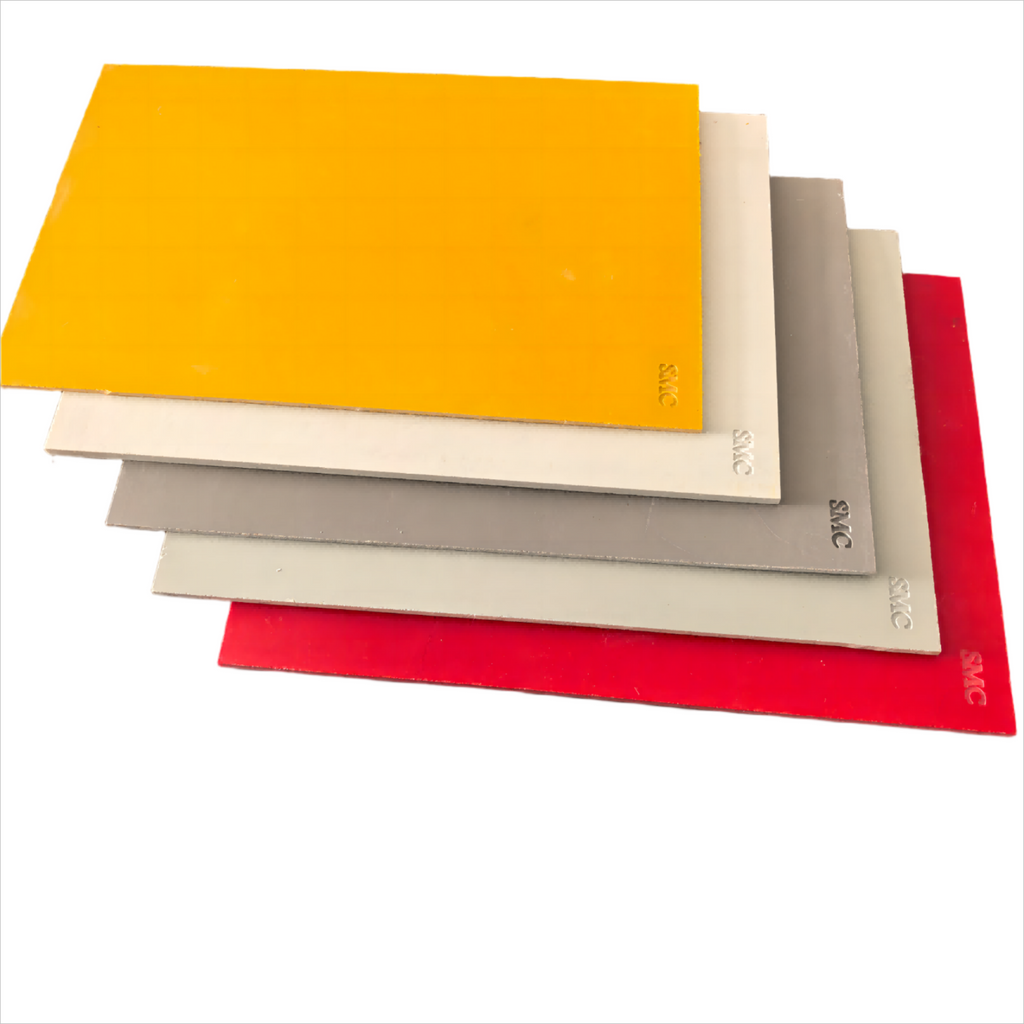

  • SMC molding plates stacked in yellow, cream, gray, and red

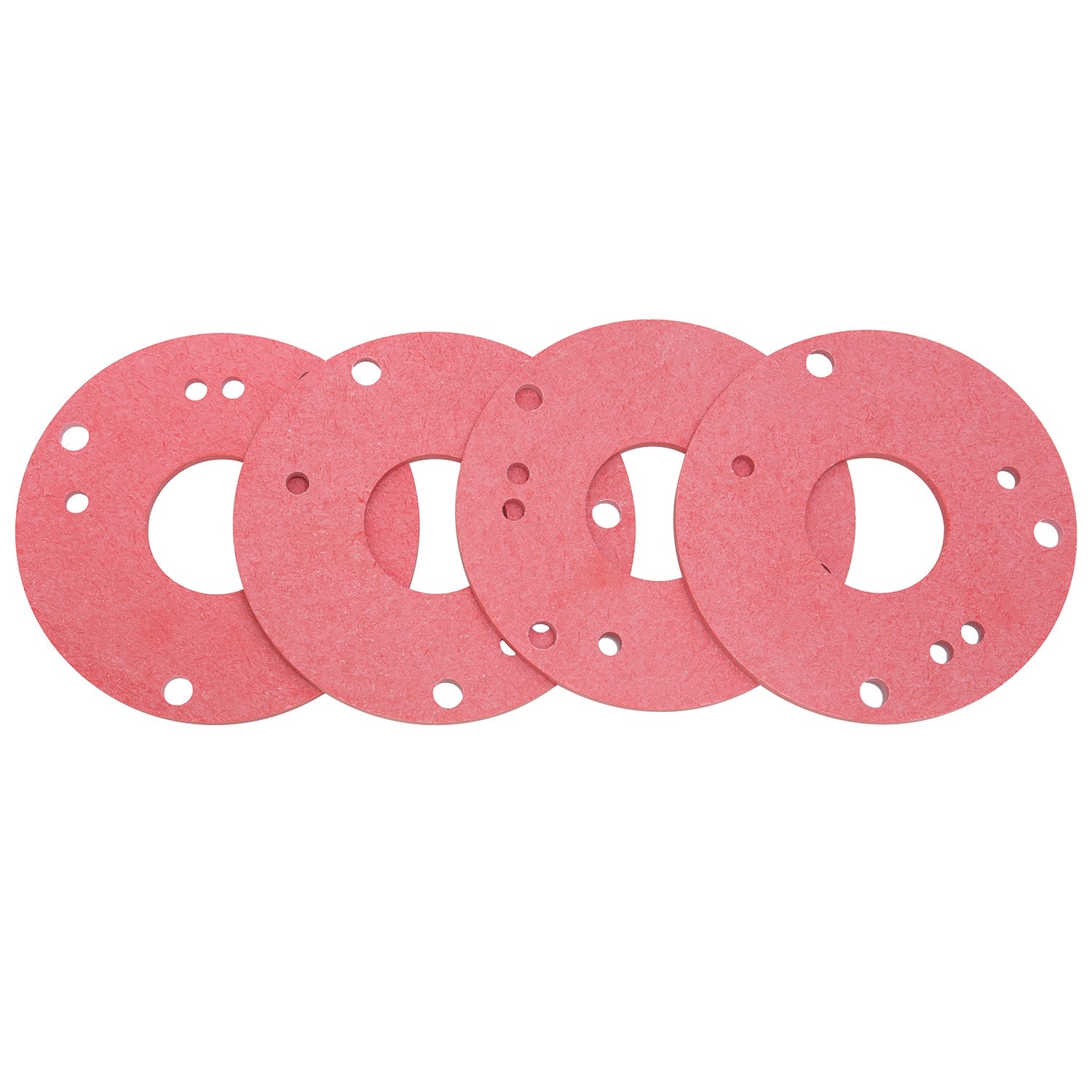

  • Red SMC molded insulating washers with holes for electrical equipments

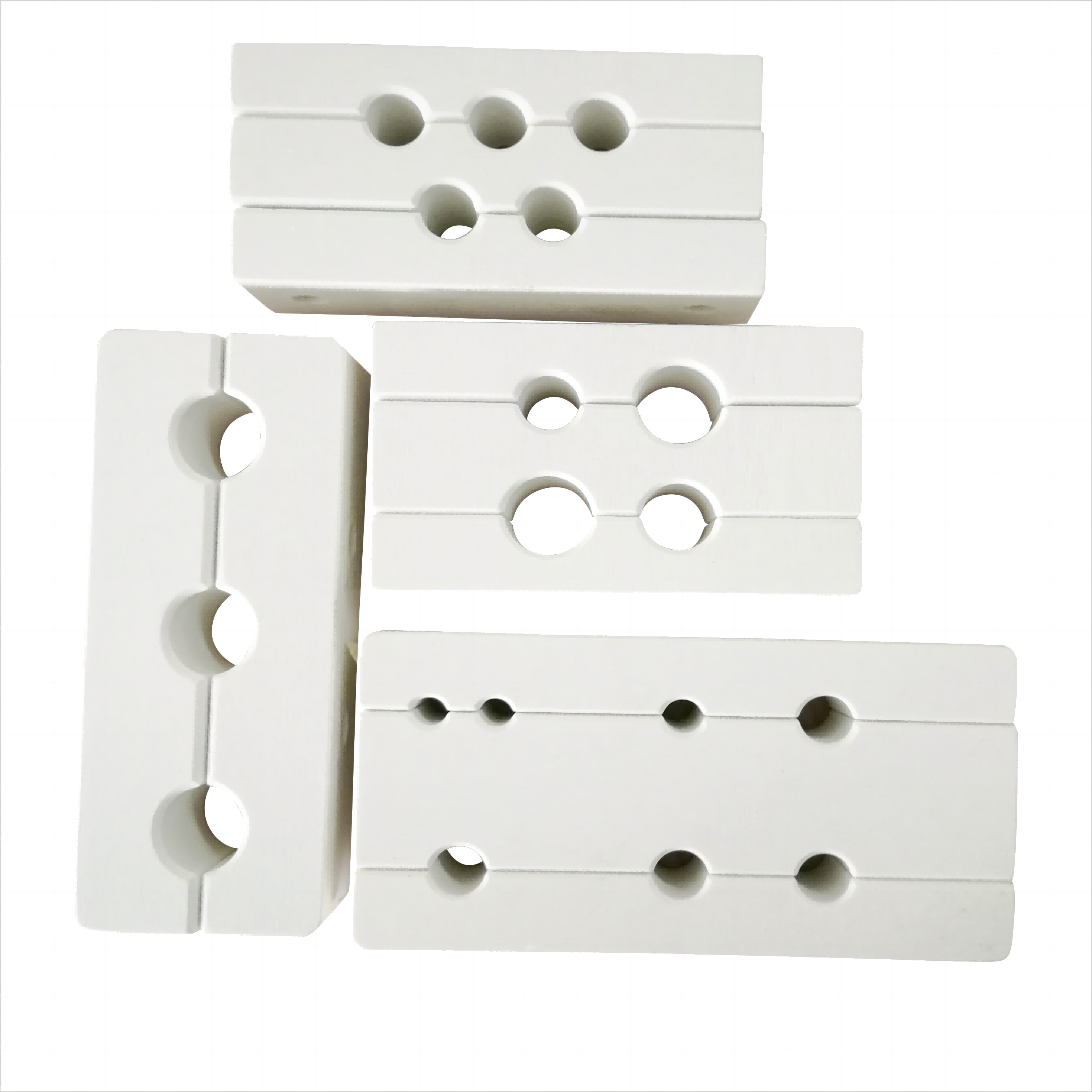

  • White SMC molded insulating cable holder

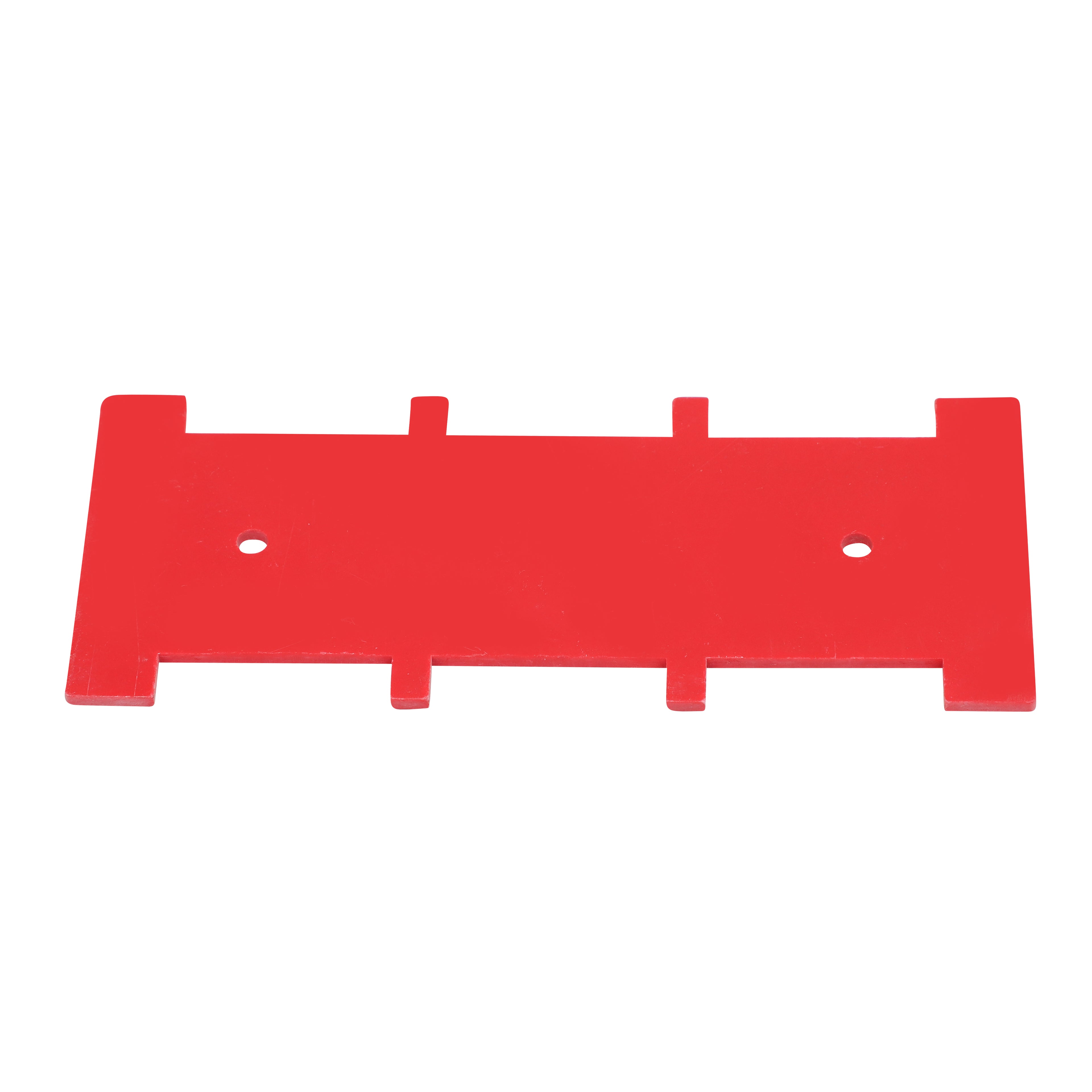

  • Red SMC molded mounting bracket with slots and holes
SMC Molding Plate

SMC Molding Plate

The SMC Molding Plate is a high-quality insulating plate manufactured from unsaturated polyester reinforced plastic. This durable material is precisely molded under high temperature in a press machine, resulting in a product with excellent dimensional stability and good flatness. It is widely utilized across the electrical industry.

Characteristics & Advantages This highly reliable insulating plate is specifically designed to perform in demanding environments, offering:

  • Electrical & Mechanical Strength: Exhibits both good mechanical and electrical properties.

  • Resistance: Provides good arc resistance and tracking resistance.

  • Safety & Compliance: Features excellent halogen-free flame retardant properties, combined with low smoke emission and toxic-free composition.

  • Moisture Resistance: Characterized by low water absorption, making it suitable for use in high moisture conditions.

Industrial Applications The SMC Molding Plate is extensively used in the medium and low voltage electrical industry. Common applications include:

  • Backup boards for switch cabinets

  • Cable fixing clamps

  • Various insulating spare parts

Basic Specifications

  • Thickness Range: 1.6mm - 50mm

  • Standard Sizes: 1010 x 2020mm, 1250 x 2500mm

  • Available Colors: Red, White, etc.
CNC Machining & Customization Capabilities
  • Custom Machining Scope: Custom cut-to-size panels and CNC components based on drawings (PDF, DWG, STEP).
  • Max Equipment Processing Area: Up to 2500mm × 2500mm (facility equipment limit).
  • Machining Thickness: Machinable thickness strictly per raw material stock limits or custom stacked/molded specs.
  • Machining Accuracy: Standard tolerance ±0.1mm; Precision tolerance up to ±0.02mm.
Quality Certificates & Compliance
  • ISO 9001 Certification: Certificate No. 04425Q10157R2S (Valid to Feb 17, 2028)
  • UL Recognition: UL File No. E538818
Ordering & Logistics Information
  • Minimum Order Quantity (MOQ):
    • Sheets & Rods: 500 kg
    • Tubes: 100 kg
    • CNC Machined Parts: 100 pcs
  • Lead Time: Quoted individually per project specifications and order volume.
  • Samples: Material samples are available upon request for testing and evaluation.

Trade & Bulk Inquiry

Connect with our specialist for tailored custom pricing and technical support.

Send Inquiry for the product →

Frequently asked questions
Which international standards does your material comply with?

Our materials comply with IEC, NEMA, DIN, ASTM, and UL standards. We provide direct equivalents to NEMA grades (e.g., G10, FR4, G11, G7, GPO-3) and IEC EPGC series.
Do you provide custom CNC machining services based on drawings?

Yes. Operating over 100 CNC machining centers, we manufacture custom-shaped parts from your drawings (PDF, DWG, STEP) with machining accuracy up to ±0.05mm.
Under which quality management system do you operate?

Production runs under an ISO 9001 compliant quality system. In-house test reports for electrical, mechanical, and thermal properties as well as CoC certificates are available upon request.
What is your Minimum Order Quantity (MOQ) and lead time?

Our products are manufactured at our Beijing production facility. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.
How much does shipping cost?

Shipping is calculated based on your location and the items in your order. You will always know the shipping price before you purchase.
