Magnetic Conductive Sheets

Magnetic Conductive Sheets

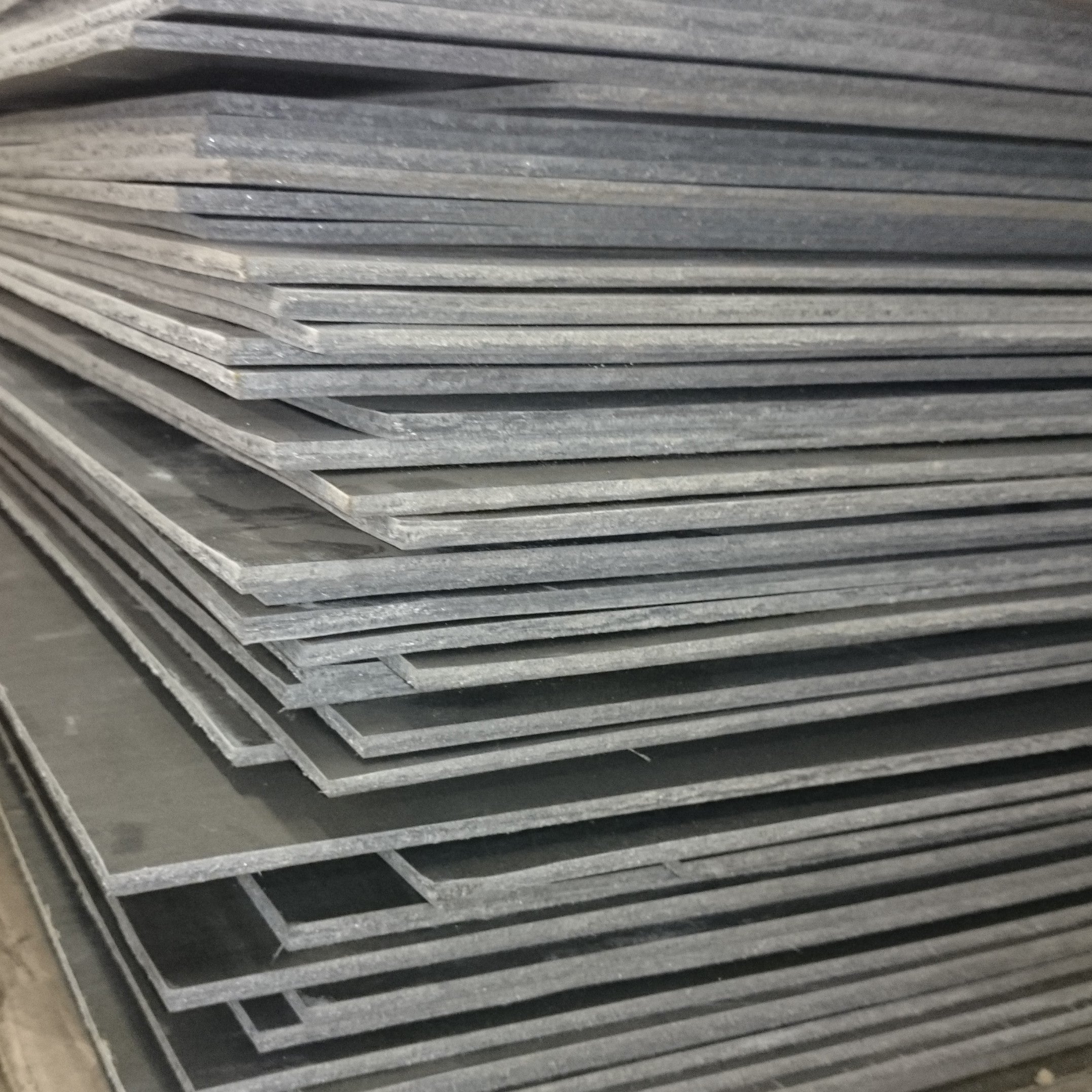

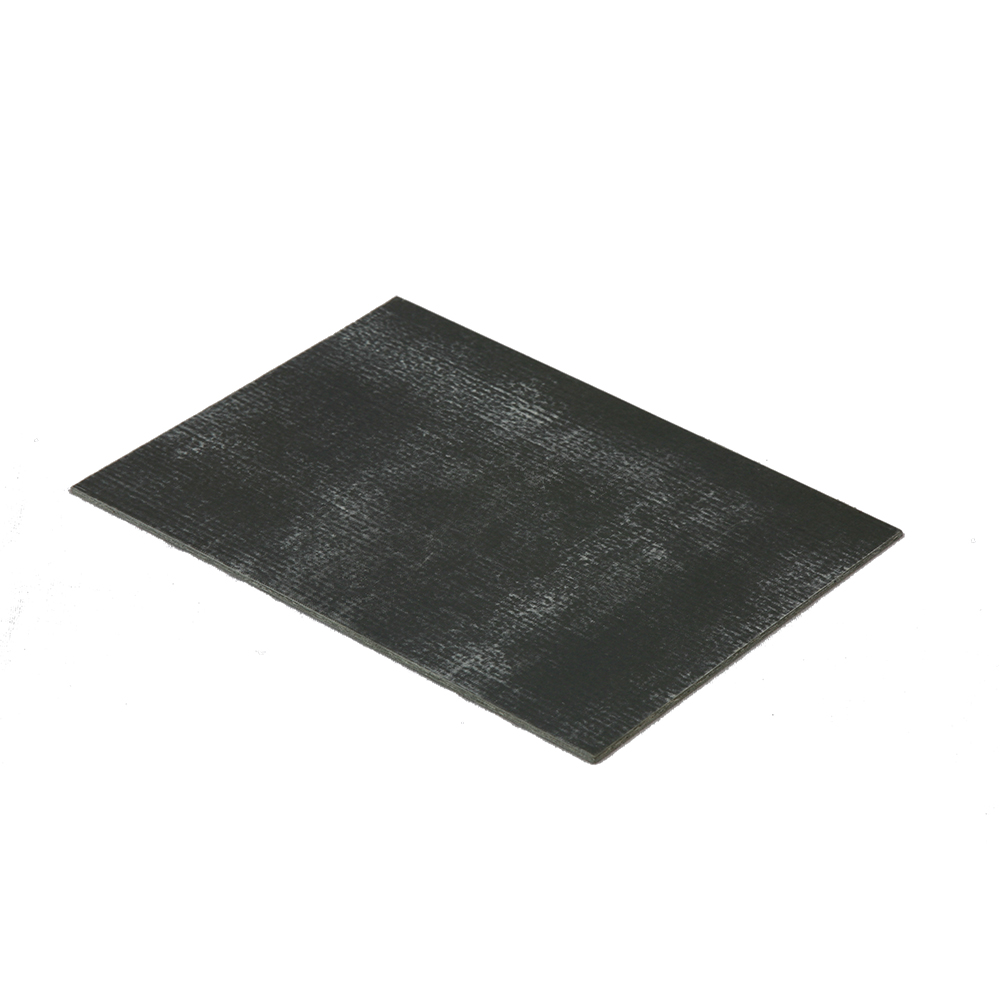

Our Epoxy Glass Fabric Magnetic-Conductive Laminate is expertly manufactured from E-glass fabric impregnated with epoxy resin and enriched with iron powder. It is precisely processed under high temperature and pressure to achieve exceptional quality. These laminates have been fully approved by international professional laboratories and trusted by customers worldwide.

Key Features & Advantages Engineered with a very tight thickness tolerance, this specialized material delivers outstanding performance:

  • Features good mechanical properties and reliable heat resistance.

  • Offers excellent magnetic permeability to effectively transform magnetic circuits.

  • Improves overall electromagnetic properties and significantly boosts working efficiency.

  • Reduces motor loss and operational noise while controlling temperature rises to save more energy.

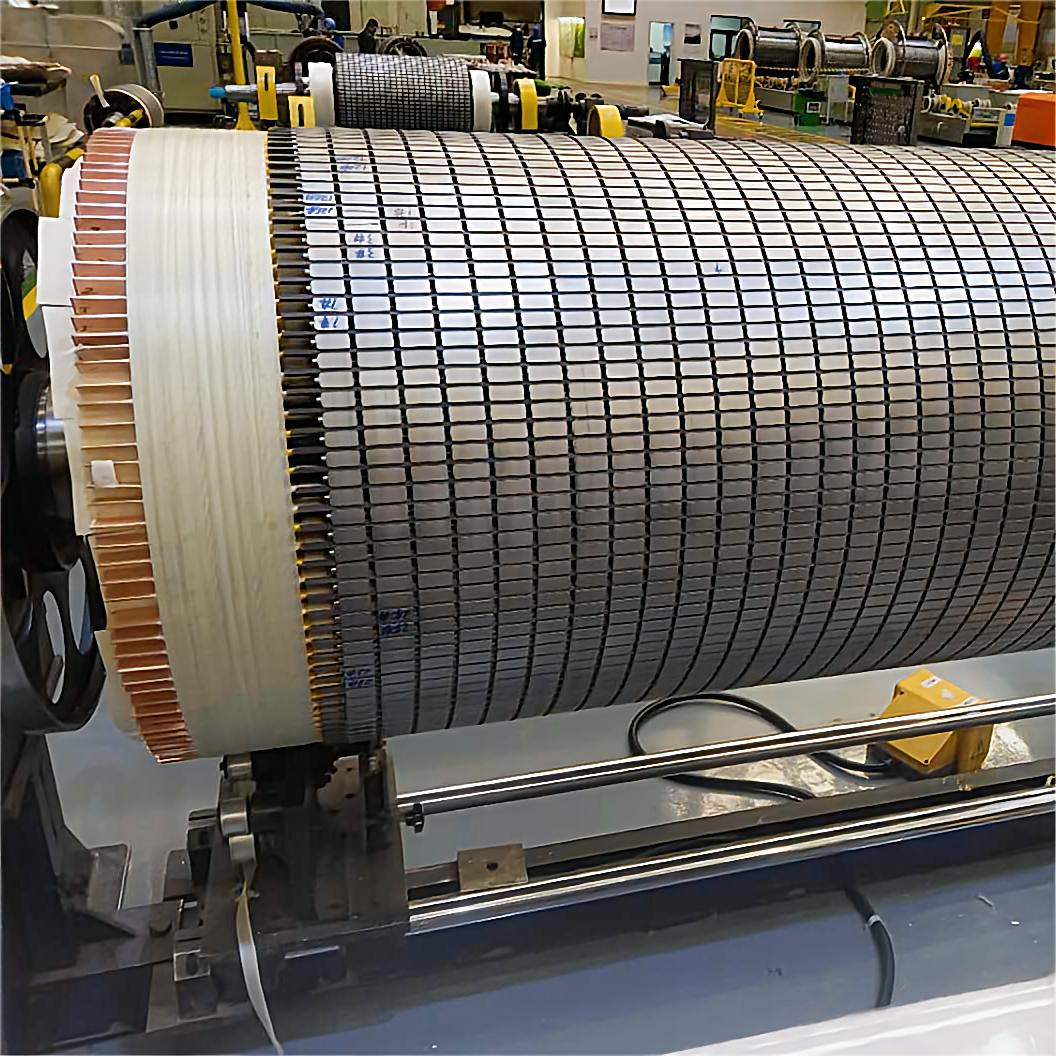

Industrial Applications Magnetic-conductive laminates are predominantly machined into slot wedges for crucial applications in generators and motors. For stators designed with open slots, these magnetic wedges serve as secure slot closures, firmly holding the inserted windings (bars or coils) in place between the stator teeth.

Basic Specifications

  • Laminate Size: 480mm x 960mm

  • Thickness Range: 2mm to 15mm

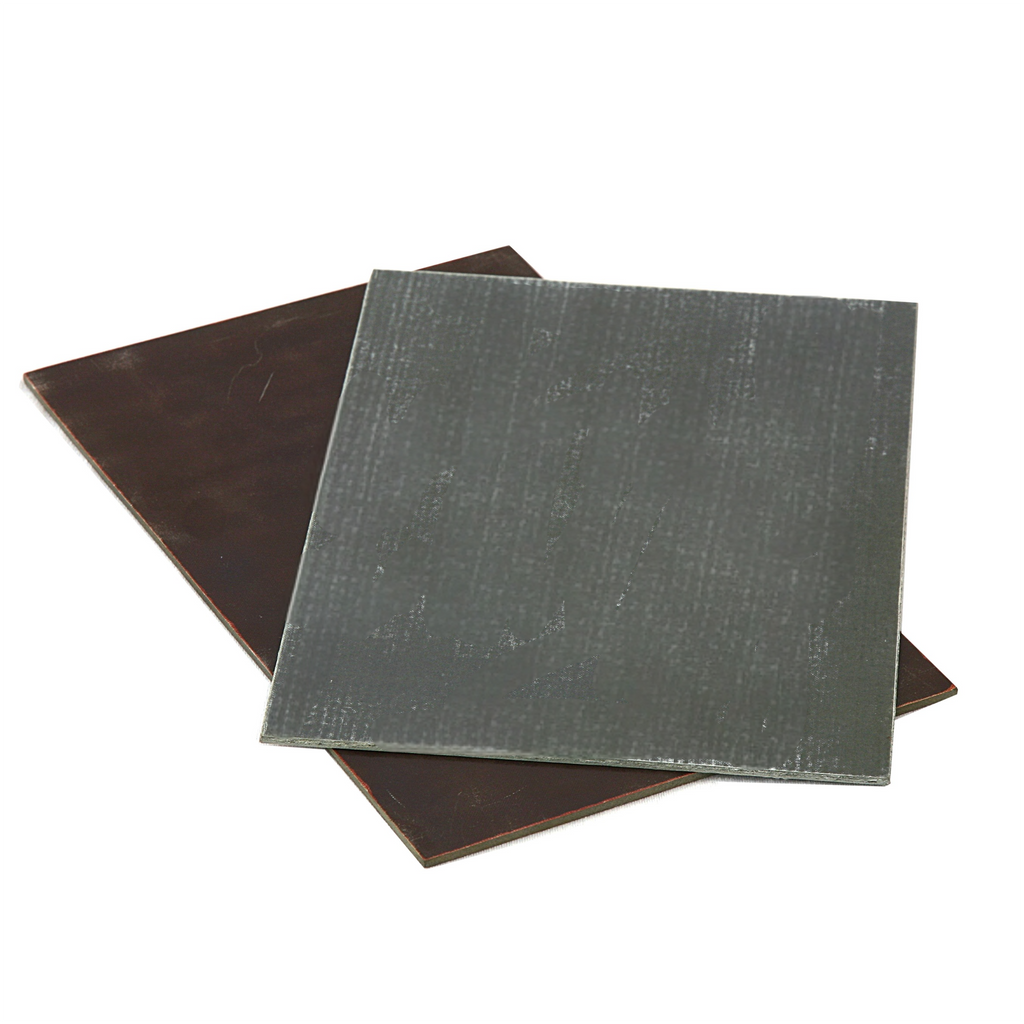

  • Standard Colors: Grey, Brown

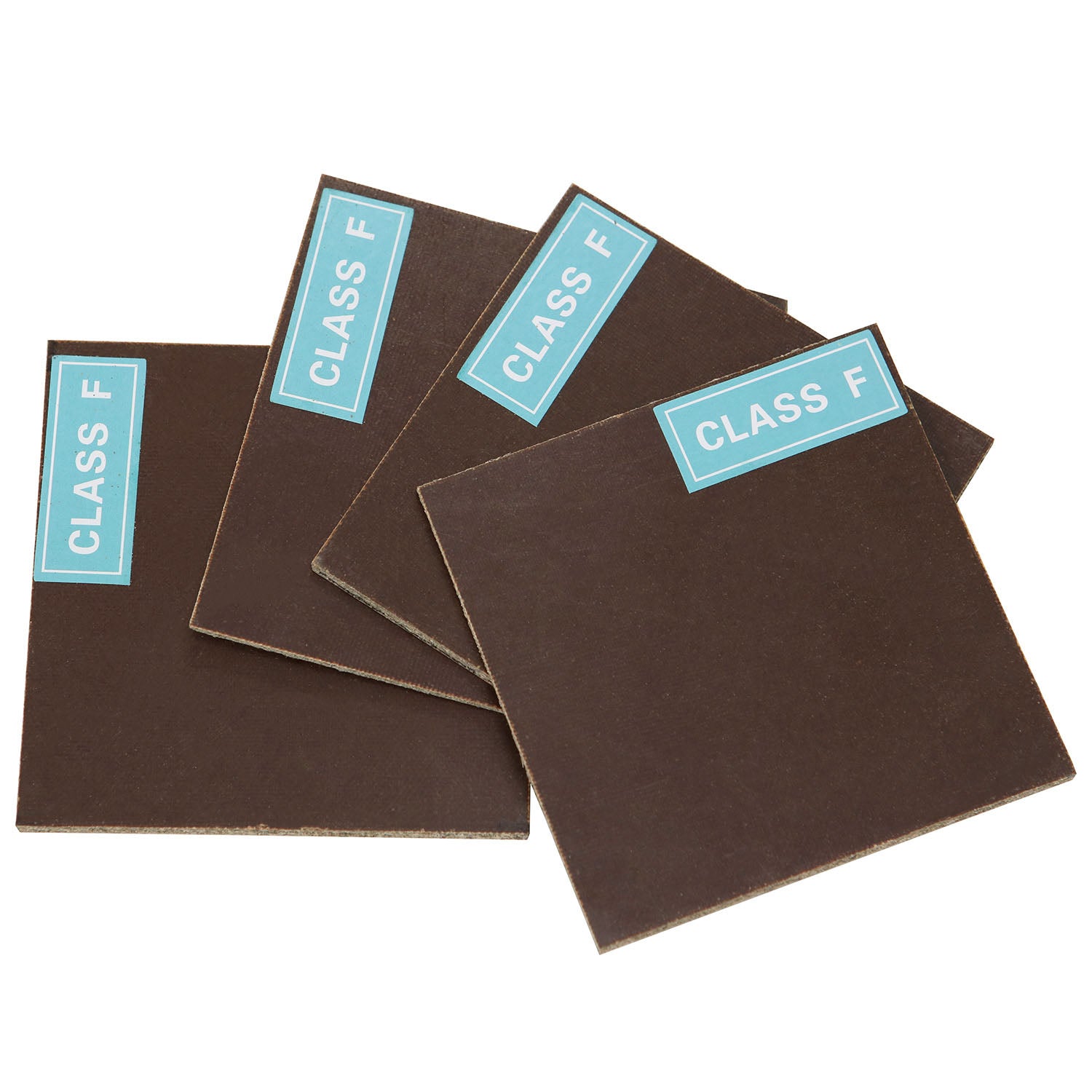

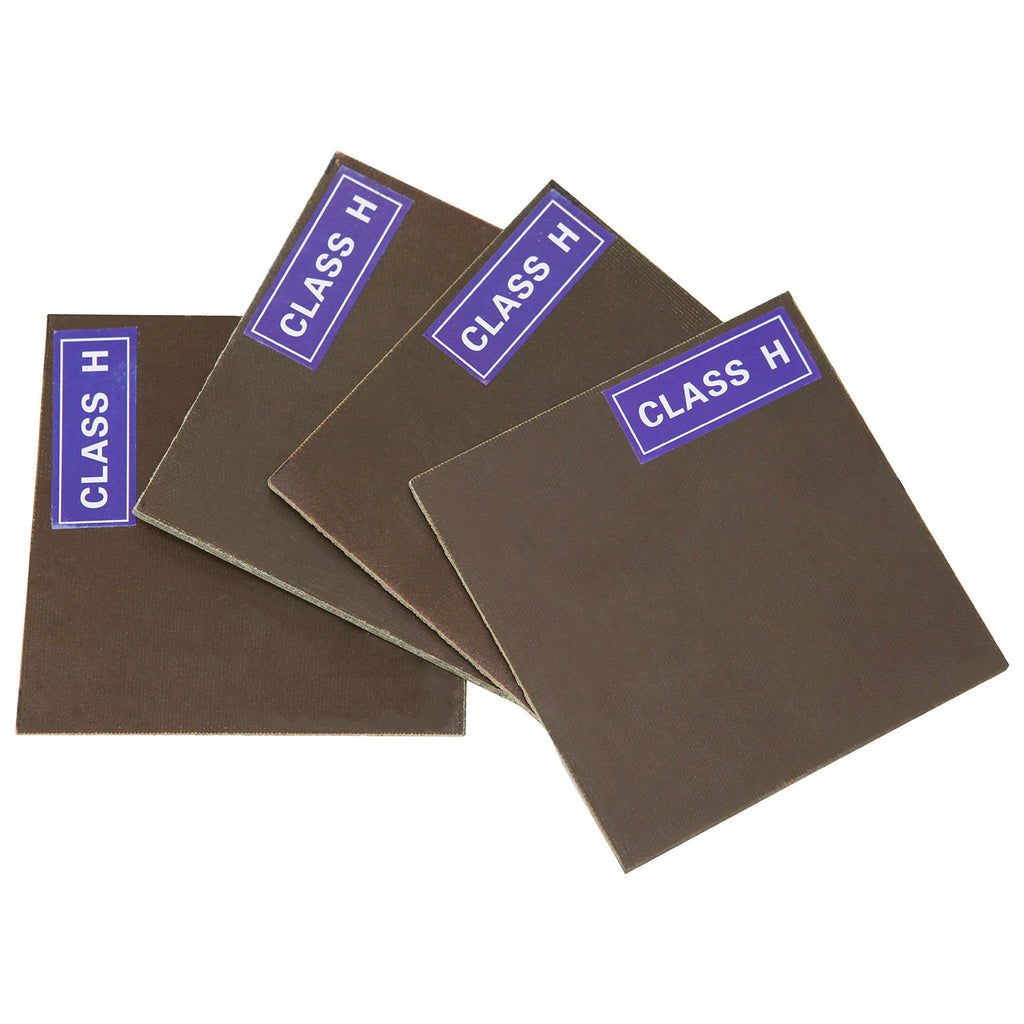

  • Thermal Grades: B, F, H
CNC Machining & Customization Capabilities
  • Custom Machining Scope: Custom cut-to-size panels and CNC components based on drawings (PDF, DWG, STEP).
  • Max Equipment Processing Area: Up to 2500mm × 2500mm (facility equipment limit).
  • Machining Thickness: Machinable thickness strictly per raw material stock limits or custom stacked/molded specs.
  • Machining Accuracy: Standard tolerance ±0.1mm; Precision tolerance up to ±0.02mm.
Quality Certificates & Compliance
  • ISO 9001 Certification: Certificate No. 04425Q10157R2S (Valid to Feb 17, 2028)
  • UL Recognition: UL File No. E538818
Ordering & Logistics Information
  • Minimum Order Quantity (MOQ):
    • Sheets & Rods: 500 kg
    • Tubes: 100 kg
    • CNC Machined Parts: 100 pcs
  • Lead Time: Quoted individually per project specifications and order volume.
  • Samples: Material samples are available upon request for testing and evaluation.

Trade & Bulk Inquiry

Connect with our specialist for tailored custom pricing and technical support.

Send Inquiry for the product →

Frequently asked questions
Which international standards does your material comply with?

Our materials comply with IEC, NEMA, DIN, ASTM, and UL standards. We provide direct equivalents to NEMA grades (e.g., G10, FR4, G11, G7, GPO-3) and IEC EPGC series.
Do you provide custom CNC machining services based on drawings?

Yes. Operating over 100 CNC machining centers, we manufacture custom-shaped parts from your drawings (PDF, DWG, STEP) with machining accuracy up to ±0.05mm.
Under which quality management system do you operate?

Production runs under an ISO 9001 compliant quality system. In-house test reports for electrical, mechanical, and thermal properties as well as CoC certificates are available upon request.
What is your Minimum Order Quantity (MOQ) and lead time?

Our products are manufactured at our Beijing production facility. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.
How much does shipping cost?

Shipping is calculated based on your location and the items in your order. You will always know the shipping price before you purchase.
