Polyimide Glass Cloth Laminate
1/5
  • Polyimide Glass Cloth Laminate
  • Polyimide Glass Cloth Laminate
  • Polyimide Glass Cloth Laminate
  • Polyimide Glass Cloth Laminate
  • Polyimide Glass Cloth Laminate

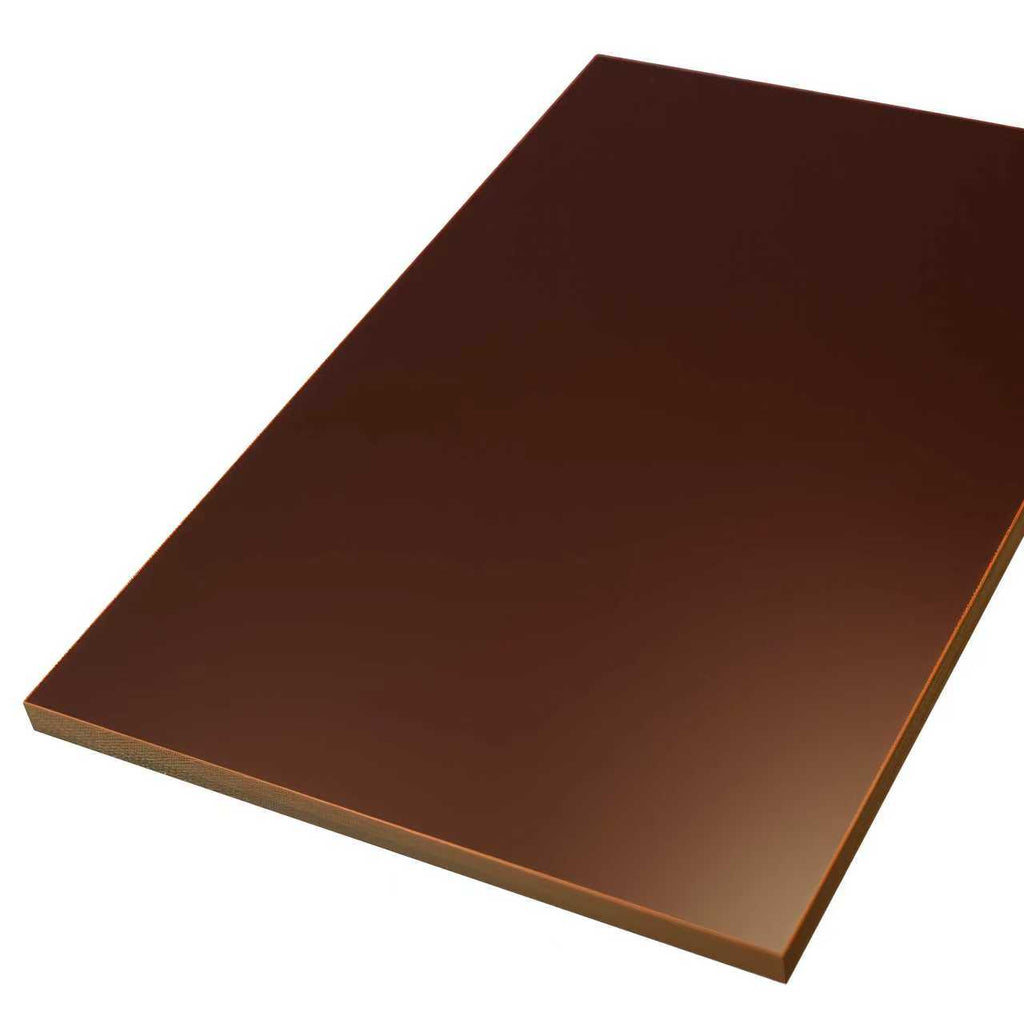

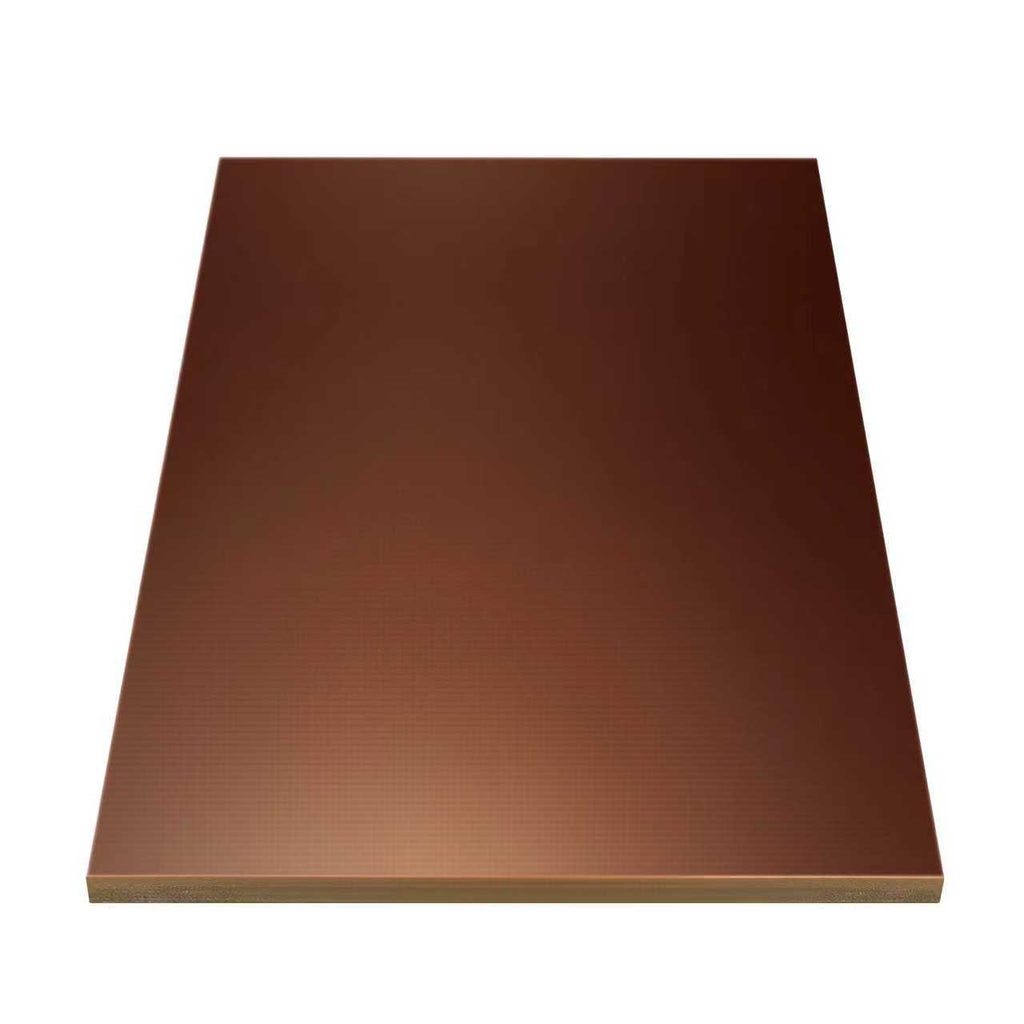

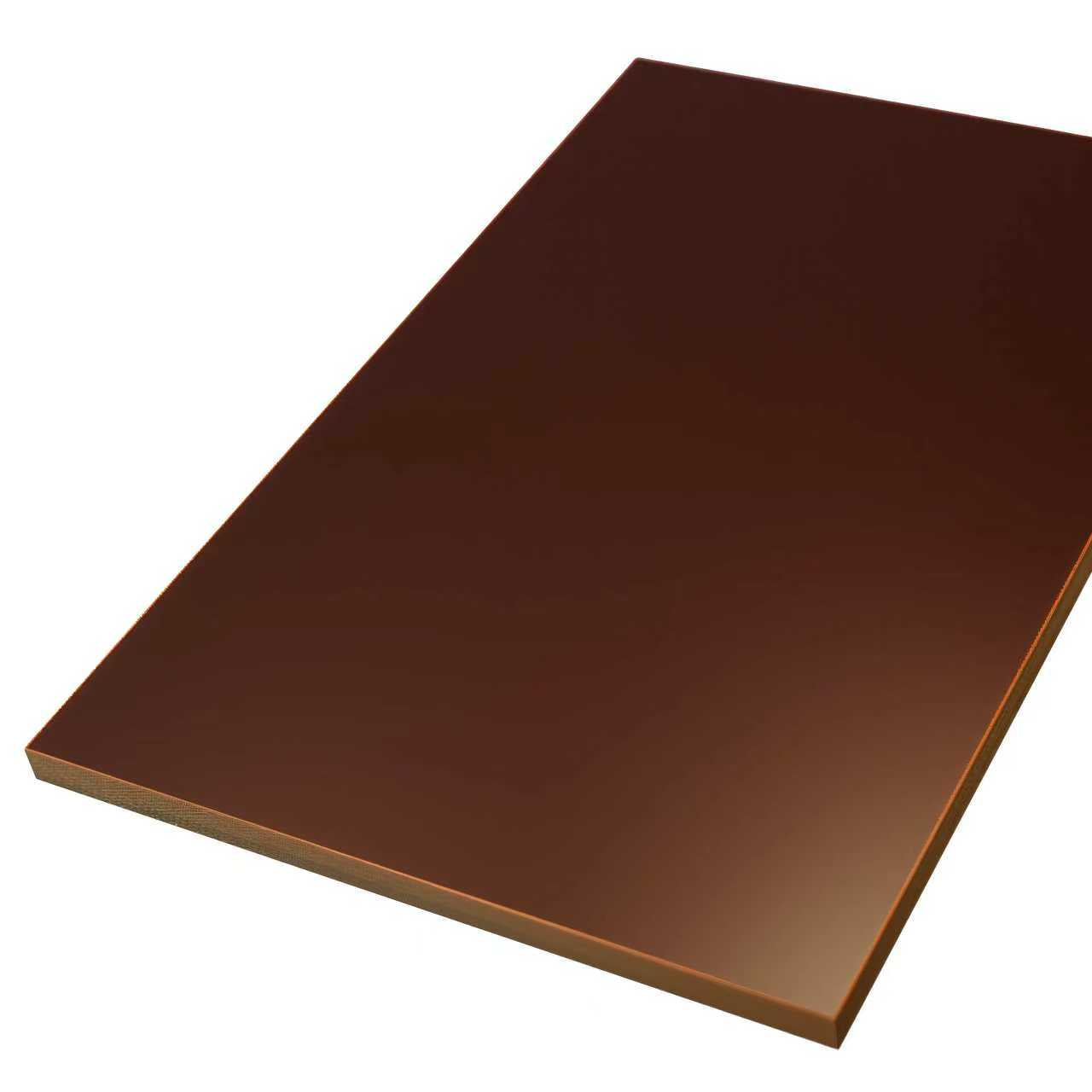

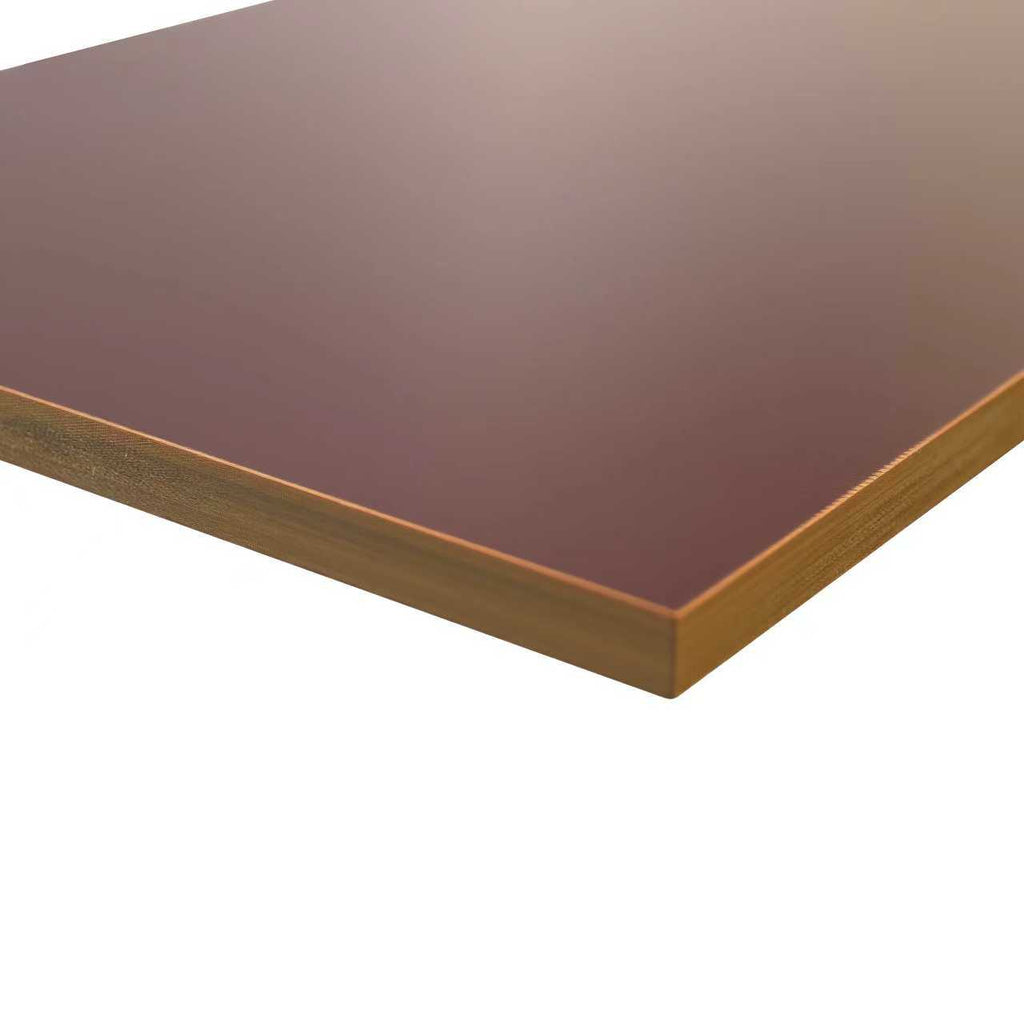

Polyimide Glass Cloth Laminate

Polyimide Glass Cloth Laminate

Our L301 Polyimide Glass Cloth Laminate, featuring performance similar to PIGC301, is a high-temperature, high-performance composite material. It is expertly manufactured from layers of fine, plain-weave glass fabric treated with an advanced Polyimide Resin system. With a high temperature index of 200ºC, this material is engineered for applications where good dimensional stability, excellent electrical properties, and high mechanical rigidity are absolutely required at elevated temperatures.

Key Performance & Heat Resistance

  • Continuous Operation: Fully capable of long-term use at 200ºC.

  • Intermittent Use: Safely supports intermittent use at even higher temperatures.

  • Mechanical Stability: Remarkably maintains excellent mechanical properties and structural integrity even at extreme temperatures up to 250ºC.

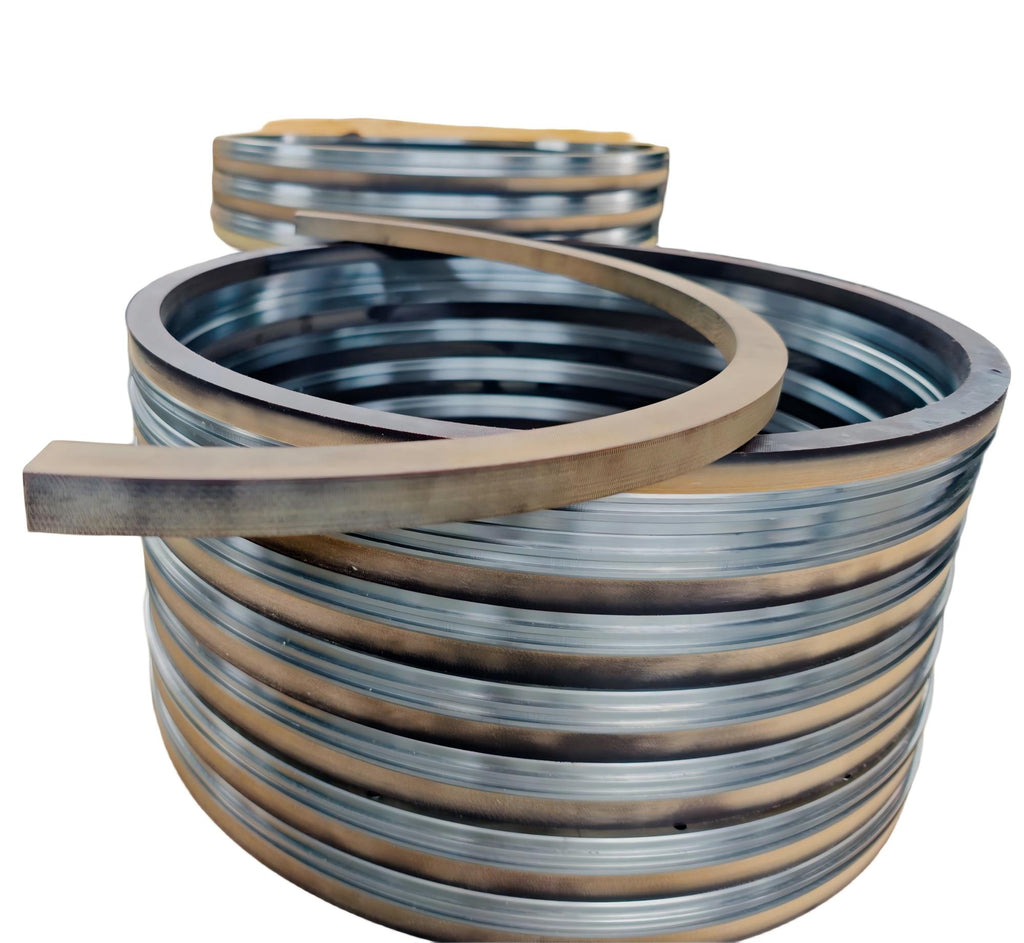

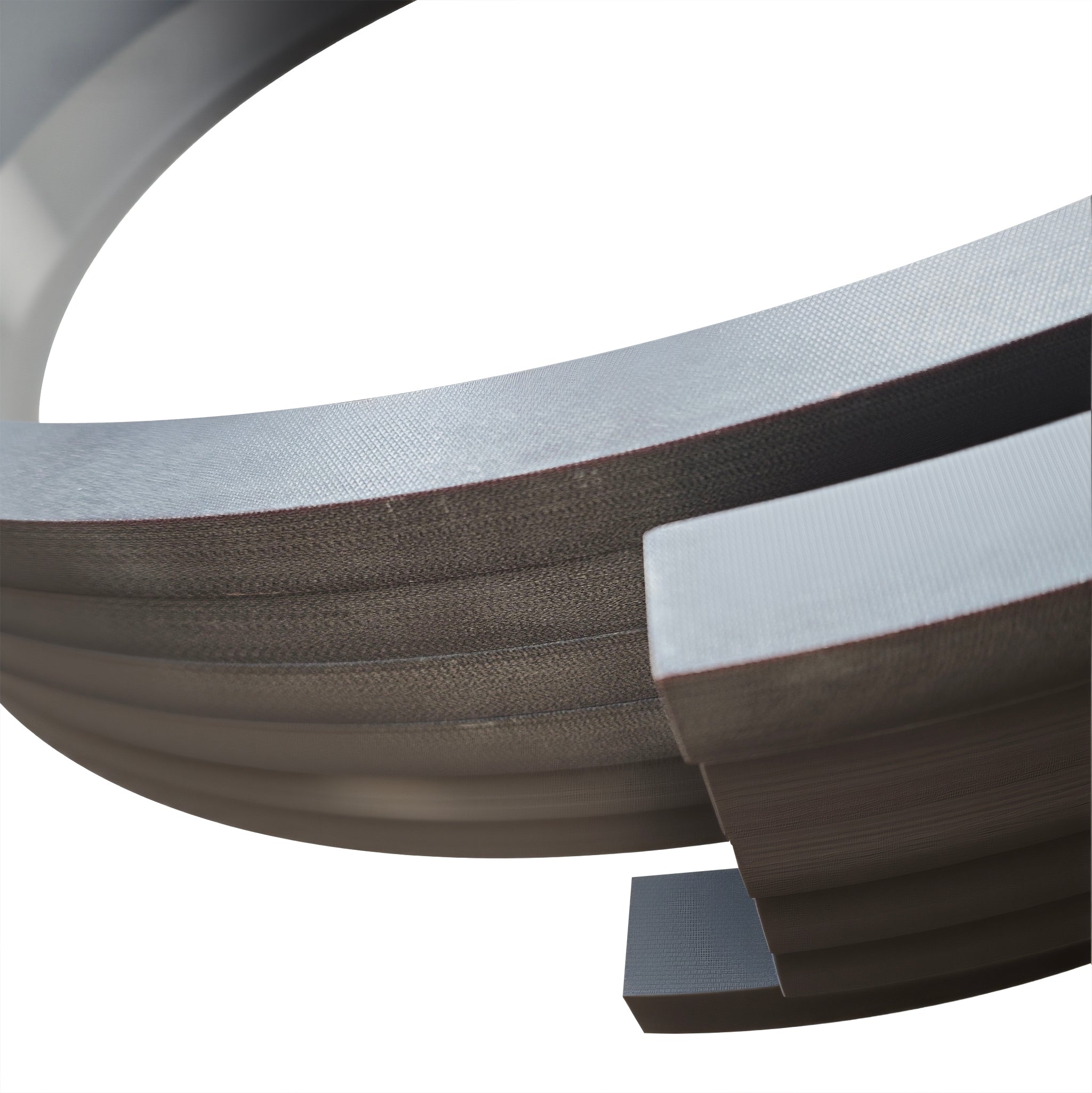

Industrial Applications Due to its outstanding thermal endurance, this Class C laminate is mainly utilized for high-heat applications. It is the perfect choice for high-heat insulating structural parts that must reliably withstand operating temperatures above 200 degrees.

Basic Specifications

  • Thickness Range: 0.1mm - 150mm

  • Standard Sizes: 1020 x 1220mm, 1220 x 2440mm

  • Standard Color: Dark Brown

  • Thermal Class: C
CNC Machining & Customization Capabilities
  • Custom Machining Scope: Custom cut-to-size panels and CNC components based on drawings (PDF, DWG, STEP).
  • Max Equipment Processing Area: Up to 2500mm × 2500mm (facility equipment limit).
  • Machining Thickness: Machinable thickness strictly per raw material stock limits or custom stacked/molded specs.
  • Machining Accuracy: Standard tolerance ±0.1mm; Precision tolerance up to ±0.02mm.
Quality Certificates & Compliance
  • ISO 9001 Certification: Certificate No. 04425Q10157R2S (Valid to Feb 17, 2028)
  • UL Recognition: UL File No. E538818
Ordering & Logistics Information
  • Minimum Order Quantity (MOQ):
    • Sheets & Rods: 500 kg
    • Tubes: 100 kg
    • CNC Machined Parts: 100 pcs
  • Lead Time: Quoted individually per project specifications and order volume.
  • Samples: Material samples are available upon request for testing and evaluation.

Trade & Bulk Inquiry

Connect with our specialist for tailored custom pricing and technical support.

Send Inquiry for the product →

Frequently asked questions
Which international standards does your material comply with?

Our materials comply with IEC, NEMA, DIN, ASTM, and UL standards. We provide direct equivalents to NEMA grades (e.g., G10, FR4, G11, G7, GPO-3) and IEC EPGC series.
Do you provide custom CNC machining services based on drawings?

Yes. Operating over 100 CNC machining centers, we manufacture custom-shaped parts from your drawings (PDF, DWG, STEP) with machining accuracy up to ±0.05mm.
Under which quality management system do you operate?

Production runs under an ISO 9001 compliant quality system. In-house test reports for electrical, mechanical, and thermal properties as well as CoC certificates are available upon request.
What is your Minimum Order Quantity (MOQ) and lead time?

Our products are manufactured at our Beijing production facility. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.
How much does shipping cost?

Shipping is calculated based on your location and the items in your order. You will always know the shipping price before you purchase.
