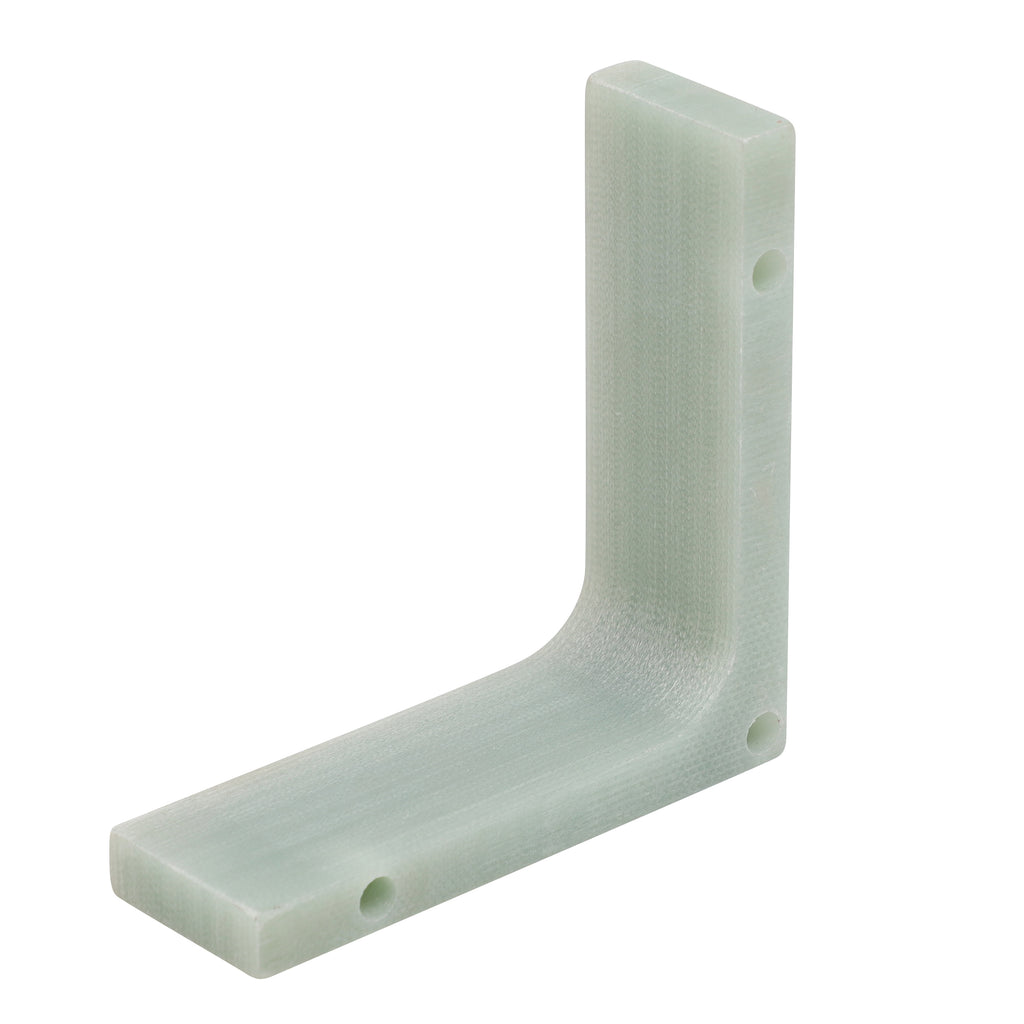

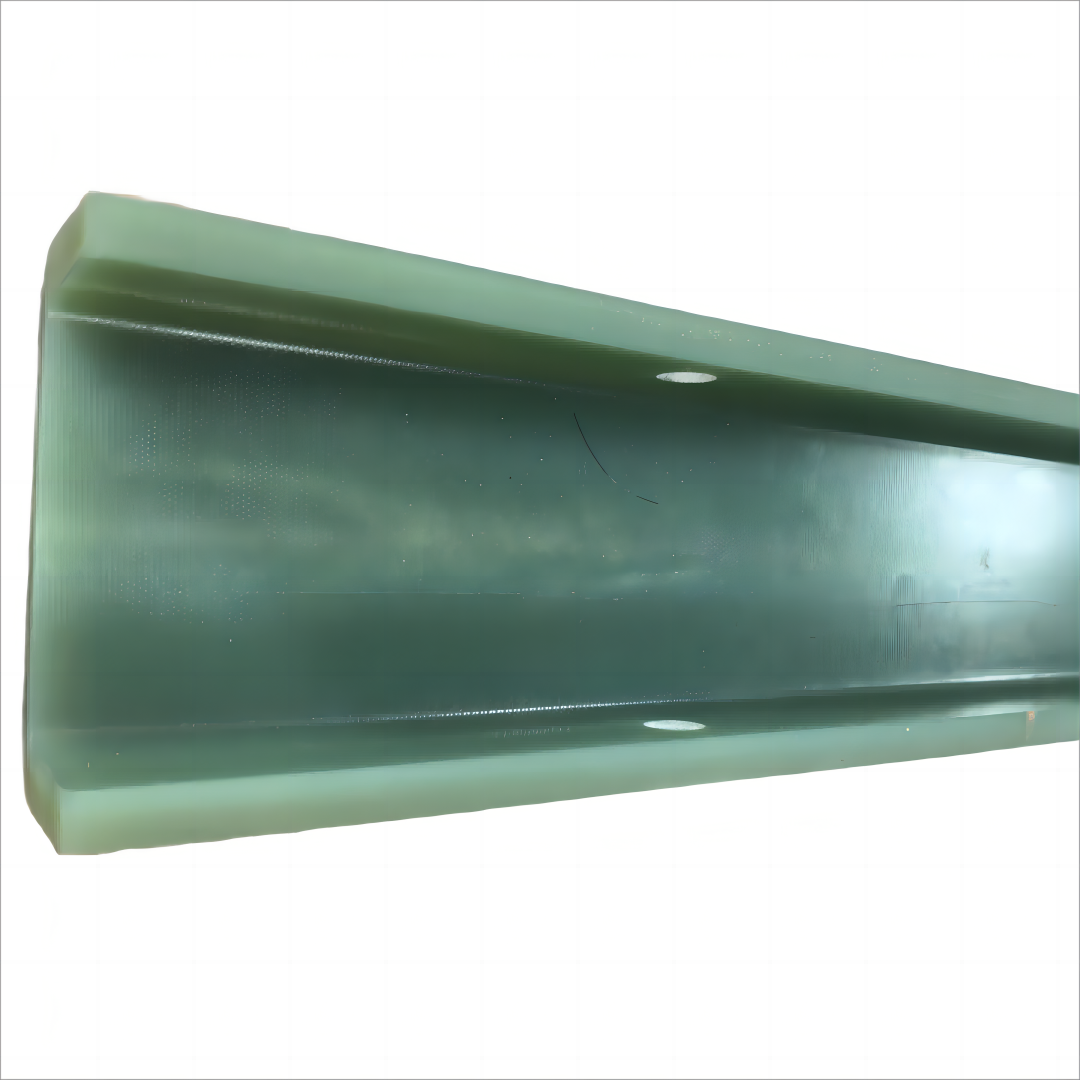

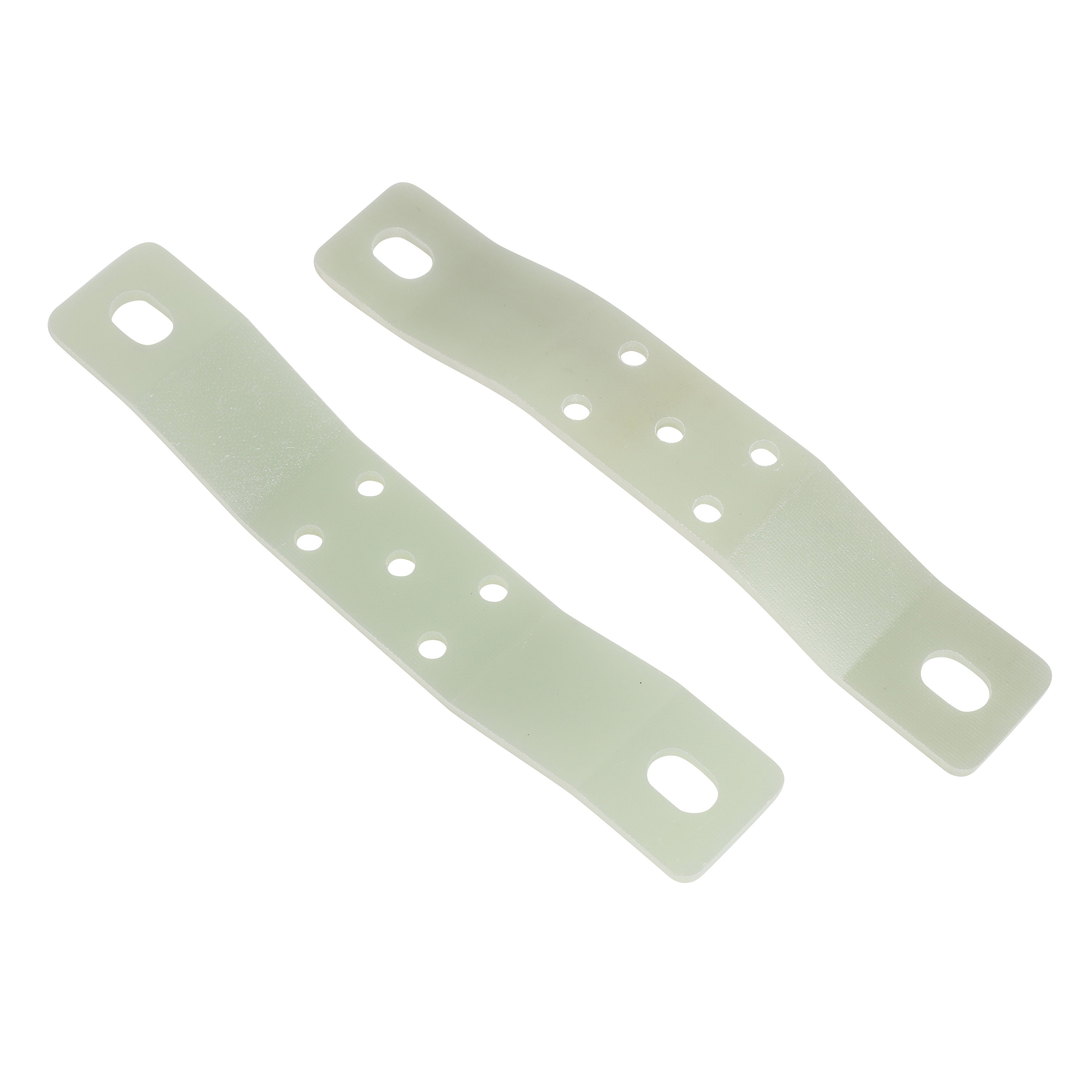

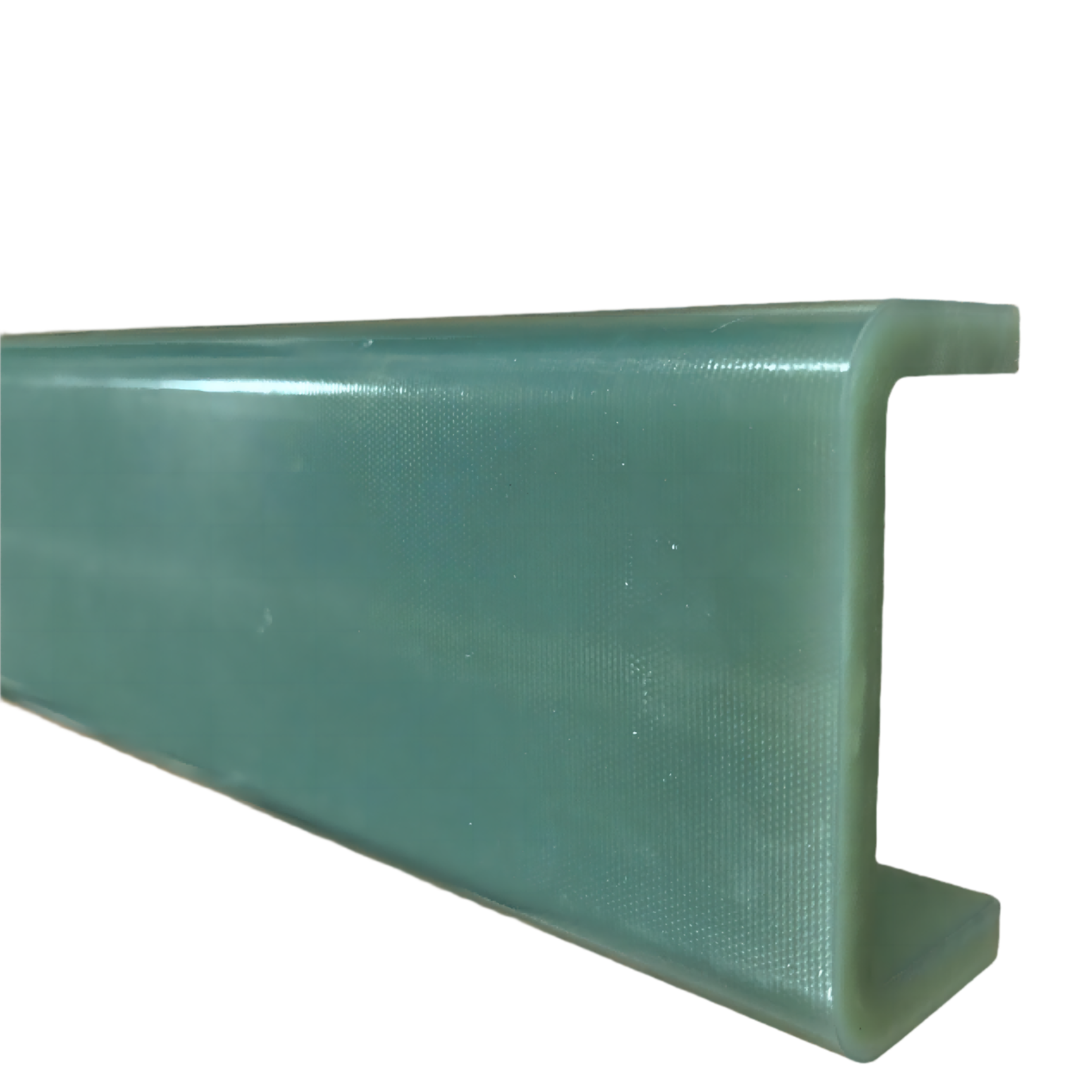

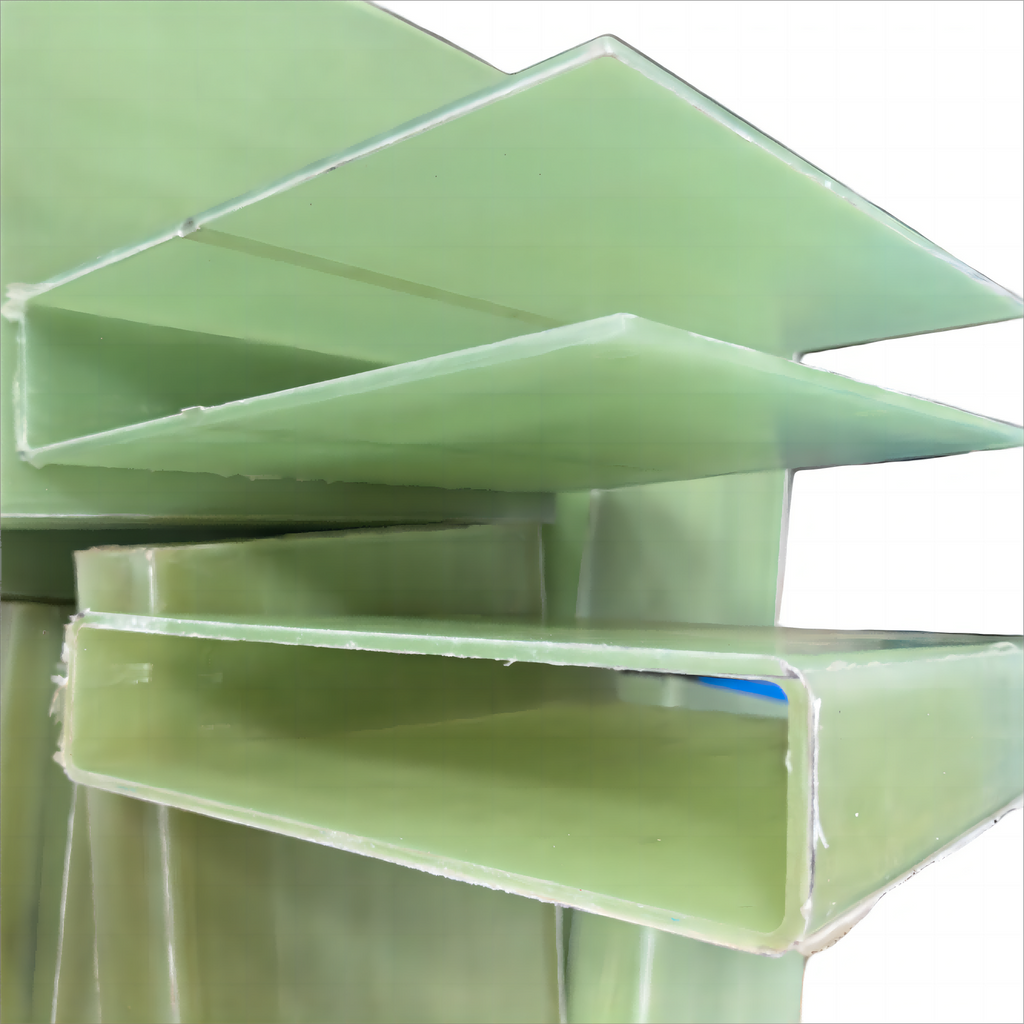

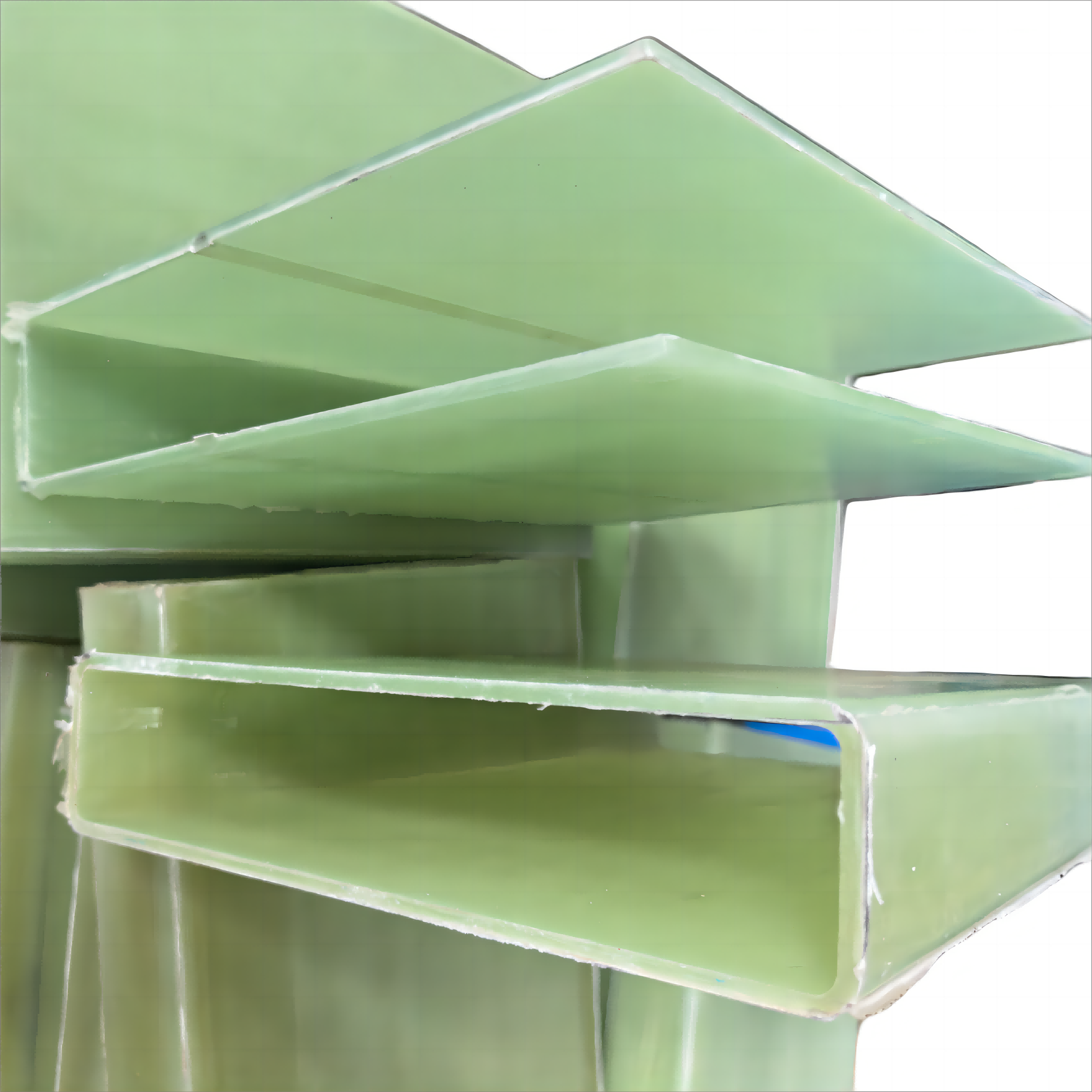

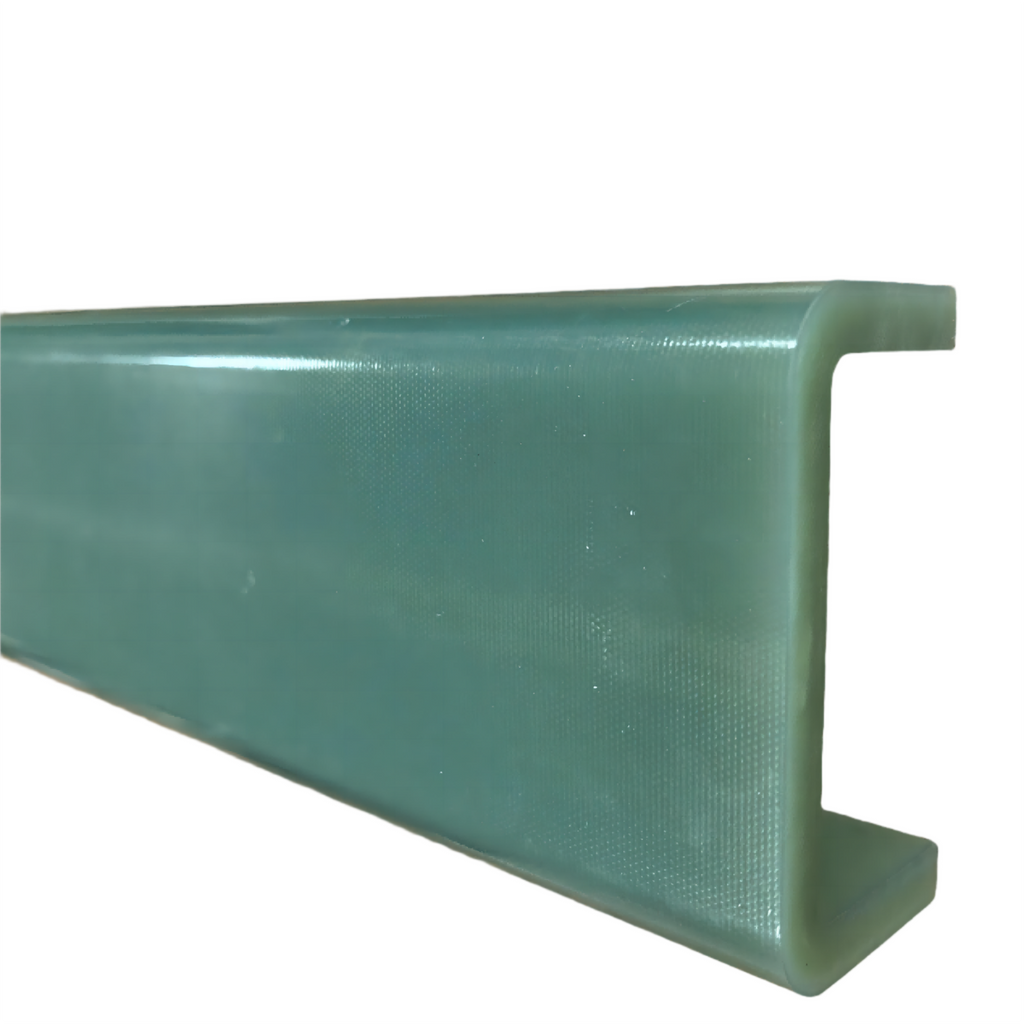

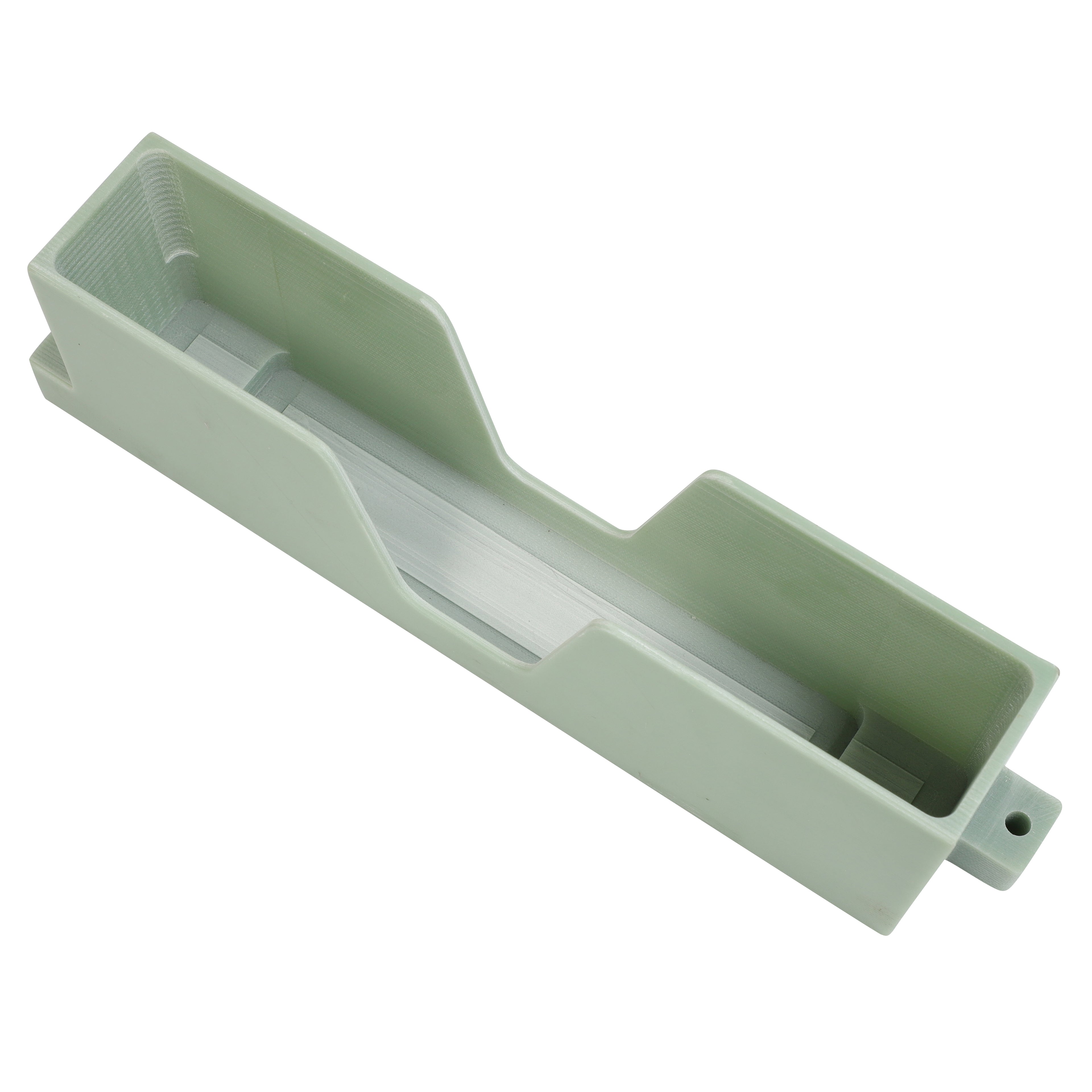

Epoxy Molding Parts

Epoxy Molding Parts

Our Epoxy Composites are known for their exceptional electrical and mechanical properties, as well as their superior heat and moisture resistance. These materials are ideal for insulating structural components in motors, electrical and mechanical equipment, and can even be used in transformer oil.

At RDS, we specialize in manufacturing custom Epoxy Glass Fabric Molding Products to meet your specific requirements. When CNC machining proves challenging or results in material waste, we employ the molding process, ensuring high-quality results with minimal loss.

Our Process:

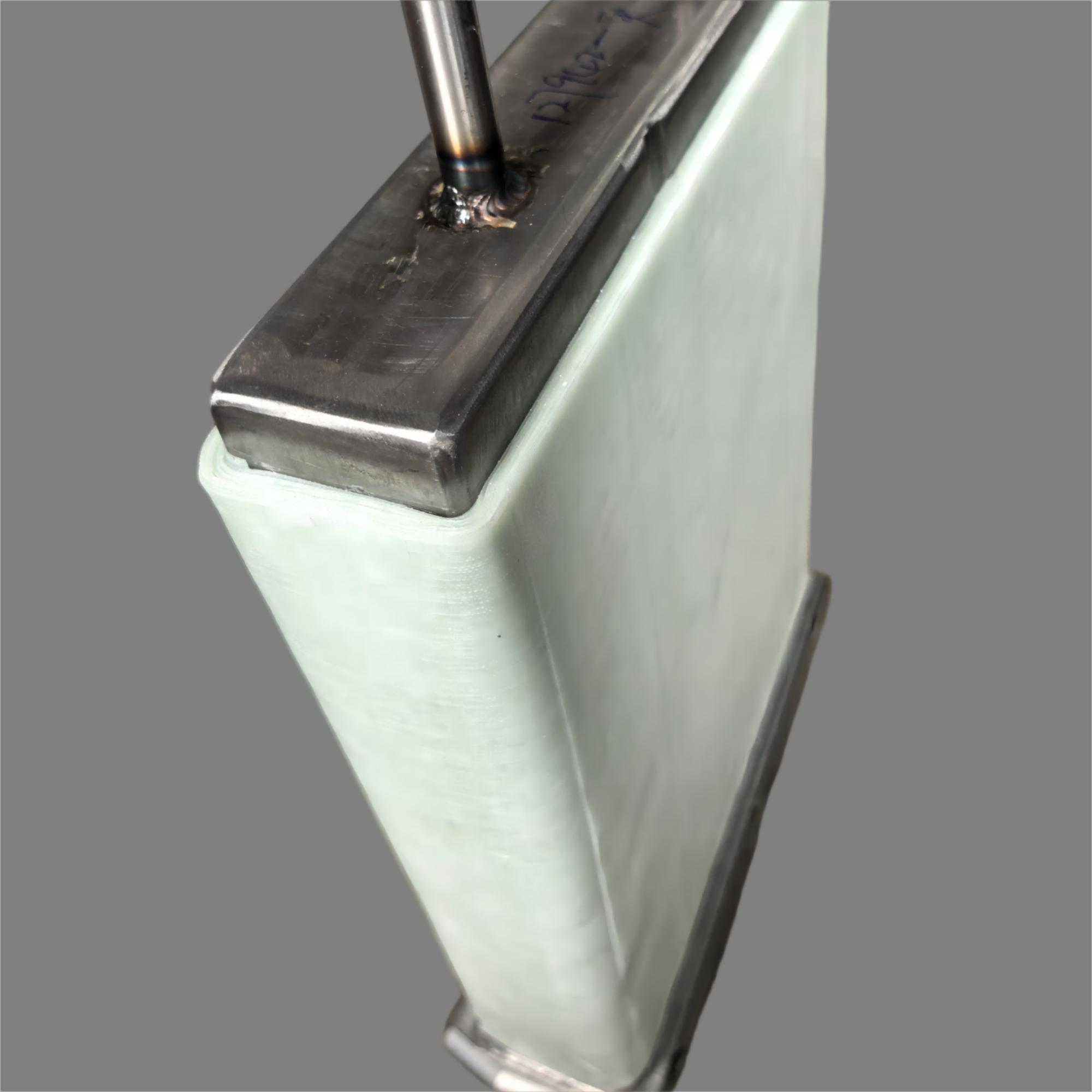

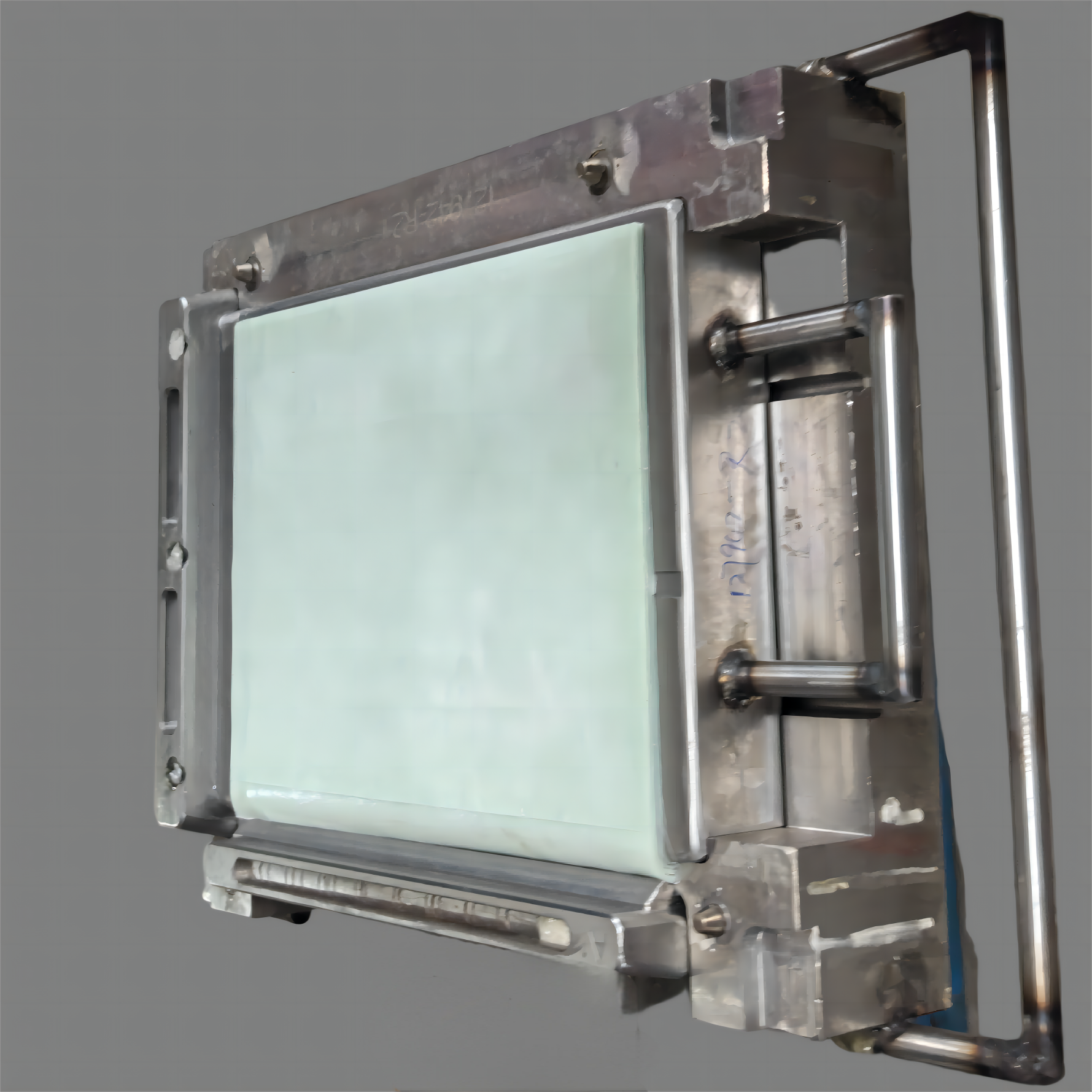

  1. Custom Mold Creation: We start by creating molds based on your drawings or samples.

  2. Prepreg Production: Depending on the application, we select the appropriate type of glass cloth to produce the prepreg.

  3. Prepreg Shaping: We calculate the necessary amount of prepreg to fill the mold, cut it into precise shapes, and place them into the mold.

  4. High-Pressure Molding: The mold is then subjected to high pressure and temperature, ensuring the prepreg fully cures and takes the desired shape.

  5. CNC Finishing: After removing the molded part, we trim excess flash and use CNC machines to achieve the final product specifications.

With RDS, you get precision-engineered epoxy molding parts designed to meet the highest standards, perfect for demanding industrial applications.
CNC Machining & Customization Capabilities
  • Custom Machining Scope: Custom cut-to-size panels and CNC components based on drawings (PDF, DWG, STEP).
  • Max Equipment Processing Area: Up to 2500mm × 2500mm (facility equipment limit).
  • Machining Thickness: Machinable thickness strictly per raw material stock limits or custom stacked/molded specs.
  • Machining Accuracy: Standard tolerance ±0.1mm; Precision tolerance up to ±0.02mm.
Quality Certificates & Compliance
  • ISO 9001 Certification: Certificate No. 04425Q10157R2S (Valid to Feb 17, 2028)
  • UL Recognition: UL File No. E538818
Ordering & Logistics Information
  • Minimum Order Quantity (MOQ):
    • Sheets & Rods: 500 kg
    • Tubes: 100 kg
    • CNC Machined Parts: 100 pcs
  • Lead Time: Quoted individually per project specifications and order volume.
  • Samples: Material samples are available upon request for testing and evaluation.

Trade & Bulk Inquiry

Connect with our specialist for tailored custom pricing and technical support.

Send Inquiry for the product →

Frequently asked questions
Which international standards does your material comply with?

Our materials comply with IEC, NEMA, DIN, ASTM, and UL standards. We provide direct equivalents to NEMA grades (e.g., G10, FR4, G11, G7, GPO-3) and IEC EPGC series.
Do you provide custom CNC machining services based on drawings?

Yes. Operating over 100 CNC machining centers, we manufacture custom-shaped parts from your drawings (PDF, DWG, STEP) with machining accuracy up to ±0.05mm.
Under which quality management system do you operate?

Production runs under an ISO 9001 compliant quality system. In-house test reports for electrical, mechanical, and thermal properties as well as CoC certificates are available upon request.
What is your Minimum Order Quantity (MOQ) and lead time?

Our products are manufactured at our Beijing production facility. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.
How much does shipping cost?

Shipping is calculated based on your location and the items in your order. You will always know the shipping price before you purchase.
