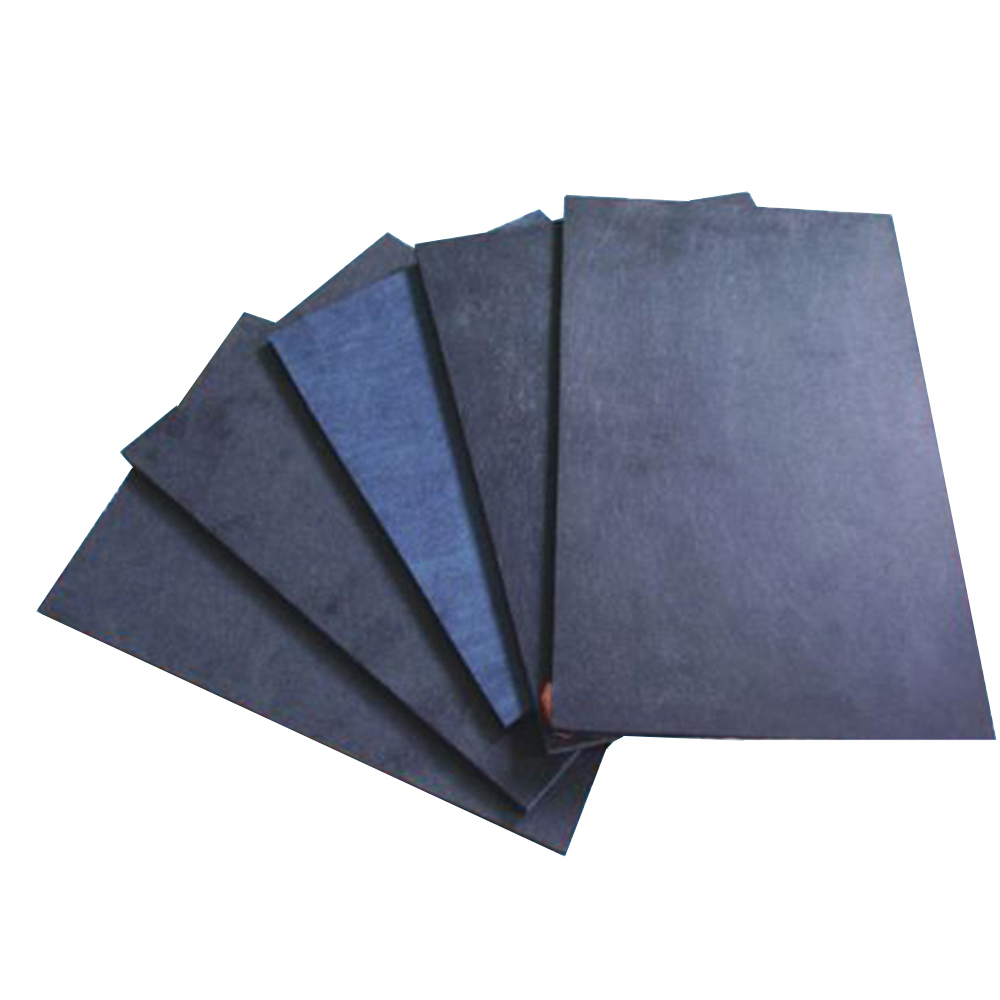

In automated Printed Circuit Board Assembly (PCBA), Synthetic Stone Solder Pallet Materials (also known as high-temperature composite carrier plates or Ricocel equivalents) are critical tools used to protect surface-mount components during wave soldering and selective reflow processes. Formed by combining high-temperature non-alkali glass mat reinforcement with specialized nanometer-filled thermosetting resin matrices, these materials are engineered specifically for extreme thermal-chemical electronic assembly environments.
To avoid confusion with architectural synthetic stones or decorative quartz plates, this engineering guide from RDS Composite focuses strictly on industrial electronics manufacturing: analyzing ESD anti-static control, continuous thermal shock endurance, dimensional anti-warpage stability, and CNC carrier machining life.
1. Primary Function in Wave & Selective Soldering
During wave soldering, PCB assemblies are conveyed across molten lead-free solder waves reaching temperatures between 260°C and 300°C. Synthetic stone solder pallets perform four essential engineering functions:
- Thermal Shielding: Masks heat-sensitive SMT components and bottom-side connectors from direct contact with molten solder waves.
- Substrate Warpage Control: Mechanically clamps thin or double-sided PCBs (≤ 1.0 mm thickness) to prevent thermal twisting and pad misalignments during thermal cycles.
- Flux & Solder Wave Management: Features custom CNC-milled solder pockets and flow channels that direct molten solder precisely to through-hole component leads.
- Multi-Board Carrier Efficiency: Holds multiple irregular PCBA panels on a single standardized conveyor carrier, maximizing throughput.
2. Electrostatic Discharge (ESD) Protection Parameters
Static electricity discharge during PCB loading and unloading can catastrophically destroy sensitive CMOS ICs and power semiconductors. Synthetic stone materials incorporate carbon black conductive networks to achieve controlled static dissipation:
| ESD Electrical Parameter | Standard ESD Engineering Range | Standard Test Protocol |
|---|---|---|
| Surface Resistivity | 106 to 109 Ω/sq (Static Dissipative) | ANSI/ESD STM11.11 / IEC 61340 |
| Volume Resistivity | 106 to 109 Ω·cm | ANSI/ESD STM11.12 |
| Static Decay Time | < 0.1 seconds (±5000V to ±50V) | FTMS 101C Method 4046 |
3. Thermal Cycling Performance & Low-CTE Warpage Resistance
Lead-free wave soldering subjects carrier pallets to severe repeated thermal shock (heating from 23°C to 280°C within 30 seconds followed by rapid forced air cooling). Synthetic stone materials prevent dimensional drift through high glass transition temperatures (Tg > 300°C):
| Material Property | Typical Engineering Value | Operational Benefit |
|---|---|---|
| Continuous Operating Temp | 280°C (Short-term peak up to 350°C) | Prevents resin softening or delamination under lead-free solder waves. |
| Coefficient of Thermal Expansion (CTE) | 12 × 10-6 / K (In-plane xy-axis) | Matches thermal expansion rate of FR4 PCBs to prevent pin alignment binding. |
| Flux Corrosion Resistance | Zero surface swelling / weight gain | Resists chemical breakdown from aggressive water-soluble or no-clean rosin fluxes. |
4. CNC Machining Precision & Service Life Cycles
Because wave solder pallets feature complex 3D recessed step-pockets, thin wall dividers (≤ 1.0 mm), and threaded hold-down clamps, machining precision directly determines pallet longevity:
- Thin-Wall Milling Capability: High density and uniform filler distribution allow milling of 0.8 mm vertical pocket walls and micro-grooves without edge chipping or fiber fuzzing.
- Tooling Recommendations: Diamond-Coated (CVD/PCD) end mills are recommended. Solid carbide tools experience rapid wear due to the abrasive glass content of synthetic stone.
- Expected Over-Furnace Life Cycle: High-grade synthetic stone solder pallets withstand 15,000 to 25,000 over-furnace thermal cycles under standard production conditions before requiring pocket re-milling or fixture replacement.
To learn how synthetic stone compares with other high-temperature thermoset sheet materials, explore our master navigation overview: Epoxy & High-Performance Board Specifications Guide.
