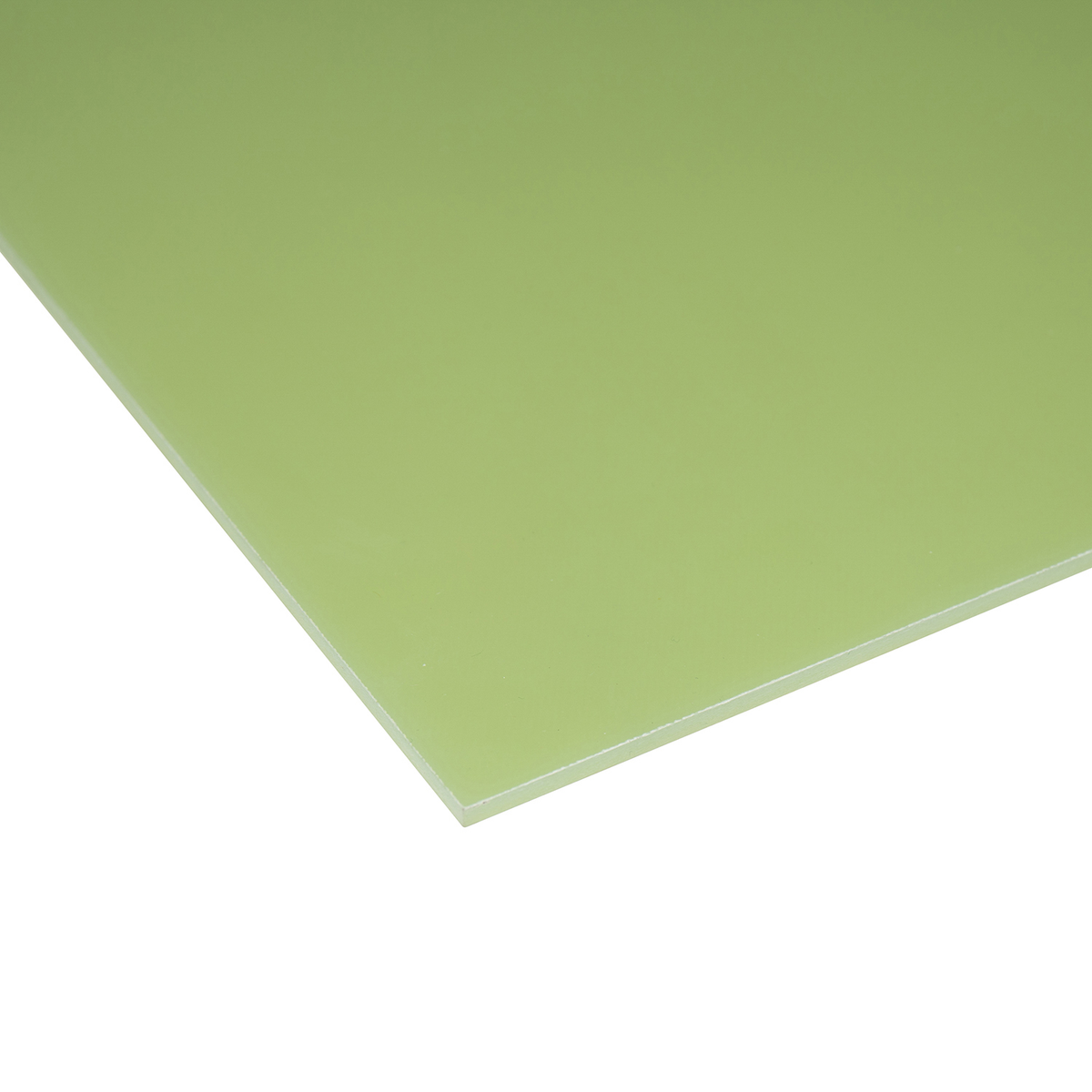

Epoxy fiberglass laminated boards are the backbone of modern electrical insulation and structural composite engineering. Standardized globally under NEMA LI-1 (USA) and IEC 60893 (International) protocols, these thermoset laminates offer predictable mechanical rigidity, low moisture absorption, and outstanding dielectric strength across high-voltage and high-temperature environments.
This technical guide from RDS Composite provides a comprehensive engineering breakdown of standard thermoset epoxy grades, interprets critical thickness tolerances, evaluates surface finish options, and establishes practical machining allowance strategies for custom CNC fabrication.
1. Standard Standards Origin & Grade Comparison Matrix
Originally developed in the mid-20th century to replace paper-phenolic boards in radar and electrical switchboards, epoxy-glass laminates evolved from un-retarded formulations (G10) to flame-retardant variants (FR4) and high-temperature class systems (G11/FR5):
| NEMA Grade | IEC 60893 Designation | Thermal Class & Temp Index | Key Engineering Distinction |
|---|---|---|---|
| NEMA G10 | EPGC201 / EPGC202 | Class B (130°C) | Standard glass-epoxy; high flexural strength at ambient temperatures; non-flame retardant. |
| NEMA FR4 | EPGC202 | Class B (130°C) | Brominated resin system; self-extinguishing flame retardancy (UL 94 V-0 benchmark). |
| NEMA G11 | EPGC203 / EPGC204 | Class H (180°C) | High thermal retention; retains >50% flexural strength at 150°C elevated temperature. |
| NEMA FR5 | EPGC204 | Class H (180°C) | Combines Class H heat resistance with UL 94 V-0 flame retardancy for extreme environments. |
2. Sheet Thickness & Manufacturing Tolerances
Epoxy glass laminates are produced by hydraulic press consolidation of prepregs. Standard thickness ranges from 0.2 mm up to 100 mm+, with tolerances governed by NEMA LI-1 and ISO standards:
| Nominal Thickness Range | Standard NEMA Class A Tolerance | Precision Ground Class B Tolerance | Flatness / Warp Allowance |
|---|---|---|---|
| 0.5 mm to 2.0 mm | ±0.10 mm to ±0.15 mm | ±0.05 mm | ≤ 1.0% diagonal length |
| 2.5 mm to 10.0 mm | ±0.20 mm to ±0.35 mm | ±0.08 mm | ≤ 0.5% diagonal length |
| 12.0 mm to 50.0 mm+ | ±0.45 mm to ±0.80 mm | ±0.10 mm | ≤ 0.25% diagonal length |
3. Surface Finish Options: Press Finish vs. Sanded/Ground
The surface condition of an epoxy glass sheet directly influences dielectric tracking, adhesive bonding performance, and assembly stack-up thickness:
- Press Satin Finish (Un-sanded Gloss): Features a smooth, resin-rich outer film formed directly against polished press platens. Provides maximum resistance to moisture absorption and optimal surface arc tracking prevention.
- Sanded / Precision Ground Finish: Both top and bottom faces are mechanically abraded via wide-belt sanders. Eliminates resin thickness taper, provides tight thickness uniformity (±0.05 mm), and creates a textured mechanical key ideal for structural adhesive bonding.
4. Machining Allowances & Edge Trimming Strategies
Converting full sheet stock (standard 1020 mm × 1220 mm or 1220 mm × 2440 mm) into finished CNC milled insulation components requires accounting for edge trim margins and material removal stock:
- As-Molded Edge Trim Allowance: Raw press sheets exhibit 10 mm to 15 mm of un-consolidated, resin-starved outer border area. Component nesting programs must exclude the outer 15 mm sheet perimeter.
- CNC Milling Kerf Allowance: Standard diamond-coated router bits (PCD) require a 3.175 mm (1/8") or 6.0 mm cutter diameter clearance between nested parts to prevent kerf chatter and glass edge delamination.
- Post-Punching Relief: For thin sheets (≤ 2.0 mm) undergoing die punching, a 1.5× sheet thickness minimum edge distance from holes to sheet borders must be maintained to prevent cracking.
To review detailed laboratory test reports and IEC technical specifications for our epoxy laminates, explore our product guide: EPGC201 Epoxy Fiberglass Sheet Technical Specification Guide.
