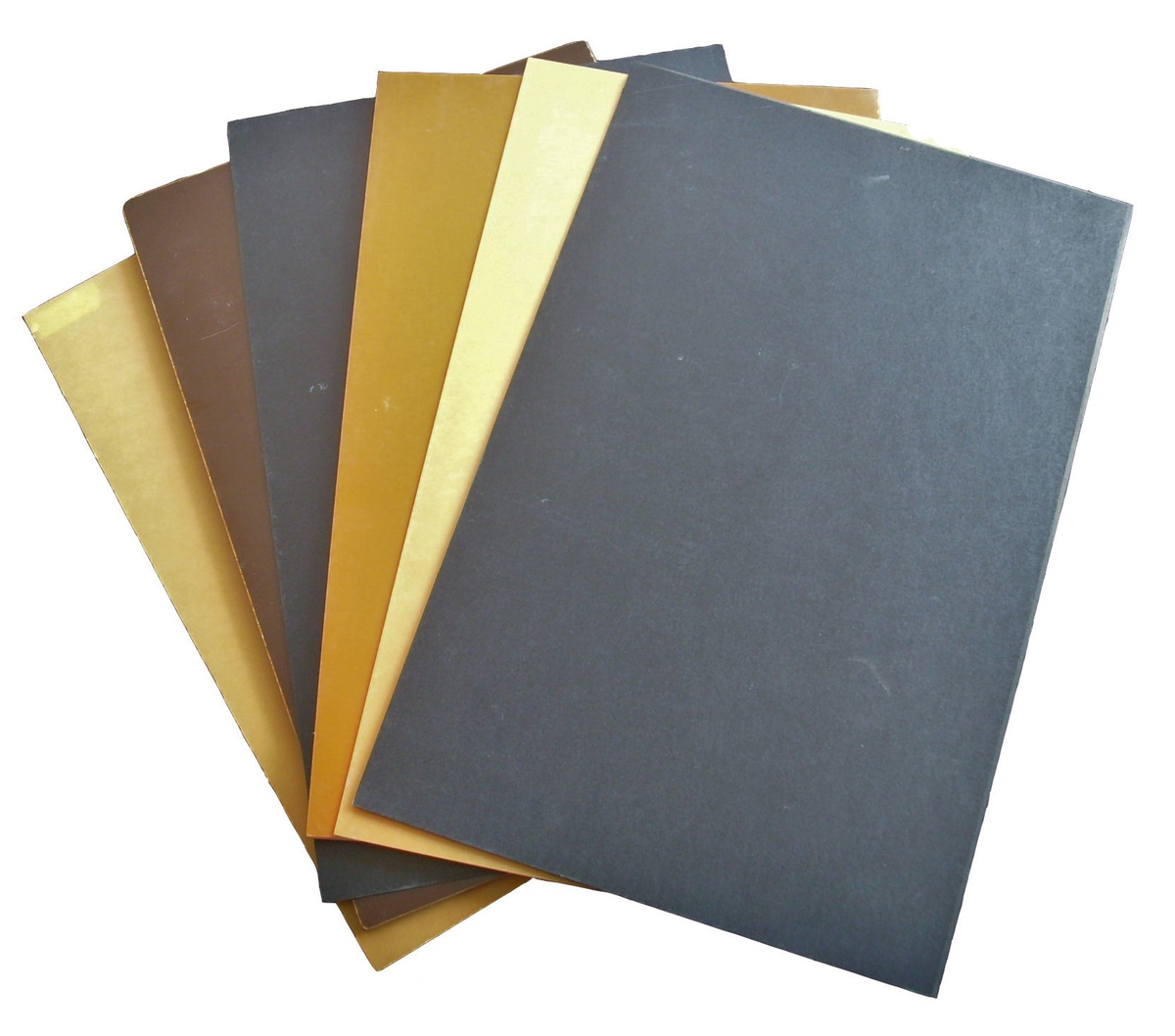

Phenolic paperboard laminates (commonly referenced under Chinese National Standard GB/T 1303.4 grade 3020) are cost-effective dielectric composites manufactured by pressing phenolic resin-impregnated cellulose paper under elevated heat and pressure. Widely specified for low-to-medium voltage switchboards, transformer terminal plates, arc chute barriers, and punched insulation washers, these materials balance moderate mechanical strength with high electrical insulation.
To prevent costly material mis-specifications during global engineering procurement, this technical guide from RDS Composite provides a strict, item-by-item cross-reference between Chinese GB, International IEC, and American NEMA standards, outlines equivalence boundaries, and details the performance distinctions between paperboard grades.
1. Global Standards Mapping: GB vs. IEC vs. NEMA Edition Matrix
Because testing methods (e.g., ASTM D570 vs. ISO 62 moisture absorption) and resin modifications vary, international standard designations are generally modified equivalents (MOD) rather than identical clones. Engineers must match grade callouts using the edition-verified matrix below:
| Chinese Standard Grade (GB/T 1303.4-2009) | IEC Standard Grade (IEC 60893-3-4:2003) | NEMA Standard Grade (NEMA LI 1-1998/R2011) | Equivalence Relationship & Primary Focus |
|---|---|---|---|
| GB 3020 (Modified Phenolic Paper) | PFCP202 | Grade XX | Modified Equivalent: General electrical insulation; excellent resistance to moisture under normal ambient humidity. |
| GB 3021 (High Electrical Phenolic Paper) | PFCP203 / PFCP204 | Grade XXX | Modified Equivalent: High dielectric strength perpendicular to laminations; low moisture absorption for humid tropical environments. |
| GB 3025 (Cold Punching Phenolic Paper) | PFCP206 | Grade XP / XXP / XXXP | Modified Equivalent: Plasticized resin formulation allowing precision die punching at ambient or mild pre-heat temperatures (≤ 100°C). |
| GB 3022 (Mechanical Phenolic Paper) | PFCP201 | Grade X | Modified Equivalent: High mechanical flexural and impact strength; lower moisture resistance (intended primarily for dry operating environments). |
2. Performance Property Discrepancies Across Paperboard Grades
Lumping all phenolic paperboards under uniform performance assumptions causes in-service electrical tracking or structural cracking. The dataset below highlights key physical distinctions between major grades:
| Technical Property Parameter | GB 3020 (PFCP202 / Grade XX) | GB 3021 (PFCP203 / Grade XXX) | GB 3025 (PFCP206 / Grade XXXP) |
|---|---|---|---|
| Flexural Strength (Perpendicular to Lamination) | ≥ 120 MPa | ≥ 100 MPa | ≥ 90 MPa |
| Dielectric Breakdown Voltage (90°C Oil, Parallel) | ≥ 15 kV | ≥ 25 kV | ≥ 20 kV |
| Water Absorption (24h Immersion, 1mm Thickness) | ≤ 2.5% (approx. 110 mg) | ≤ 1.0% (approx. 45 mg) | ≤ 1.2% (approx. 55 mg) |
| Cold Punchability (≤ 2.0 mm Sheet) | Fair (Requires 100°C–120°C pre-heating) | Poor (Brittle; prone to edge cracking) | Excellent (Clean cold shear at 20°C–30°C) |
3. Selection Criteria & Machining Recommendations
To optimize cost and reliability when designing phenolic paperboard parts, follow these engineering guidelines:
- For General Low-Voltage Barriers (≤ 1 kV): Specify GB 3020 (PFCP202). Provides the best economic balance of mechanical punchability and baseline dielectric strength.
- For Oil-Immersed Transformers & High-Humidity Distribution Cabinets: Specify GB 3021 (PFCP203/204) to minimize water pickup and prevent dielectric insulation breakdown over time.
- For High-Volume Die-Punched Gaskets & Washers: Specify GB 3025 (PFCP206). Plasticized resin prevents hole shear fracturing and tool wear during high-speed stamping.
To compare phenolic paperboards with woven phenolic cotton fabric materials, explore our comparative guide: Phenolic Cotton Cloth Laminates Standards Guide.
