History & Engineering Standards Evolution of Phenolic Cotton Cloth Laminates (PFCC)

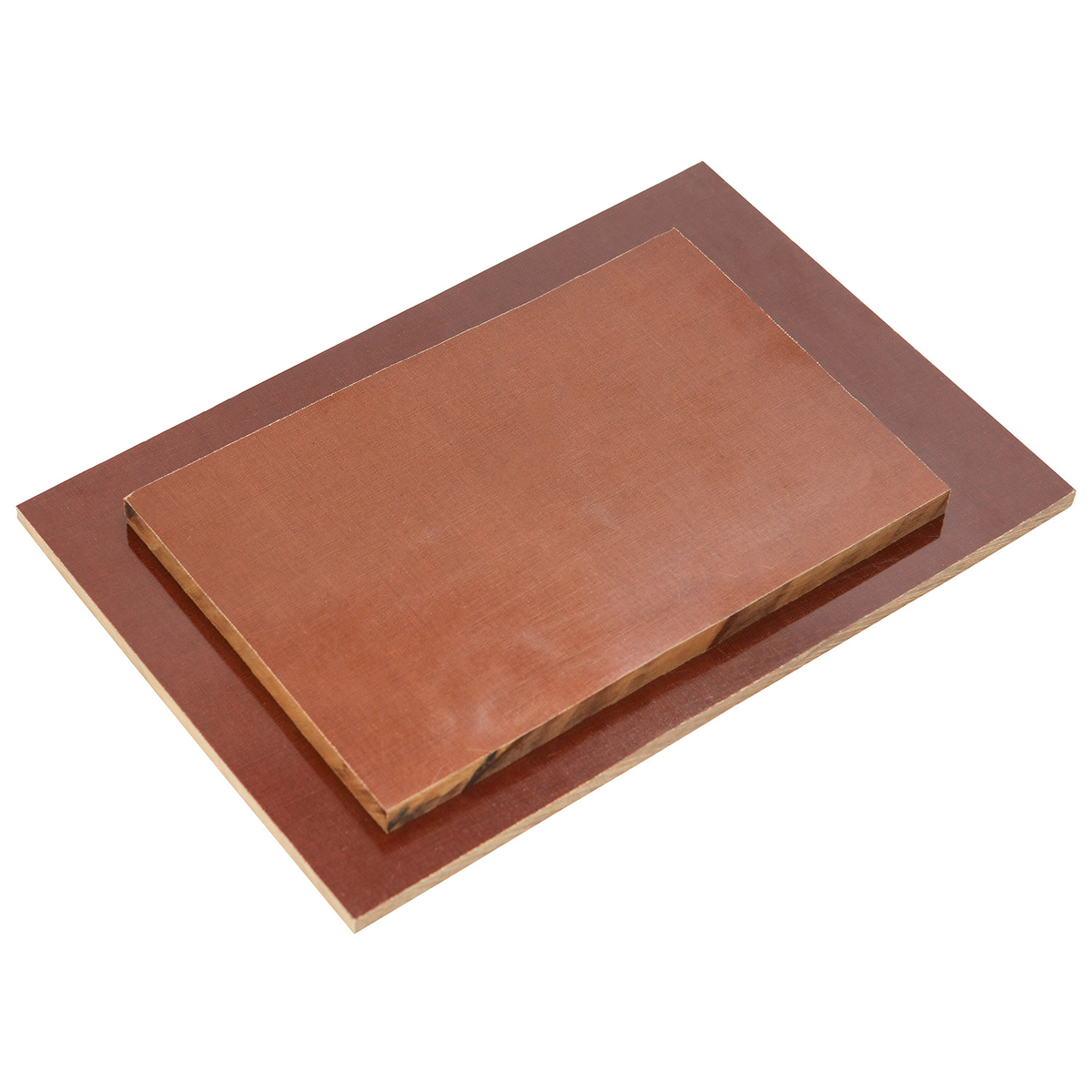

Phenolic cotton cloth laminates (PFCC) are among the earliest synthetic structural composites developed for industrial electrical machinery and heavy mechanical power transmission. Combining the toughness of woven cotton duck textiles with the thermal rigidity of cured phenolic novolac resin, these materials provided the first viable alternative to timber, mica, and un-reinforced vulcanized rubber in high-wear and medium-voltage electrical equipment.

This engineering reference from RDS Composite traces the historical standard evolution of phenolic cotton laminates—from early 20th-century patent origins to current NEMA LI-1 and IEC 60893 international classification systems—and details the structural distinctions between coarse and fine weave grades.

1. Timeline of Industrial Evolution & Standard Milestones

The development of phenolic cotton composites spans over a century of chemical and electrical engineering standardization:

• 1907 – The Baekeland Patent Breakthrough: Belgian chemist Leo Baekeland synthesized Bakelite (polyoxybenzylmethylenglycolanhydride), creating the world's first fully synthetic thermosetting resin system.
• 1920s–1930s – Textile Reinforcement Incorporation: Driven by the rapid expansion of electrical power grids and automotive timing gears, manufacturers impregnated multi-ply woven cotton duck fabrics with phenolic varnish, hot-pressing them into rigid tubes and boards.
• 1948 – NEMA Industrial Standardization (USA): The National Electrical Manufacturers Association established the formal NEMA LI-1 protocol, categorizing cotton laminates into Grades C, CE, L, and LE based on fabric weave density and electrical dissipation factors.
• 1980s–Present – IEC 60893 Harmonization (International): The International Electrotechnical Commission introduced standardized metric designations (PFCC201 through PFCC204) to quantify mechanical flexural strength, impact toughness, and insulation resistance under strict ISO testing.

2. International Standard Cross-Reference Matrix (NEMA vs. IEC)

To ensure global procurement accuracy, engineers must correlate legacy NEMA grade callouts with modern IEC 60893 material standards:

3. Grain Structure & CNC Machining Characteristics

The historical distinction between coarse duck (Canvas) and fine thread (Linen) cotton fabrics directly impacts modern CNC milling and thread tapping performance:

A. Coarse Weave Canvas (PFCC201 / PFCC202)

Coarse cotton threads absorb high mechanical impact loads and resist shock cracking in heavy industrial applications (such as steel mill slipper pads and marine stern tube bearings). However, coarse threads can tear or burr during delicate thread tapping, requiring larger hole chamfers and sharp carbide tooling.

B. Fine Weave Linen (PFCC203 / PFCC204)

Fine linen fabrics yield a dense, uniform cross-section. When milled or lathe-turned, linen phenolic components hold tight dimensional tolerances (±0.05 mm), produce smooth thread crests without edge fraying, and resist delamination on thin-walled custom bushings.

To learn how phenolic cotton compares with phenolic paper laminates, explore our detailed comparative analysis: Phenolic Paper (PFCP) vs. Phenolic Cotton (PFCC) Selection Guide.
