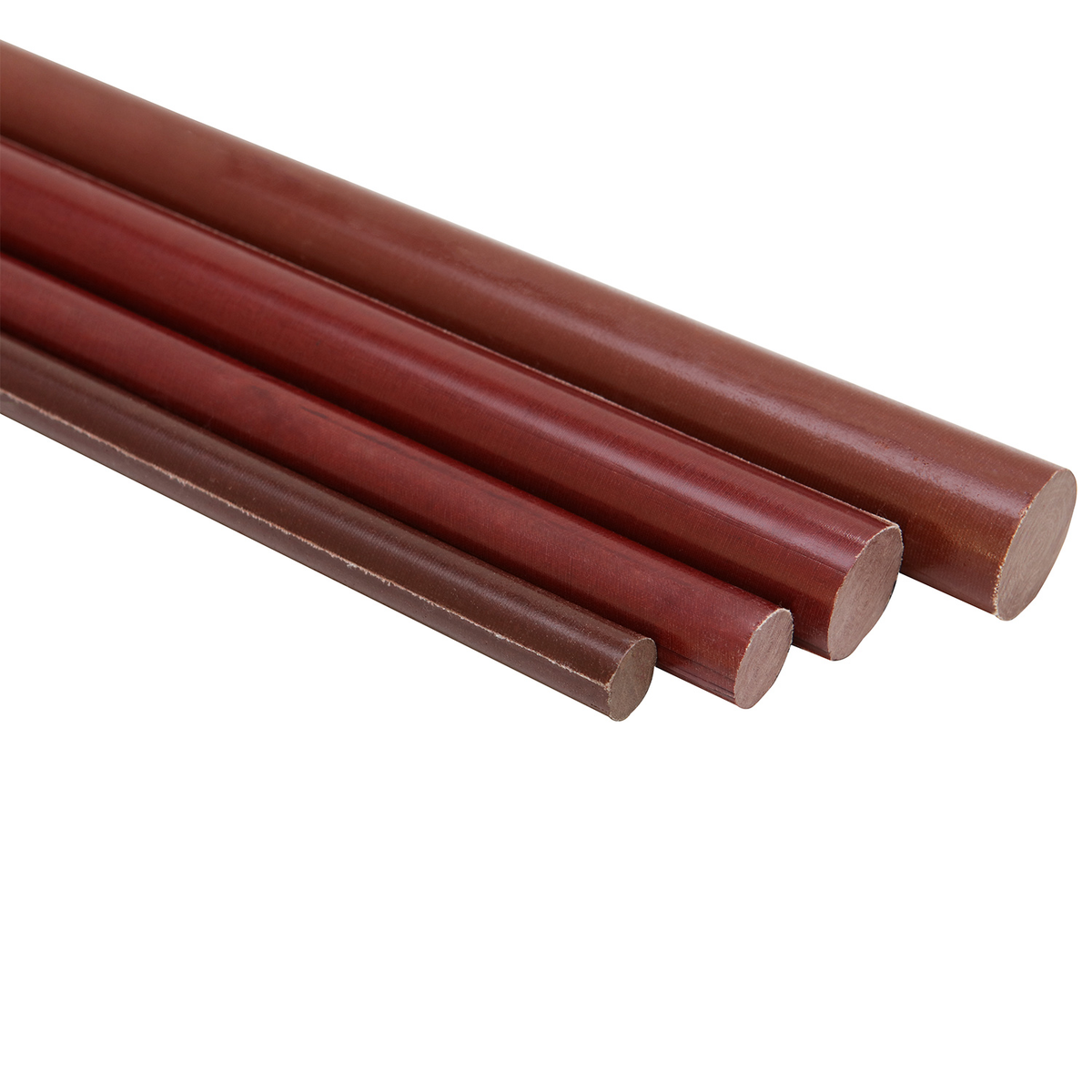

Phenolic cotton cloth solid rods (NEMA C/CE/L/LE, IEC PFCC201–204) are specialized thermoset structural materials widely specified for high-wear mechanical components, insulating drive shafts, and hydraulic guide bushings. Formed by high-pressure compression curing of resin-impregnated cotton fabrics around a central core, solid phenolic rods deliver high impact resilience and natural vibration damping.
Unlike flat phenolic boards or thin-walled rolled tubes, solid rods present unique anisotropic mechanical behaviors under multi-axis loads. This technical specification guide from RDS Composite details commercial diameter ranges, tolerances, load direction limits, tribological friction characteristics, and CNC machining guidelines.
1. Structural Differences: Solid Rods vs. Flat Sheets & Hollow Tubes
Design engineers must recognize the fundamental manufacturing and load-bearing differences between composite geometries:
| Form Factor | Manufacturing Method | Primary Stress Strength Vector | Design Advantage |
|---|---|---|---|
| Solid Molded Rod | Concentric fabric wrapping + Hydraulic press mold curing | Radial compression & circumferential hoop toughness | Eliminates seam delamination during deep lathe turning into solid pins or threaded studs. |
| Flat Sheet / Plate | Parallel flat prepreg plies under vertical daylight press | Perpendicular (z-axis) compression & in-plane tensile | Optimal for flat insulating barriers, CNC milled wear plates, and gasket flanges. |
| Hollow Rolled Tube | Mandrel roll wrapping with shrink-tape consolidation | Torsional shear & thin-wall hoop tension | Lightweight hollow geometry ideal for sleeves, transformer collars, and conduit spacers. |
2. Diameter Capabilities & Precision Tolerances
RDS manufactures solid phenolic cotton rods in standard lengths of 1,000 mm under strict dimensional tolerances:
| Outer Diameter Range (Ø) | As-Molded Un-ground Tolerance | Precision Ground Tolerance (ISO h9) |
|---|---|---|
| Ø6.0 mm to Ø15.0 mm | ±0.30 mm | -0.036 mm / +0.000 mm |
| Ø16.0 mm to Ø50.0 mm | ±0.50 mm | -0.062 mm / +0.000 mm |
| Ø55.0 mm to Ø200.0 mm+ | ±1.00 mm to ±1.50 mm | -0.100 mm / +0.000 mm |
3. Load Orientation & Anisotropic Structural Limits
Because phenolic rods are constructed from wound cloth layers, load direction relative to the longitudinal rod axis dictates mechanical performance:
- Radial Compression Load (Perpendicular to Axis): Outstanding load retention (≥ 110 MPa). Ideal for heavy journal bearings, guide rollers, and wear sleeves where loads compress against concentric fabric wraps.
- Axial Tensile Load (Parallel to Axis): Tensile capacity (≥ 55 MPa) relies on resin bond shear and warp thread strength. Avoid applying high axial tensile loads along un-reinforced center core zones.
- Interlaminar Shear Resistance: Short-beam shear strength reaches 25 to 30 MPa. Deep keyway cuts or narrow retaining ring grooves should leave sufficient wall stock to prevent shear chipping.
4. Tribological Performance & Friction Coefficients
Phenolic cotton rods exhibit natural self-lubricating characteristics when paired with polished steel shafts (≤ Ra 0.4 μm):
- Dry Sliding Friction (μ): 0.18 to 0.25 against steel. Suitable for low-velocity, intermittent duty cycles.
- Water-Lubricated Friction (μ): 0.05 to 0.08. Water serves as a cooling medium and lubricant in marine stern tube bearings and hydro-turbine guide bushes.
- Grease/Oil Lubricated Friction (μ): 0.03 to 0.06. Retains grease within surface cotton weave pores, extending maintenance intervals under heavy load (PV limit up to 1.5 MPa·m/s).
5. Precision CNC Lathe Turning & Machining Guidelines
Machining solid phenolic cotton rods requires specific tool geometries and feed rates to achieve smooth Ra 1.6 μm surface finishes:
- Tooling Selection: Micro-grain tungsten carbide (C2/K10 grade) or PCD diamond-tipped lathe inserts with positive rake angles (10° to 15°).
- Cutting Speeds & Feeds: Surface speeds of 150 to 300 m/min with light feed rates (0.10 to 0.20 mm/rev) to prevent heat buildup and core charring.
- Thread Tapping & Chasing: When tapping external threads on solid rods, use fine-pitch threads (e.g., Fine Metric / UNF) rather than coarse profiles to preserve fabric thread crest integrity.
