The manufacturing quality of epoxy fiberglass laminated sheets (FR4, G10, G11, EPGC201) dictates their ultimate electrical breakdown strength, interlaminar shear resistance, and dimensional stability. Achieving defect-free sheets requires precise thermal-hydraulic control across vertical coating towers and high-tonnage multi-daylight hydraulic presses.
This factory engineering guide from RDS Composite outlines the core unit operations in producing industrial thermoset laminates—from fiberglass cloth resin impregnation, automated prepreg lay-up, multi-stage hot-press consolidation, to final non-destructive testing (NDT) inspection—while distinguishing between open industrial standards and proprietary process parameters.
1. Unit Operation 1: Continuous Glass Cloth Impregnation (B-Stage)
Non-alkali E-glass woven fabric (typically 7628 or 2116 style cloth) is unreeled into vertical impregnation towers where liquid epoxy resin, curing agents, and flame retardants coat every individual glass filament.
Process Parameters & Public Boundaries:
- Open Standard Control: Resin pick-up content (typically 40%–48% by weight) and volatile content (≤ 0.5% per IPC-TM-650) are verified via gravimetric sampling.
- Proprietary Trade Secret Range: Specific resin viscosity additives, silane coupling agent formulations, and exact multi-zone drying temperature profiles (typically 130°C–170°C) are factory-confidential to maintain optimal B-stage prepreg reactivity.

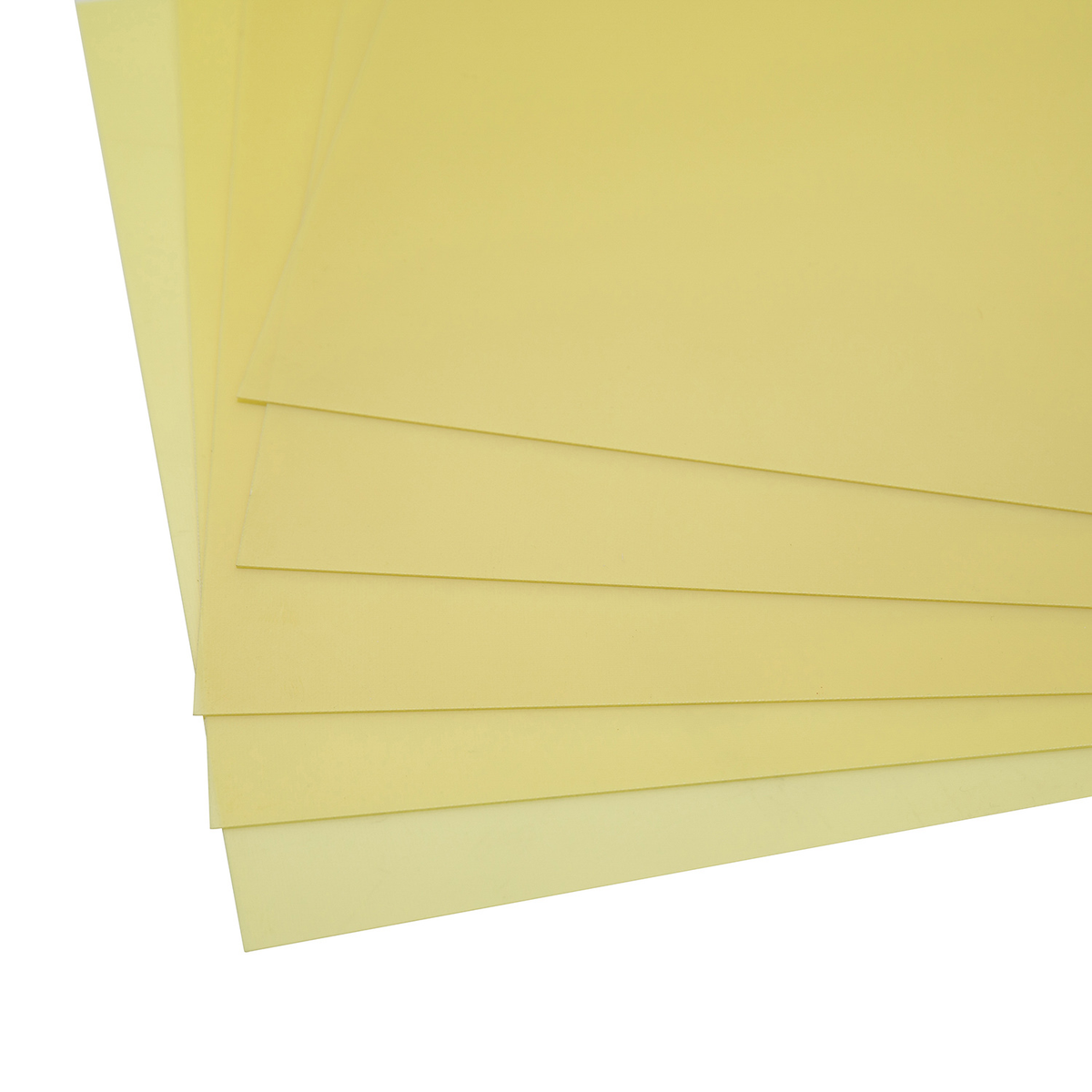

2. Unit Operation 2: Automated Prepreg Lay-up & Book Assembly
Cured B-stage prepreg rolls are precision-slit into sheet panels (e.g., 1020 mm × 1220 mm or 1220 mm × 2440 mm). Automated lay-up stations stack calculated plies to achieve target nominal board thicknesses (e.g., 50 plies for 10.0 mm board).
- Stacked prepreg "books" are sandwiched between high-polish stainless steel mirror plates to ensure a smooth, defect-free sheet surface finish.
- Assembly is conducted in climate-controlled cleanroom environments (≤ 23°C, ≤ 50% RH) to eliminate dust and airborne particulate contamination between laminations.
3. Unit Operation 3: Multi-Daylight Hot-Press Curing Cycle
Assembled prepreg books are loaded into heavy-duty multi-daylight thermal hydraulic presses. The thermomechanical cure cycle involves three distinct phases under high vacuum:
| Cure Cycle Phase | General Industrial Parameter Range | Physicochemical Objective |
|---|---|---|
| Phase 1: Low-Pressure Heating | 100°C – 130°C | 1.0 – 2.0 MPa | Melts B-stage resin to liquid state; vacuum exhausts trapped micro-air bubbles and volatiles. |
| Phase 2: High-Pressure Full Cure | 170°C – 185°C | 4.0 – 7.0 MPa | Triggers complete resin exothermic cross-linking; consolidates glass plies into a solid monolithic matrix. |
| Phase 3: Controlled Pressure Cooling | Cooling down to < 40°C under full load | Relieves internal thermal stress and prevents sheet warping or thickness distortion during demolding. |
4. Unit Operation 4: Quality Assurance & Testing Protocols
Cured boards undergo automated perimeter trimming, surface inspection, and lab NDT verification to ensure compliance with IEC 60893 and NEMA LI-1 standards:
- Thickness Uniformity Measurement: Multi-point ultrasonic thickness gauges verify class A/B tolerances (±0.05 mm to ±0.10 mm).
- Dielectric Withstand Voltage Test: High-potential test transformers apply up to 50 kV AC parallel to laminations per ASTM D149 to confirm zero internal voids or breakdown paths.
- Tg & Cure Completeness: Differential Scanning Calorimetry (DSC) verifies resin cross-linking completion (> 98% conversion rate).
To explore technical datasheets and grade selection for our cured sheets, visit our specifications guide: Epoxy Glass Fiber Board Specification Guide.
