In the fields of power insulation, new energy, and industrial composite materials, epoxy fiberglass rods serve as critical insulating structural components . Mainstream products on the market are divided into two main categories: wrapped epoxy fiberglass rods and pultruded fiberglass rods.
Although both utilize fiberglass cured with epoxy resin, they differ significantly in production process, internal structure, mechanical strength, electrical insulation performance, and application scenarios. This guide provides a detailed comparison to help you select the exact profile for your specific operating conditions.
Quick Comparison: Wrapped vs. Pultruded Fiberglass Rods
| Feature / Parameter | Wrapped Epoxy Fiberglass Rods | Pultruded Fiberglass Rods |
|---|---|---|
| Manufacturing Process | Multi-layer resin-impregnated cloth wrapping (High pressure/temp) | Continuous fiber pultrusion through heating mold |
| Structure Type | Laminated, high-density compact structure | Homogeneous integrated axial structure |
| Core Strength | Superior radial compressive & impact strength | High axial tensile strength & lightweight toughness |
| Insulation Grade | High voltage & ultra-high voltage (Low partial discharge) | Medium-to-low voltage routine insulation |
| Primary Application | Circuit breakers, transformers, switchgear, heavy loads | Photovoltaic supports, civil electrical, structural tools |
1. Manufacturing Process & Structural Differences
The manufacturing process is the root cause of the performance divergence between these two profiles:

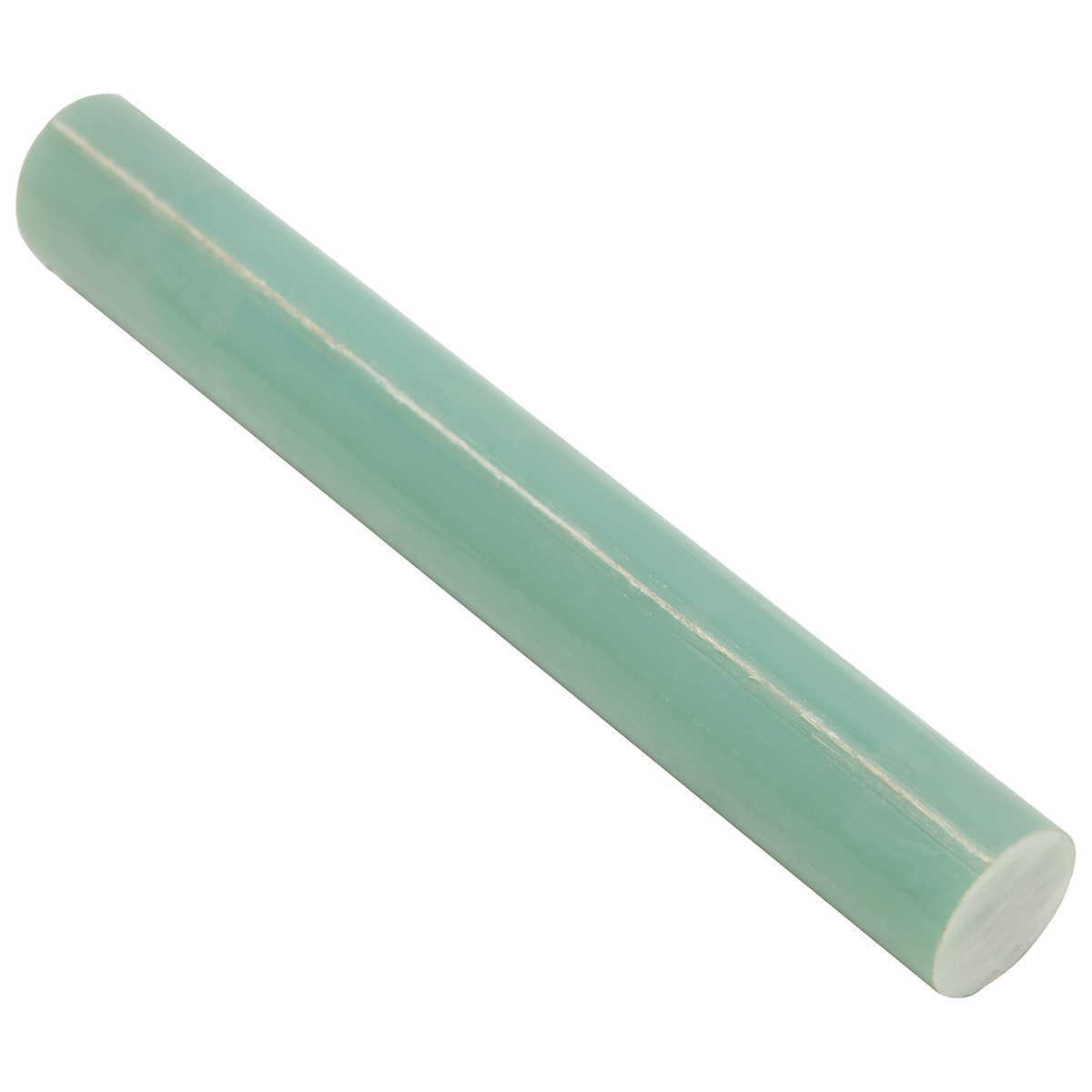

- Wrapped Epoxy Fiberglass Rods: Produced by wrapping layers of alkali-free glass fiber cloth impregnated with epoxy resin, followed by curing under high temperature and pressure. This creates a dense, laminated structure with exceptional internal tightness and tight machining tolerances.
- Pultruded Fiberglass Rods: Manufactured using a continuous pultrusion molding process. Continuous glass fibers pass through a resin bath, are pulled through a heated forming die, cured, and cut to length. This yields high efficiency, seamless uniformity, and ideal continuous mass production.
2. Mechanical Performance Comparison
Each profile excels under different force directions and dynamic loads:
- Radial Strength vs. Axial Strength: Wrapped rods feature multi-layer cross-directional strength, giving them far superior radial compressive resistance and bending impact resistance compared to standard pultruded rods.
- Tensile Resistance: Pultruded rods align fibers parallel along the longitudinal axis, offering exceptional tensile strength, break resistance, and lower deadweight. However, their radial compressive strength is weaker, making them vulnerable to localized crushing under high lateral clamping forces.
3. Electrical Insulation & Weathering Capabilities
Electrical insulation is a vital rating criterion for power application components:
- Wrapped Rods (High-Voltage Performance): Offer highly stable insulation, high dielectric strength, and low partial discharge levels. They maintain strong moisture-proof and anti-permeation stability even under humid or salt-spray environments without electrical breakdown.
- Pultruded Rods (Standard Insulation): Fully meet standard insulation metrics for medium- and low-voltage applications. However, under long-term ultra-high voltage or extreme humidity, their dielectric stability is slightly lower than that of wrapped rods. Both materials offer excellent corrosion, aging, and rust resistance to replace conventional metals.
4. Target Scenarios & Procurement Advice
Choose Wrapped Epoxy Fiberglass Rods if:
Your operating conditions involve high voltage, severe mechanical stress, heavy lateral loads, or demand precision machining. Typical uses include high-voltage circuit breakers, instrument transformers, composite insulators, power switchgear, and high-voltage testing equipment.
Choose Pultruded Fiberglass Rods if:
You require lightweight, cost-effective, continuous-length profiles primarily enduring axial tensile force. Typical uses include medium-to-low voltage electrical equipment, photovoltaic solar brackets, rail transit structural parts, and general mechanical supports.
Summary
When selecting epoxy fiberglass rods, match the profile to your mechanical load direction and voltage level. For heavy loads and high-voltage precision applications, opt for wrapped rods; for large-batch, lightweight, medium/low-voltage applications, choose pultruded rods.
