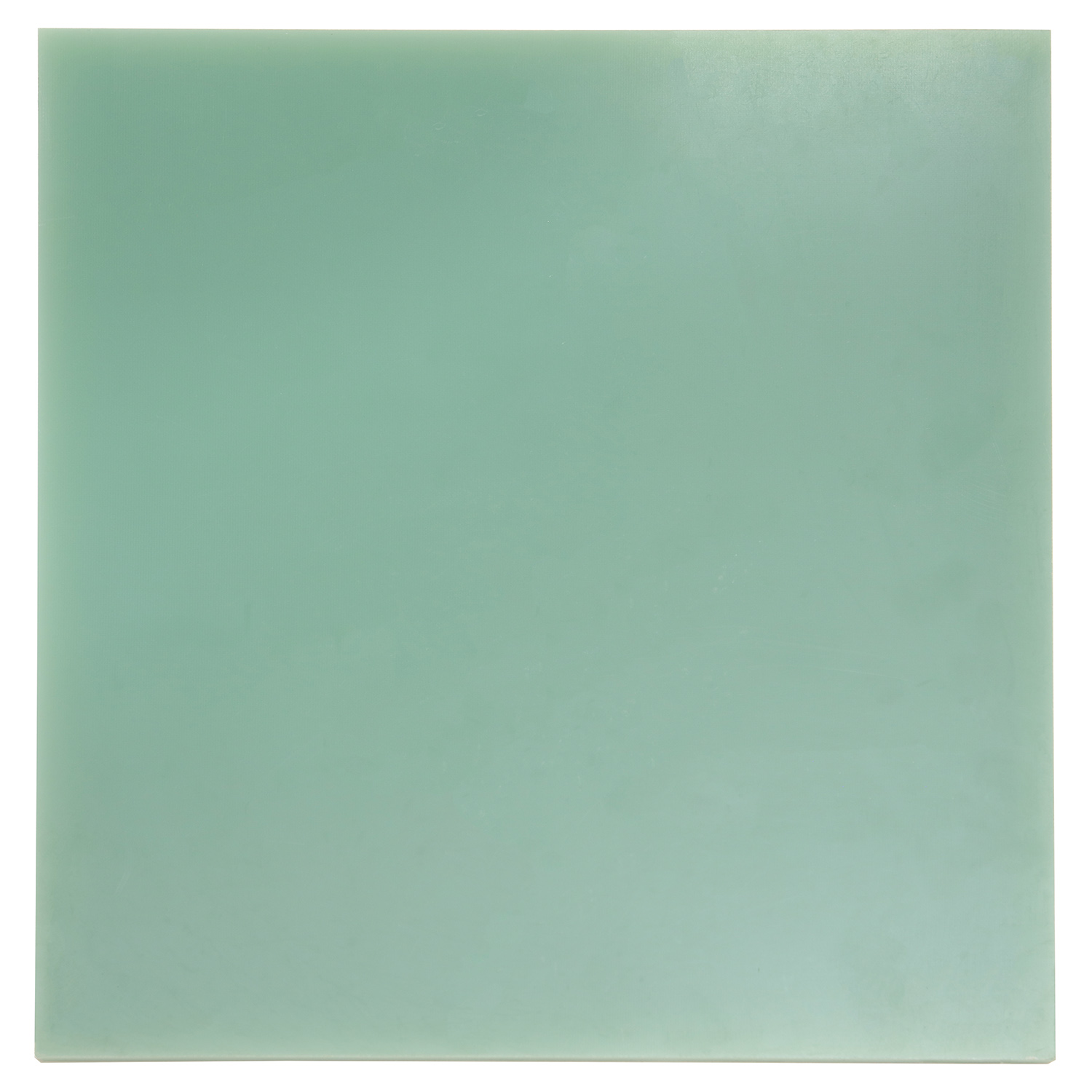

FR4 epoxy glass laminate sheets are high-strength thermoset composite materials produced from continuous woven glass fabric impregnated with a flame-retardant epoxy resin binder. Standardized under NEMA LI-1 and IEC 60893 (EPGC202), industrial-grade unclad FR4 delivers exceptional mechanical strength, low water absorption, excellent dielectric stability, and certified UL 94 V-0 flame resistance across electrical distribution and mechanical assembly environments.
1. Form of Supply: Unclad Insulation Sheets vs. Copper Clad CCL
Understanding product classification and manufacturing envelope for B2B procurement:
- Unclad Electrical Insulation Sheets (RDS Core Supply): Raw unclad FR4 laminate boards designed for high-voltage electrical barriers, busbar supports, transformer insulation, and precision CNC machined structural components. Supplied as full sheets, custom cut-to-size panels, or finished CNC turned/milled parts.
- Copper Clad Laminates (CCL for PCB Substrates): Thin FR4 sheets bonded with electrodeposited copper foil used specifically for printed circuit board etching. Note: RDS specializes in heavy-gauge unclad electrical insulation sheets and custom CNC fabricated components rather than CCL foil laminates.
2. Technical Property Matrix & TDS Certification Limits
Certified properties for NEMA FR4 / IEC EPGC202 unclad epoxy glass sheets under ASTM and IEC test standards:
| Specification Parameter | Standard Test Method | Certified TDS Property Value | Compliance & Thickness Applicability |
|---|---|---|---|
| Flammability Rating | UL 94 Vertical Burning | UL 94 V-0 Certified | Applicable for certified thickness range 0.8 mm to 50.0 mm |
| Continuous Thermal Index | IEC 60216 Thermal Rating | Class B (130 °C Continuous Duty) | Full thickness spectrum (0.5 mm to 100.0 mm) |
| Environmental Compliance | RoHS 3.0 / REACH SVHC | Pass (Halogenated flame retardant within regulatory limits) | Full thickness spectrum |
| Flexural Strength (Flatwise) | ASTM D790 / ISO 178 | ≥ 340 MPa | Tested on standard 3.0 mm test specimens |
| Dielectric Strength (In Oil) | ASTM D149 / IEC 60243 | ≥ 14.0 kV/mm | Thickness range 1.5 mm to 3.0 mm (Decreases as wall thickness increases) |
| Water Absorption (24 hr) | ASTM D570 / ISO 62 | ≤ 0.15% | Tested on 3.0 mm thickness sample |
3. Material Structure & Precision CNC Machining Capabilities
Unclad FR4 composite sheets feature balanced cross-ply woven glass fiber reinforcement, delivering uniform flatwise structural rigidity and high shear resistance during secondary machining:
- Available Thickness & Panel Sizes: Manufactured sheet thicknesses range from 0.5 mm up to 100.0 mm. Standard factory sheet dimensions include 1020 x 1220 mm, 1220 x 2440 mm, and 1000 x 2000 mm.
- CNC Machining Operations: Precision routing, counter-boring, deep-hole drilling, thread tapping, and 3-axis/5-axis CNC milling. Precision tolerances maintained within ± 0.05 mm on finished parts.
- Tooling & Dust Control: Machined using polycrystalline diamond (PCD) or solid carbide cutters to prevent fiber fraying. High-vacuum dry dust collection systems are utilized to prevent airborne glass dust contamination.
4. Frequently Asked Questions (FAQ)
Q: Does RDS supply FR4 sheets with copper foil for PCB etching?
A: No. RDS supplies industrial-grade unclad FR4 insulation sheets, cut-to-size panels, and custom CNC machined electrical components. We do not manufacture copper-clad CCL laminates for circuit board etching.
Q: Are all FR4 sheet thicknesses automatically covered under the UL 94 V-0 flame certification?
A: No. UL 94 flame ratings depend on material thickness. Our UL 94 V-0 certification applies to certified sheet thicknesses from 0.8 mm up to 50.0 mm. Gauges thinner than 0.8 mm or thicker than 50.0 mm are tested against individual client flame retardancy requirements.
