Cured SMC Sheet Specs: Properties & CNC Machining Guide

In high-voltage switchgear, busbar support systems, and traction power isolation, fully cured SMC (Sheet Molding Compound) flat sheets and plates serve as essential rigid electrical insulating barriers. Produced by high-pressure thermal press consolidation of unsaturated polyester resin, chopped E-glass fibers, and inorganic flame-retardant fillers, cured SMC laminates offer high tracking resistance (CTI 600V), flame retardancy (UL 94 V-0), and high mechanical strength[cite: 5.2].

This technical guide from RDS Composite covers the physical properties, standard plate dimensions, CNC secondary machining rules, and critical material boundary limitations for fully cured SMC flat sheets.

1. Material Clarification: Cured SMC Sheets vs. Uncured Roll Stock & Molded Parts

To prevent procurement and engineering misalignments, it is critical to distinguish between the three primary commercial forms of SMC composites:

• Fully Cured SMC Flat Sheets (This Product Guide): Rigid, fully reaction-cured composite plates manufactured in standard flat master dimensions. Designed specifically for CNC mechanical milling, drilling, sawing, and tapping into terminal boards, phase barriers, and busbar supports.
• Uncured Raw SMC Sheet Stock (Rolls / B-Stage Material): Flexible, uncured chemical sheets packaged in vapor-barrier film containing unreacted resin and initiators, intended exclusively for compression molding dies under high tonnage and heat (130°C–150°C).
• Custom SMC Molded Components: Net-shape or near-net-shape structural parts (e.g., meter boxes, automotive panels, complex 3D switchgear housings) molded directly from raw SMC compounds inside heated steel matching dies.

2. Cured SMC Sheet Engineering Specifications & Performance Profile

Fully cured SMC sheets feature excellent arc-quenching capabilities, continuous Class F (155°C) thermal endurance, and high mechanical impact resistance:

Standard Sheet Dimensions & Thickness Limits

• Standard Master Dimensions: 1000 mm × 2000 mm, 1220 mm × 2440 mm (4' × 8'), and custom cut-to-size panels.
• Thickness Range: 2.0 mm up to 50.0 mm (Standard thickness stock: 3mm, 5mm, 8mm, 10mm, 15mm, 20mm).

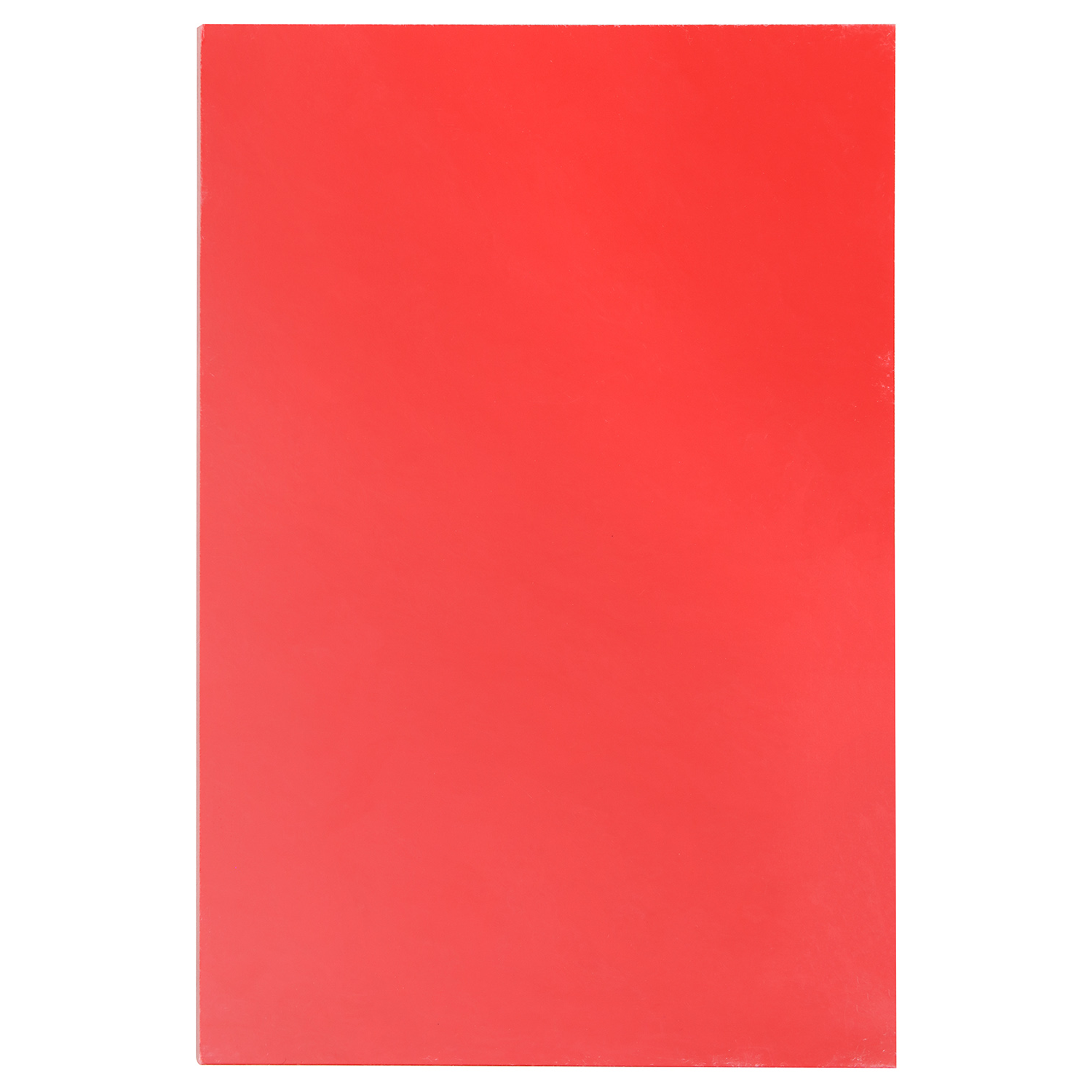

• Surface Finish & Color: Smooth press-molded finish on both faces; standard colors include red, white, gray, and light brown.

3. CNC Secondary Machining Rules for Cured SMC Plates

Machining cured SMC flat plates differs from standard thermoplastics due to the presence of chopped glass fiber fill and mineral flame retardants (aluminum trihydrate, ATH):

• Cutting Tool Material: Standard high-speed steel tools wear out rapidly. Machine shops must use solid carbide or diamond-coated (PCD) tooling for milling, routing, and drilling.
• Drilling & Hole Quality: To prevent delamination breakout or localized edge chipping when exit-drilling mounting holes, use sharp double-angle drill bits backed by a solid support plate.
• Dust Extraction & Worker Safety: Dry milling produces fine non-toxic filler and glass dust. High-efficiency local vacuum extraction systems must be fitted directly at the CNC spindle cutter head.

4. Application Scope for Machined SMC Flat Parts

Machined cured SMC flat sheet parts are widely specified across power distribution infrastructure where high tracking index and flame self-extinguishing properties are mandatory:

• Phase barriers and arc chute side plates in medium/high voltage circuit breakers.
• Busbar support plates and cable clamp mounting brackets in transformer cabinets.
• Terminal insulation boards and structural mounting plates for renewable energy inverters.
