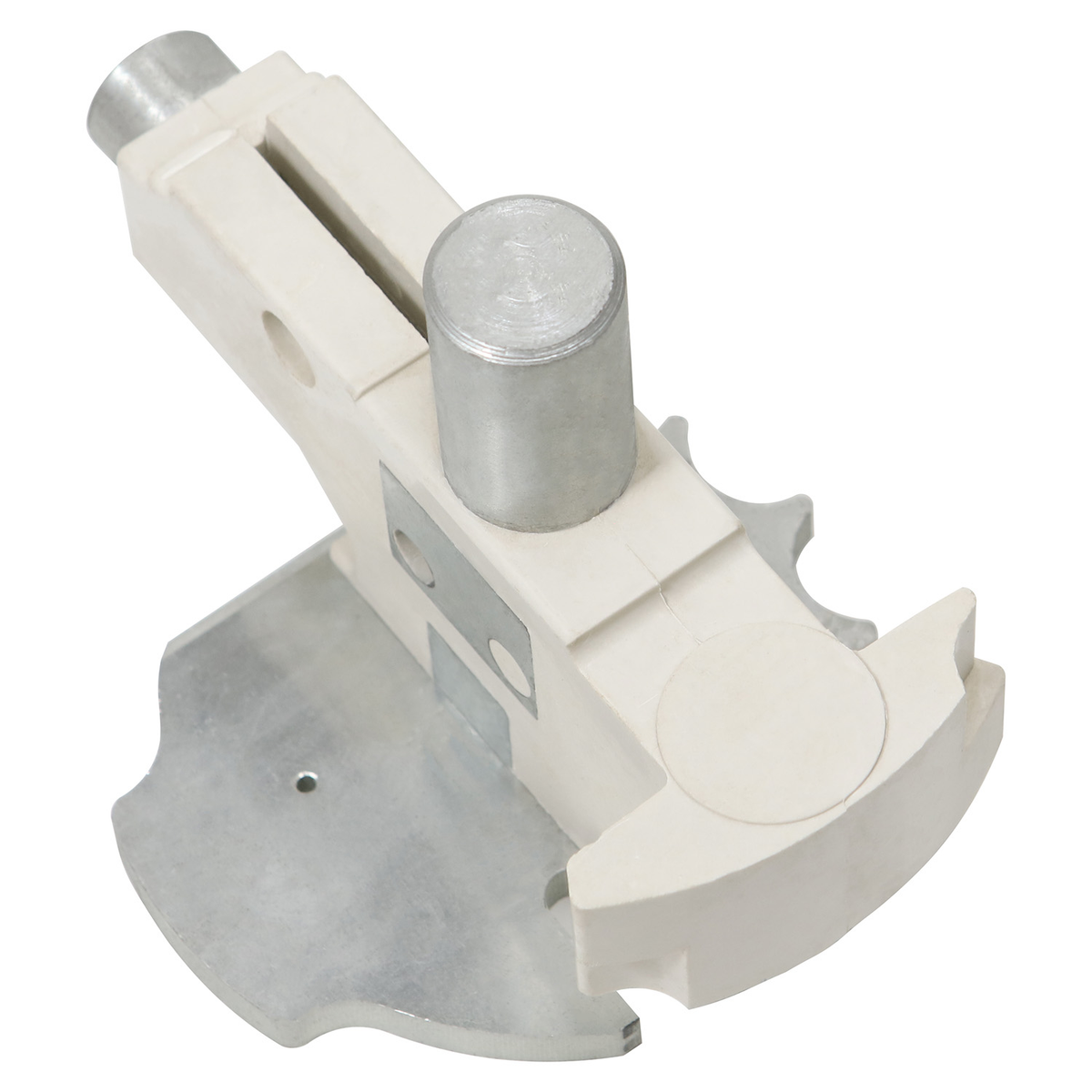

Sheet Molding Compound (SMC) custom molded parts offer exceptional strength-to-weight ratios, electrical insulation, chemical resistance, and structural precision for high-volume industrial applications. As a direct composite manufacturer, RDS specializes in OEM custom SMC component fabrication—delivering precision-engineered enclosure housings, structural mounting frames, and high-strength mechanical components tailored to exact client technical drawings.
1. Scope of Supply: Custom SMC Molded Components
RDS supplies custom compression-molded SMC parts manufactured according to customer-supplied 2D/3D CAD models. Our OEM component supply capability includes:
- Electrical & Power Infrastructure Parts: Outdoor meter boxes, junction boxes, high-voltage breaker enclosures, phase barriers, and busbar supports.
- Industrial & Mechanical Assemblies: Pump housings, heavy-duty fan cowlings, explosion-proof light fixture housings, and chemical-resistant valve covers.
- Transportation & Agricultural Lightening Parts: Battery pack covers, cab interior structural panels, engine hoods, and agricultural machinery shields.
- Modular Building Components: Heavy-duty drainage channels, composite manhole covers, and sectional water tank panels.
2. Mold Tooling Design & Steel Grade Selection
Compression mold tooling design directly determines the dimensional stability, surface finish, and production cycle time of SMC parts:
- Tooling Steel Selection: Molds are constructed from high-grade hardened tool steels based on volume requirements: P20 steel for standard production runs, and 718H or H13 forged steel for extended multi-cavity tool life.
- Surface Finish & Chrome Plating: Tool cavities are polished and hard-chrome plated (thickness 0.03 mm to 0.05 mm) to facilitate part release, reduce friction, and prevent glass fiber abrasion on aesthetic surfaces.
- Heating Systems: Oil-heated or steam-heated mold channels ensure uniform thermal distribution across complex geometry, maintaining mold surface temperature stability within ± 2 °C.
3. Engineering Design Rules: Wall Thickness, Ribs & Metal Inserts
Optimal SMC part design prevents internal voiding, sink marks, and thermal warpage during high-pressure molding:
| Design Parameter | Engineering Recommendation | Technical Rationale |
|---|---|---|
| Nominal Wall Thickness | 2.5 mm to 6.0 mm (Uniform preferred) | Prevents differential shrinkage, warpage, and incomplete resin cure in thick sections. |
| Draft Angles | 1.0° to 2.0° on exterior walls; 1.5° to 3.0° on core pins | Ensures clean ejection without surface scuffing or fiber tearing. |
| Structural Rib Design | Rib base thickness = 0.6x to 0.75x main wall thickness | Maximizes structural stiffness while eliminating sink marks on appearance surfaces. |
| Threaded Metal Inserts | Knurled brass or stainless steel in-mold embedded inserts | Delivers high pull-out torque resistance for heavy mechanical fastenings. |
4. Manufacturing Tolerances & Inspection Quality Control
To ensure seamless assembly into higher-level equipment, RDS enforces strict dimensional control across the entire tooling and production lifecycle:
- Machining & Molding Tolerances: As-molded linear dimensions achieve ISO 2768-m (Medium) or fine tolerances depending on part geometry. Critical mating surfaces can be secondary CNC milled to ± 0.05 mm tolerances.
- Prototyping & First Article Inspection (FAI): Soft tooling (aluminum/pre-hardened steel) or direct CNC machined blocks are available for rapid functional prototyping prior to full hard-tooling investment. Full FAI reports are provided with initial sample shipments.
- Comprehensive Quality Testing: In-house inspection includes Coordinate Measuring Machine (CMM) dimensional checks, Barcol hardness testing, dielectric withstand testing, and CTI tracking resistance verification.
5. Frequently Asked Questions (FAQ)
Q: Can RDS embed threaded metal fasteners into SMC parts during the molding process?
A: Yes. We routinely incorporate knurled brass, stainless steel, or zinc-plated steel inserts directly into the mold prior to pressing. In-mold embedded inserts provide significantly higher shear and pull-out resistance compared to post-molded ultrasonic inserts.
Q: What CAD file formats do you accept for custom SMC tooling quotes?
A: We accept 3D CAD files in STEP (.stp), IGES (.igs), and SolidWorks (.sldprt) formats, along with 2D PDF drawings containing critical dimensions, thread callouts, and tolerance specifications.
