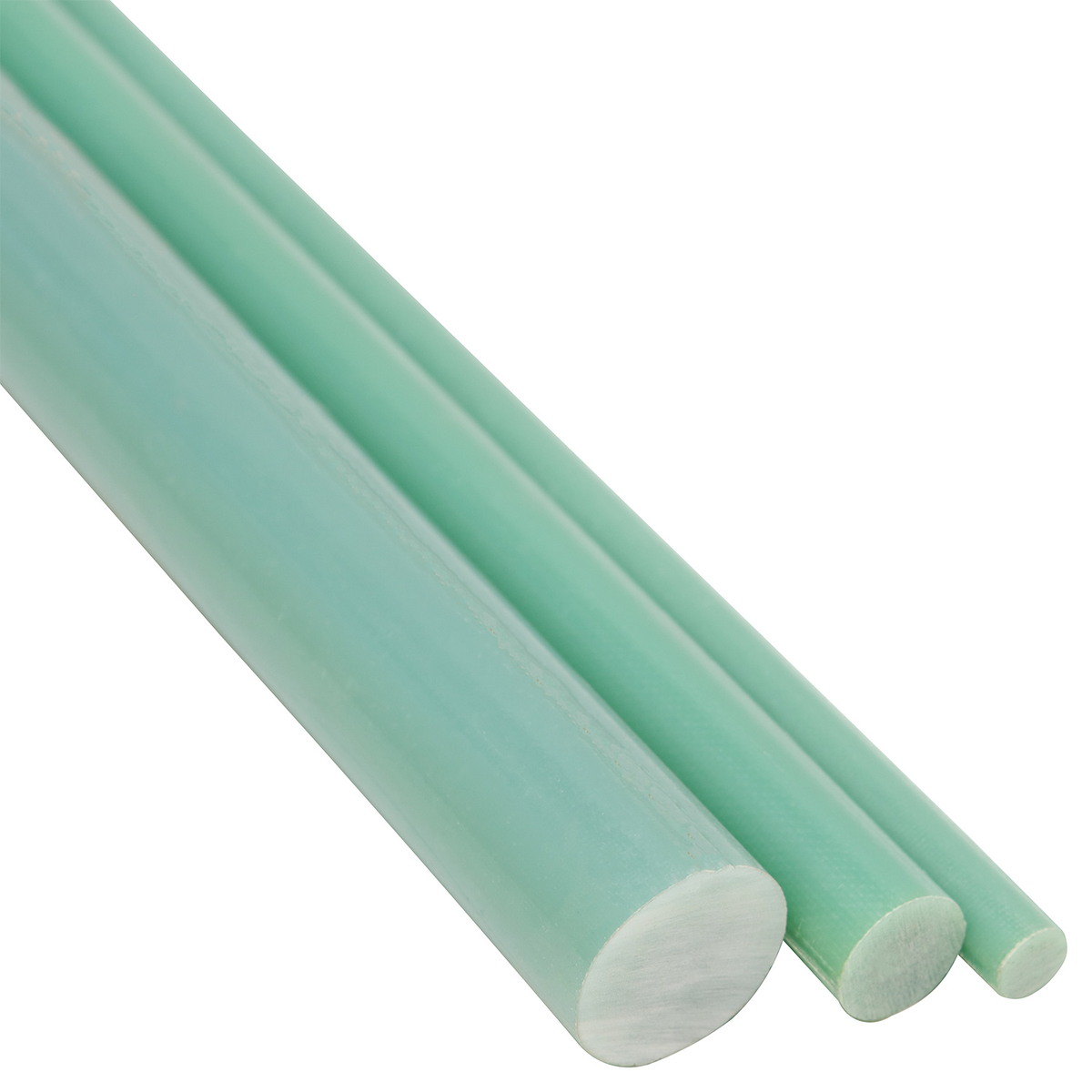

Selecting between pultruded and rolled epoxy fiberglass rods and tubes requires evaluating mechanical load orientation, hoop stress demands, manufacturing tolerances, and tooling costs. While both processes utilize continuous glass reinforcements and epoxy resin, structural properties depend directly on fiber orientation rather than process designation alone.
1. Technical Specification & Process Comparison Matrix
Comprehensive comparison between pultruded (unidirectional roving) and rolled (woven fabric) epoxy composite rods and tubes across mechanical, dimensional, testing, and cost parameters:
| Technical Parameter | Pultruded Composite Rods & Profiles | Rolled Woven-Fabric Rods & Tubes | Standard Test Method |
|---|---|---|---|
| Reinforcement & Fiber Orientation | 100% Continuous Unidirectional Glass Roving | Multi-directional Woven Glass Fabric Layers | Visual / Microstructure Inspection |
| Primary Mechanical Load Strength | Superior Axial Tensile (≥ 400 MPa) & Axial Flexural | Superior Hoop Tensile (≥ 200 MPa) & Torsional Shear | ASTM D638 / ASTM D2290 |
| Interlaminar & Thread Shear Resistance | Low (Prone to axial splitting during tapping) | High (Resists thread shearing and wall splitting) | ASTM D2344 / Internal Shear Test |
| Manufactured Outer Diameter (OD) Range | 3.0 mm to 50.0 mm (Solid Rods & Simple Tubes) | 6.0 mm to 300.0 mm (Tubes & Machined Rods) | ISO 286 / Caliper Measurement |
| Outer Diameter (OD) Tolerances | ± 0.05 mm to ± 0.10 mm (As-Pultruded) | ± 0.03 mm to ± 0.05 mm (Centerless Ground) | Micrometer / Air Gauge |
| Standard Manufactured Lengths | Continuous production (Cut to 1000–3000 mm) | Standard Mandrel Lengths (1000 mm / 1200 mm) | Linear Scale |
| Dielectric Voltage Determination | Determined by axial void-free quality and wall thickness (Not by process name) | Determined by circumferential wall density and oil immersion breakdown (Not by process name) | ASTM D149 / IEC 60243 |
| Tooling & NDE Cost Profile | High die setup cost; low unit cost for continuous high volume | Low mandrel cost; highly flexible for custom diameters & small B2B runs | B2B Production Cost Profile |
2. Mechanical Force Direction & Engineering Selection Rules
Dielectric performance and mechanical reliability depend on matching component load vectors with manufacturing fiber geometry:
- Axial Tension & Compression Applications: Pultruded rods deliver optimal axial stiffness and tensile yield strength, making them the industry choice for high-voltage circuit breaker operating tie-rods, composite insulator cores, and tension guy-stays.
- Torsional, Internal Pressure & Machining Applications: Rolled fabric tubes exhibit high cross-ply reinforcement that resists internal hydraulic burst pressure, wall splitting, and torsional twist. Specified for switchgear interrupter tubes, transformer lead sleeves, and deep-threaded structural bushings.
- Voltage Class Criteria Notice: Operating voltage ratings (e.g., 10 kV up to 550 kV) are determined by insulation wall thickness, resin dielectric purity, and void-free testing standards (IEC 60243)—never by process name alone.
3. CNC Machining & Secondary Grinding Guidelines
Precision fabrication considerations for pultruded and rolled composite stock:
- Centerless Outer Diameter Grinding: Both pultruded and rolled solid rods can undergo centerless precision grinding to achieve h8/h9 ISO outer diameter fitment tolerances (down to ± 0.03 mm).
- Threading & Tapping Constraints: Pultruded rods are susceptible to longitudinal shear failure along fiber boundaries when cut with deep threads. For threaded joints, rolled fabric rods or crimped metallic end-fittings must be specified.
4. Frequently Asked Questions (FAQ)
Q: Is a rolled epoxy tube automatically rated for higher voltage than a pultruded tube?
A: No. Process name alone does not define voltage ratings. Dielectric breakdown strength is determined by wall thickness, resin saturation quality, partial discharge limits, and immersion medium (oil vs. air). Both pultruded and rolled tubes can achieve high-voltage insulation ratings when manufactured to void-free IEC/ASTM standards.
