Polyimide Glass Cloth Laminate: High-Temp Insulation, Tolerances & Machining Guide

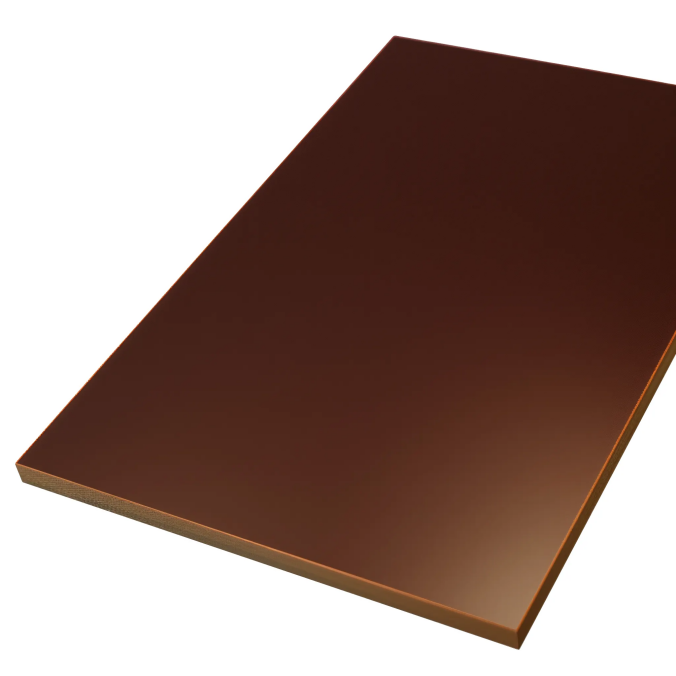

Polyimide (PI) glass cloth rigid laminate sheets represent the apex of high-temperature electrical and structural insulation. Designed to withstand continuous thermal exposure up to 240°C–260°C (Class H/C insulation ratings), rigid PI-glass laminates combine thermosetting polyimide resin with woven fiberglass reinforcement, providing exceptional mechanical rigidity and dielectric stability where standard epoxy (G10/FR4/G11) materials decompose.

This technical guide from RDS Composite details the key material distinctions between rigid PI laminates and thin flexible PI films, defines standardized temperature endurance test conditions, outlines CNC machining limits and tolerances, and highlights critical high-temperature industrial application cases.

1. Structural Form Comparison: Rigid PI-Glass Laminate vs. Flexible PI Film

A common engineering misunderstanding is confusing rigid Polyimide Laminates with flexible Polyimide Films (commonly known under trade names like Kapton). While both share polyimide polymer chemistry, their structural forms, mechanical load capabilities, and processing methods differ fundamentally:

2. Temperature Endurance Limits & Test Conditions

Rigid polyimide glass laminates undergo rigorous thermal evaluation to establish long-term service limits and short-term excursion capacity:

• Continuous Thermal Index (IEC 60216): Rated for continuous operation at 220°C to 260°C for 20,000 hours while retaining ≥ 50% of initial flexural strength and dielectric resistance.
• Glass Transition Temperature (Tg): High-density PI laminates exhibit a Tg exceeding 280°C to 320°C (tested per DMA / DSC ASTM E1356), preventing soft plastic deformation under high mechanical clamping pressure at elevated heat.
• Short-Term Excursion Limit: Withstands transient thermal spikes up to 300°C–350°C for short durations without blistering or matrix delamination.

3. Dimension Specifications & Machining Limitations

Standard Manufacturing Tolerances

To ensure precise mechanical integration in high-temperature assemblies, RDS manufactures PI glass sheets under strict DIN 7735 / ISO 2768 tolerances:

• Sheet Thickness Tolerances: ±0.10 mm for sheets 0.5 mm–3.0 mm; ±0.25 mm for sheets 5.0 mm–20.0 mm. Precision ground surfaces available down to ±0.05 mm.
• Standard Panel Dimensions: 1020 mm × 1220 mm, 1020 mm × 2040 mm, cut-to-size blocks upon request.

CNC Machining Tooling & Processing Limits

Due to the combination of high-hardness thermoset polyimide resin and abrasive glass fibers, precision machining requires specialized techniques:

• Tooling Selection: Standard Carbide tools wear rapidly. Precision CNC milling, turning, and drilling require Polycrystalline Diamond (PCD) or specialized Diamond-Coated Carbide cutters.
• Delamination Prevention: High spindle speeds (≥ 12,000 RPM) combined with moderate feed rates and sharp cutter geometries are mandatory to avoid edge-fraying or layer separation during high-speed drilling.

4. High-Temperature Industrial Application Examples

Rigid PI glass cloth laminates are specified in critical operating environments where standard G11 or silicon-glass laminates exceed their thermal breakdown thresholds:

• Class H & Class C Traction Motors: Machined rotor slot wedges, stator coil supports, and terminal blocks operating in high-output locomotive traction motors and wind turbine generators.
• Aerospace & Defense Hot-Zone Structures: High-temperature structural mounting plates, actuator insulation barriers, and radome support brackets exposed to jet exhaust heat.
• Semiconductor & Vacuum Chamber Equipment: High-vacuum, high-heat wafer handling fixtures and heating element insulation blocks requiring extremely low outgassing (< 0.1% TML per ASTM E595).
