In the global electrical insulation and general machinery manufacturing fields, phenolic laminates are highly cost-effective thermosetting composite materials. Among them, phenolic paper laminate (paper-based phenolic laminate) and phenolic cotton cloth laminate (cloth-based phenolic laminate) are the two categories with the largest market demand. If the wrong material is selected, problems such as material cracking, insulation failure, shortened lifespan, and wasted costs can easily occur during industrial applications. This comprehensive guide provides a deep analysis from five dimensions to help you choose the right material quickly.
1. Raw Materials and Molding Processes
The matrix of both sheets is modified phenolic resin, but the core difference lies in the reinforcement materials, which directly determine the overall performance direction of the materials.

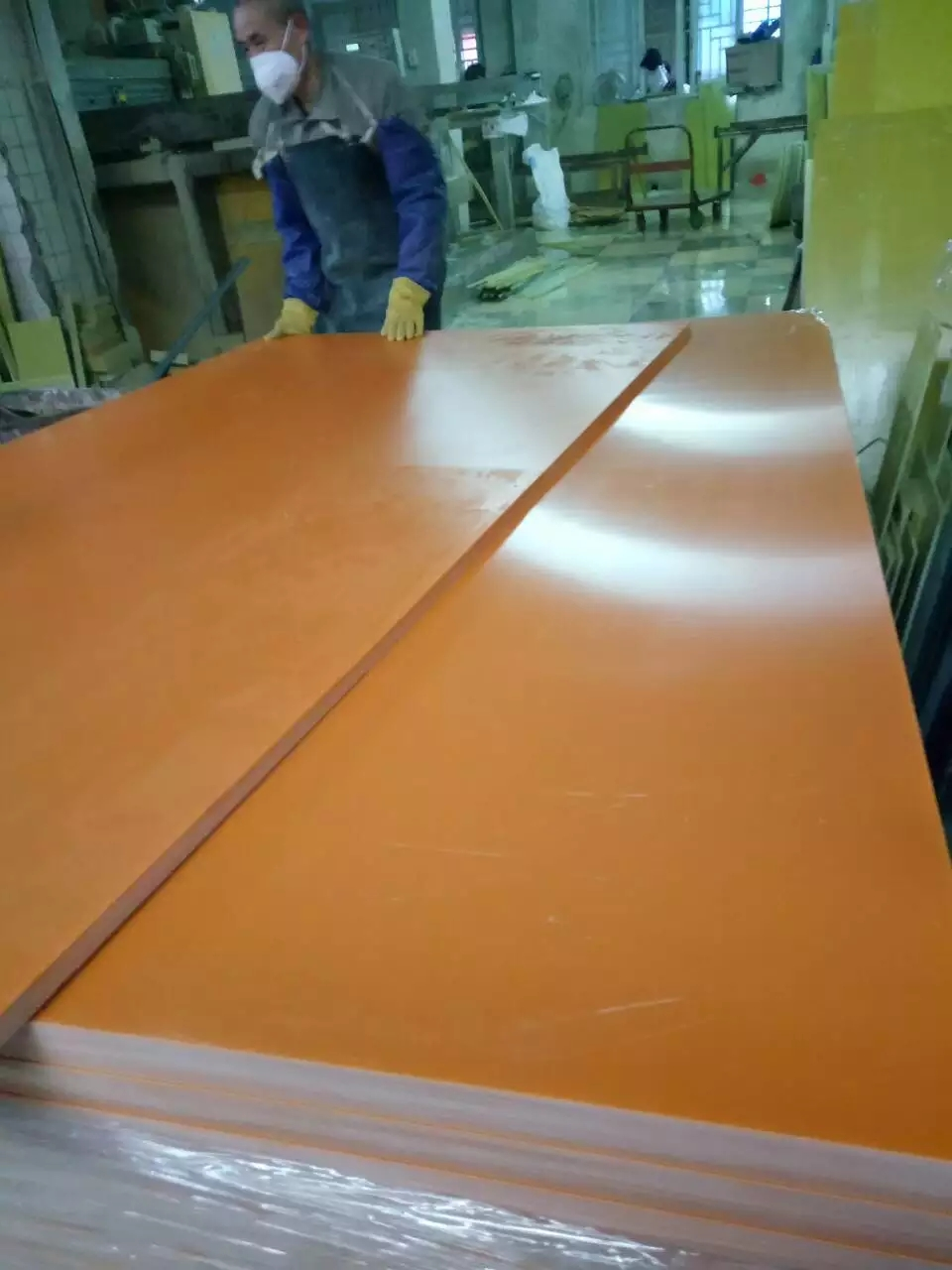

- Phenolic Paper Laminates use kraft insulation paper and cotton pulp paper as reinforcement materials. The paper is impregnated with liquid phenolic resin, stacked, and then cured and molded in one piece under high temperature and high pressure. The internal structure consists of uniform, layered paper fibers, resulting in lower raw material costs and a slightly lower sheet density.
- Phenolic Cotton Cloth Laminates use plain weave cloth as the skeleton, with carded textile fibers interwoven. The resin fully permeates the gaps in the cloth before heat-press molding, creating a continuous load-bearing network of fabric. Its internal tough structure is physically superior to paper-based substrates.
In terms of production workflow, leading manufacturing suppliers support custom thicknesses and precise sheet surface cutting to meet specific engineering specifications.
2. Quick Comparison of Core Properties
To help procurement managers and engineers make fast decisions, here is a structured breakdown of how these two thermoset composites compare against each other, as well as against other industry standards like FR4 epoxy glass laminates:
| Property Dimension | Phenolic Paper Laminate | Phenolic Cotton Cloth Laminate |
|---|---|---|
| Electrical Insulation | Excellent & Stable (High Dielectric Strength) | Moderate (Suitable for Medium/Low Voltage) |
| Mechanical Toughness | Brittle (Prone to edge chipping under impact) | Superior (High tensile, impact & wear resistance) |
| Moisture Resistance | High (Dense fibers, low water absorption) | Lower (Hygroscopic fabric fibers) |
| Best Machining Method | High-volume thin sheet die punching | CNC milling, drilling, and heavy structural machining |
| Cost Performance | Highly budget-friendly for high-volume basic insulation | Premium choice for long-term mechanical wear |
3. Insulation and Mechanical Performance Analysis
Electrical Insulation Performance: Phenolic Paper is More Stable
Phenolic paper laminates feature dense fibers and low water absorption, yielding higher dielectric strength. Their insulation attenuation is exceptionally small in environments with temperature and humidity fluctuations. This makes them highly suitable for pure electrical isolation scenarios such as high and low-voltage distribution cabinets, transformer winding partitions, and terminal boards.
Conversely, phenolic cotton cloth laminates have stronger hygroscopicity, and their electrical insulation performance decreases slightly in humid environments. Therefore, they are only recommended for medium voltage and dry working conditions, and should not be used long-term in outdoor, high-humidity electrical equipment where advanced solutions like GPO-3 insulation materials might be required.
Mechanical Strength: Phenolic Cotton Cloth is Superior
While paper laminates offer good rigidity, they lack toughness, making them prone to edge chipping and cracking under sudden impact or continuous heavy loads. Phenolic cotton cloth laminates rely on woven fabric fibers to evenly disperse structural stress. This significantly improves tensile, impact, and wear resistance. They can withstand vibration and alternating loads for long periods, making them ideal for heavy-duty industrial components.
4. CNC Machining Differences: Punching vs. Milling
Both types of sheets can be sawn, drilled, turned, milled, and CNC precision machined, but the processing characteristics differ significantly:
Phenolic paper laminate has a uniform and delicate texture, making it perfect for high-volume die punching and thin sheet stamping. The inner walls of drilled holes come out smooth without wearing down cutting tools quickly. However, large-thickness deep holes and complex slotting processes are prone to corner chipping.
Phenolic cotton cloth laminate shows prominent structural advantages in deep holes, irregular milling, and high-precision tooling processing. The finished parts are exceptionally wear-resistant and provide natural noise reduction (e.g., in transmission bushings and cams). The main drawback is that the fabric fibers wear down CNC cutting tools faster, and cold punching of thin sheets is not possible since stamping causes delamination and burrs.
5. Industry Application Scenarios
- Main Applications of Phenolic Paper Laminate: Busbar insulation partitions in low-voltage switchgear, insulation gaskets in distribution boxes, internal insulation baffles in power transformers, and electronic relay bases. This is your preferred option for projects that primarily require electrical insulation without high-intensity mechanical stress.
- Main Applications of Phenolic Cotton Cloth Laminate: Wear-resistant gears for industrial machinery, motor bearing bushings, heat insulation blocks for heavy stamping equipment, vibration-damping parts for rail transit, impact-resistant structural components for circuit breakers, and guide sliders for large machine tools.
6. B2B Selection Advice: How to Choose?
To optimize your engineering results and material costs, follow these industry selection standards:
- Choose Phenolic Paper Laminates when your project only requires standard electrical isolation in dry indoor environments, or involves high-volume stamping of thin sheets and simple gaskets.
- Choose Phenolic Cotton Cloth Laminates when your equipment is subject to continuous vibration, high impact loads, or requires high CNC-machined structural thickness and wear resistance.
