Phenolic Cotton Cloth Tubes: Engineering Selection & Manufacturing Guide

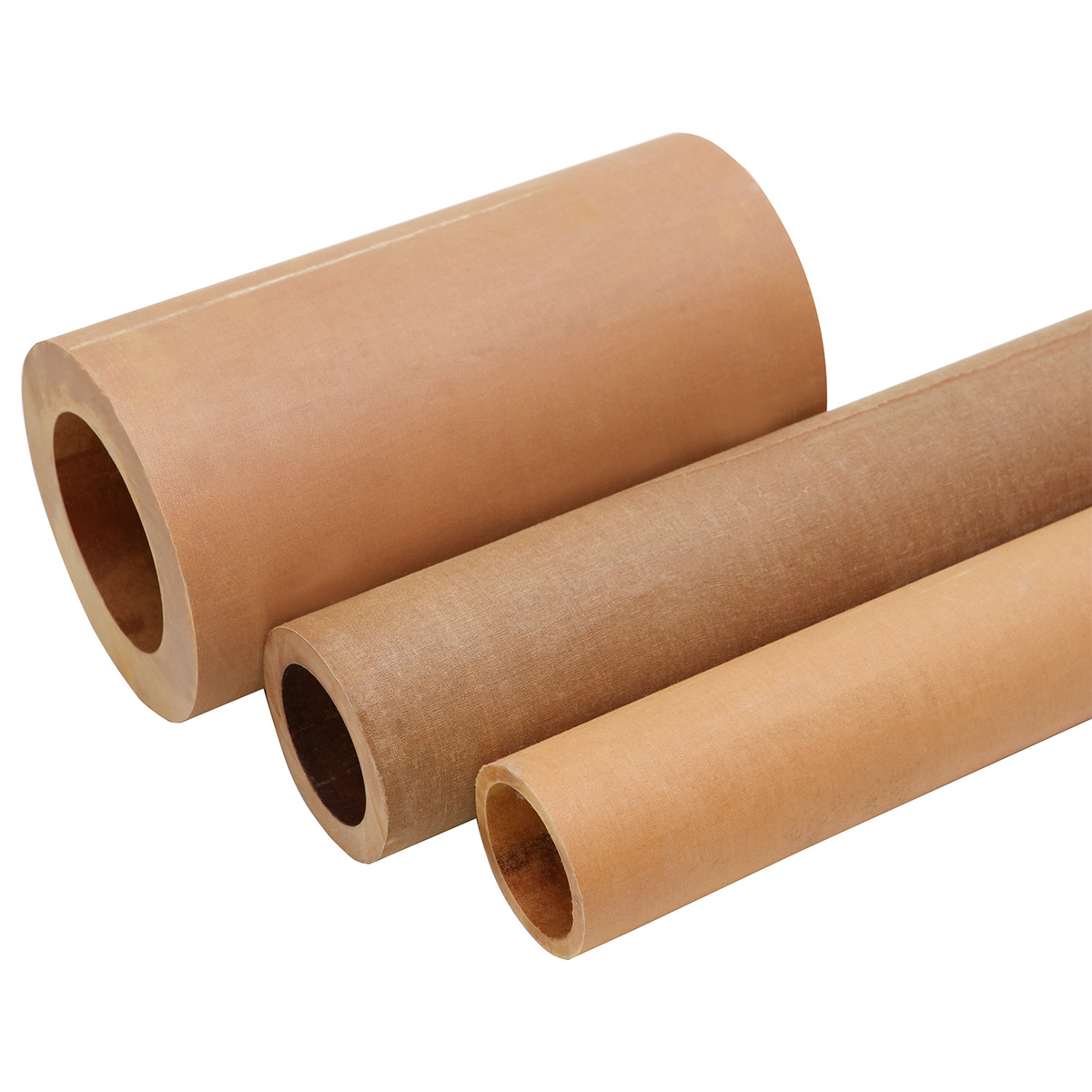

Phenolic cotton cloth tubes (also widely designated in industrial trade as phenolic fabric pipes or insulating sleeves) are rigid, continuous rolled thermoset composite cylinders manufactured from cotton fabric impregnated with specialized phenolic resin binders. Standardized under NEMA C/CE/L/LE and IEC 60893 PFCC21/PFCC22/PFCC23 specifications, these tubes deliver high mechanical impact resistance, low friction coefficients, and exceptional noise-dampening characteristics for heavy-duty bearing bushings, hydraulic guide rings, and transformer tap-changer shafts.

1. Product Terminology & Supply Envelope

Understanding industry terminology and factory production capabilities for engineering component procurement:

• Core Terminology Alignment: Standard engineering nomenclature defines these rolled composite cylinders as Phenolic Cotton Tubes. The terms Pipes, Sleeves, or Bushings serve as industry synonyms depending on whether the component functions as a mechanical structural sleeve, a fluid isolation barrier, or a rotating bearing shell.
• Standard Dimensional Capabilities:
  • Inner Diameter (ID): 8.0 mm to 500.0 mm (Governed by precision steel mandrel tooling).
  • Wall Thickness: 1.0 mm to 50.0 mm.
  • Standard Tube Lengths: 1000 mm and 1020 mm (Custom cut-to-length options available).

2. Mandrel Roll-Wrapping Manufacturing & Structural Load Orientations

The roll-wrapping process directly determines mechanical force distribution across axial and radial stress vectors:

• Hot Roll-Wrapping & Curing Process: Continuous fine (Linen/LE) or coarse (Canvas/C) cotton fabric is pre-impregnated with phenolic resin, tightly wrapped under tension onto pre-heated precision ground steel mandrels, and cured under controlled heat and hydraulic pressure rollers. Post-curing in baking ovens completes cross-linking to prevent internal void formation.
• Directional Mechanical Force Capabilities:
  • Radial / Hoop Compressive Strength (≥ 120 MPa): Multilayer wrapped woven fabric provides high circumferential hoop strength, resisting radial crushing forces in hydraulic cylinder guide sleeves and press bushings.
  • Axial Compressive Strength (≥ 110 MPa): Delivers solid load-bearing support when installed as vertical structural spacers or tap-changer operating rods.
  • Interlaminar Shear Resistance: Cross-ply fabric layers ensure high shear resistance, allowing deep precision internal thread tapping and keyway milling without interlaminar splitting.

3. Technical Specifications: Thermal Ratings & Media Compatibility

Property limits verified across standard test methods for industrial applications:

4. Secondary CNC Machining & Custom Component Fabrication

Precision finishing options for OEM machinery assemblies:

• Outer Diameter Centerless Grinding: As-cured outer tube surfaces can be centerless ground to h8/h9 ISO tolerances to ensure seamless press-fit insertion into metal housings.
• Custom Component Machining: Precision CNC turning, slotting, and drilling for non-metallic silent gears, marine stern tube bearings, textile guide rollers, and transformer tap-changer shafts.

5. Frequently Asked Questions (FAQ)

Q: What is the main difference between NEMA C canvas tubes and NEMA CE linen tubes?
A: NEMA C canvas tubes use coarse cotton fabric, offering higher impact toughness for large industrial bushings. NEMA CE linen tubes use fine-weave cotton fabric, providing higher dielectric breakdown strength, superior thread tapping quality, and smoother machined surface finishes for smaller precision parts.

Q: Are phenolic cotton tubes suitable for high-voltage insulation in air?
A: Phenolic cotton tubes are primarily mechanical and low-to-medium voltage insulators (especially when immersed in insulating transformer oil). For high-voltage electrical insulation in dry air, continuous glass-epoxy tubes (NEMA G10/FR4) are recommended due to lower moisture absorption and higher dielectric strength.
