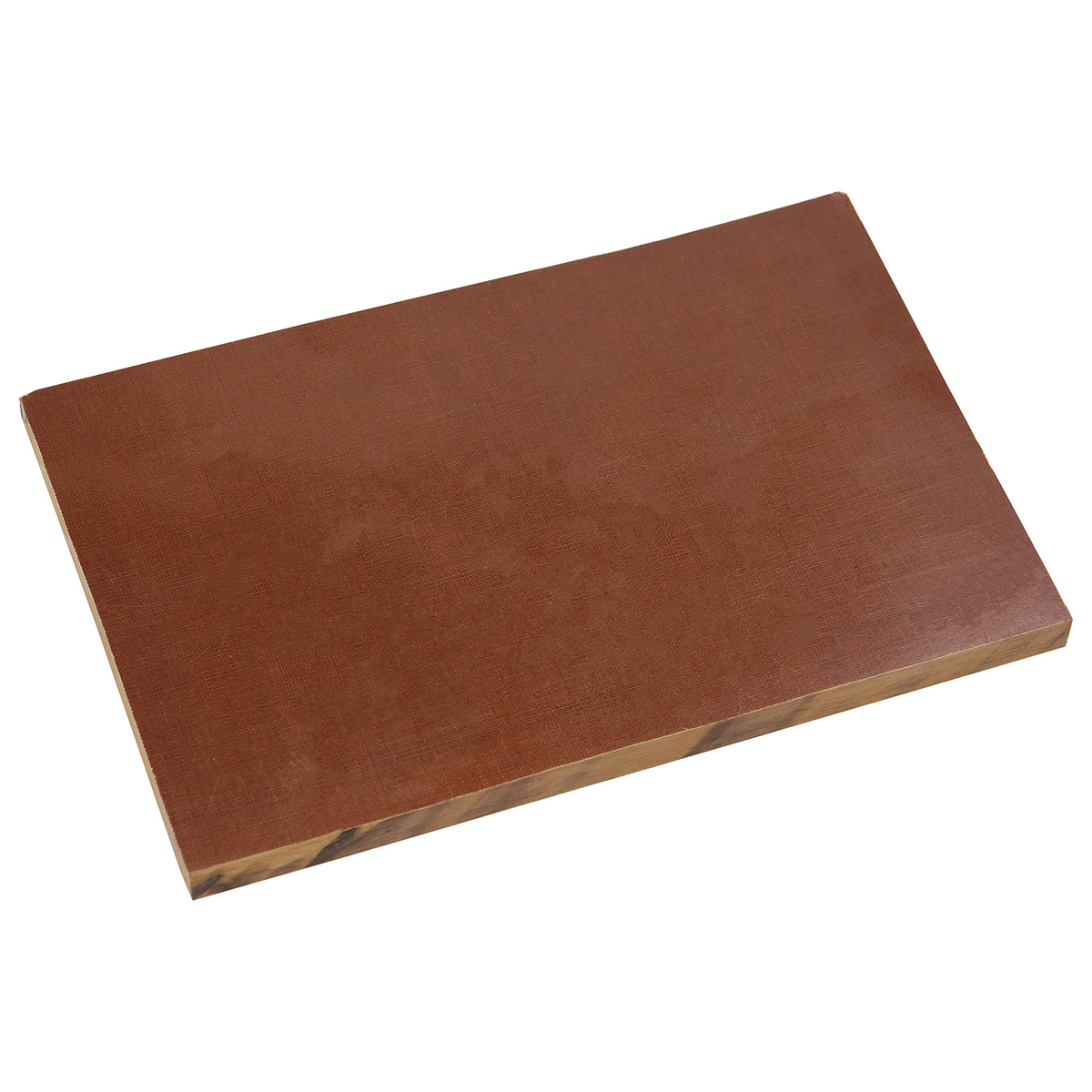

Phenolic cotton cloth laminate sheets (commonly known as phenolic fabric laminates or Bakelite fabric sheets) are high-strength thermoset composites made by impregnating woven cotton fabrics with phenolic resin binder under heat and pressure. Widely specified for low-voltage electrical insulation, non-metallic wear plates, and noiseless gears, these laminates offer exceptional toughness, dynamic shock absorption, and high mechanical machinability.
1. NEMA vs. IEC Grade Comparison Matrix
Phenolic fabric laminates are classified based on fabric weave density (coarse vs. fine weave) and electrical insulation requirements according to NEMA LI-1 and IEC 60893 standards:
| NEMA Grade | IEC / GB Equivalent | Fabric Weave Base | Primary Performance Profile | Typical Industrial Applications |
|---|---|---|---|---|
| Grade C | PFCC201 / 3025 | Coarse Cotton Weave | High impact strength and flexural resistance. Moderate electrical properties. | Heavy structural gears, wear blocks, pulleys, and friction pads. |
| Grade CE | PFCC202 / 3025B | Coarse Cotton Weave (Insulation Grade) | Good mechanical strength combined with superior moisture resistance and electrical insulation. | Low-voltage terminal boards, switch components, and transformer core supports. |
| Grade L | PFCC203 / 3027 | Fine Linen Weave | Fine weave enables clean, burr-free machining of small, intricate mechanical parts. | Small silent gears, fine-pitch pinions, and precision mechanical spacers. |
| Grade LE | PFCC204 / 3028 | Fine Linen Weave (Insulation Grade) | Superior fine-machining quality combined with enhanced dielectric resistance under high humidity. | Instrument insulation plates, relay bases, and precision electronic fixtures. |
2. Key Mechanical, Thermal, and Electrical Boundaries
When engineering components with phenolic cotton cloth laminates, select grades based on structural and ambient limits:
- Thermal Endurance Rating: Rated for Class E continuous operation (up to 120 °C continuous duty). Continuous operating temperatures exceeding 120 °C induce thermal degradation and matrix embrittlement.
- Impact Strength & Wear Resistance: Due to continuous cotton reinforcements, fabric laminates deliver significantly higher impact resistance and fracture toughness than paper-based phenolic sheets (PFCP).
- Water Absorption & Moisture Sensitivity: Cotton fibers absorb moisture (typically 1.0% to 2.5% immersion depending on grade). For high-humidity medium-voltage applications, specify FR4 Epoxy Glass Sheets.
3. CNC Machining & Fabrication Guidelines
Phenolic cotton cloth laminates feature excellent machinability on standard metalworking and woodworking machinery:
- Tooling Selection: Standard high-speed steel (HSS) or tungsten carbide cutters perform well. Carbide tools are recommended for high-volume production runs.
- Machining Operations: Can be drilled, milled, tapped, and punched (thin gauges up to 2.0 mm) without splitting when supported by solid backing plates.
4. Frequently Asked Questions (FAQ)
Q: What is the main difference between NEMA Grade C and NEMA Grade L phenolic sheets?
A: NEMA Grade C uses coarse cotton canvas weave, offering higher shock resistance for large structural parts and heavy gears. NEMA Grade L uses fine linen fabric weave, allowing tight tolerances and smooth machining for small, intricate components without edge fraying.
