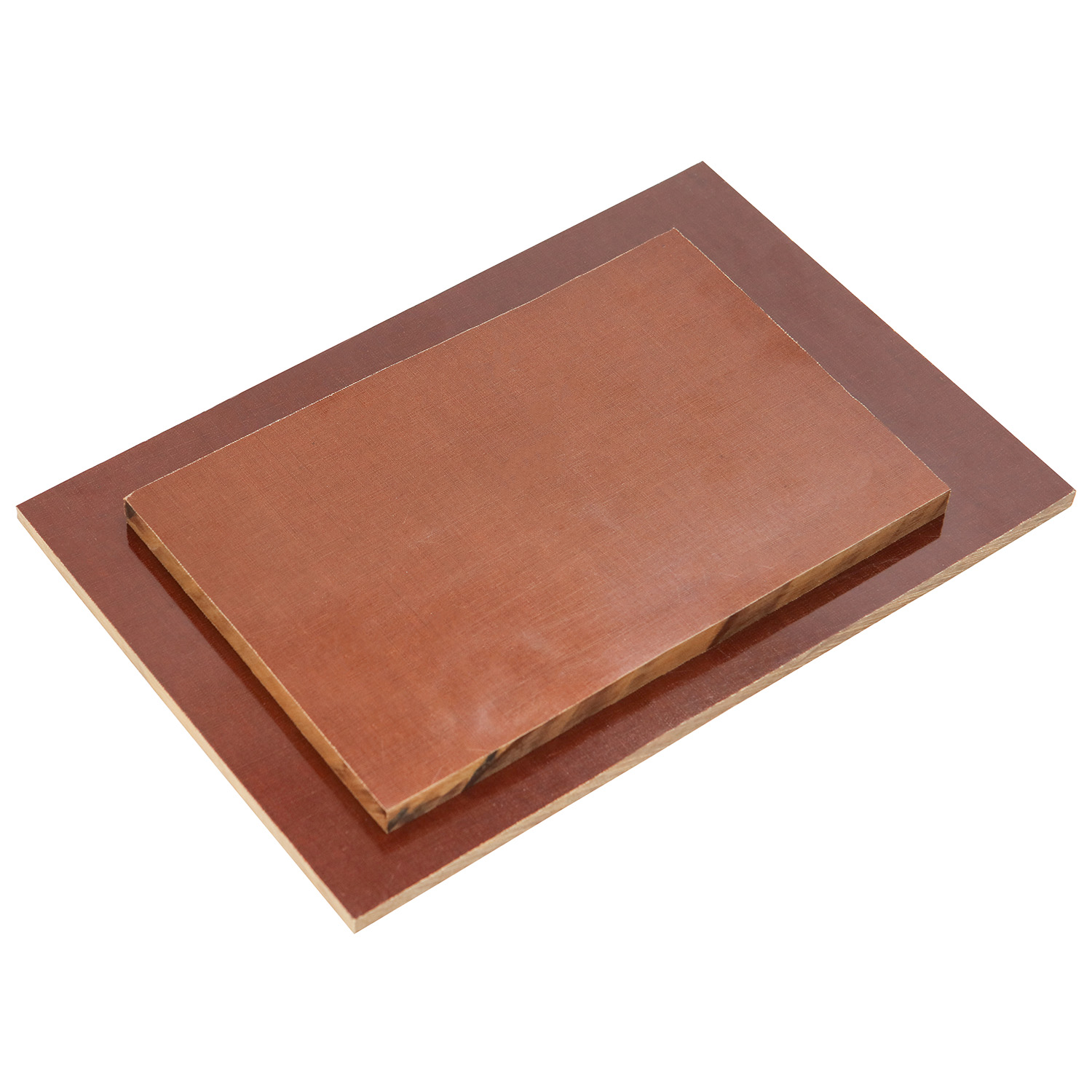

The mechanical toughness, wear resistance, and dielectric properties of phenolic cotton cloth laminated boards (3025 / NEMA C / CE grades) are directly determined by precision control during factory laminating operations. Unlike paper-base phenolics, coarse and fine cotton weave laminates rely on optimal phenolic resin penetration and high-tonnage thermosetting consolidation.
This manufacturing process guide from RDS Composite details the step-by-step unit operations—from raw cotton fabric resin impregnation, continuous treater drying, multi-platen hydraulic hot pressing, to final QA inspection protocols.
1. Unit Operation 1: Fabric Selection & Phenolic Resin Impregnation
The manufacturing sequence starts with high-tensile woven cotton fabrics passed continuously through a liquid phenolic resin bath (resol-type thermosetting resin dissolved in alcohol solvents).
- Substrate Preparation: Woven cotton fabric rolls are inspected for warp/weft thread density, moisture content (≤ 1.5%), and surface cleanliness to ensure uniform wicking.
- Impregnation & Squeeze Control: Precision dip rollers submerge the fabric into the resin bath. Dual doctor blades adjust resin pick-up to maintain an engineered Resin Content (RC) of 42% – 48% by weight.
-
B-Stage Treater Tower Drying: The wet prepreg passes through a multi-zone vertical drying tower (110°C – 140°C) to evaporate solvents and advance the resin to a tacky B-stage.
Quality Gate: Prepreg B-stage Volatile Content (VC) is strictly kept ≤ 1.5%, and resin flow (RF) is measured per lot before stacking.
2. Unit Operation 2: Lay-up Stack Assembly & Multi-Platen Loading
Dried B-stage cotton fabric rolls are cut into master sheet dimensions (standard 1020 mm × 2040 mm or 1220 mm × 2440 mm) and stacked to target raw board thicknesses.
- Calculated plies of cotton prepreg are stacked between stainless steel press caul plates polished to mirror or satin finishes.
- Stacking arrangements alternate warp directions periodically to deliver isotropic mechanical shear resistance across both X and Y axis planes.
3. Unit Operation 3: High-Tonnage Hydraulic Hot Compression Pressing
Assembled sheet stacks are loaded into multi-daylight hydraulic presses. The thermosetting cross-linking reaction is executed under a strict temperature-pressure profile:
| Hot Pressing Phase | Process Parameters | Engineering Objective |
|---|---|---|
| Pre-heating & Low Pressure Dwell | 90°C – 110°C at 2.0 – 3.0 MPa | Softens phenolic resin, allowing trapped volatile gases and air to vent via mold boundaries. |
| High-Pressure Curing Dwell | 150°C – 170°C at 10.0 – 12.0 MPa | Triggers complete C-stage phenolic cross-linking, eliminating inter-ply delamination. |
| Controlled Cool-Down Cycle | Cooling under full 10.0 MPa pressure to < 40°C | Prevents internal thermal stress, warpage, or post-press sheet bowing. |
4. Unit Operation 4: Edge Trimming & Secondary CNC Fabrication
Cured phenolic cotton boards are demolded, perimeter trimmed on automated saws to remove flash edges, and transferred for precision secondary CNC processing.
- CNC Router Milling & Drilling: High-speed carbide/diamond tooling mills smooth edges for heavy-duty gears, wear plates, bushing rings, and structural electrical insulators without cotton fiber fraying.
- To explore finished components, custom machining options, and grade specifications, visit our comprehensive guide: Phenolic Cotton Cloth Laminate Sheets Guide.
5. Unit Operation 5: Factory Quality Assurance & Testing Protocols
Every production batch of phenolic cotton cloth sheets undergoes standardized physical, mechanical, and electrical property verification prior to shipment:
| Quality Inspection Metric | Standard Test Method | Factory QC Acceptance Limits |
|---|---|---|
| Flexural Strength (Perpendicular) | ISO 178 / ASTM D790 | ≥ 100 MPa (Coarse Weave) / ≥ 120 MPa (Fine Weave) |
| Barcol Hardness | ASTM D2583 | ≥ 60 Hardness Units |
| Dielectric Strength (90°C oil, 25mm thickness) | IEC 60243 / ASTM D149 | ≥ 1.0 – 2.0 kV/mm (Mechanical Class) |
| Density | ISO 1183 | 1.30 – 1.40 g/cm³ |
| Water Absorption (24h Immersion) | ISO 62 / ASTM D570 | ≤ 1.5% – 2.5% (Depending on board thickness) |
