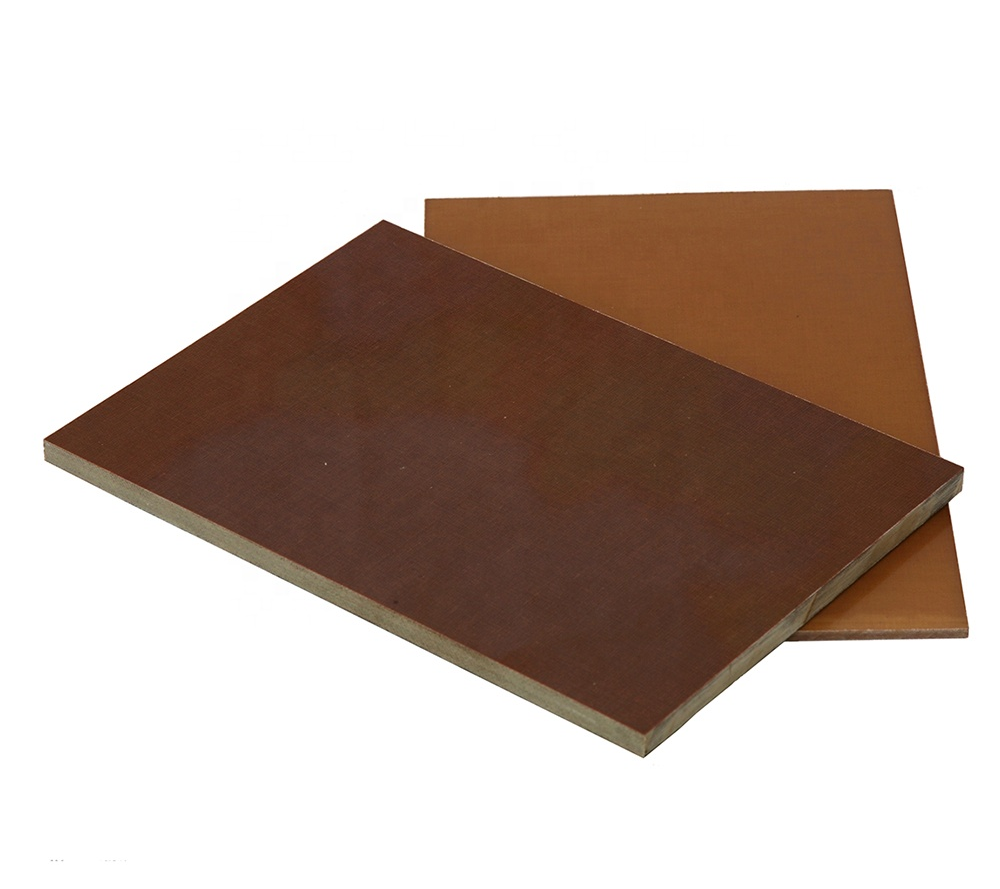

PFCC201 (standardized under IEC 60893 as a fine-weave cotton cloth reinforced phenolic resin laminate, equivalent to NEMA Grade LE) is engineered specifically for high-precision mechanical components requiring dense physical structure, superior machinability, and low friction wear. Unlike coarse-weave phenolic laminates used for bulk structural panels, PFCC201 utilizes fine-yarn cotton fabric that prevents edge-chipping during delicate turning, gear hobbing, and milling.
This technical engineering guide from RDS Composite details the grade distinctions between PFCC201 and other phenolic cotton laminates, analyzes operating conditions for gears and bushings, and provides complete Technical Datasheet (TDS) parameters for CNC part machining.
1. Grade Distinction: PFCC201 vs. PFCC202, PFCC203 & NEMA Grades
Selecting the correct phenolic cotton laminate grade requires matching fabric weave density with machining precision and mechanical load requirements:
| IEC 60893 Grade | NEMA Equivalent | Cotton Weave Type | Machinability & Feature Size | Primary Mechanical Application |
|---|---|---|---|---|
| PFCC201 | NEMA LE | Fine Weave (> 30 threads/cm) | Excellent; fine threads, pitch < 1.0 mm, smooth walls | Precision gears, small bushings, wear rings, delicate CNC parts. |
| PFCC202 | NEMA L | Fine/Medium Weave | Good; standard turning and drilling | Medium mechanical spacers, operating levers, insulating plates. |
| PFCC203 | NEMA C / CE | Coarse Weave (< 15 threads/cm) | Fair; prone to edge fraying on small teeth | Heavy structural wear plates, large heavy-duty impact gears. |
2. Operating Conditions for PFCC201 Gears, Bushings & Wear Pads
A. Silent Pinions & Precision Spur Gears
- Vibration & Noise Dampening: PFCC201 gears meshed with steel or cast iron pinions reduce gear train noise by up to 10–12 dB due to the elastic modulus of the resin-cotton matrix absorbing tooth-impact shock loads.
- Operating Parameters: Suitable for pitch line speeds up to 12 m/s. Continuous oil bath lubrication or grease lubrication is recommended to extend gear tooth fatigue life.
B. Self-Lubricating Bushings & Guide Bearings
- Tribological Behavior: Under boundary lubrication or initial dry startup conditions, PFCC201 exhibits a low coefficient of friction (≈ 0.15–0.25 on smooth steel shafts), resisting galling and shaft scoring.
- Load & PV Rating: Maximum static compressive load capacity up to 180 MPa, with continuous working temperatures up to 120°C (Class E thermal rating).
3. Technical Datasheet (TDS) Parameter Specifications
The table below provides standard physical and mechanical properties for RDS PFCC201 rigid sheets:
| Property Parameter | Test Standard | Typical Value / Unit |
|---|---|---|
| Density | ISO 1183 | 1.30 – 1.40 g/cm³ |
| Flexural Strength (Perpendicular) | ISO 178 / ASTM D790 | ≥ 120 MPa |
| Compressive Strength (Perpendicular) | ISO 604 | ≥ 180 MPa |
| Water Absorption (24h at 23°C, 3mm) | ISO 62 / ASTM D570 | ≤ 0.85% (Low swelling rate) |
| Insulation Resistance (Water immersed) | IEC 60167 | ≥ 107 Ω |
4. CNC Machining Capabilities & Precision Tolerances
PFCC201 fine-weave sheets machine cleanly using standard high-speed steel (HSS) or carbide tooling without delamination or edge fraying:
- CNC Milling & Turning Tolerances: Achievable machining accuracy up to ±0.05 mm on turned bushings and milled gear profiles.
- Tooling Recommendations: Use sharp carbide cutters with positive rake angles. Maintain high cutting speeds and low feed rates to ensure a smooth surface finish (Ra ≤ 1.6 μm).
- Machined Sample Types: Custom CNC parts supplied by RDS include small gear blanks, threaded bushings, slot wedges, guide shoes, and wear rings.
