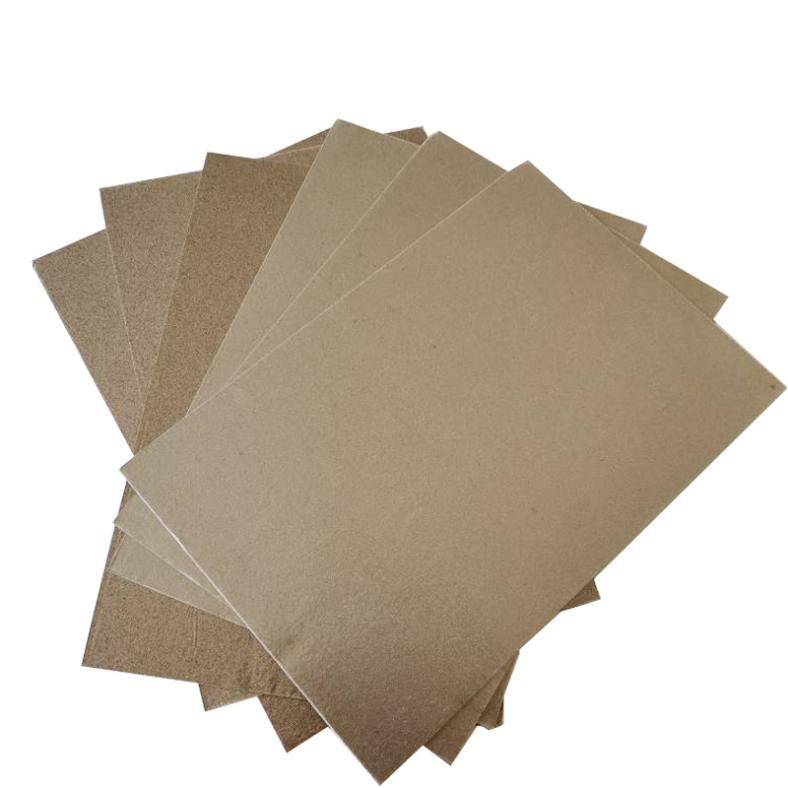

In electric vehicle (EV) battery pack design, managing thermal runaway (TR) propagation is a critical safety challenge. Mica-based materials, including Phlogopite and Muscovite constructions, may be used as thermal and electrical insulation barriers in selected battery components.
The suitability of a mica insulation component depends on the mica type, binder system, thickness, construction, installation method, operating conditions, and the validation requirements of the complete battery system. Material performance should therefore be evaluated together with the actual battery architecture rather than from the mica type alone.
1. Compliance Roadmap: Regulatory Demands for Thermal Runaway Protection
Battery safety validation is performed at the cell, component, module, battery-system, and vehicle levels depending on the applicable regulation and test program. A mica barrier can contribute to a battery design, but material-level performance should not be interpreted as automatic compliance of the complete battery pack.
- GB 38031-2025: China's current mandatory standard for EV traction-battery safety. The standard includes requirements addressing thermal-event warning, thermal propagation, fire, explosion, and passenger-compartment smoke exposure. The applicable acceptance criteria depend on the test level and test configuration.
- UN Regulation No. 100: The REESS safety requirements include provisions for thermal propagation initiated by a single-cell thermal runaway. The regulation addresses warning indications and hazardous situations affecting vehicle occupants. The applicable test procedure and acceptance criteria depend on the vehicle and REESS configuration.
- IEC 60371: The IEC 60371 series provides requirements and specifications for electrical insulating materials based on mica. It is relevant to material selection and specification, rather than being a vehicle-level thermal-runaway compliance standard.
- UL 9540A: UL 9540A is a standardized test method for evaluating thermal runaway fire propagation in battery energy storage systems (BESS). It should not be presented as a generic certification or material test for EV mica sheets.
Engineering Reality Check: A mica sheet or other insulation material can contribute to thermal separation and electrical insulation, but material-level test results do not by themselves guarantee battery-pack thermal-propagation compliance. System performance also depends on cell design, module construction, barrier geometry, interfaces, venting, thermal management, electrical protection, and validation conditions.
2. Technical Comparison: Phlogopite vs. Muscovite Mica Sheets
Phlogopite and Muscovite are two commonly used mica types for electrical insulation and high-temperature applications. The choice between them should be based on the required temperature exposure, dielectric performance, mechanical behavior, flexibility, binder system, thickness, and application environment.
| Performance Parameter | Phlogopite Mica | Muscovite Mica |
|---|---|---|
| Temperature Capability | Generally selected for applications requiring higher-temperature performance; exact capability depends on grade, binder system, construction, exposure time, and test method. | Suitable for many electrical insulation and thermal-separation applications; exact capability depends on grade, binder system, construction, exposure time, and test method. |
| Short-Term Thermal Exposure | Application-specific. Verify the required short-duration thermal exposure against the RDS technical data and test conditions. | Application-specific. Verify the required short-duration thermal exposure against the RDS technical data and test conditions. |
| Dielectric Performance | Depends on mica quality, binder system, density, thickness, moisture condition, test method, and product construction. | Depends on mica quality, binder system, density, thickness, moisture condition, test method, and product construction. |
| Post-Thermal Electrical Performance | Should be established through application-specific testing where post-exposure electrical insulation is a design requirement. | Should be established through application-specific testing where post-exposure electrical insulation is a design requirement. |
| Mechanical Behavior | Depends on mica construction, reinforcement, binder system, thickness, forming method, and operating temperature. | Depends on mica construction, reinforcement, binder system, thickness, forming method, and operating temperature. |
| Potential EV Applications | Selected cell-to-cell barriers, module insulation, enclosure insulation, electrical isolation, and high-temperature barrier components. | Electrical insulation, thermal separation, selected module components, and other applications where the verified material temperature capability is appropriate. |
There is no universal temperature, dielectric-strength, or flame-exposure value that applies to every Phlogopite or Muscovite mica product. Engineers should always evaluate the specific material grade and construction against the intended operating and test conditions.
IEC 60371 provides a framework for mica-based electrical insulating materials and related product specifications. The applicable material specification should be confirmed for the selected construction.
3. Key Testing Parameters & Custom Fabrication Options
RDS Composite provides customized mica insulation solutions according to application requirements, component geometry, thickness, tolerance, assembly conditions, and requested material grade.
- Thickness and Geometry: Custom sheet thicknesses, die-cut shapes, formed components, and application-specific dimensions can be evaluated according to material construction and project requirements.
- Composite Lamination: Where required by the application, mica materials may be combined with other insulation or support layers. The appropriate combination should be selected according to compression, flexibility, thermal exposure, electrical insulation, and assembly requirements.
- Application-Specific Testing: RDS can evaluate selected mica materials under defined thermal and electrical test conditions. Test parameters and results should be confirmed for the selected material grade, thickness, construction, and customer application.
Technical Note: Material performance varies with mica type, binder system, thickness, density, construction, test method, and operating conditions. Any numerical performance value should be taken from the corresponding technical data sheet or test report for the selected product grade.
4. 6-Step Engineering Selection Workflow
- Define Thermal Exposure: Determine the normal operating temperature, maximum operating temperature, expected short-duration thermal event, and required barrier duration. Select a material grade whose verified performance matches the application.
- Evaluate Clearance & Space: Determine the required insulation thickness and component geometry according to available pack space, electrical insulation distance, thermal requirements, assembly method, and mechanical constraints.
- Assess High-Voltage Insulation: Define the required dielectric performance and insulation distance according to the system voltage, insulation design, applicable test specification, and customer requirements.
- Factor in Mechanical Stress: Consider cell swelling, vibration, compression, thermal expansion, fastening, and assembly movement. Where appropriate, a mica component can be combined with other compliant or support materials.
- Optimize Edges and Interfaces: Review openings, holes, edges, joints, clearances, and possible thermal or electrical bypass paths. Component geometry should be validated together with the actual battery assembly.
- Validate at the Appropriate System Level: Conduct material, component, module, battery-system, or vehicle-level validation according to the applicable standard and approval pathway. Material selection alone does not establish pack-level compliance.
5. Material-Level Testing vs. Battery-System Validation
Mica material testing and battery thermal-propagation testing serve different purposes. A material may demonstrate useful electrical or thermal properties without automatically satisfying a complete battery-system safety requirement.
| Validation Level | Typical Evaluation |
|---|---|
| Material Level | Thermal properties, electrical strength, insulation resistance, mechanical behavior, dimensional stability, and other specified material properties. |
| Component Level | Geometry, interfaces, mounting, compression, edge conditions, thermal exposure, and electrical isolation under representative assembly conditions. |
| Module / Pack Level | Thermal propagation behavior, gas and heat release, enclosure behavior, electrical safety, and other applicable system-level requirements. |
| Vehicle Level | Compliance with the applicable vehicle approval and safety requirements, including occupant protection where relevant. |
This distinction is important when specifying mica barriers for safety-critical applications. A material supplier should provide product-level technical information that can be incorporated into the customer's component and system validation program.
6. Relevant Standards and What They Cover
GB 38031-2025 — EV Traction Battery Safety
GB 38031-2025, Electric vehicles traction battery safety requirements, is the current Chinese national standard for EV traction-battery safety. It was published on March 28, 2025 and took effect on July 1, 2026.
The standard addresses safety requirements at the traction-battery level, including thermal-event and thermal-propagation requirements. An individual mica sheet should not be described as "GB 38031 certified" unless the specific claim is supported by the applicable certification or test documentation.
View GB 38031-2025 at the China National Standards platform
UN Regulation No. 100 — REESS Safety
UN Regulation No. 100 contains safety requirements for rechargeable electrical energy storage systems (REESS) used in electrically propelled vehicles. Its thermal-propagation provisions address warning indications and hazardous situations resulting from thermal propagation triggered by a single-cell thermal runaway.
The applicable amendment series, test configuration, and approval pathway should be confirmed for the specific vehicle program.
View the current documented UN Regulation No. 100 text
IEC 60371 — Mica-Based Electrical Insulating Materials
The IEC 60371 series covers electrical insulating materials based on mica, including definitions, general requirements, and specifications for applicable mica-based material constructions.
IEC 60371 is useful for material specification and selection, but it should not be treated as a vehicle-level thermal-runaway compliance standard.
View IEC 60371 information at IEC
IEC 60243-1 — Electric Strength of Solid Insulating Materials
IEC 60243-1:2013 provides test methods for determining the short-time electric strength of solid insulating materials at power frequencies between 48 Hz and 62 Hz.
If a project requires dielectric testing after a defined thermal exposure, the complete test procedure should be documented separately, including the thermal pre-conditioning, specimen construction, recovery conditions, electrical test method, and acceptance criteria.
View IEC 60243-1 information at IEC
UL 9540A — BESS Thermal Runaway Fire Propagation
UL 9540A is a test method for evaluating thermal runaway fire propagation in battery energy storage systems (BESS). The methodology can involve different levels of evaluation depending on the applicable system and test program.
UL 9540A should therefore not be presented as a generic certification for an EV mica sheet or as a material-level approval. Where an EV or battery project references UL 9540A, the applicability and test scope should be confirmed for the specific system.
7. RDS Mica Insulation Solutions
RDS Composite provides mica-based composite insulation materials for electrical and high-temperature applications. Depending on the product construction, available solutions may include rigid sheets, flexible mica materials, tubes, and custom insulation components.
Material selection should be based on the required mica type, binder system, thickness, geometry, operating temperature, electrical requirements, and applicable validation conditions.
8. Information Needed for Custom Mica Battery Components
For an engineering evaluation, customers should provide as much of the following information as possible:
- Application and battery architecture
- Component location
- Preferred mica type, if already specified
- Required thickness
- Part dimensions and geometry
- Drawing or CAD file
- Required dimensional tolerance
- Normal and maximum operating temperature
- Expected thermal-event conditions, where known
- Working voltage and electrical requirements
- Mechanical and compression requirements
- Applicable customer or regulatory test requirements
- Estimated project or annual quantity
Summary & Engineering Key Takeaways
- Phlogopite vs. Muscovite: Phlogopite mica is generally selected for extreme high-temperature exposure scenarios, whereas Muscovite offers strong dielectric properties and dielectric performance for standard electrical and thermal insulation layers.
- Material vs. System Validation: Passing material-level thermal tests does not automatically constitute compliance with EV system-level standards like GB 38031-2025 or UN R100. Component geometry, pack venting, and assembly compression must be validated in the actual battery pack.
- Custom Composite Designs: Custom laminations (combining mica with silicone sponges, aerogels, or structural films) are often necessary to balance mechanical swelling allowance with high-voltage isolation.
- Data-Driven Selection: Always verify actual mechanical, thermal, and dielectric specifications against grade-specific Technical Data Sheets (TDS) rather than relying on generalized material ranges.
Need Engineering Assistance or Custom Mica Samples?
RDS Composite can review your application requirements, drawings, material grade, thickness, tolerances, and testing requirements to evaluate a suitable mica insulation solution for EV and ESS applications.
Technical Disclaimer: The engineering information in this article is provided for general material-selection guidance. Mica performance varies with mica type, binder system, thickness, density, construction, test method, and operating conditions. Numerical performance values should be taken from the applicable RDS technical data sheet or test report for the selected material grade. Material-level performance does not by itself establish compliance of a complete EV battery, REESS, or vehicle.
