Flange Isolation Gasket Kits (also known as Flange Insulation Sets) are critical safety and corrosion-prevention components used in petrochemical pipelines, oil and gas gathering systems, and offshore platforms. By stopping stray electrical currents and halting galvanic corrosion between dissimilar metal flanges, these specialized G10/G11 epoxy glass kits ensure effective Cathodic Protection (CP) and prevent catastrophic flange leaks under high pressure.
This technical guide from RDS Composite breaks down the full structural cross-section of flange isolation kits, specifies pressure, medium, and thermal limits, compares G10 vs. G11 retainer materials, and lists essential drawing parameters required for accurate custom RFQs.
1. System Architecture & Component Cross-Section
A complete G10/G11 Flange Isolation Gasket Kit is an engineered assembly comprising four primary insulating elements designed to completely seal the process fluid while electrically decoupling the flange faces and studs:

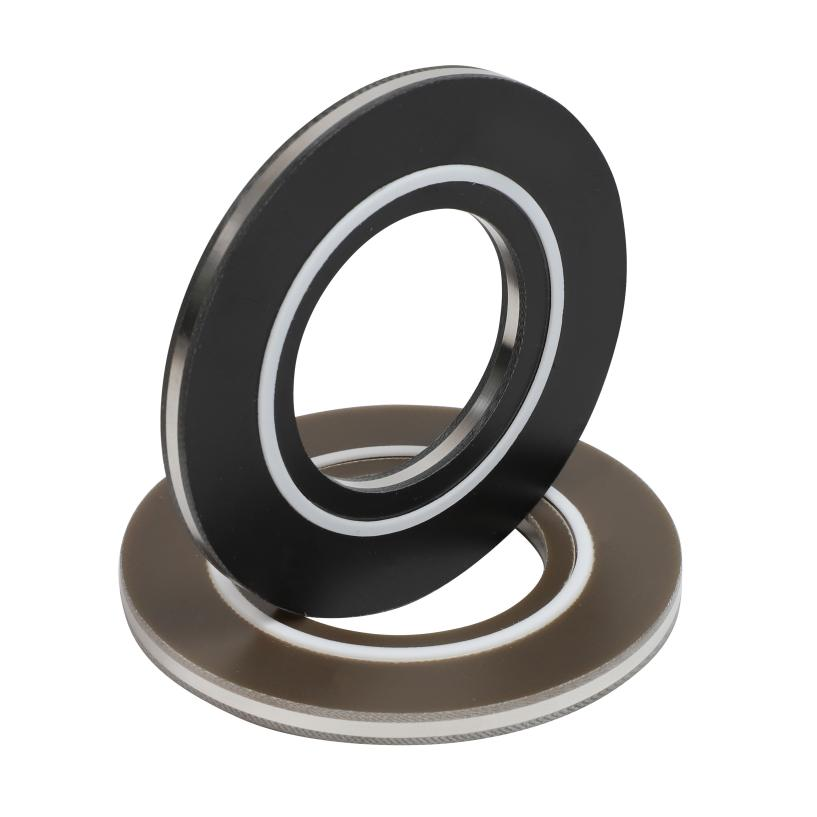

- 1. Main Isolating Retainer Gasket: A high-strength G10 or G11 glass-epoxy composite core retainer incorporating a spring-energized PTFE or Viton seal ring embedded in precision machining grooves.
- 2. Full-Length Isolating Sleeves: High-dielectric G10 or Mylar/Nylon cylindrical sleeves fitted over each flange bolt/stud to prevent metal-to-metal contact with the bolt holes.
- 3. Isolating Washers: High-compressive G10 or G11 glass-epoxy washers (1/8" / 3.2mm thick) placed under each nut to isolate axial bolt preload.
- 4. Steel Backup Washers: Zinc-plated carbon steel or Stainless Steel (SS316) washers placed over the isolating washers to evenly distribute heavy torque loads during bolt tensioning.
2. Operating Conditions: Pressure, Media & Temperature Ratings
A. Pressure Class Capacity
RDS G10/G11 isolation gaskets are engineered for high-pressure sealing across standard ASME/API pressure ranges:
- ASME B16.5 / B16.47 Flanges: Class 150, 300, 600, 900, 1500, and 2500.
- API 6A Wellhead Flanges: 2,000 psi to 10,000 psi rating (Type F and Type E configurations).
B. Chemical & Media Resistance
The G10/G11 epoxy matrix combined with specialized sealing element materials provides full chemical compatibility with harsh hydrocarbon process streams:
- Sour Service (H2S & CO2): Compliant with NACE MR0175 / ISO 15156 for sour crude oil and natural gas applications.
- Seal Ring Selection: Spring-Energized PTFE for cryogenic/sour gas; Viton/FKM for refined petroleum products; Nitrile (NBR) for standard water/glycol streams.
3. Material Selection Matrix: G10 vs. G11 Glass-Epoxy Retainers
Choosing between G10 (NEMA G10 / EPGC201) and G11 (NEMA G11 / EPGC203) matrix retainers depends primarily on operating thermal exposure and bolt-torque stress retention requirements:
| Engineering Parameter | G10 Epoxy Glass Matrix | G11 High-Temp Epoxy Matrix |
|---|---|---|
| Continuous Temp Rating | -40°C to +130°C (Class B) | -50°C to +180°C (Class H) |
| Glass Transition Temp (Tg) | ≈ 130°C – 140°C | ≥ 175°C – 180°C |
| High-Temp Compressive Strength | Softens at > 130°C under high torque | Retains ≥ 50% compressive modulus at 150°C |
| Primary Application Focus | Standard onshore oil/gas pipelines, water treatment, ambient refined product lines. | High-temperature steam lines, offshore topside facilities, thermal recovery wells. |
4. Critical Parameters Required for Custom RFQs & Drawings
To ensure flawless flange fitment and zero field leakage, please provide the following technical parameters when requesting a quote or submitting CAD drawings to RDS:
- Flange Standard & Nominal Pipe Size (NPS): e.g., 6" ANSI B16.5, 12" ASME B16.47 Series A, or API 6A 3-1/8".
- Pressure Class Rating: e.g., Class 150, Class 600, or 5000 psi.
-
Flange Facing Type:
- Type E (Full Face): Gasket covers the entire flange face with cutouts for stud holes.
- Type F (Raised Face / Inside Bolt Circle): Fits entirely inside the stud bolt circle.
- Type D (Ring Type Joint - RTJ): Precision machined to fit metal RTJ oval/octagonal grooves.
- Sleeve Configuration: Single washer set (one sleeve + one G10 washer + one steel washer per bolt) or Double washer set (two washers per bolt for dual-side isolation).
- Operating Media & Working Temperature Range: Defines the elastomeric seal element (PTFE, Viton, or Nitrile) and retainer grade (G10 vs. G11).
