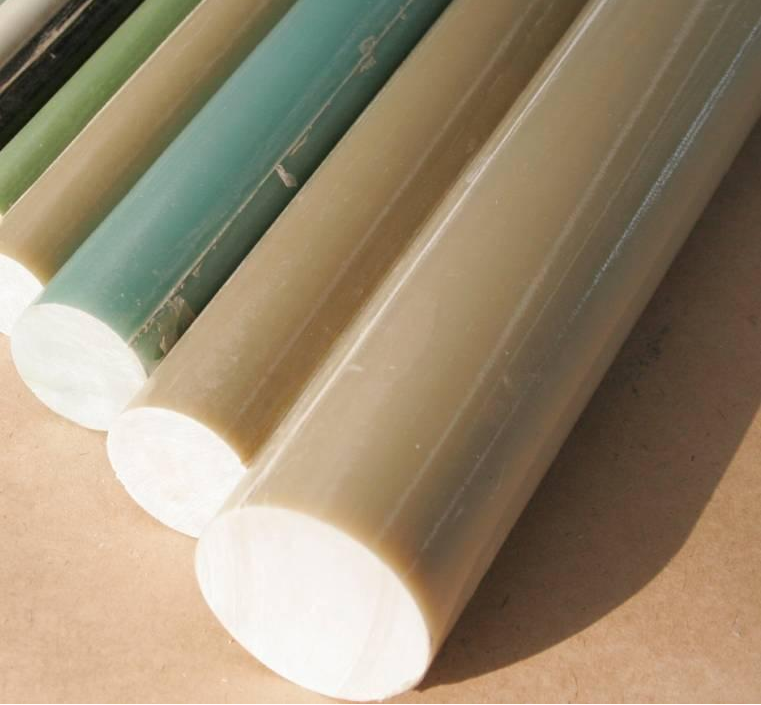

Solid epoxy fiberglass laminate rods (manufactured under NEMA G10, FR4, G11 and IEC EPGC standards) serve as essential mechanical and electrical insulation components in high-voltage transformers, switchgear operating linkages, and electric motor assemblies. Machined from densely wrapped and compression-molded E-glass fabrics impregnated with high-grade epoxy resin matrices, these rods provide superior axial tensile strength and high dielectric breakdown resistance.
1. Dimensional Supply Envelope & Mechanical Tolerances
Understanding stock dimensions and precision grinding capability for mechanical fitting design:
-
Standard Production Dimensions:
- Rod Outer Diameter Range: Ø 6.0 mm to Ø 200.0 mm.
- Standard Rod Lengths: 1000 mm and 1020 mm (Custom cut-to-length stock available upon request).
- Outer Diameter (OD) Machining Tolerances: Raw molded rods exhibit natural resin flash lines. Precision fitment requires secondary Centerless Precision Outer Grinding, yielding ISO h8 or h9 shaft tolerances (± 0.02 mm to ± 0.05 mm depending on rod diameter).
- Physical Density: 1.85 g/cm³ to 2.00 g/cm³ (High-density structure ensuring void-free electrical performance).
2. Technical Property Matrix Across Thermal Classes
Certified TDS values for solid epoxy glass rods tested according to ASTM and IEC methods:
| Technical Parameter | G10 / EPGC41 Rod | FR4 / EPGC42 Rod | G11 / EPGC43 Rod | Standard Test Method |
|---|---|---|---|---|
| Continuous Thermal Index | Class B (130 °C) | Class B (130 °C) | Class H (180 °C High Tg) | IEC 60216 Thermal Index |
| UL 94 Flammability | UL 94 HB | UL 94 V-0 Self-extinguishing | UL 94 HB / V-0 Option | UL 94 Standard |
| Flexural Strength (Perpendicular) | ≥ 350 MPa | ≥ 340 MPa | ≥ 400 MPa (≥ 200 MPa at 150 °C) | ASTM D790 / ISO 178 |
| Axial Tensile Strength | ≥ 280 MPa | ≥ 260 MPa | ≥ 300 MPa | ASTM D638 / ISO 527 |
| Dielectric Strength (in Oil at 90 °C) | ≥ 12.0 kV/mm | ≥ 12.0 kV/mm | ≥ 14.0 kV/mm | ASTM D149 / IEC 60243 |
| Water Absorption (24h, Ø20mm) | ≤ 0.15% | ≤ 0.15% | ≤ 0.10% | ASTM D570 / ISO 62 |
3. Secondary CNC Machining & Threading Guidelines
Machining solid composite rods requires specific tooling setups to prevent delamination or surface fraying:
- Precision Turning & Thread Cutting: CNC turning requires solid tungsten carbide or Polycrystalline Diamond (PCD) inserts. When cutting external threads (e.g., transformer tie-rods or insulating bolts), use single-point threading tools with high cutting speeds and light feed rates to avoid tearing surface fibers.
- Drilling & Tapping: Center-drilling axial holes requires 118° to 135° split-point carbide drills supported by rigid V-block workholding to maintain axial concentricity. Air-blast dust extraction is recommended over liquid coolant to preserve electrical cleanliness.
4. Industrial Application Matching
Primary operational environments for solid epoxy fiberglass laminate rods:
- High-Voltage Transformer Tie-Rods: Machined with continuous external threads to clamp core laminations and coil assemblies without introducing metallic magnetic interference.
- Switchgear Mechanical Linkages: Serves as insulated drive rods in SF6 circuit breakers and high-voltage disconnectors, withstanding high impulse mechanical acceleration and tensile load.
- Motor Slot Stator Packing & Wedges: Machined into half-round or trapezoidal rod profiles for securing coil ends in heavy industrial motors.
5. Frequently Asked Questions (FAQ)
Q: What is the difference between centerless ground rods and unground raw molded rods?
A: Unground raw molded rods carry mold parting line flash and slight dimensional ovality (± 0.20 mm tolerance). Centerless ground rods are precision-machined to exact cylindrical diameters (± 0.02 mm tolerance), making them ready for immediate CNC turning or tight slip-fit installation into metal sleeves.
Q: Can epoxy fiberglass rods be used under continuous long-term tensile load?
A: Yes. High-density molded epoxy glass rods offer high resistance to creep deformation under sustained mechanical tension. However, mechanical safety factors (typically 2.5x to 3.0x peak design load) must be applied during structural engineering calculations.
