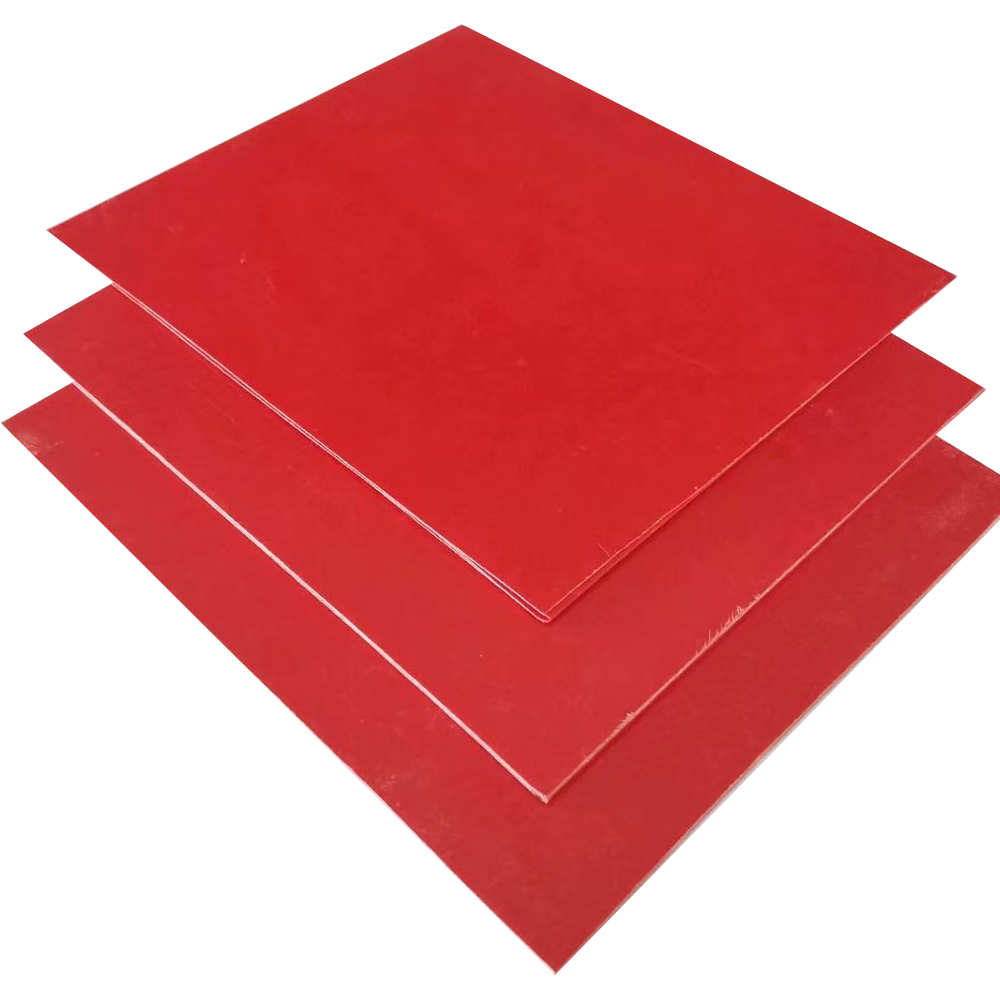

GPO-3 (UPGM203) Sheet Manufacturing Process: Impregnation, Pressing, CNC & Batch Traceability

The manufacturing quality of GPO-3 (UPGM203) polyester glass laminated sheets dictates their ultimate arc-tracking resistance (CTI 600V), flame retardancy (UL 94 V-0), and high-temperature mechanical shear strength. Achieving defect-free GPO-3 plates requires strict formulation control over unsaturated polyester resin, alumina trihydrate (ATH) fire-retardant fillers, and continuous strand glass mats (CSM).

This technical factory guide from RDS Composite bypasses generic material overviews and outlines the unit manufacturing operations—from raw material dough mixing, vacuum resin impregnation, high-tonnage compression molding, precision CNC fabrication, to full batch traceability protocol.

1. Unit Operation 1: Raw Material Preparation & Resin Dough Compounding

GPO-3 production begins with high-shear mixing of unsaturated polyester (UP) or vinylester resin with specialized functional additives. High-purity Alumina Trihydrate (ATH) powder is incorporated as an endothermic flame retardant and arc-suppression agent.

• Quality Gate 1: Raw resin viscosity, peroxide catalyst ratio, and ATH moisture content (≤ 0.2%) are verified prior to compound charging.
• Filler Dispersion: High-torque planetary mixers ensure uniform ATH dispersion around glass filaments to prevent localized arc tracking hot-spots.

2. Unit Operation 2: Continuous Strand Mat (CSM) Impregnation

Unlike woven glass cloth laminates (FR4), GPO-3 utilizes non-woven continuous filament glass mats to deliver isotropic mechanical properties in both X and Y directions.

• Calculated plies of continuous glass mats pass through vacuum-assisted resin bath impregnation rollers to eliminate entrapped micro-air voids.
• Controlled squeeze rollers adjust resin-to-glass weight ratios (typically 60% resin/filler compound to 40% glass reinforcement).

3. Unit Operation 3: High-Tonnage Compression Molding Cycle

Impregnated mat stacks are loaded directly into precision-ground matched metal mold cavities mounted on high-tonnage hydraulic presses:

4. Unit Operation 4: Secondary CNC Machining & Fabrication

Cured GPO-3 master sheets (standard 1000 mm × 1200 mm or 1250 mm × 2500 mm) undergo automated perimeter trimming and CNC secondary machining for custom phase barriers, busbar supports, and slot wedges.

• High-speed PCD carbide tooling mills crisp edges, threaded mounting holes, and slot cutouts without fiber delamination or micro-cracking.
• Dust extraction hoods capture abrasive ATH dust particles, preventing secondary surface contamination.

5. Unit Operation 5: QA Testing Protocols & Batch Traceability

Every production run of GPO-3 / UPGM203 sheets is governed by a strict Quality Assurance and Lot Tracking System. Physical and dielectric test specimens are drawn from every batch to verify compliance with NEMA GPO-3 and IEC 60893 UPGM203 limits:

Batch Traceability Chain:

1. Raw Material Lot Ingestion: Unique barcode tags link liquid resin batches, glass mat lots, and ATH filler shipments to specific press run logs.
2. Press Run Log Sheet: Real-time PLC press data (temperature, pressure curves, cycle dwell) is electronically archived against each sheet batch number.
3. Physical & Dielectric Testing: Test specimens from every batch undergo ASTM D495 arc resistance, CTI 600V tracking, and UL 94 V-0 vertical burn tests as detailed in the quality table above.
4. Laser Edge Marking: Every finished GPO-3 board receives permanent edge laser-inkjet printing containing the Material Grade, Thickness, Production Date, and Unique Batch Traceability ID.

To review technical properties, NEMA grade comparisons, and engineering datasheets for GPO-3, consult RDS Composite's dedicated technical specifications documentation.
