GPO-3 Halogen-Free Flame Retardant Engineering & Test Standard Guide

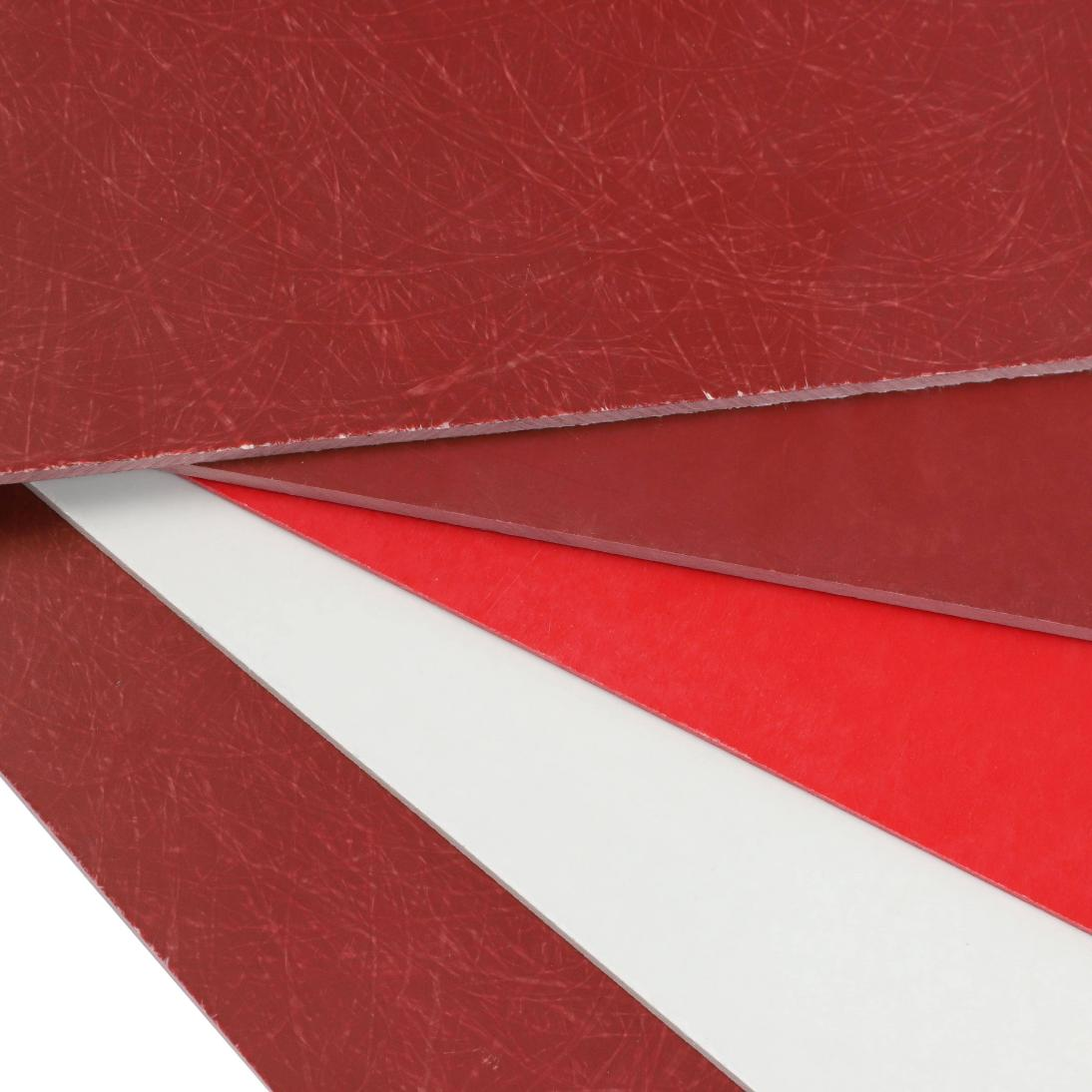

GPO-3 rigid polyester glass laminates (standardized as NEMA Grade GPO-3 and IEC 60893 UPGM 203) are flame-retardant electrical insulating sheets engineered from high-grade unsaturated polyester resin reinforced with continuous glass fiber mat. To comply with modern environmental safety protocols and fire protection codes across public transit and high-voltage power distribution, advanced GPO-3 formulations utilize halogen-free flame retardant systems.

This technical guide from RDS Composite evaluates the inorganic flame-retardant chemistry of GPO-3, defines international test standards, addresses smoke density and toxicity criteria, and details the test documentation scope available for engineering compliance.

1. Halogen-Free Chemistry: ATH Endothermic Suppression

Unlike traditional flame-retardant polymers that rely on brominated or chlorinated additives (which release corrosive hydrohalic gas during combustion), GPO-3 achieves fire resistance through non-halogenated inorganic fillers—primarily Aluminium Trihydroxide (ATH - Al(OH)₃).

• Endothermic Dehydration: When exposed to high heat or arcing temperatures (> 200°C), ATH undergoes an endothermic decomposition process ($2Al(OH)_3 \rightarrow Al_2O_3 + 3H_2O$), absorbing substantial heat energy from the flame front.
• Water Vapor Dilution: The endothermic reaction releases approximately 34.6% of its weight as inert water vapor, diluting oxygen concentrations and combustible pyrolytic gases at the substrate surface.
• Inert Barrier Formation: The remaining alumina ($Al_2O_3$) forms a non-combustible protective char layer on the laminate surface, physically insulating the underlying resin matrix from thermal radiation.

2. Applicable Material Grades & Standards

Halogen-free fire resistance specifications apply directly to the following standardized composite grades supplied by RDS:

• NEMA Grade GPO-3: Standard flame-retardant, arc-resistant, track-resistant rigid glass mat polyester laminate.
• IEC 60893 UPGM 203: European standardized equivalent grade featuring high mechanical strength and CTI 600V track resistance.

3. Flame Retardancy Test Methods & Certification Criteria

To verify compliance with global safety standards, GPO-3 laminates undergo rigorous laboratory fire testing:

4. Clarification on Halogen-Free vs. Toxicity & Railway Fire Standards

It is an engineering misconception that "halogen-free" automatically guarantees zero toxicity. While halogen-free systems eliminate corrosive halogen gases (such as $HCl$ or $HBr$), any thermal combustion of organic polyester binders still releases carbon monoxide ($CO$) and organic pyrolytic byproducts.

For high-risk environments such as passenger rail cars, subterranean switchgear, and marine vessels, fire safety compliance requires specific smoke density and gas toxicity testing beyond simple halogen absence:

• EN 45545-2 (European Railway Standard): Specifies Hazard Levels (HL1, HL2, HL3) based on oxygen index, smoke optical density (ISO 5659-2), and smoke toxicity index (CIT_NLR). GPO-3 engineered formulations meet R22/R23 HL2 / HL3 compliance for interior/exterior insulation barriers.
• NFPA 130 (Fixed Guideway Transit): Requires compliance with ASTM E162 (surface flammability) and ASTM E662 (smoke optical density limits).

5. Test Report & Regulatory Compliance Coverage

RDS provides comprehensive third-party laboratory test documentation for all custom-machined and raw GPO-3 shipments:

• RoHS Directive 2011/65/EU & (EU) 2015/863: Verification of compliance for restricted heavy metals (Lead, Mercury, Cadmium, Hexavalent Chromium) and flame retardants (PBBs, PBDEs, phthalates).
• REACH SVHC Candidate List: Declaration of conformity ensuring zero substances of very high concern exceeding 0.1% w/w concentration.
• UL 94 Yellow Card / Factory Test Reports: Full mill test certificates (MTC) detailing lot-specific LOI, UL 94 V-0 flame testing, and breakdown voltage.
