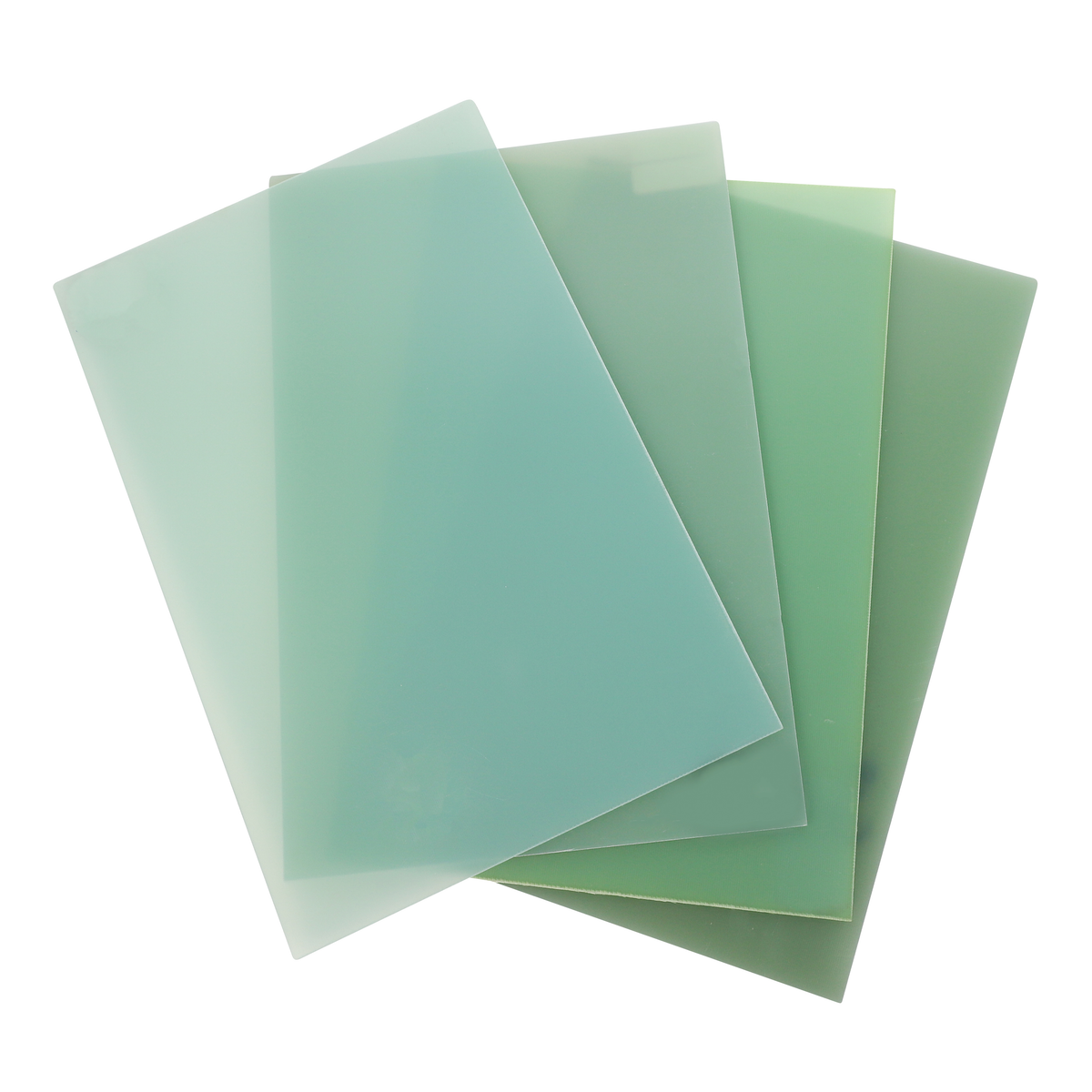

NEMA Grade G11 epoxy glass fiber laminates are high-performance thermoset composite sheets engineered specifically for elevated temperature electrical insulation and heavy structural applications. Composed of woven continuous E-glass fabric impregnated with high-temperature resistant epoxy resin matrix, G11 is recognized globally for retaining exceptionally high mechanical integrity and dielectric properties at elevated temperatures.
While standard epoxy composites like Grade G10 lose significant structural strength as temperatures rise above 100°C, G11 maintains over 50% of its room-temperature flexural strength even at 155°C. This dedicated technical guide from RDS Composite covers the chemical properties, continuous thermal limits, elevated-temperature strength retention, physical thickness tolerances, and application boundaries for G11 epoxy glass laminates.
Thermal Performance Boundaries: Continuous vs. Short-Term Limits
Understanding the distinction between continuous thermal rating and short-term thermal excursion capability is critical when engineering electrical insulation for heavy machinery:
- Continuous Operating Thermal Rating (RTI): 155°C (Class F Insulation). G11 can operate continuously at this temperature without experiencing thermal degradation, embrittlement, or loss of dielectric integrity over a 20,000-hour service lifespan under IEC 60216 standards.
- Short-Term Thermal Excursion Limit: 180°C to 200°C. G11 can withstand brief spikes, startup transients, or overload heat bursts within this range without immediate mechanical collapse or resin blistering, provided continuous duration is restricted.
High-Temperature Mechanical & Electrical Retention
Unlike lower-temperature composites, G11 is cross-linked with specialized aromatic or cycloaliphatic epoxy hardeners that elevate its Glass Transition Temperature ($T_g \ge 160^\circ\text{C}$). This preserves the structural bond between glass fibers and the polymer matrix under extreme thermal stress.
| Engineering Parameter | Test Method / Standard | G11 Technical Specification Value |
|---|---|---|
| Continuous Thermal Class | IEC 60893 / NEMA LI-1 | 155°C (Class F) / EP GC 203 |
| Flexural Strength (23°C Room Temp) | ISO 178 / ASTM D790 | ≥ 450 MPa |
| Flexural Strength Retention (at 155°C) | ASTM D790 (Tested elevated) | ≥ 50% retention (≥ 225 MPa) |
| Dielectric Strength (Perpendicular, Oil) | IEC 60243-1 (2mm sheet) | ≥ 14.0 kV/mm |
| Comparative Tracking Index (CTI) | IEC 60112 | CTI 200 (Optional CTI 600 custom available) |
| Water Absorption (24h at 23°C) | ISO 62 / ASTM D570 (3mm sheet) | ≤ 0.10% |
Manufacturing Thickness Availability & Tolerances
RDS Composite manufactures G11 laminate sheets across a wide thickness spectrum to support precision CNC machining of insulating slot wedges, structural supports, and barrier plates.
| Nominal Thickness Range | Standard Press Tolerance (NEMA / ISO Class) | Precision Ground Tolerance Options |
|---|---|---|
| 0.5 mm – 2.0 mm | ± 0.10 mm – ± 0.15 mm | ± 0.05 mm |
| 3.0 mm – 10.0 mm | ± 0.20 mm – ± 0.35 mm | ± 0.08 mm |
| 12.0 mm – 30.0 mm | ± 0.40 mm – ± 0.70 mm | ± 0.10 mm |
| 35.0 mm – 100.0 mm | ± 0.80 mm – ± 1.50 mm | Custom sanding available |
Engineering Application Restrictions & Material Limitations
While G11 offers exceptional heat and mechanical performance, engineers must consider the following material boundaries when selecting composites:
- Temperatures Exceeding 200°C: G11 will undergo thermal breakdown under long-term exposure above 180°C. For Class H (180°C) or Class C (>220°C) continuous exposure, high-temperature G7 silicone laminates or natural mica plate materials should be selected instead.
- Severe Flame Retardancy Standards: Standard G11 formulations do not inherently meet UL94 V-0 flame rating requirements. If mandatory self-extinguishing behavior is needed at elevated temperatures, specified halogenated high-temp FR5 or customized resin systems must be requested.
- Strong Alkaline & Acidic Environments: Like most epoxy composites, long-term exposure to concentrated hot alkaline solutions or strong oxidizing acids can degrade the glass-epoxy matrix interface.
Custom Precision Machined G11 Insulating Parts
Looking for custom G11 sheets or CNC-machined Class F insulation components tailored to your exact drawing tolerances? Contact the technical composite specialists at RDS Composite today.
