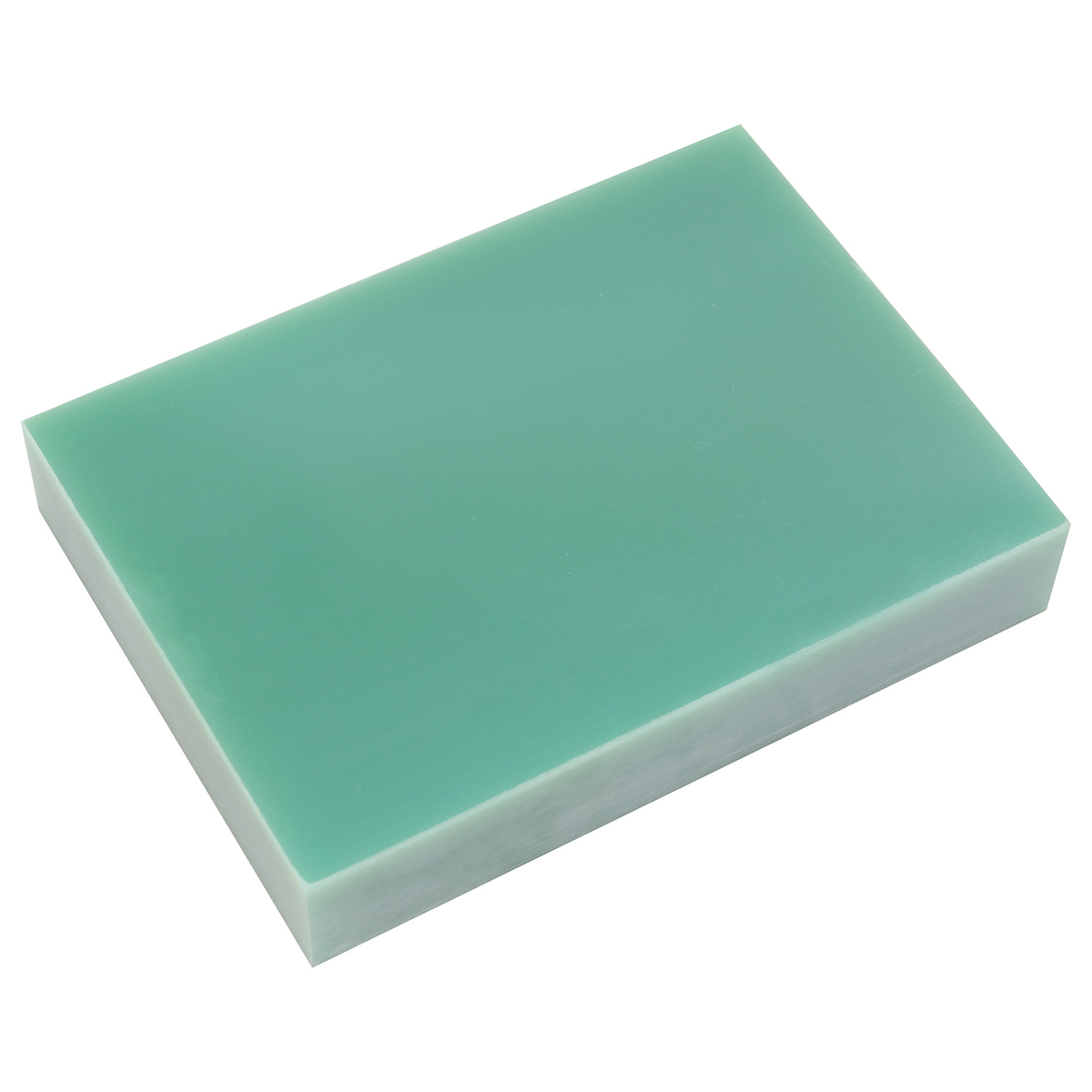

In industrial insulation, electrical systems, and precision machining, G10 boards and FR4 boards are two of the most widely used glass fiber epoxy laminates. While both share similar base materials and visual appearances, critical distinctions exist in flame retardancy, physical properties, application scenarios, and compliance standards.
Choosing the right laminate directly impacts equipment safety, operational lifespan, and project costs. This comprehensive breakdown outlines the core differences between G10 sheets and FR4 epoxy boards to help you make accurate material selections.
Quick Comparison: G10 vs FR4 at a Glance
| Feature | G10 Board | FR4 Board |
|---|---|---|
| Flame Retardancy | Non-flame retardant (UL94 HB) | Self-extinguishing (UL94 V-0) |
| Resin Formulation | Pure epoxy resin + glass fiber | Epoxy resin with brominated flame additives |
| Halogen Content | Halogen-free | Contains halogen flame retardants |
| Primary Use | Mechanical structures, tool handles, cryogenics | PCBs, electrical insulation, high-voltage equipment |
| Relative Cost | Cost-effective | Slightly higher |
1. Material Formulation: The Core Difference
Both G10 and FR4 laminates are constructed from alkali-free woven glass fabric combined with epoxy resin, hot-pressed under high temperature and pressure. Both provide excellent electrical insulation, corrosion resistance, and mechanical strength.
The fundamental divide lies in the resin formulation:
- G10 Board: Standard epoxy glass laminate focused purely on mechanical performance. Its formulation contains no flame-retardant additives, resulting in high pure mechanical integrity and fewer chemical impurities.
- FR4 Board: An upgraded, flame-retardant variant of G10 ("FR" stands for Flame Retardant). Flame-retardant components (typically brominated compounds) are integrated into the resin system to ensure electrical fire safety compliance.
2. Flame Retardancy and Safety Standards
Flame retardancy represents the primary technical boundary when distinguishing G10 from FR4:
- FR4 Compliance: FR4 boards pass the authoritative UL94 V-0 flame retardancy certification. As a self-extinguishing material, FR4 stops burning quickly once the flame source is removed, producing no flaming drips and fully complying with strict electrical safety codes.
- G10 Flammability: G10 boards only meet the UL94 HB rating. They continue to burn when exposed to open flames and cannot pass mandatory fire safety inspections in electrical applications. However, because G10 lacks halogenated additives, it eliminates halogen precipitation risks.
3. Mechanical and Electrical Performance
Under ambient temperature conditions, G10 and FR4 deliver nearly identical mechanical properties. Both demonstrate high flexural strength, superior hardness, excellent dielectric properties, and strong dimensional stability suitable for precision CNC machining.
While FR4 offers better thermal resistance under elevated fire-risk conditions, G10 retains superior mechanical strength at cryogenic temperatures due to its uncompromised resin matrix.
4. Application Scenarios: Industry Segmentation
Due to performance and compliance differences, these two materials are rarely interchangeable:
- FR4 Applications: Dominates electronic and electrical sectors requiring strict fire safety compliance. Common uses include PCB substrates, high/low-voltage insulation components, switchgear barriers, electrical enclosures, and new energy vehicle (NEV) battery insulation.
- G10 Applications: Ideal for structural components without mandatory fire protection. Examples include precision mechanical fixtures, knife and tool handles, cryogenic support blocks, structural insulators, and general industrial parts.
5. Cost and Material Selection Advice
Because FR4 requires specialized flame-retardant additives and UL certifications, its production cost is slightly higher than G10.
- Choose FR4 if: Your project involves power distribution, electronic circuits, high-voltage environments, or mandatory UL fire safety acceptance. Substituting G10 here creates severe safety hazards and inspection failures.
- Choose G10 if: Your application focuses strictly on mechanical support, zero-halogen requirements, cryogenic conditions, or non-electrical structural parts where fire compliance is not required. Selecting G10 maximizes mechanical durability while lowering procurement costs.
Summary
In short, G10 prioritizes pure mechanical performance and halogen-free structures, whereas FR4 prioritizes flame retardancy and electrical safety. By evaluating your project's fire safety standards, operating temperatures, and structural demands, you can select the most cost-effective epoxy laminate for your needs.
