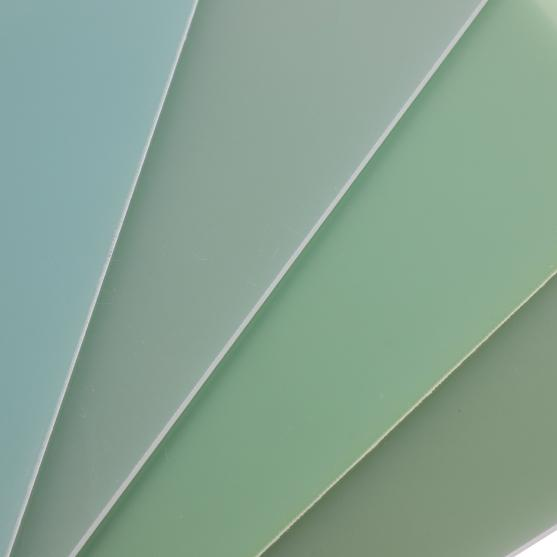

G10-CR vs. Standard G10: Cryogenic Insulation Guide

Evaluating material behavior at cryogenic temperatures (77 K Liquid Nitrogen and 4 K Liquid Helium) requires understanding thermal contraction anisotropy, micro-cracking resistance, and mechanical embrittlement. Standardized under U.S. Department of Energy (DOE) and NIST specifications, G10-CR (Cryogenic Grade) epoxy glass laminates are specialized structural insulators engineered to maintain structural integrity where standard NEMA G10 or FR4 laminates risk interlaminar delamination.

1. Material Differentiation: G10-CR vs. Standard Industrial G10 / FR4

While standard NEMA G10 and G10-CR share similar woven E-glass fiber reinforcement, their low-temperature performance diverges under thermal shock:

• Standard Industrial G10 / FR4: Formulated primarily for room-temperature electrical insulation (295 K). When cooled rapidly to 77 K or 4 K, standard epoxy binders undergo severe mechanical embrittlement, inducing matrix micro-cracking and high thermal stress along glass-resin boundaries.
• G10-CR Cryogenic Grade: Utilizes heat-selected E-glass fabrics treated with specialized silane coupling agents and heat-purified epoxy resin matrices. Formulated without bromine halogen additives, G10-CR exhibits high resistance to radiation damage and resists thermal-shock induced micro-fissuring down to 4 K.

2. Verified TDS Mechanical & Thermal Property Matrix (295 K to 4 K)

Certified mechanical, thermal, and electrical properties of G10-CR across ambient and cryogenic testing conditions:

3. Directional Thermal Contraction & Cryogenic Application Limits

Engineering teams must account for anisotropic dimensional behavior and chemical atmosphere safety limits during component design:

• Anisotropic Contraction Vectoring: Glass fibers constrain thermal shrinkage along the plane of the weave (Warp and Fill). Consequently, thermal contraction in the thickness direction (Normal axis) is approximately three times higher than in-plane shrinkage. Mechanical fasteners and mounting clevises must incorporate spring washers or thermal expansion compensation gaps.
• Media Compatibility & LOX Safety Limit: G10-CR is certified for cryogenic service in Liquid Helium (LHe), Liquid Nitrogen (LN2), Liquid Hydrogen (LH2), and Liquid Natural Gas (LNG) systems. Critical Safety Note: Like all organic epoxy resins, G10-CR is not oxygen-compatible and must NEVER be used in direct contact with Liquid Oxygen (LOX) or high-pressure oxygen gas due to combustion hazards.

4. Frequently Asked Questions (FAQ)

Q: Why does mechanical strength increase at 4 K while fracture risk also rises?
A: As temperature drops toward absolute zero, polymer chains immobilize, increasing compressive, flexural, and tensile modulus significantly. However, material ductility decreases, making the laminate sensitive to stress concentration points around sharp internal CNC cuts or un-chamfered bolt holes.

Q: Can RDS supply certified G10-CR cut-to-size sheets and precision CNC components?
A: Yes. RDS supplies certified G10-CR cryogenic insulation sheets and custom precision CNC machined components (such as cryogenic support struts, magnet spacers, and LNG tank isolation blocks) manufactured to tight dimensional tolerances.
