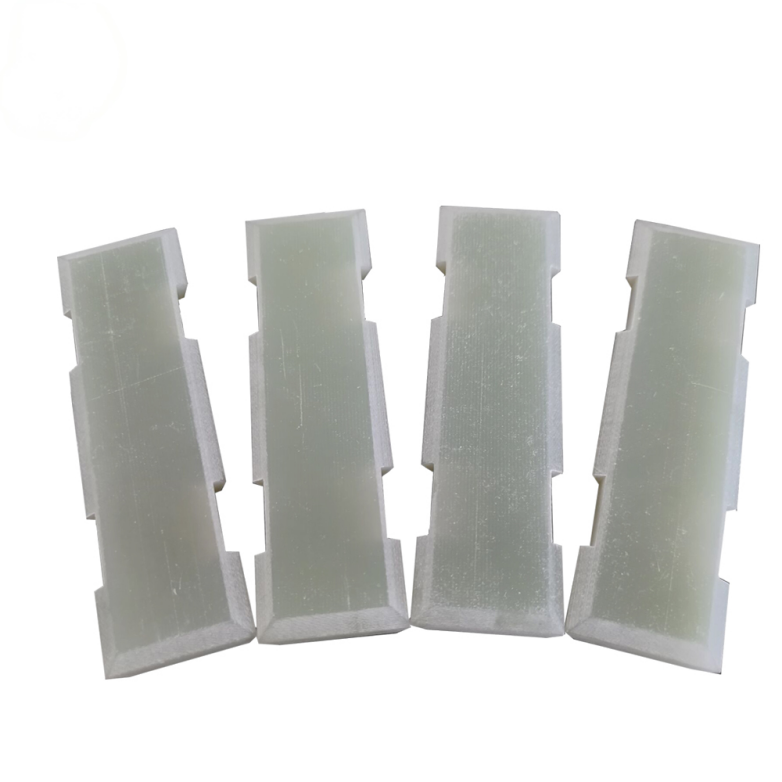

Motor slot wedges (also designated as stator slot closures or rotor wedge sticks) serve as critical mechanical and electrical insulation barriers in rotating electrical machinery. Positioned at the open mouth of stator and rotor slots, precision-machined slot wedges secure copper windings against severe centrifugal forces and electromagnetic stress while facilitating thermal dissipation and environmental protection.
1. Core Engineering Functions of Motor Slot Wedges
In high-voltage induction motors, hydro-generators, and traction equipment, slot wedges fulfill three indispensable operational functions:
- Mechanical Winding Retention: Maintains continuous compressive forces over stator coil bars inside the slot. This significantly reduces electromagnetic force-induced winding micro-vibrations, preventing insulation chafing, inter-turn short circuits, and mechanical loosening during heavy startup torque.
- Thermal Dissipation Facilitation: Directs heat away from insulated copper conductors to the laminated stator core, maintaining uniform thermal distribution across slot boundaries under continuous thermal cycles.
- Environmental Protection: Protects resin-impregnated magnet wire from environmental moisture, lubricating oil aerosols, abrasive airborne dust, and high-voltage corona degradation inside closed motor enclosures.
2. Material Selection: Non-Magnetic vs. Magnetic Conductive Wedges
Selecting the correct wedge material architecture depends on motor efficiency goals, slot geometry, and operating magnetic flux density:
| Selection Parameter | Non-Magnetic Slot Wedges (FR4 / G11 / 3240) | Magnetic Conductive Slot Wedges (Class F / H) | Standard Test Method |
|---|---|---|---|
| Base Material Composition | Glass cloth / Cotton fabric + Epoxy/Phenolic Resin | Glass mat/fabric + Epoxy resin + 70%–80% Iron powder | Material Inspection |
| Relative Magnetic Permeability (μr) | μr ≈ 1.0 (Pure Electrical Insulator) | μr = 3.5 to 8.0 (Customizable magnetic flux path) | ASTM A772 / IEC 60404 |
| Primary Application Advantage | High flexural & shear strength; low material cost | Smoothes slot reluctance; reduces tooth-ripple eddy losses | Motor Efficiency Test |
| Thermal Service Class | Class B (130 °C) / Class F (155 °C) / Class H (180 °C) | Class F (155 °C) / Class H (180 °C Continuous) | IEC 60216 Thermal Index |
| Flexural Strength (Flatwise) | ≥ 340 MPa (FR4) / ≥ 400 MPa (G11) | ≥ 180 MPa to 200 MPa | ASTM D790 / ISO 178 |
3. Drawing Profiles, Tolerances & Precision CNC Machining
RDS manufactures custom motor slot wedges according to client 2D CAD drawings and slot dimension callouts:
- Wedge Geometry Profiles: Supplied in standard Flat Rectangular, Trapezoidal (Beveled Edge), Semi-circular (Curved Top), and Dovetail profiles to fit specific slot opening contours.
- Precision Tolerance Standards: Width and thickness tolerances are tightly controlled to ± 0.03 mm to ± 0.05 mm. Chamfered lead-in edges are precision-milled to allow smooth driving without scratching slot cell liner insulation.
4. Installation Quality Control & Inspection Standards
Proper slot wedge insertion ensures long-term operational reliability and prevents winding failure:
- Feeler Gauge Fitment Check: After driving wedges into position, gap clearance between the wedge base and slot insulation packing strips must be verified using feeler gauges to ensure uniform interference pressure.
- Hammer Sounding Test: Quality inspection involves light tapping with a non-metallic inspection hammer. A solid metallic ring indicates proper tightness, whereas a dull thud indicates improper packing that requires additional shim strips.
5. Frequently Asked Questions (FAQ)
Q: Can magnetic slot wedges completely replace non-magnetic FR4 slot wedges in all electric motors?
A: No. Magnetic slot wedges are specifically designed for open-slot high-voltage motors and large generators to improve magnetic flux efficiency and lower harmonic temperature rise. Standard non-magnetic FR4 or G11 wedges remain the preferred, high-strength choice for small-to-medium closed-slot industrial motors.
Q: What causes motor slot wedges to loosen during continuous operation?
A: Wedge loosening is primarily caused by thermal aging of slot insulation materials, inadequate packing shim thickness during assembly, or operating the motor under severe thermal shock beyond the wedge material's continuous thermal class (e.g., using Class B material in Class F environments).
