FRP (Fiberglass Reinforced Polymer) Pultruded Profiles are high-strength structural shapes engineered for challenging industrial environments where steel degrades rapidly from corrosion or where electrical non-conductivity is strictly required. Unlike round solid insulation rods or wound transformer sleeves, pultruded structural profiles—such as I-beams, channels, angles, and hollow square sections—are designed as primary load-bearing members in chemical processing plants, cooling towers, power sub-stations, and marine infrastructure.
This technical guide from RDS Composite breaks down the differences between resin matrices, evaluates standard cross-sectional geometries, details ASTM mechanical test properties, and provides clear engineering drawing specifications for custom pultrusion RFQs.
1. Resin Systems Matrix: Polyester vs. Vinylester vs. Epoxy
The chemical resistance, temperature endurance, and cost of a pultruded profile are directly governed by its thermosetting resin matrix selection:
| Resin System | Thermal Rating | Chemical & Corrosion Resistance | Primary Application Focus |
|---|---|---|---|
| Isophthalic Polyester (UP) | -40°C to +80°C | Good moisture and general industrial chemical resistance; UV-inhibited option. | Standard walkways, cable trays, structural framing, and general construction (Most economical). |
| Vinylester Resin (VE) | -40°C to +120°C | Superior acid, alkali, chlorine, and harsh solvent corrosion protection. | Chemical plant platforms, cooling tower structural columns, marine grating support beams. |
| Epoxy Resin (EP) | -50°C to +155°C (Class F) | Maximum mechanical modulus, fatigue resistance, and electrical dielectric insulation. | High-voltage switchgear operating rods, railway catenary insulating arms, heavy structural trusses. |
2. Available Structural Geometries & Cross-Sections
RDS supplies standard off-the-shelf and custom-machined pultruded structural shapes manufactured under strict dimensional tolerances:

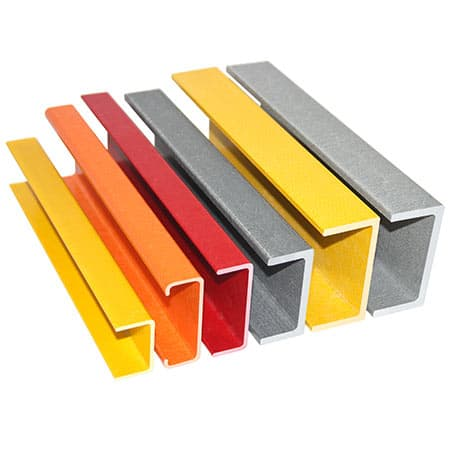

- Structural Channels (C-Shapes) & I-Beams: Engineered with optimized flange-to-web thickness ratios for high bending moment resistance in platforms and walkways.
- Square & Rectangular Hollow Tubes: Closed-profile sections combining high torsional stability with multi-axis flexural strength.
- Equal / Unequal Angles (L-Shapes): Used as structural cross-bracing, stiffener ribs, and framing corners.
- Custom Complex Profiles: Designed with continuous internal screw bosses, tongue-and-groove jointing, or specialized mounting tracks.
3. Standard Testing Protocols & Mechanical Properties
Pultruded profiles contain concentrated continuous unidirectional (0°) fiberglass rovings layered with continuous strand mats (CSM). Mechanical testing accounts for longitudinal versus transverse loading under standardized laboratory conditions:
| Property Parameter | Standard Test Method | Longitudinal Value (0°) | Transverse Value (90°) |
|---|---|---|---|
| Tensile Strength | ASTM D638 / ISO 527 | ≥ 240 – 400 MPa | ≥ 50 – 70 MPa |
| Tensile Modulus | ASTM D638 / ISO 527 | ≥ 21 – 28 GPa | ≥ 7 – 9 GPa |
| Flexural Strength | ASTM D790 / ISO 178 | ≥ 240 – 380 MPa | ≥ 70 – 100 MPa |
| Short Beam Shear Strength | ASTM D2344 | ≥ 25 – 35 MPa | N/A |
| Dielectric Strength (Electric) | ASTM D149 / IEC 60243 | ≥ 10 – 12 kV/mm | ≥ 10 – 12 kV/mm |
4. Engineering Drawing Parameters for Custom Pultrusion RFQs
To receive an accurate quote and die tooling assessment for custom FRP profiles, please submit 2D CAD (PDF/DWG) or 3D STEP models specifying the following parameters:
- Cross-Sectional Dimensions & Tolerances: Outer height, width, wall thickness, corner radii, and critical dimensional fitments.
- Resin Matrix & Fire Performance Requirements: Specify Isophthalic Polyester, Vinylester, or Epoxy; state flame-retardant needs (e.g., UL 94 V-0 or ASTM E84 Class 1 flame spread).
- Surface Veil & UV Protection: Surface synthetic veil prevents fiber blooming (glass exposure) and enhances UV weatherability.
- Secondary Machining Specifications: CNC hole drilling patterns, slotting, precision angle mitering, and cut-to-length requirements (standard stock lengths are 3,000 mm and 6,000 mm).
To learn how pultrusion compares with other tube and profile production methods, read our comprehensive overview: Fiberglass Tube & Profile Manufacturing Methods Guide.
Request FRP Profile Specifications & Custom Tooling Quotes
Need standard structural channels, I-beams, or custom vinylester/epoxy pultrusion dies for your project? Contact the engineering team at RDS Composite today.
