Epoxy fiberglass tubes are critical in high-voltage electrics, new energy, and precision machinery due to their excellent insulation and mechanical stability. Although filament wound epoxy fiberglass tubes and rolled epoxy fiberglass tubes share similar resin components, their manufacturing processes and structural performances differ significantly. Choosing the wrong type can lead to costly equipment failure.
This article breaks down their core differences to help you achieve precise material selection for various industrial scenarios.
I. Molding Process: Continuous Winding vs. Prepreg Rolling
The manufacturing logic is the fundamental factor that determines the final properties of composite tubing.
- Filament Wound Epoxy Fiberglass Tubes: Utilizing a continuous fiber helical winding process, continuous fiberglass filaments are impregnated with epoxy resin. Under CNC control, they are cross-wound onto a metal mandrel at precise angles. This creates an integrated, dense structure without delamination gaps.
- Rolled Epoxy Fiberglass Tubes: Utilizing a prepreg roll-wrapping and pressing process, fiberglass cloth pre-impregnated with epoxy resin is wrapped layer by layer around a mandrel under heat and pressure. Its structure consists of multiple laminated fabric layers bonded together.
II. Mechanical Properties: Circumferential Strength vs. Machinability
Due to the different fiber orientations, their load adaptation focuses vary:
1. Filament Wound Tubes
The cross-wound structure of continuous fibers significantly enhances the tube's circumferential tensile capability. It provides an excellent strength-to-weight ratio and outstanding fatigue resistance. It can withstand high internal pressures and dynamic shock loads over the long term, making it ideal for harsh operating environments.
2. Rolled Tubes
Featuring a multi-layer cloth laminated structure, rolled tubes offer uniform overall strength and balanced forces in all directions. They have better machinability, making them easier for secondary processing such as cutting, precise drilling, and grinding. However, their circumferential pressure-bearing capacity is lower than that of wound tubes.
III. Appearance and Dimensional Accurac
- Filament Wound Tubes: CNC winding equipment ensures uniform wall thickness, high concentricity, and minimal dimensional errors. The inner and outer surfaces are flat and smooth, meeting the strict assembly requirements of high-precision equipment.
- Rolled Tubes: Influenced by the rolling and pressing process, they might have slight microscopic dimensional deviations during mass production. However, their surface flatness is excellent for conventional industrial enclosures and structures.
IV. Application Scenarios: High-Pressure Precision vs. General Insulation
To optimize your procurement costs, you must match the tubing to the specific operating conditions:
- Filament Wound Tubing Applications: Preferred for high-voltage electrical applications, ultra-high-voltage (UHV) bushings, transformers, and heavy industrial load-bearing components.
- Rolled Tubing Applications: Mostly used in low-voltage electrical equipment, high-performance insulation sleeves, chemical anti-corrosion pipelines, and structural components requiring secondary machining.
V. Quick Technical Comparison Breakdown
To make your material selection easier, here is a direct technical comparison breakdown between the two composite structures:
- Manufacturing Method: Filament wound tubes rely on automated CNC continuous helical winding, while rolled tubes utilize manual or semi-automated prepreg roll-wrapping and pressing.
- Internal Fiber Structure: The wound type consists of cross-wound continuous filaments, whereas the rolled type is made of multi-layer laminated glass cloth fabric.
- Key Mechanical Performance: Filament wound tubing excels in circumferential tensile strength and internal pressure resistance. In contrast, rolled tubing offers exceptional secondary machinability (easy to drill/cut) and balanced isotropic strength.
- Primary Industrial Applications: Choose the wound type for high-voltage bushings, transformers, and critical power transmission equipment. Choose the rolled type for general insulating sleeves, mechanical protective covers, and structural spacers.
VI. Visual Identification

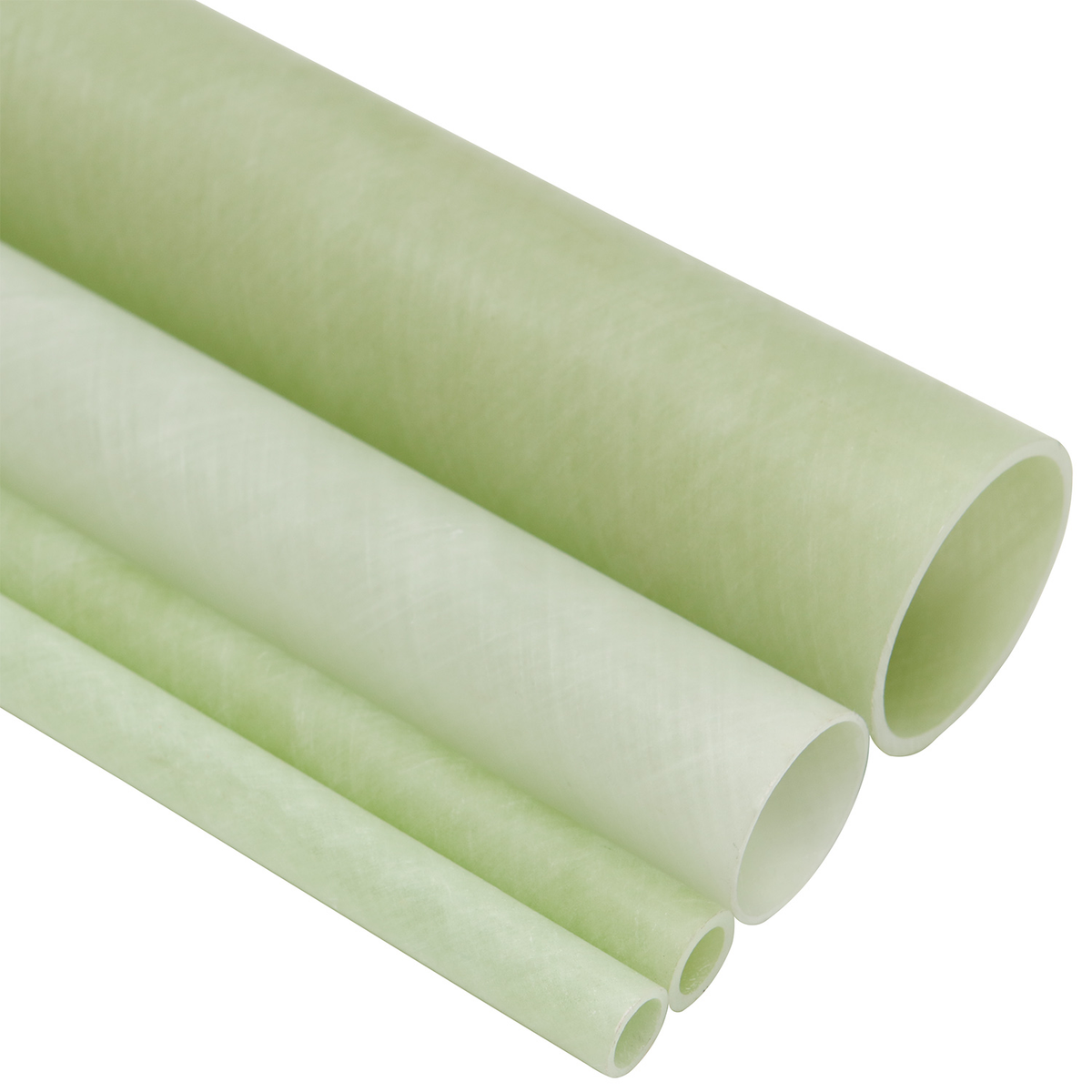

When sourcing materials, you can easily distinguish them by their surface textures:
VII. Need Expert Advice on Your Selection? Contact RDS Today!
In summary, choosing between filament wound and rolled tubes depends heavily on your specific application requirements, budget, and operating environment. While distinguishing them in theory is straightforward, complex engineering designs often demand customized specifications and professional validation.
As a leading specialist in thermoset composite solutions, RDS is committed to helping you optimize performance and control procurement costs. Whether you need high-precision filament wound tubes for UHV bushings or high-cost-performance rolled FR4 tubes for custom insulation components, our engineering team is ready to support you.
Don't risk equipment failure due to improper material selection. Contact RDS today to consult our experts, get professional technical support, or request a quick quote for your custom composite tubing project!
