As a premier composite material, the fiberglass winding pipe has become indispensable across modern industries. Known for being lightweight, high-strength, and exceptionally corrosion-resistant, these pipes are widely utilized in municipal water systems, petrochemical applications, and electric power communications.
However, the outstanding mechanical and electrical insulation properties of a finished pipe depend entirely on a standardized, professional manufacturing process. Every stage dictates the final performance.
Here is a detailed, behind-the-scenes analysis of the core filament winding process, demonstrating how raw materials are transformed into high-grade industrial products.
Step 1: Raw Material Preparation and Pretreatment
The foundation of any premium epoxy fiberglass tube lies in its ingredients. The core components include alkali-free fiberglass, a robust resin matrix, and functional fillers like quartz sand.
To optimize performance, the alkali-free fiberglass must undergo pretreatment with a silane-based coupling agent to drastically enhance its compatibility and bonding strength with the resin. Simultaneously, the base resin—typically an unsaturated polyester or a high-performance epoxy resin—is mixed with specific ratios of curing and toughening agents. The mixture is stirred thoroughly until it is completely uniform, free of lumps, and bubble-free, while the temperature is strictly controlled to ensure perfect fiber wetting.
Step 2: Mandrel Treatment and Preparation
The mandrel acts as the precise internal mold that shapes the pipe. Depending on the structural specifications, technicians select either high-grade steel or heavy-duty fiberglass mandrels.
First, the mandrel is polished and thoroughly cleaned to eliminate surface impurities and oils. Next, a high-efficiency release agent is applied evenly across the surface to ensure seamless demolding later. For large-diameter pipes, the mandrel is preheated before winding. This crucial step prevents defects like delamination or cracking by ensuring the resin cures evenly from the inside out.
Step 3: Precision Filament Winding Molding
This is the core engineering stage of production. The pretreated fiberglass is drawn through a precise tensioning device and fully submerged in an impregnation tank filled with the resin glue solution.
Once thoroughly wetted, a computer-controlled winding machine winds the fibers onto the rotating mandrel according to preset angles and tension algorithms. The winding configuration is adapted to the product's final application:
- Hoop Winding: Maximizes the hoop and radial strength of the pipeline.
- Helical Winding: Perfectly balances both hoop and axial mechanical performance.
Real-time controls monitor fiber tension and resin content throughout this phase, ensuring tightly packed fiber layers and a uniform resin matrix until the target wall thickness is achieved.
Step 4: Stepped Curing and Shaping
To lock in the shape and mechanical integrity, the wound mandrel and pipe enter a specialized curing oven. The system utilizes a stepped heating methodology, allowing the resin to cure progressively.
Because different resins exhibit distinct thermal properties, manufacturing an Epoxy Fiberglass Tube typically requires multi-stage, precise heating. This thorough curing curve maximizes the thermal and mechanical characteristics of the material. Continuous temperature monitoring is mandatory to prevent any structural deformation or incomplete curing.
Step 5: Post-Treatment, Machining, and Rigorous Testing
After complete cross-linking, the pipe is demolded from the mandrel. The uneven ends are trimmed, and the exterior surface is polished to achieve a smooth, flat finish.
Every batch must pass rigorous quality inspections, including visual inspections, wall thickness profiling, and high-pressure hydrostatic tests. These checks guarantee that the finished fiberglass winding pipe contains no pinholes, no delamination, and fully complies with national industrial standards under sustained pressure. Only qualified products receive certification labels and packaging before warehousing.
Your Trusted Partner for Custom Epoxy Fiberglass Solutions
From raw materials to final verification, every micro-step must be flawless to produce composites that deliver strength, lightness, and chemical resistance.
At RDS, we provide comprehensive manufacturing capabilities for global industrial demands:

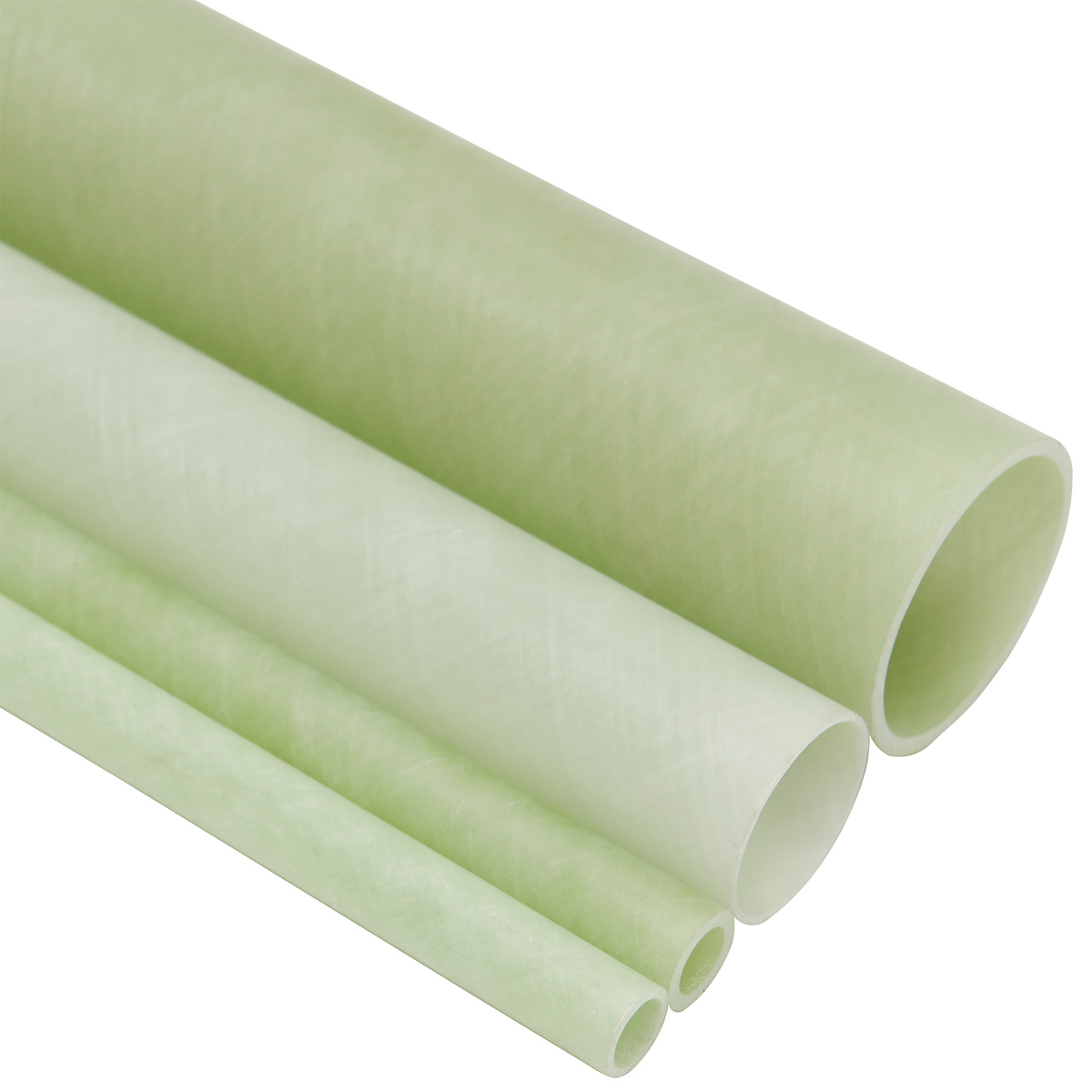

- Diverse Gradings: We produce high-quality epoxy fiberglass tubes across multiple temperature resistance grades with a vast inventory of existing mold sizes.
- Custom Mold Development: Need a non-standard size? We can design and develop new tooling and molds tailored to your specific project parameters.
- Advanced CNC Post-Machining: Equipped with precision processing equipment, we offer expert Custom Machining Services to thread, slot, drill, or shape finished tubes exactly according to your engineering drawings.
Contact the RDS engineering team today to submit your drawings or inquire about our capabilities.
