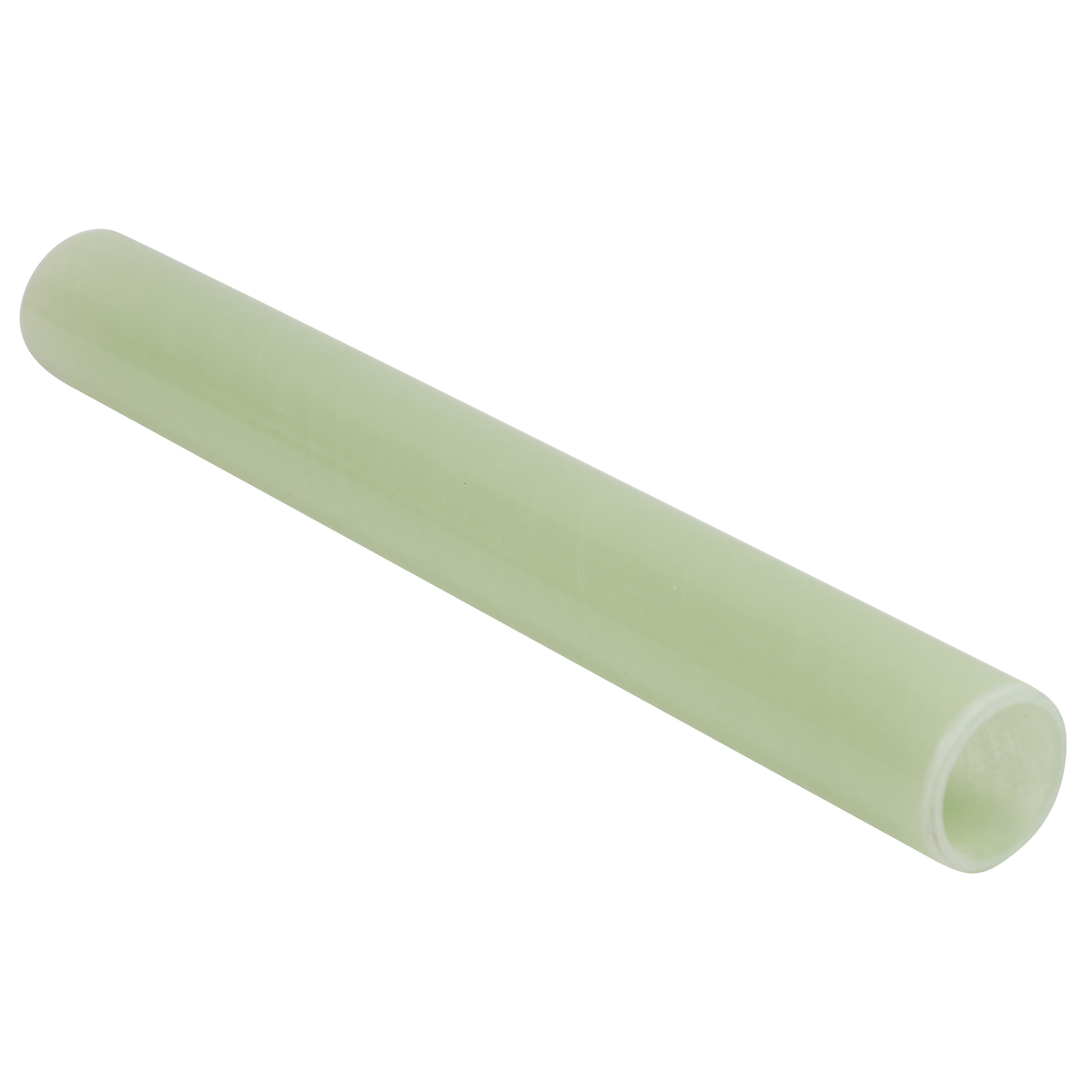

Epoxy fiberglass tubes are high-strength insulating cylinders constructed from glass fiber reinforcements and cured epoxy resin systems. Widely specified in power distribution systems, medical equipment, and high-voltage switchgear, these structural components deliver high dielectric breakdown strength, low water absorption, and superior hoop tensile resistance.
1. Primary Industrial Applications & Component Selection Matrix
Selecting the correct epoxy glass tube grade and structure depends on operational mechanical stress and thermal environment:
| Industrial Sector | Typical Components | Key Performance Demands | Recommended Material & Tube Type |
|---|---|---|---|
| High-Voltage Switchgear | Operating rods, arc chutes, interrupter housings, and insulating sleeves. | High axial tensile strength, arc resistance, and dielectric isolation under mechanical switching impact. | FR4 Epoxy Glass Tube (Filament Wound or Rolled). |
| Power Transformers | Core insulation tubes, winding spacers, and high-voltage bushing jackets. | Sustained continuous thermal endurance, high dielectric breakdown, and hot oil compatibility. | G11 High-Temp Glass Tube (Class F 155 °C Continuous). |
| Medical & Precision Instrumentation | MRI scanner structural sleeves, non-conductive drive shafts, and test fixture housings. | Non-magnetic properties, precise dimensional tolerance, and low moisture absorption. | Precision Machined G10 / FR4 Rolled Tube. |
2. Structure Selection: Rolled vs. Filament-Wound Tubes
Epoxy fiberglass tubes are manufactured using two distinct manufacturing methods tailored for different mechanical load profiles:
- Rolled Epoxy Tubes: Fabricated by wrapping resin-preimpregnated glass cloth onto mandatory mandrels. Ideal for components requiring high machining accuracy, tight wall tolerances, and uniform dielectric strength.
- Filament-Wound Tubes: Manufactured by continuously winding resin-dipped glass roving fibers under tension at specified angles. Recommended for structural applications demanding high burst pressure, torsional strength, and axial pull-out resistance.
3. Key Technical & Thermal Class Boundaries
- Class B Thermal Endurance (130 °C Continuous): Standard FR4 and G10 tubes maintain structural rigidity and dielectric insulation up to 130 °C. Exceeding Class B limits leads to thermal resin softening.
- Class F Thermal Endurance (155 °C Continuous): G11 high-temperature glass tubes are engineered with modified epoxy resin systems, retaining over 50% flexural and tensile strength at 155 °C continuous duty.
4. Frequently Asked Questions (FAQ)
Q: What is the main application difference between G10/FR4 tubes and G11 tubes?
A: Standard G10 and FR4 tubes are rated for Class B (130 °C) operation and suit most switchgear and structural applications. G11 tubes are rated for Class F (155 °C) continuous operation and are specifically specified for elevated-temperature transformer and motor environments.
