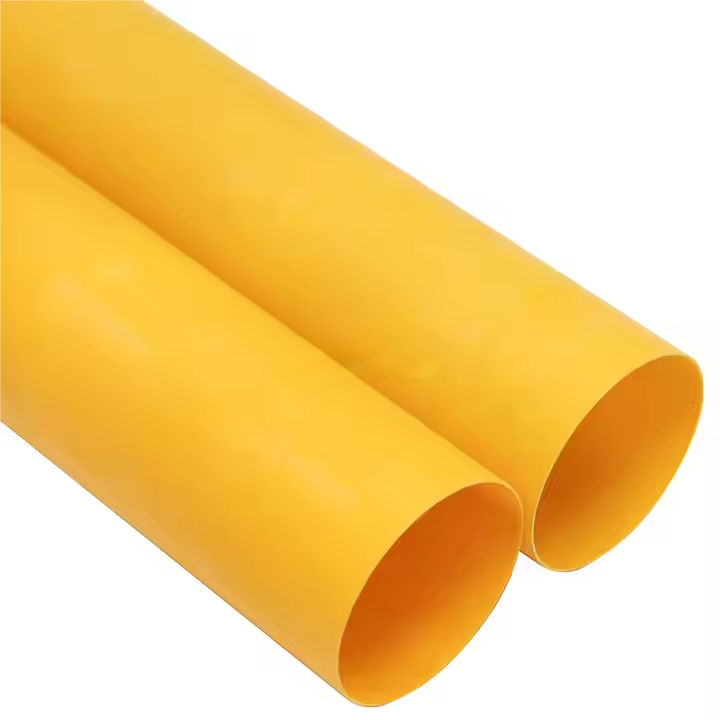

Thermal endurance in epoxy fiberglass composite tubes depends on resin binder chemistry, mechanical loading conditions, and ambient humidity exposure. Accurately specifying continuous operating limits and short-term thermal thresholds prevents insulation thermal degradation, loss of hoop tensile strength, and dielectric breakdown in high-voltage applications.
1. Thermal Insulation Class & Resin System Matrix
Thermal classification according to IEC 60216 and NEMA standards categorizes composite tubing based on resin matrix thermal degradation points under continuous electrical and mechanical stress:
| Material Grade | Resin System Chemistry | Continuous Duty Limit (IEC 60216) | Short-Term Peak Limit | Primary Thermal Limit Condition |
|---|---|---|---|---|
| G10 / FR4 Glass Tube | Standard Brominated Bisphenol-A Epoxy System | Class B (130 °C Continuous) | Up to 150 °C (< 2 hours) | Resin softening above Tg lowers flexural modulus; continuous exposure over 130 °C causes permanent strength loss. |
| G11 High-Temp Glass Tube | High-Tg Modified Anhydride-Cured Epoxy System | Class F (155 °C Continuous) | Up to 180 °C (< 2 hours) | Engineered to retain ≥ 50% flexural strength at 155 °C; excellent stability in hot transformer oil and high thermal cycles. |
2. Standardized Testing Methods & Thermal Limits
Material datasheets for industrial composite tubes rely on standardized testing protocols to verify thermal performance boundaries:
- Thermal Endurance Index (IEC 60216): Evaluates long-term thermal aging by measuring the degradation of dielectric breakdown and mechanical strength over thousands of hours at elevated temperatures.
- Heat Deflection Temperature / HDT (ASTM D648 / ISO 75): Determines the temperature at which an epoxy tube deforms under a specified flexural load. High-Tg G11 formulations maintain higher HDT values compared to standard G10/FR4.
- Elevated Flexural & Tensile Testing (ASTM D790 / ISO 178): Measures residual mechanical strength at operational temperatures (e.g., flexural strength measured directly at 155 °C for Class F rating).
3. Combined Effects: Mechanical Loading & Moisture Factor
Thermal limits stated in laboratory datasheets must be derated when operating under dynamic mechanical stresses or high moisture levels:
- Dynamic Mechanical Loads: High axial tension, torsional loads, or switching vibration reduce the continuous thermal margin. Under heavy mechanical forces, standard Class B tubing should be derated by 10 °C to 15 °C to prevent creep deformation.
- Humidity & Oil-Immersed Environments: Absorbed moisture reduces the Glass Transition Temperature (Tg) of epoxy resin. In outdoor high-humidity installations or hot oil-immersed transformer tanks, choosing a high-Tg grade like G11 ensures long-term insulation stability.
4. Frequently Asked Questions (FAQ)
Q: Can epoxy fiberglass tubes handle continuous operation at 250 °C?
A: No. Standard industrial epoxy fiberglass tubes (FR4, G10, G11) cannot sustain continuous duty at 250 °C. Standard FR4/G10 is rated for 130 °C continuous, while high-temperature G11 is rated for 155 °C continuous. Claims of 250 °C continuous rating for standard epoxy laminates are incorrect and misrepresent specialty non-epoxy high-heat polymer matrix systems.
