In the fields of electrical insulation, new energy, and high-voltage equipment, the epoxy fiberglass tube serves as a core structural insulating component. When sourcing these materials, you will frequently encounter models like G10, FR4, and G11, as well as EPGC21, EPGC22, and EPGC23.
While they all offer excellent properties, they belong to two different international standard systems. This comprehensive guide outlines their standard affiliations, performance levels, corresponding relationships, and application differences to help you make the right choice.
1. NEMA vs. IEC: Two Major Standards for Epoxy Fiberglass Tubes
All the aforementioned tubes are high-performance insulating materials made of alkali-free glass cloth impregnated with epoxy resin and hot-pressed. The core difference stems from the industrial standards under which they were formulated:
- NEMA System (American Standard): Includes G10 tube, FR4 tube, and G11 tube. This system is heavily favored by North American and European equipment manufacturers, focusing primarily on mechanical strength and basic insulation classification.
- IEC System (International Standard): Includes EPGC21, EPGC22, and EPGC23. This is the mainstream standard in the EU and Asia-Pacific electrical industries, emphasizing detailed subdivisions of heat resistance levels and flame retardant performance.
Essentially, there is no fundamental substrate difference between the two systems. They classify products based on parameters such as flame retardancy and thermal properties, meaning cross-standard replacement is highly achievable in global supply chains.
2. NEMA Series: Progressive Analysis of G10, FR4, and G11 Tubes
Within the NEMA system, these three models follow a progressive logic from basic to high-end performance. Their core differences lie in flame retardancy and high-temperature resistance.

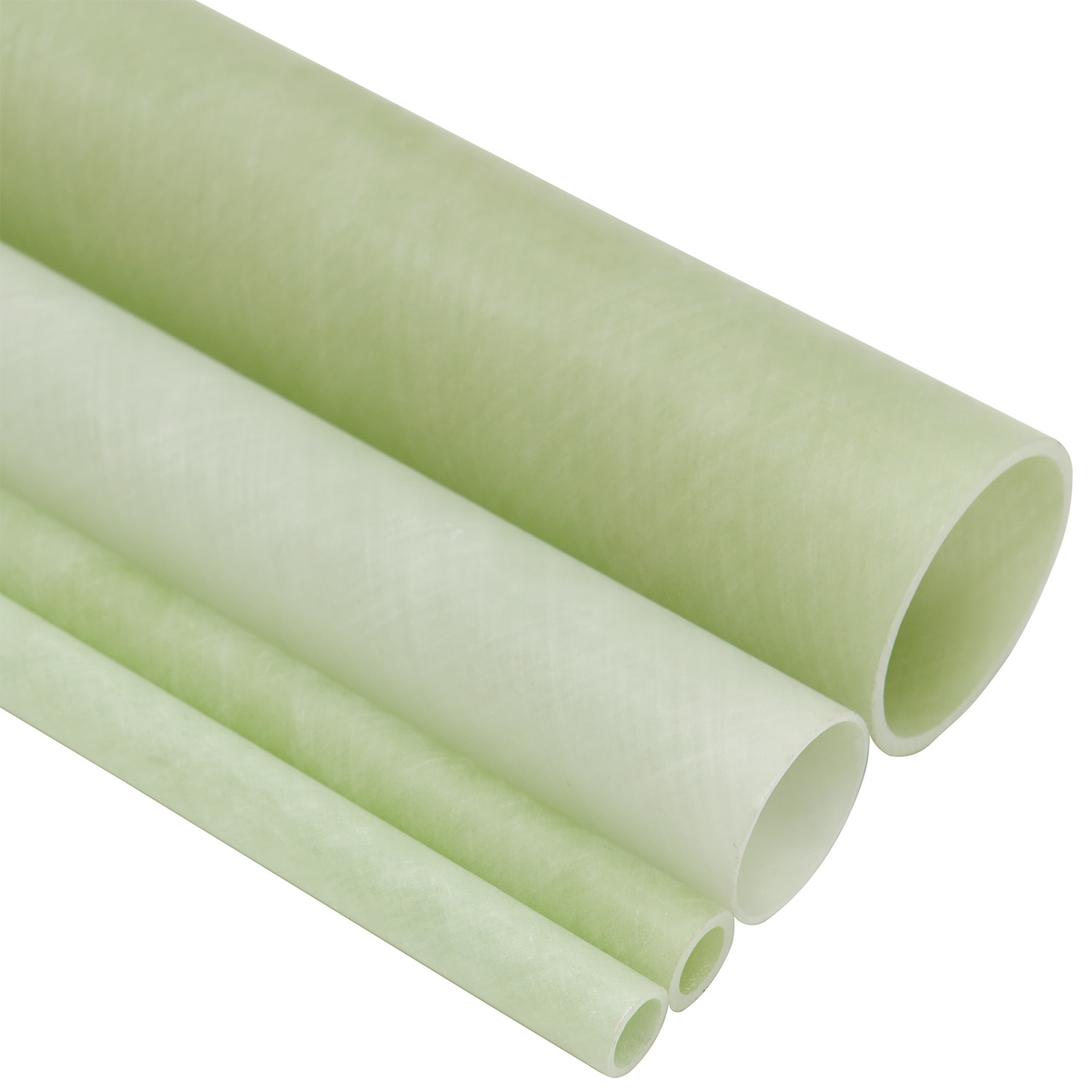

G10 Tube: The Universal Basic Model
The G10 tube features a pure epoxy fiberglass formula without flame-retardant additives. It delivers excellent mechanical strength, low water absorption, and highly stable insulation performance. However, it lacks self-extinguishing properties. It is ideal for indoor dry mechanical structural supports and low-voltage insulation scenarios where fire protection is not mandatory.
FR4 Tube: The Flame-Retardant Upgrade
The FR4 tube is a fire-protection optimized derivative of G10. By adding compliant flame retardants to the G10 substrate, it achieves the strict UL94 V0 self-extinguishing standard. It retains all the mechanical and electrical insulation performance of G10 while adding crucial fire safety, making it widely used in medium and low-voltage electrical equipment.
G11 Tube: High-Temperature Powerhouse
Utilizing an advanced modified epoxy formula, the G11 tube focuses on extreme heat deflection temperatures and resistance to damp heat. It exhibits minimal mechanical strength decay under high temperatures and extremely low water absorption. It is the premium choice for high-temperature operating conditions, such as transformers and aviation accessories.
3. IEC Series: Precise Alignment of EPGC21, EPGC22, and EPGC23
EPGC is the specific code for electrotechnical epoxy fiberglass tubes under the IEC standard. These models form a precise, interchangeable alignment with the NEMA series:
- EPGC21 Tube: A non-flame retardant universal grade. Its performance parameters completely benchmark against NEMA G10, serving as the reliable entry-level model under IEC specifications.
- EPGC22 Tube: A high-temperature resistant flame-retardant grade. Benchmarked against the G11 tube, it possesses superior heat resistance, making it suitable for severe high-temperature working environments.
-
EPGC23 Tube: A flame-retardant universal grade. Benchmarked directly against the FR4 tube, it meets strict IEC flame retardant specifications and is the mainstream replacement model across the EU market.
4. Material Selection Summary for Global Projects
Choosing the right epoxy fiberglass tube is a balance of compliance, cost, and equipment operational stability. By mastering the cross-standard relationships between NEMA and IEC, you can easily optimize material selection for global engineering projects.
Standard Equivalence & Selection Reference Table:
- Basic Insulation (No Fire Rating): Choose NEMA G10 or IEC EPGC21
- Flame Retardant (UL94 V0): Choose NEMA FR4 or IEC EPGC23
- High-Temperature Resistance: Choose NEMA G11 or IEC EPGC22
As a professional composite manufacturer, RDS provides high-precision, customized epoxy fiberglass tubes tailored to your exact technical drawings and performance requirements.
Whether you need specific dimensions, flame-retardant ratings, or high-temperature mechanical properties, our engineering team is here to help. Contact RDS today to get technical support, request samples, or receive a quick quote for your next project!
