EPGC201 Epoxy Fiberglass Sheet Guide: IEC Standards, TDS & Application Limits

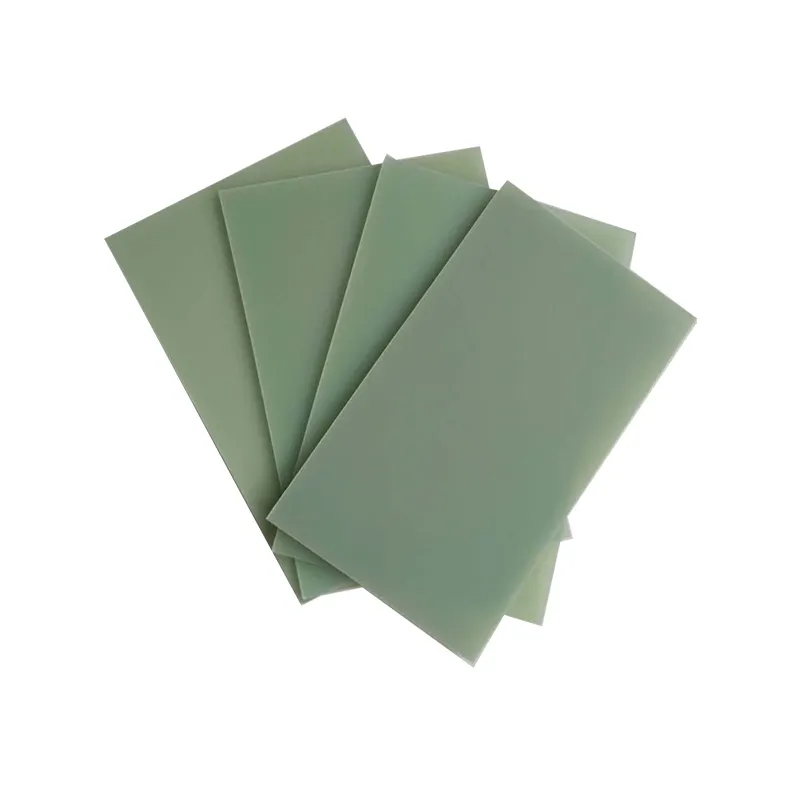

EPGC201 is a high-performance rigid electrical insulating sheet manufactured from woven fiberglass cloth impregnated with heat-resistant thermosetting epoxy resin. Standardized under international electro-technical codes, EPGC201 is engineered for demanding electrical power distribution apparatus and rotating machinery requiring high mechanical strength retention at elevated working temperatures.

This technical guide from RDS Composite clarifies the official standard equivalent relationships for EPGC201, provides verified Technical Datasheet (TDS) test properties, and outlines the precise engineering application boundaries for material selection.

1. Standard Specifications & Cross-Grade Equivalents

To avoid material substitution errors during international procurement, EPGC201 standards must be verified against corresponding global technical specifications:

• Primary Standard: IEC 60893-3-2 (Specification for industrial rigid laminated sheets based on thermosetting resins for electrical purposes – EPGC201).
• German Standard Equivalent: DIN 7735 HGW 2372 (Woven glass cloth bonded with epoxy resin).
• NEMA Grade Comparison: Mechanically and thermally comparable to NEMA Grade G10 / FR4, but EPGC201 specifically emphasizes high mechanical property retention at elevated temperatures (Class F, 155°C) per European testing protocols.
• Related EPGC Family Grades:
  • EPGC202: Flame-retardant version equivalent to NEMA FR4 (UL 94 V-0 rated).
  • EPGC203: High-temperature structural grade rated for Class H (180°C) operation, equivalent to NEMA G11.

2. Technical Datasheet (TDS) Test Performance Data

The table below provides typical physical, mechanical, and electrical test values for RDS EPGC201 rigid sheets under standardized IEC/ISO laboratory conditions:

3. Application Boundaries & Engineering Suitability

To ensure system reliability and safety, materials engineers must evaluate the operational boundaries of EPGC201 during component selection:

A. Ideal Application Scenarios

• Medium & High-Voltage Switchgear: Machined operating rods, phase isolation barriers, structural busbar supports, and terminal plates operating up to 35 kV.
• Class F Motors & Generators: Slot wedges, rotor retaining ring insulation, end-coil supports, and terminal boards subject to thermal cycling up to 155°C.
• Dry-Type Transformers: Core insulation spacers, tie-rod washers, and high-load structural clamps.

B. Non-Recommended / Restricted Operating Conditions

• Ultra-High Temperature Environments (> 180°C): EPGC201 degrades thermally above 155°C. For continuous operation at 180°C or higher, specify EPGC203, NEMA G11, or Polyimide Glass Laminates.
• Heavy Contaminated / Arc-Prone Outdoor Air: Because EPGC201 has a nominal CTI rating of ~200V, applications requiring extreme tracking resistance (CTI 600V) or arc suppression should utilize GPO-3 Polyester Laminates instead.
• Strict Flame Retardancy Codes (UL 94 V-0): Standard EPGC201 does not guarantee UL 94 V-0 self-extinguishing flame performance unless specifically specified as EPGC202 / FR4.

4. Processing & Quality Tolerance Controls

RDS supplies raw EPGC201 sheets and precision CNC machined parts under rigorous manufacturing standards:

• Thickness Tolerances: Manufactured per IEC 60893-3-2 nominal ranges (±0.10 mm to ±0.22 mm depending on sheet thickness from 0.5 mm to 50.0 mm). Precision sanding achieves tight thickness tolerances down to ±0.05 mm.
• CNC Machining Guidelines: EPGC201 mills cleanly with carbide tooling. Use sharp cutters with high spindle speeds and proper dust extraction to prevent abrasive fiberglass particle buildup.
