Custom Carbon Fiber Components: DFM, Process Selection & QC Guide

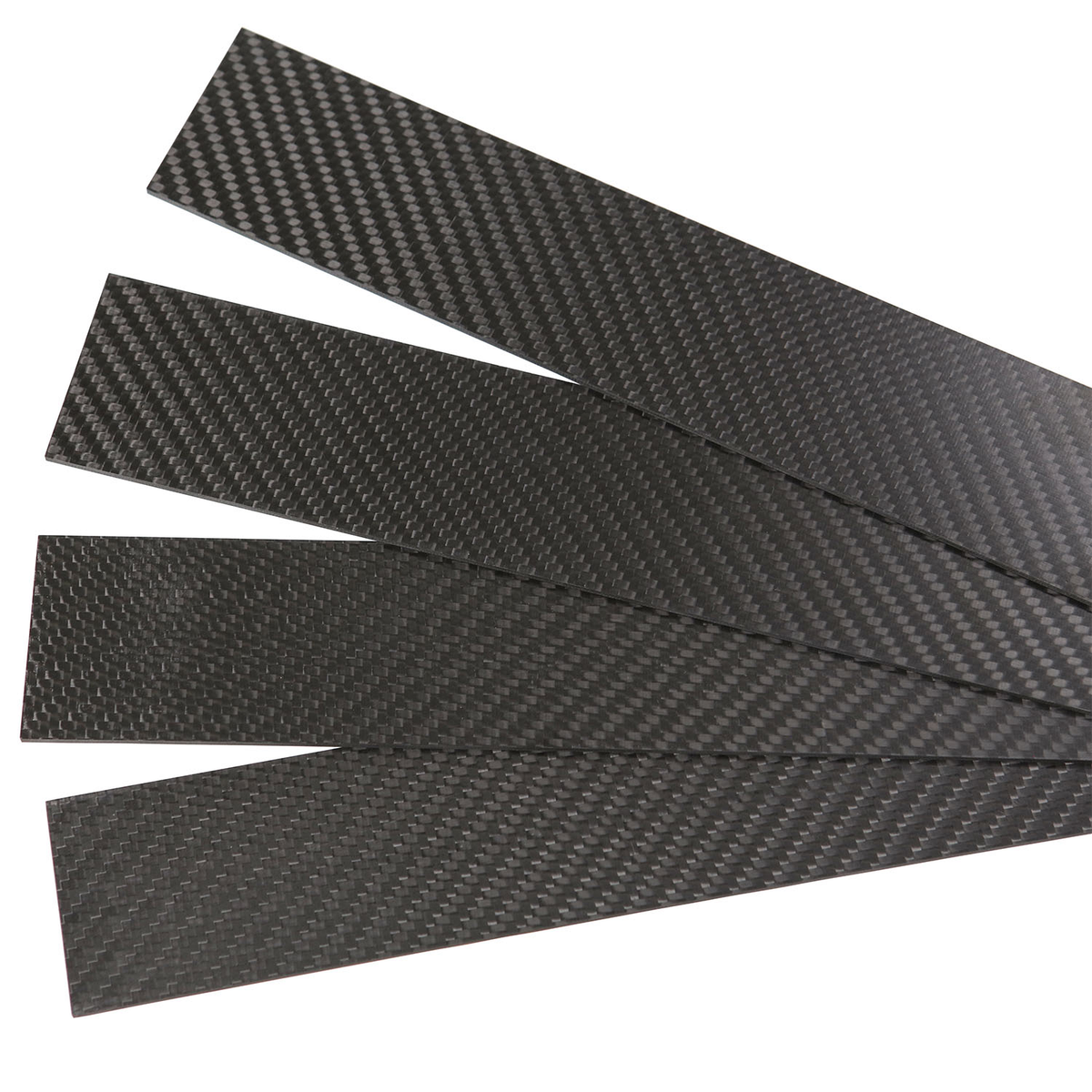

Custom carbon fiber components provide high specific strength, structural stiffness, and low thermal expansion across aerospace, automotive, robotics, and industrial automation equipment. However, transitioning a 3D CAD design into a reliable carbon fiber part requires rigorous Design for Manufacturability (DFM), optimized molding process selection, engineered ply layup schedules, and standardized Quality Assurance (QA) inspection.

This technical guide from RDS Composite details the full custom carbon fiber engineering workflow—from early DFM rules to precision 5-axis CNC machining and final non-destructive testing (NDT).

1. Step 1: Design for Manufacturability (DFM) Engineering Guidelines

Unlike isotropic metallic parts machined from solid billets, carbon fiber composites are anisotropic laminates. Early DFM optimization prevents ply bridging, resin-rich pockets, and internal delamination:

• Draft Angles & Radii Rules: Internal corner radii should be designed ≥ 3.0 mm (preferably 5.0 mm). Sharp 90° internal corners cause fiber bridging and resin accumulation during pressure consolidation. Mold draft angles must be kept ≥ 1.0° to 2.0° for clean tool release.
• Uniform Wall Thickness Transition: Avoid abrupt wall thickness steps. Taper ply drops at a slope of 1:10 to 1:20 to maintain uniform pressure distribution and eliminate internal stress concentration zones.
• Metallic Insert Integration: Threads in carbon fiber should not be tapped directly into composite walls for high-torque applications. Stainless steel or aluminum threaded inserts (Helicoil or molded-in knurled bushings) should be specified to resist thread shearing.

2. Step 2: Manufacturing Process & Tooling Path Selection

The optimal molding process is chosen based on mechanical load demands, annual production volumes, and part geometry complexity:

3. Step 3: Ply Orientation & Layup Schedule Design

Composite laminate strength is directional. Layup sequences are tailored to match specific stress vectors using unidirectional (UD) prepreg or woven carbon fabrics (3K, 6K, 12K):

• Quasi-Isotropic Layup [0° / ±45° / 90°]s: Provides balanced tensile, bending, and torsional resistance across all planar directions. Ideal for mounting plates, structural frames, and robotic end-effectors.
• Unidirectional Load Layup [0° / 0° / 0°]: Concentrates maximum flexural stiffness along the longitudinal axis. Perfect for high-speed drive shafts, structural rods, and cantilever beams.
• Symmetric Layup Rules: Layup architectures must be mid-plane symmetric (e.g., [0/45/-45/90]s) to prevent post-cure thermal warping, bowing, or twisting during cool-down cycles.

4. Step 4: Prototyping, 5-Axis CNC Milling & Surface Finishing

Once cured, rough carbon fiber blanks transition to precision finishing and secondary processing:

• Rapid Prototyping Phase: First-article prototypes are typically delivered within 10 to 15 business days using soft aluminum tooling to validate 3D fitment, structural deflection, and assembly tolerances.
• High-Precision 5-Axis CNC Milling: Finished composite components are machined using PCD (Polycrystalline Diamond) or diamond-coated carbide tooling under high-pressure dust extraction to prevent delamination, edge fiber fuzzing, or micro-cracking around drilled mounting holes.
• Surface Coating Options: Choice of matte or high-gloss UV-resistant polyurethane clear coats, matte textured finishes, or specialized functional coatings (EMI shielding / anti-static).

5. Step 5: Quality Assurance (QA) & Inspection Case Example

Every custom carbon fiber batch undergoes rigorous quality control before dispatch to ensure zero internal voids or dimensional deviations:
