Comprehensive Guide to Fiberglass Tube Manufacturing Methods: Pultrusion, Filament Winding & Roll Wrapping

Fiberglass tubes (EPGC, NEMA G10/FR4/G11/G7) are critical structural and electrical insulation components used across high-voltage switchgear, transformer sleeves, aerospace structures, and industrial machinery. Selecting the correct tube depends heavily on the manufacturing process, as the fiber orientation, resin distribution, and consolidation method dictate the tube's ultimate hoop strength, flexural rigidity, and dimensional tolerances.

In this engineering guide, RDS Composite breaks down the primary manufacturing methods for fiberglass tubes—including Pultrusion, Filament Winding, Roll Wrapping, and Compression Molding—examining their processing mechanics, operational boundaries, and dynamic application fit.

1. Overview of Fiberglass Tube Manufacturing Methods

Different manufacturing methodologies yield distinctly different fiber architectures. The table below provides a top-level technical engineering overview comparing the four primary tube production techniques:

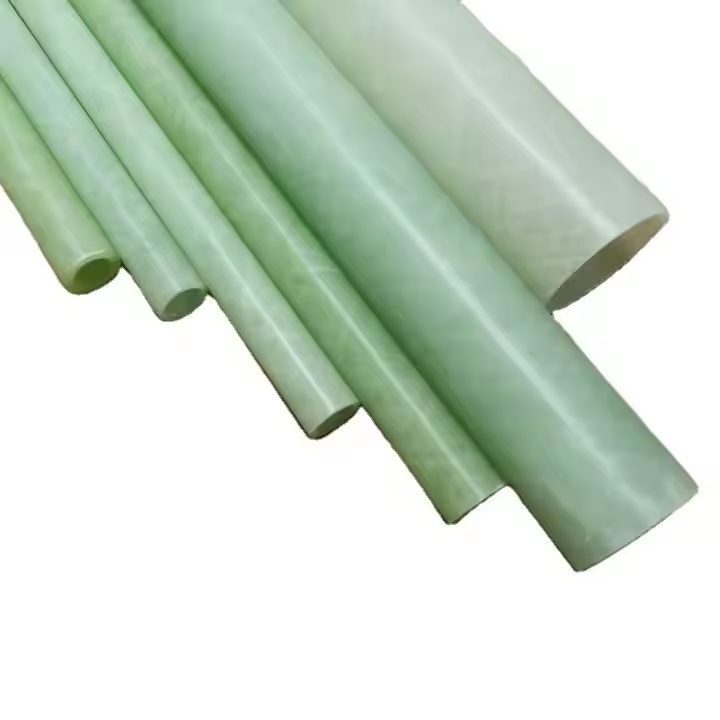

2. Pultrusion Process (Unidirectional Profile Production)

Pultrusion is a continuous manufacturing process designed for high-volume, constant cross-section profile production.

Processing Steps:

• Continuous fiberglass rovings and mats are pulled from creels through a guided resin bath (epoxy, polyester, or vinyl ester).
• The wetted reinforcement passes through pre-forming guides to establish tube geometry and remove excess resin.
• The continuous bundle enters a heated steel die where exothermic resin polymerization occurs.
• A caterpillar pulling mechanism continuously draws the cured solid profile to an automated cut-off saw.

Process Boundaries & Limitations:

• Fiber Alignment Constraints: Overwhelmingly unidirectional (0° longitudinal). This delivers maximum longitudinal flexural stiffness but lower circumferential hoop strength.
• Wall Thickness Limits: Typically 1.5 mm to 12 mm. Very thick walls require slower pull speeds to prevent internal exothermic cracking.
• Tooling Investment: High steel die tooling costs make it economical primarily for standard or long-run continuous profiles.

3. Filament Winding Process (Helical High-Pressure Tubing)

Filament winding utilizes automated CNC winding heads to wrap continuous epoxy-impregnated E-glass rovings around a rotating precision steel mandrel at computer-controlled winding angles.

Processing Steps:

• Continuous E-glass rovings pass through a tensioned epoxy resin bath.
• The carriage unit lays down helical or polar roving patterns on the revolving mandrel (commonly at ±55° for optimized hoop strength).
• Once wound to target wall thickness, the assembly is transferred to a controlled thermal curing oven.
• Post-cure extraction separates the tube from the steel mandrel, followed by precision outer diameter (OD) centerless grinding.

Process Boundaries & Limitations:

• Winding Angle Optimization: Helical angles (±45° to ±65°) provide extreme internal burst resistance (resisting high hydraulic/SF6 gas pressure).
• Diameter & Wall Limits: ID range from 10 mm up to 1,200 mm; wall thickness capabilities up to 50 mm+.
• CNC Machining Considerations: Highly sensitive to longitudinal cleavage during aggressive threading or deep slotting compared to woven tube stock.

For detailed dimensional tolerances, breakdown voltage specifications, and custom winding angles, read our comprehensive guide: G10 Epoxy Fiberglass Filament Wound Tubing Specifications Guide.

4. Roll Wrapping Process (Multi-Axis Prepreg Woven Tubing)

Roll wrapping (also known as roll-wrapped tube manufacturing) utilizes pre-impregnated (prepreg) woven fiberglass fabrics wrapped tightly around precision mandrels under heat and pressure rollers.

Processing Steps:

• Prepreg woven fiberglass cloth (0°/90° weave structure) is precision cut into calculated pattern lengths.
• The sheet is laid on a heated rolling table and wrapped tightly under pneumatically applied compressive force around a steel mandrel.
• Cellophane or polypropylene shrink tape is tension-wrapped externally over the wet assembly to provide consolidation pressure during heat cure.
• After oven curing, the tape is stripped, the mandrel is extracted, and the tube undergoes centerless OD grinding and surface coating.

Process Boundaries & Limitations:

• Woven Reinforcement Strength: Cross-woven 0°/90° fabric architecture yields uniform flexural, torsional shear, and axial strength, making it superior for CNC drilling, tapping, and keyway milling without delamination.
• Wall Thickness & Length Limits: Ideal for precision thin-wall and medium-wall tubes (wall thickness 0.5 mm to 25 mm). Tube length is restricted by heat roller bed dimensions (typically up to 2,000 mm – 3,000 mm).
• Inner Diameter Range: ID capabilities typically range from 3 mm to 300 mm.

To determine whether your structural application requires a filament wound or roll-wrapped tube structure, explore our engineering comparison matrix: Filament Wound vs Rolled Epoxy Fiberglass Tube Selection Guide.

5. Compression Molding Process (Special Shaped & Short Bushings)

Compression molding is used when producing short, heavy-walled, or non-cylindrical insulating sleeves, flange tubes, and custom profile bushings that cannot be easily extracted from straight mandrels.

Processing Steps:

• Prepreg mats, woven pre-forms, or bulk molding compounds (SMC/BMC) are weighed and placed inside a two-part heated matched-metal steel mold.
• A hydraulic press closes the mold under high pressure (typically 5 to 15 MPa) and elevated temperatures (130°C – 170°C).
• The resin matrix flows to fill the complex cavity, curing into a dense, void-free composite casting.

Process Boundaries & Limitations:

• Geometric Flexibility: Can produce external flanges, varying wall steps, and non-circular inner contours.
• Length Constraints: Limited primarily to shorter axial lengths (typically under 500 mm).

6. Dimensional Precision & Post-Machining Capabilities

Regardless of whether a tube is roll wrapped or filament wound, raw cured outer surfaces exhibit resin ridges and minor thermal shrink variations. Achieving exact engineering fitments (e.g., ISO h8/h9 tolerances) requires standardized secondary finishing:

• Inner Diameter (ID): Governed strictly by the high-precision ground steel mandrel (typically ±0.05 mm to ±0.15 mm).
• Outer Diameter (OD): Achieved through multi-pass centerless precision grinding (tolerances down to ±0.03 mm).
• Secondary CNC Machining: Precision turning, slotting, circumferential grooving, and thread tapping according to customer drawings.

7. Selecting the Right Tube Manufacturing Process

Matching your design specifications with the ideal manufacturing process prevents premature mechanical failure and optimizes material cost:

• Choose Pultrusion for high-volume, straight structural rods, push-bars, and constant profiles with high axial loads.
• Choose Filament Winding for high-voltage arc switchgear, interrupter tubes, and hydraulic cylinders demanding extreme burst pressure resistance.
• Choose Roll Wrapping for transformer insulation sleeves, CNC-machined threaded bushings, and multi-axis mechanical drive shafts.
• Choose Compression Molding for short flange bushings, non-cylindrical insulation sleeves, and complex stepped profiles.
