Carbon Fiber Classification & Properties: Grade Selection for Custom Machined Parts

Selecting the correct carbon fiber grade is a critical decision in engineered component design. Choosing between Standard Modulus (SM), Intermediate Modulus (IM), or High Modulus (HM) fiber grades—as well as tow size (3K, 6K, 12K)—directly dictates the mechanical stiffness, impact tolerance, weight reduction, and machining cost of custom carbon fiber plates, CNC components, and molded structures.

This B2B technical guide from RDS Composite simplifies carbon fiber classification, explains how commercial tow sizes and tensile moduli directly influence engineered custom parts, and connects you to our streamlined custom composite manufacturing workflow.

1. Commercial Carbon Fiber Grades: Tensile Modulus & Strength

For industrial carbon fiber plates and structural components, material selection revolves around two primary mechanical indicators: Tensile Modulus (Stiffness) and Tensile Strength (Load Bearing).

2. Tow Size & Weave Pattern: 3K, 6K, 12K & Unidirectional (UD)

The "K" rating designates the number of individual carbon filaments bundled into a single strand or tow (1K = 1,000 filaments):

• 3K Woven Fabrics (2x2 Twill / Plain): The industry standard for aesthetic surface layers and thin-wall CNC parts (0.5 mm to 3.0 mm). Offers excellent drapeability and uniform isotropic strength when cross-plied.

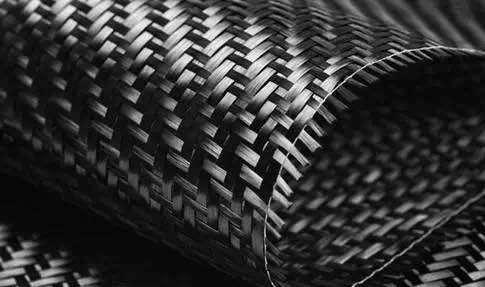

• 12K / Heavy Tow Fabrics: Cost-effective for thick structural core lamination (> 5.0 mm plates). Higher fiber volume fraction reduces resin consumption, optimizing bulk bending stiffness.
• Unidirectional (UD) Prepreg Tape: Contains zero cross-weave crimp. Used in custom layup schedules to align maximum tensile strength along specific load vectors, maximizing structural efficiency without excess mass.

3. How Fiber Grade Directly Impacts Custom Machined Parts

When transitioning from raw carbon fiber material selection to manufactured custom components, engineering trade-offs must be evaluated:

A. Bending Rigidity vs. Brittleness during CNC Milling

While High Modulus (HM) fibers deliver exceptional stiffness, they possess lower strain-to-failure ratios. During high-speed CNC milling and drilling, HM carbon plates exhibit higher shear brittleness, requiring specialized PCD (Polycrystalline Diamond) router bits and controlled feed rates to prevent micro-cracking around mounting holes.

B. Cost-to-Performance Optimization

For 85% of industrial applications, Standard Modulus (T700-equivalent) 3K/UD hybrid carbon plates deliver the optimal balance of strength, impact resistance, and milling ease at a fraction of the raw material cost of IM or HM prepregs.

4. Transitioning from Material Selection to Custom Manufacturing

Once the ideal carbon fiber grade, fiber orientation, and laminate thickness are determined for your application, the next step is prototyping and production processing.

RDS Composite provides end-to-end composite manufacturing—from custom prepreg autoclave molding and precision CNC milling to surface clear-coating and insert assembly. To understand our full production capabilities, lead times, and engineering requirements.
