Selecting the optimal electrical insulation laminate requires balancing mechanical flexural strength, dielectric parameters, thermal endurance, and cost efficiency. This comparison guide evaluates standard industrial composite materials—FR4, G10, G11, GPO-3 (UPGM203), and SMC (Sheet Molding Compound)—to assist engineers in specifying the correct insulation material for power transmission and structural electrical components.
1. Technical Comparison Matrix
The technical parameter comparison below outlines verified performance metrics across key insulation laminate grades:
| Property / Specification | FR4 | G10 | GPO-3 (UPGM203) | SMC Composite |
|---|---|---|---|---|
| Resin / Reinforcement | Epoxy / Woven Glass | Epoxy / Woven Glass | Polyester / Glass Mat | Polyester / Chopped Glass |
| Flame Retardancy | UL 94 V-0 Rated | Non-Flame Retardant (Standard) | UL 94 V-0 Rated (Halogen-Free) | UL 94 V-0 Rated (Formulation Dependant) |
| Thermal Insulation Class | Class B (130 °C Continuous) | Class B (130 °C Continuous) | Class F (155 °C Continuous) | Class F (155 °C Continuous) |
| Comparative Tracking Index (CTI) | CTI 175V - CTI 300V | CTI 175V - CTI 200V | CTI 600V (High Resistance) | CTI 600V (High Resistance) |
| Arc Resistance (ASTM D495) | 60 – 120 seconds | 60 – 120 seconds | ≥ 180 seconds | ≥ 180 seconds |
| Flexural Strength | Very High (Woven Structure) | Very High (Woven Structure) | Moderate / High | Isotropic Multi-directional |

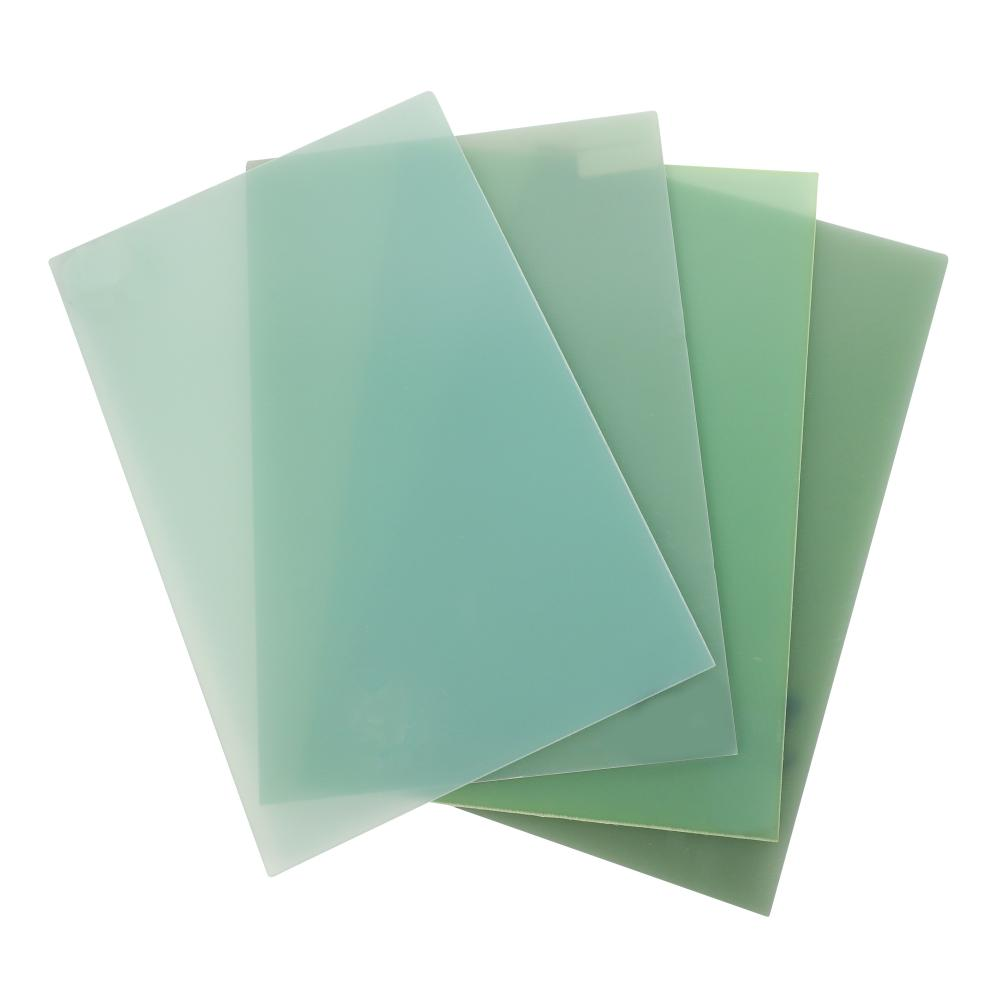

2. Quick Comparison: G10 vs. FR4 vs. G11 Epoxy Laminates
For high-precision mechanical and electrical structural applications, epoxy glass laminates are specified based on thermal limits and flame retardancy requirements:
- G10 vs. FR4: Both feature identical Class B (130 °C) thermal limits and high mechanical strength. FR4 laminate includes flame retardant additives to achieve UL 94 V-0 compliance, whereas standard G10 laminate does not.
- FR4 vs. G11: While FR4 is rated for Class B (130 °C) service, G11 is a high-temperature epoxy glass laminate rated for Class F (155 °C) continuous operation, maintaining over 50% of its flexural strength at elevated temperatures.
3. Material Selection by Engineering Application
- Select GPO-3 (UPGM203) Sheet when: Application involves medium-to-high voltage switchgear, arc chutes, phase barriers, or transformer supports requiring high tracking resistance (CTI 600V) and arc quenching capabilities.
- Select FR4 Sheet when: High mechanical flexural strength, tight dimensional tolerance, and UL 94 V-0 flame retardancy are required for electronic terminal boards, structural clamps, or precision CNC parts.
- Select G10 Sheet when: High mechanical rigidity and low moisture absorption are required in applications where UL 94 V-0 flame retardancy compliance is not strictly mandatory.
- Select SMC Component when: Design involves complex 3D shapes, enclosures, or molded electrical housings requiring integrated structural bosses rather than post-machined flat panels.
4. Frequently Asked Questions (FAQ)
Q: Can GPO-3 replace FR4 in high-voltage switchgear insulation?
A: Yes. GPO-3 provides superior tracking resistance (CTI 600V vs CTI 175-300V for FR4) and higher arc resistance at a lower cost, making it the preferred choice for phase barriers and busbar supports in switchgear cabinets.
Q: What is the primary operational difference between G10 and FR4?
A: Mechanical properties and electrical insulation performance are nearly identical. The key difference is flame retardancy: FR4 contains bromine flame retardants to achieve UL 94 V-0 ratings, whereas standard G10 does not.
