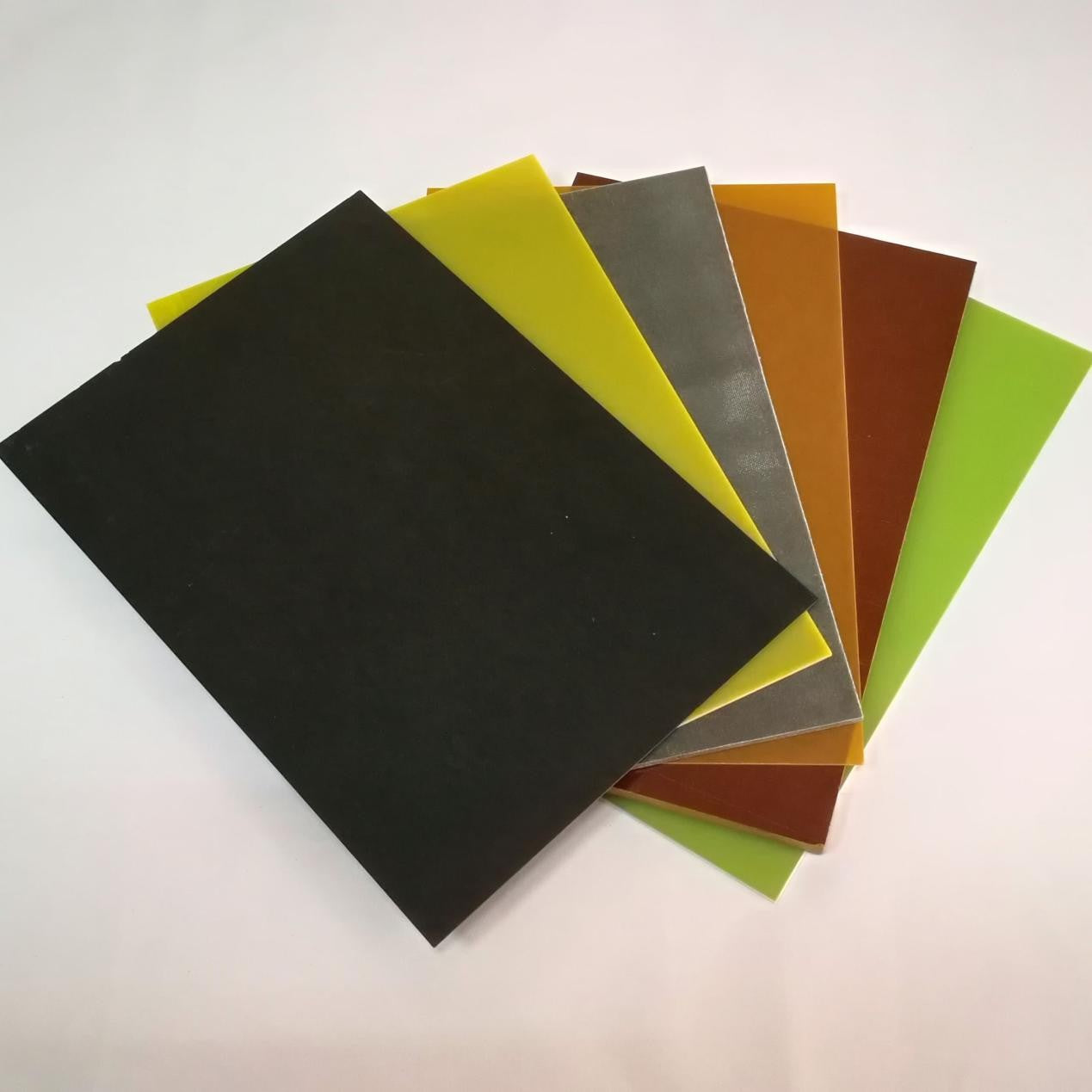

Epoxy fiberglass laminate sheets (such as FR4, G10, and G11) are engineered composite materials widely used in power distribution, electric transportation, industrial automation, and high-frequency electronic systems. Their high strength-to-weight ratio, low water absorption, and superior dielectric insulation make them critical for load-bearing and flame-retardant electrical components.
1. Industrial Applications & Component Selection Matrix
Matching the correct epoxy glass grade to specific operational environments prevents electrical breakdown and mechanical fatigue:
| Industrial Application | Typical Machined Parts | Primary Operational Risks | Recommended Material Grade |
|---|---|---|---|
| Medium-to-High Voltage Switchgear | Phase barriers, terminal plates, busbar supports, and structural angle brackets. | Dielectric breakdown, tracking arcs under moisture, high mechanical impact during short circuits. | FR4 Laminate (UL 94 V-0 flame retardancy + Class B thermal endurance). |
| Transformers & Power Generators | Slot wedges, core clamping plates, spacer blocks, and insulation washers. | Continuous thermal degradation, insulation aging, oil degradation at elevated temperatures. | G11 High-Temp Laminate (Class F 155 °C thermal rating + high hot flexural strength). |
| Industrial Machinery & Tooling | Cryogenic structural supports, test fixtures, wear plates, and non-conductive gears. | Mechanical wear, dimensional warping, edge chipping under repetitive dynamic loads. | Standard G10 Laminate (High flexural/tensile strength where UL 94 V-0 is non-mandatory). |
2. Key Mechanical & Thermal Limits to Consider
- Continuous Operating Temperature: Standard FR4 and G10 operate reliably up to Class B (130 °C). Exceeding this limit causes resin softening and mechanical degradation. For continuous operating temperatures up to 155 °C, specify G11 laminate.
- Fire Safety Compliance: Specify FR4 when equipment must meet UL 94 V-0 flame resistance standards. Standard G10 does not contain flame-retardant additives and will not meet V-0 self-extinguishing requirements.
- Water Absorption & Outdoor Use: Epoxy glass laminates feature water absorption rates below 0.25% (24-hour immersion), maintaining dielectric strength even in high-humidity ambient environments.
3. CNC Precision Machining of Industrial Components
Epoxy glass laminates can be processed into complex custom components via CNC routers, milling centers, and lathes:
To avoid delamination during drilling or tapping operations, always use sharp polycrystalline diamond (PCD) or tungsten carbide cutters with high spindle speeds and steady feed rates. Dedicated dust collection equipment is essential to capture glass fiber particulate during dry machining.
4. Frequently Asked Questions (FAQ)
Q: What happens if standard G10 is used in an application requiring UL 94 V-0?
A: Standard G10 will not self-extinguish when exposed to direct flames, failing fire safety compliance audits for enclosed electrical cabinets and transit systems. Always specify FR4 for fire-retardant applications.
