In the electrical, mechanical, and electronic industries, high-performance insulating sheets are essential base materials for stable equipment operation and safety protection. The 3240 Epoxy Sheet (fully named 3240 Epoxy Glass Cloth Laminated Sheet) has become one of the most widely used insulating sheets in global industrial manufacturing. Known for its stable electrical properties, excellent mechanical strength, and exceptional cost-effectiveness, it serves as a reliable solution for B2B buyers worldwide.
1. Core Material and Production Process of 3240 Sheet
The high quality of the 3240 Epoxy Sheet lies in its rigorous manufacturing process and structural density:
- Base Material: Utilizes premium alkali-free glass fiber cloth impregnated with high-grade epoxy phenolic resin.
- Manufacturing Technique: Molded through high-temperature baking and multi-layer hot-pressing curing to produce a dense, rigid laminated sheet.
- Quality Standards: Strictly complies with national standard GB/T 1303.1 while aligning with international IEC standards, meeting quality demands for both domestic and overseas production.

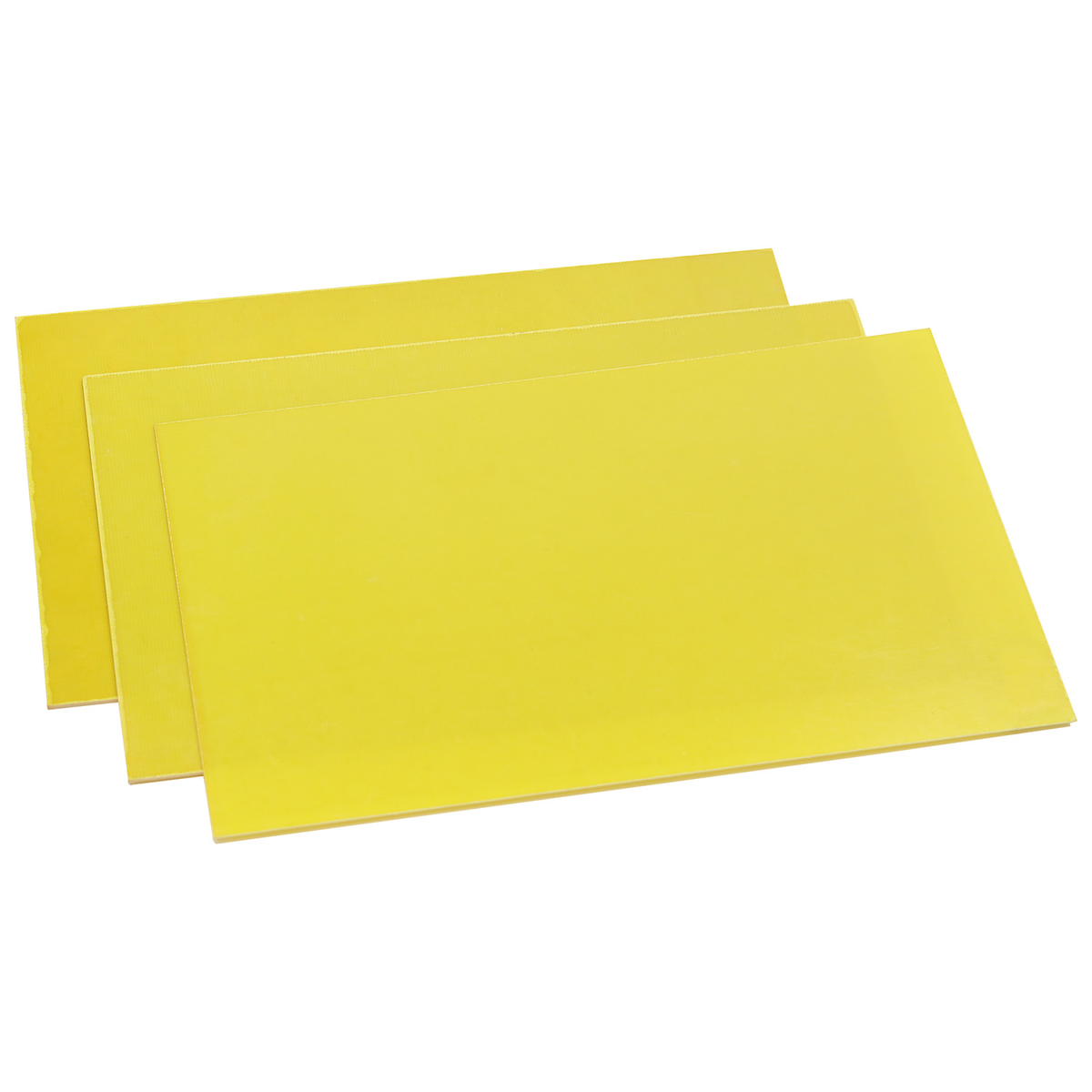

- Specifications & Appearance: Features a standard natural light yellow color. Regular sizes include 1020×1220 mm and 1020×2020 mm, with thicknesses ranging from 0.5 mm to 120 mm.
- Structural Integrity: Low water absorption rate with a uniform structure free of bubbles or delamination, laying the foundation for long-term stability.
2. Key Performance Advantages Under Demanding Conditions
As a Class B heat-resistant insulating material, the 3240 Epoxy Sheet offers continuous thermal resistance up to 130°C and excellent short-term high-temperature tolerance. Its core benefits focus on three critical dimensions:
Electrical Insulation Excellence
The sheet features high dielectric strength and stable vertical layer electrical resistance. It retains high insulation performance even after immersion in water or exposure to transformer oil and humid environments, effectively preventing current leakage and short circuits.
Superior Mechanical Strength
With high compressive, flexural, and impact strength, 3240 Sheet resists deformation and cracking under heavy stress. Furthermore, it offers outstanding machinability. It can be easily cut, drilled, ground, and milled without edge chipping, making it ideal for precision component fabrication.
Weather Resistance & Long Service Life
Moisture-resistant, corrosion-resistant, and anti-aging properties significantly reduce equipment maintenance and replacement costs over extended operational lifecycles.
3. Mainstream Application Scenarios Across Industries
Thanks to its balanced physical and electrical properties, the 3240 Epoxy Glass Cloth Laminated Sheet serves as a universal base material across various sectors:
- Power & Electrical Industry: Used for insulation barriers, spacer blocks, and terminal boards in motors, transformers, and high/low voltage switch cabinets.
- Electronics Industry: Ideal for insulating structural components in precision electrical instruments operating in enclosed or humid environments.
- Mechanical Manufacturing: Frequently processed into tooling fixtures, structural supports, and equipment backing plates.
- Emerging Fields: Increasingly adopted in new energy, rail transit, and industrial automation control equipment as a cost-effective alternative to traditional insulating sheets.
4. Purchasing and Storage Guidelines for B2B Buyers
To ensure maximum operational safety and product longevity, consider the following standards when sourcing 3240 Epoxy Sheets:
- Quality Criteria: Compliant sheets must show no delamination, bubbles, or cracks, with a flat, smooth surface meeting all standardized mechanical and electrical metrics.
- Storage Environment: Store in a clean, dry, and well-ventilated space below 40°C. Protect sheets from direct sunlight, moisture, heavy pressure, and fire sources. Properly stored materials remain fully functional after passing standard re-inspection.
Summary
The 3240 Epoxy Sheet remains a benchmark product in industrial insulation due to its standardized quality, robust performance, and superior cost-efficiency. Combining thermal resistance, dielectric strength, and processing flexibility, it stands as an indispensable composite material for modern global manufacturing.
