Sheet Moulding Compound (SMC) compression moulding is a high-volume manufacturing process for producing high-strength, lightweight, and flame-retardant electrical and structural composite components. By applying heat and hydraulic pressure to a chopped fiberglass-reinforced thermoset resin charge within a matched metal die, SMC moulding achieves exceptional dimensional accuracy and mechanical performance.
As an experienced B2B manufacturer of electrical insulation materials and thermoset composite parts, RDS Composite provides this operational guide detailing the precise process conditions, step-by-step compression parameters, and quality control checkpoints used in high-grade SMC production.
SMC Compression Moulding Key Process Parameters
To ensure consistent mechanical strength and prevent surface defects, SMC compression moulding relies on strict window controls for mold temperature, hydraulic pressure, and cure time. Below are the standard industrial baseline conditions for standard electrical-grade SMC parts:
| Process Parameter | Standard Range | Test / Operational Notes |
|---|---|---|
| Mold Temperature (Upper/Lower) | 140°C – 160°C (284°F – 320°F) | Maintained within ±3°C; lower die is typically kept 5°C hotter for part retention. |
| Moulding Pressure | 5.0 – 15.0 MPa (50 – 150 bar) | Calculated against the projected surface area of the finished component. |
| Curing Time | 30 – 60 seconds per mm thickness | Dependent on wall thickness and thermoset resin formulation. |
| Die Closing Speed | 5 – 15 mm/s (Fast) & 0.5 – 2.0 mm/s (Pressing) | Two-stage closing prevents resin displacement and fiber shearing. |
| Charge Coverage Area | 40% – 70% of cavity area | Ensures optimal glass fiber flow without entrapping air. |
Step-by-Step SMC Moulding Manufacturing Process
1. Charge Preparation & Cutting (Batching)
The SMC sheet—consisting of unsaturated polyester or vinyl ester resin, chopped glass fibers (25mm–50mm), fillers, and catalysts—is peeled from its protective carrier film. The charge is cut into precise rectangular or tailored geometric patterns based on weight and mold coverage requirements.
- Weight Tolerance: Strictly controlled within ±1% to prevent short shots or flash overflow.
- Layer Stacking: Plies are stacked into a pre-form charge pattern to direct fiber flow during compression.
2. Mold Loading & Placement
The pre-heated steel mold is inspected and coated with a thin layer of external release agent if necessary. The stacked SMC charge is manually or robotically placed onto the designated location of the lower die cavity.
- Placement Speed: Charge placement must be completed quickly (typically within 10–15 seconds) to prevent premature resin gelation before full hydraulic pressure is applied.
3. Pressing & Hydraulic Closure

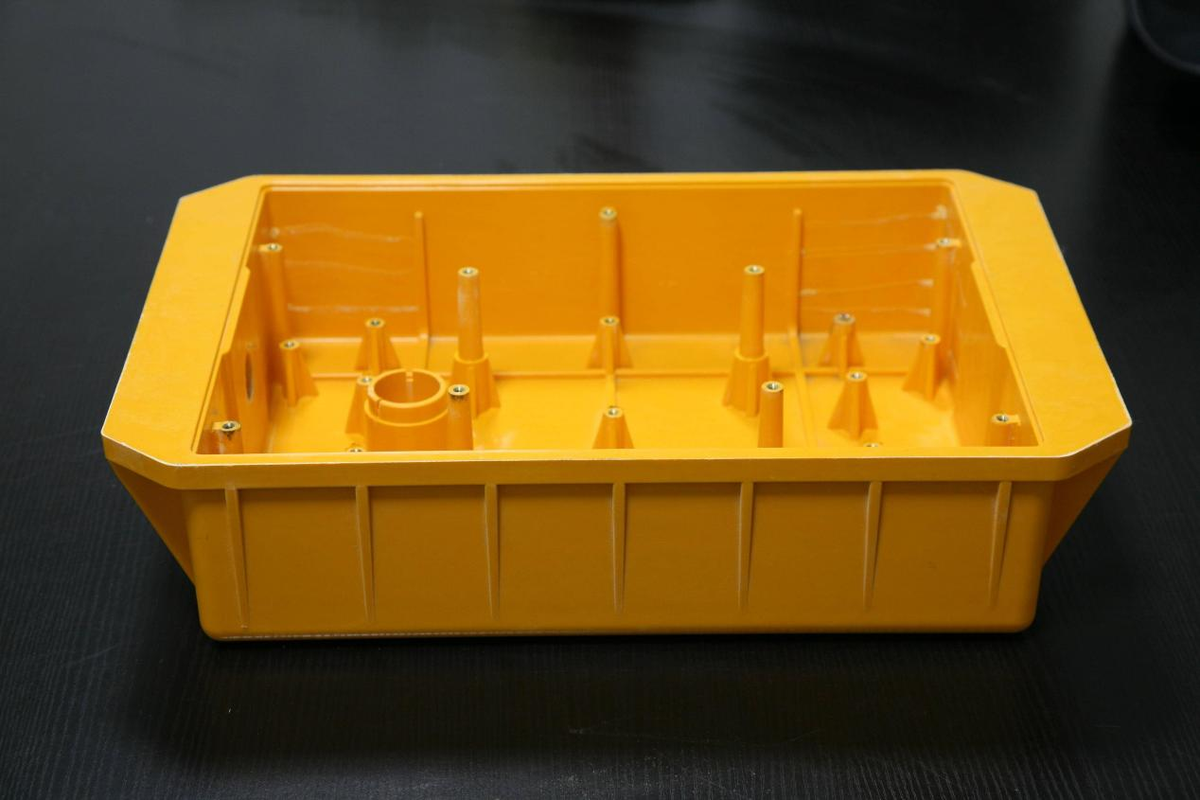

The hydraulic press closes in a controlled two-stage cycle. As the upper die contacts the charge, high tonnage pressure (up to 15 MPa) forces the softened SMC material to flow throughout the mold cavity, filling ribs, bosses, and intricate geometric features while expelling trapped air.
4. In-Mold Cross-Linking & Curing
Under continuous heat and pressure, the thermosetting resin undergoes an exothermic cross-linking reaction. The material cures into a rigid, non-melting composite matrix with permanent dimensional stability.
5. Demoulding & Ejection
Once the programmed cure cycle completes, the press opens smoothly. Internal hydraulic ejector pins push the hot SMC part out of the lower die cavity.
- Cooling Fixtures: Thin-walled or high-precision structural parts are immediately transferred to cooling fixtures to prevent thermal warpage during ambient cooling.
6. Trimming, Defect Inspection & CNC Post-Machining
The demoulded part passes through perimeter deflashing (removing excess material along parting lines) and undergoes 100% visual and dimensional inspection.
SMC Moulding Defect Inspection & Quality Control
Maintaining strict adherence to process parameters helps identify and eliminate common SMC manufacturing defects during post-moulding quality checks:
| Moulding Defect | Root Cause Analysis | RDS Corrective Action |
|---|---|---|
| Short Shot (Unfilled Edges) | Insufficient charge weight, low moulding pressure, or premature resin gelation. | Increase charge weight by 1-2%, boost hydraulic tonnage, or lower initial die pre-heat slightly. |
| Blisters / Surface Porosity | Trapped air/moisture, insufficient pressure during curing, or improper venting. | Optimize mold vacuum venting and check SMC batch moisture content prior to cutting. |
| Part Warpage | Uneven mold heating between upper/lower dies or premature removal without cooling jigs. | Calibrate heating zones to within ±2°C and enforce mandatory cooling jig retention cycles. |
| Fiber Washing / Resin Rich Spots | Excessive closing speed or improper initial charge shape forcing glass fibers apart. | Adjust two-stage pressing velocity and modify charge pattern shape to reduce resin flow distance. |
