What is the Difference Between Glass-Filled Nylon and G10?

Views: 0     Author: Site Editor     Publish Time: 2025-04-17      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

In the world of engineering materials, selecting the right composite can significantly impact the performance, durability, and cost-effectiveness of a product. Two such composites that often come into consideration are glass-filled nylon and G10 epoxy fiberglass. Both materials offer unique properties that make them suitable for various applications, but understanding their differences is crucial for making an informed choice.

This article delves into the characteristics, manufacturing processes, advantages, and limitations of glass-filled nylon and G10 epoxy fiberglass, providing a comprehensive comparison to aid in material selection.

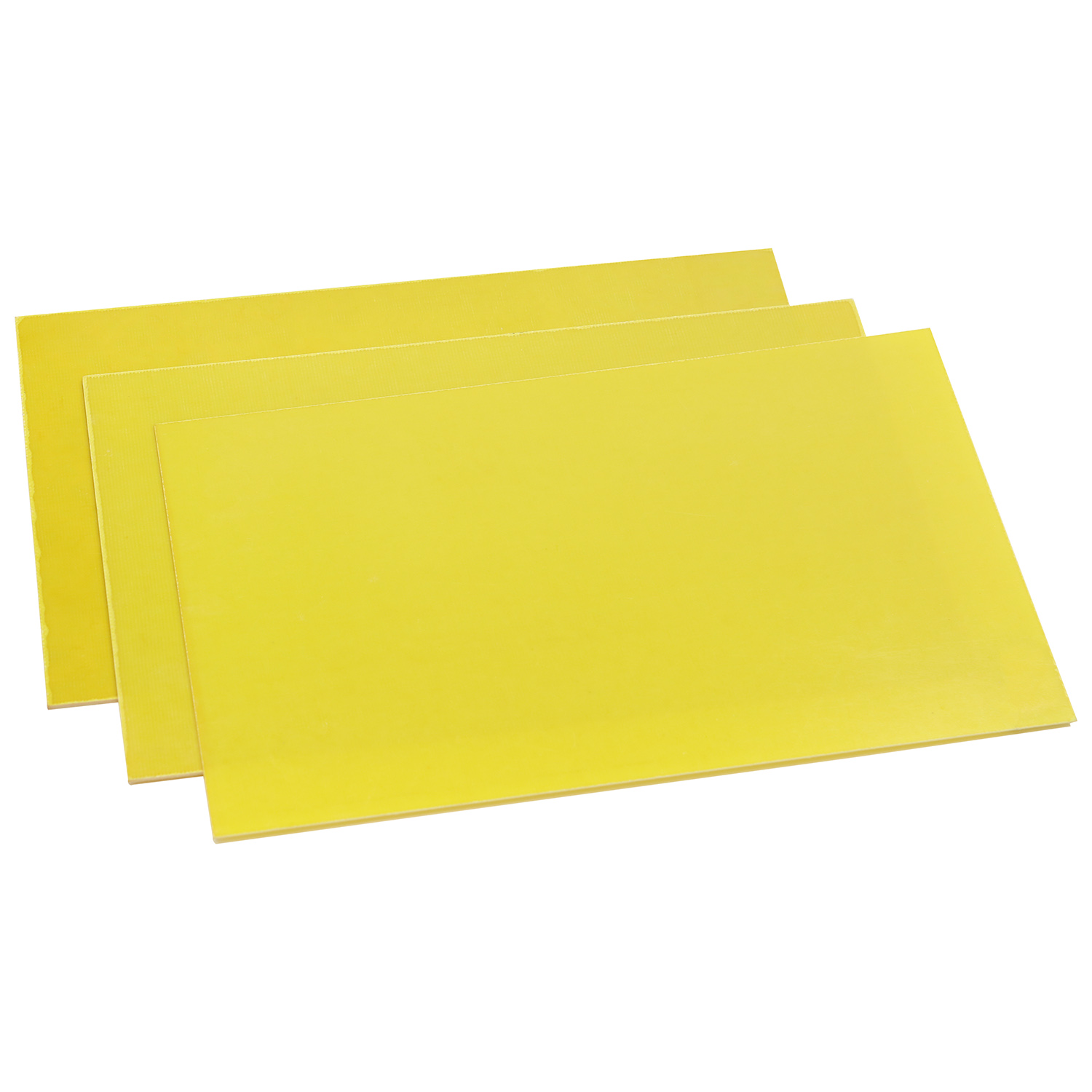

What is G10?

G10 is a high-strength, thermoset composite material made by layering woven fiberglass cloth with epoxy resin and curing it under high pressure and temperature. This process results in a dense, rigid laminate known for its exceptional mechanical and electrical properties.

Composition and Manufacturing

The manufacturing of G10 involves impregnating woven fiberglass fabric with epoxy resin and then compressing and curing the layers under controlled conditions. The epoxy resin binds the glass fibers together, creating a solid, durable laminate. The typical glass content in G10 ranges from 40% to 70%, contributing to its strength and rigidity.

Key Properties

  • Mechanical Strength: G10 exhibits high tensile and flexural strength, making it suitable for applications requiring structural integrity.

  • Electrical Insulation: The material offers excellent dielectric properties, providing effective electrical insulation.

  • Chemical Resistance: G10 is resistant to a wide range of chemicals, enhancing its durability in harsh environments.

  • Thermal Stability: The material maintains its properties over a broad temperature range, ensuring consistent performance.

Applications

G10 is widely used in applications such as electrical insulation, aerospace components, military equipment, and knife handles, where strength, durability, and electrical insulation are paramount.

What is Glass-Filled Nylon?

Glass-filled nylon, also known as glass-reinforced nylon, is a thermoplastic composite material made by adding glass fibers to nylon resin. The glass fibers reinforce the nylon, enhancing its mechanical properties.

Composition and Manufacturing

The production of glass-filled nylon involves blending nylon resin with glass fibers, typically ranging from 15% to 50% by weight. This mixture is then processed using injection molding or extrusion techniques to form the desired shapes.

Key Properties

  • Mechanical Strength: The addition of glass fibers significantly increases the tensile and flexural strength of nylon.

  • Electrical Insulation: While not as effective as G10, glass-filled nylon offers moderate electrical insulation properties.

  • Chemical Resistance: The material exhibits good resistance to oils, fuels, and solvents.

  • Thermal Stability: Glass-filled nylon can withstand higher temperatures than unfilled nylon but may not perform as well as G10 in extreme conditions.

Applications

Glass-filled nylon is commonly used in automotive parts, industrial machinery, electrical components, and consumer goods, where strength, wear resistance, and cost-effectiveness are important.

G10 vs. Glass-Filled Nylon

When comparing G10 epoxy fiberglass and glass-filled nylon, several factors come into play, including mechanical properties, electrical insulation, chemical resistance, thermal stability, machinability, and cost.

Mechanical Properties

PropertyG10 Epoxy FiberglassGlass-Filled Nylon
Tensile StrengthHighModerate
Flexural StrengthHighModerate
Impact ResistanceHighModerate

G10 offers superior mechanical strength compared to glass-filled nylon, making it more suitable for applications subjected to high stress and impact.

Electrical Insulation

PropertyG10 Epoxy FiberglassGlass-Filled Nylon
Dielectric StrengthExcellentGood
Electrical ConductivityLowModerate

G10 provides excellent electrical insulation properties, making it ideal for electrical applications. Glass-filled nylon offers moderate insulation but is not as effective as G10.

Chemical Resistance

PropertyG10 Epoxy FiberglassGlass-Filled Nylon
Resistance to AcidsExcellentGood
Resistance to BasesExcellentGood
Resistance to SolventsExcellentGood

Both materials exhibit good chemical resistance, but G10 generally offers superior protection against a wider range of chemicals.

Thermal Stability

PropertyG10 Epoxy FiberglassGlass-Filled Nylon
Maximum Service TemperatureHighModerate
Thermal ConductivityLowModerate

G10 maintains its properties over a broader temperature range, making it more suitable for high-temperature applications.

Machinability

PropertyG10 Epoxy FiberglassGlass-Filled Nylon
Ease of MachiningModerateHigh
Tool WearHighModerate

Glass-filled nylon is easier to machine due to its thermoplastic nature, whereas G10 requires specialized equipment and tools.

Cost

PropertyG10 Epoxy FiberglassGlass-Filled Nylon
Material CostHighModerate
Processing CostHighLow

Glass-filled nylon is more cost-effective in terms of both material and processing costs.

Final Comparison Table

Now, let's directly compare G10 and glass-filled nylon across several critical parameters to better understand their differences.

FeatureG10Glass Filled Nylon
Matrix MaterialEpoxy Resin (Epoxy Fiberglass)Nylon (Thermoplastic)
ReinforcementFiberglass clothChopped glass fibers
Manufacturing ProcessHigh-pressure laminationInjection molding
StrengthExtremely highHigh but lower than G10
WeightLightweightSlightly heavier
Water AbsorptionMinimalModerate
CostHigherMore affordable
MachinabilityExcellentGood but less precise
Thermal ResistanceHighModerate
ApplicationsPremium tools, aerospace, defenseAutomotive, consumer goods

Performance Analysis

  • Durability: G10 outperforms glass-filled nylon in terms of mechanical strength and resistance to environmental factors. Thanks to its epoxy fiberglass composition, G10 remains stable under extreme conditions.

  • Flexibility in Design: Glass-filled nylon is more adaptable in manufacturing because it can be injection molded into complex shapes, whereas G10 is limited to machining.

  • Cost Efficiency: For budget-sensitive projects, glass-filled nylon offers an excellent balance of performance and affordability.

Conclusion

Both glass-filled nylon and G10 epoxy fiberglass are valuable materials in engineering, each with its unique set of properties. The choice between the two depends on the specific requirements of the application.

  • Opt for G10 epoxy fiberglass when superior mechanical strength, electrical insulation, chemical resistance, and thermal stability are critical.

  • Choose glass-filled nylon when cost-effectiveness, ease of machining, and moderate performance are prioritized.

Understanding the differences between these materials ensures that the most appropriate choice is made for each application, balancing performance and cost considerations.

FAQs

Q1: Can G10 epoxy fiberglass be used in food-related applications?

G10 is not recommended for food-related applications due to its potential to harbor bacteria in its porous structure. Materials specifically designed for food contact should be used instead.

Q2: Is glass-filled nylon suitable for outdoor applications?

Glass-filled nylon can be used in outdoor applications but may degrade over time due to UV exposure. UV-resistant additives can enhance its performance in such environments.

Q3: Can G10 epoxy fiberglass be 3D printed?

While traditional G10 is not suitable for 3D printing, advancements in additive manufacturing have led to the development of G10-like materials compatible with 3D printing technologies.

Q4: How does the cost of G10 compare to glass-filled nylon?

G10 is generally more expensive than glass-filled nylon, both in terms of material and processing costs.

Q5: Are there any environmental concerns associated with these materials?

Both materials are synthetic composites and may pose environmental challenges in terms of disposal. Recycling programs and proper disposal methods should be considered to mitigate environmental impact.
