What Is G10 Epoxy-Glass Composite?

Views: 0     Author: Site Editor     Publish Time: 2025-04-14      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

In today's rapidly advancing world of materials science, epoxy fiberglass has emerged as a versatile, durable, and highly functional material used in a variety of applications. One of the most common and well-known forms of this composite is G10 epoxy-glass composite. Whether you're an engineer, designer, or enthusiast, understanding the properties, manufacturing process, applications, and advantages of G10 can be invaluable.

G10 is a type of epoxy fiberglass that has gained popularity due to its exceptional strength, electrical insulation properties, and resilience in a wide range of environments. From electronics to high-performance machinery, G10 plays an essential role in multiple industries. In this article, we will dive deep into the details of G10 epoxy-glass composite, exploring its definition, manufacturing process, pros and cons, uses, and more.

What is G10 Glass Epoxy Composite?

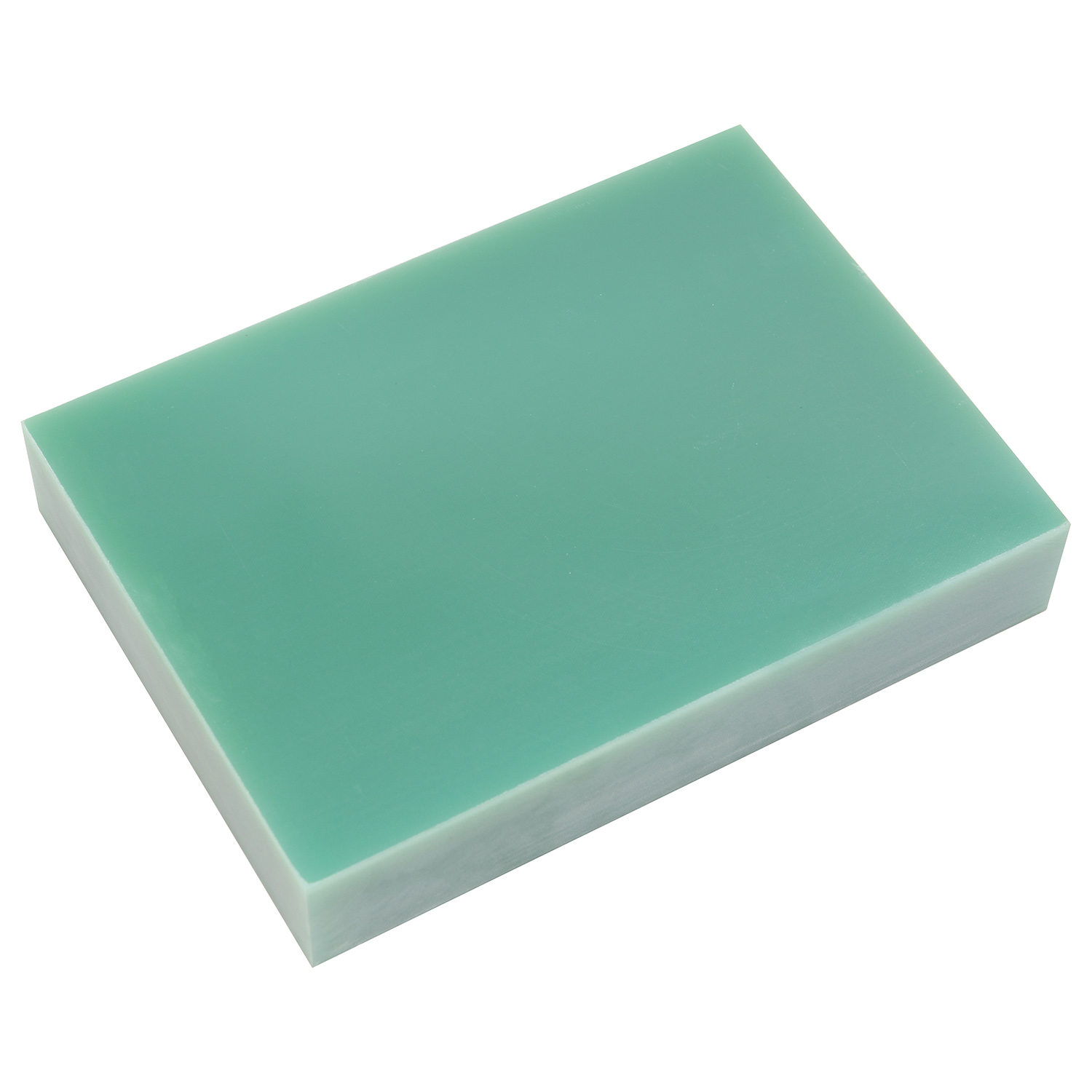

G10 is a high-strength epoxy fiberglass composite material made by impregnating layers of glass fiber fabric with an epoxy resin and then curing the composite under pressure and heat. This results in a rigid, strong, and stable material that can withstand a range of environmental factors, making it an excellent choice for applications requiring high durability, strength, and resistance.

The term G10 is often associated with the most popular grade of this material, although other grades (such as FR4) are also commonly used in similar applications. G10 specifically refers to the laminated material that is reinforced with glass fibers and combined with a resin matrix, which gives it its unique characteristics.

Key characteristics of G10 epoxy-glass composite include:

  • Electrical insulation: G10 is an excellent electrical insulator, making it ideal for use in electronics and electrical applications.

  • High strength-to-weight ratio: It is exceptionally strong yet lightweight, providing a great balance between durability and ease of handling.

  • Chemical resistance: G10 has strong resistance to a variety of chemicals, including acids, solvents, and oils.

  • Thermal stability: While it doesn't perform well in extreme temperatures compared to other composites like phenolic, G10 still provides some degree of thermal stability.

As a result, G10 epoxy-glass composite is used in a wide variety of sectors, including aerospace, electronics, automotive, and industrial equipment.

How is G10 Made?

The process of making G10 epoxy-glass composite involves several critical steps to ensure the proper bonding between glass fiber and epoxy resin, which results in the desired mechanical and electrical properties of the final product. The manufacturing process generally includes the following steps:

1. Preparing the Materials:

The first step in the creation of G10 is to prepare the glass fabric. The glass fabric used in G10 production is usually made of woven glass fibers. This fabric is available in different thicknesses, and it provides reinforcement to the composite material.

The next step is the preparation of the epoxy resin, which acts as the matrix or binder that holds the glass fibers together. The resin is typically a liquid that is mixed with curing agents or hardeners that enable it to solidify.

2. Layering the Glass Fabric:

The woven glass fabric is cut into sheets and layered according to the desired thickness. Each layer of fabric is impregnated with the epoxy resin mixture, ensuring that the fibers are fully saturated with the resin. This layering process may be repeated multiple times to achieve the required material thickness.

3. Curing the Composite:

Once the fabric is fully layered and impregnated with the resin, the material is subjected to a curing process. The curing process involves applying heat and pressure to the material. This step is crucial because it hardens the resin and ensures that the layers bond securely, giving the final composite its characteristic strength, rigidity, and durability.

The material is then allowed to cool and solidify, and it is now ready for further processing, such as cutting, shaping, or finishing. During this phase, the epoxy fiberglass composite can be formed into various shapes and sizes to meet specific design requirements.

4. Finishing:

After curing, the G10 composite is usually polished or ground to achieve the final shape and smoothness. Depending on the application, the material can be further machined or processed to create custom parts or components.

Pros & Cons of G10s

As with any material, G10 epoxy-glass composite comes with its own set of advantages and disadvantages. Let's take a closer look at both the pros and cons of using G10 in various applications.

Pros of G10 Epoxy-Glass Composite:

  • Exceptional Strength:G10 has a high strength-to-weight ratio, making it incredibly strong yet lightweight. This strength makes it suitable for high-stress applications such as electrical insulation and structural components in machinery and tools.

  • Electrical Insulation:One of the most notable features of G10 is its electrical insulating properties. It acts as an effective barrier against electrical currents, making it an excellent choice for use in electronic devices and components, such as circuit boards, connectors, and electrical enclosures.

  • Chemical Resistance:G10 has excellent resistance to many chemicals, including oils, acids, and solvents. This makes it suitable for use in environments where exposure to harsh chemicals is common, such as industrial machinery or automotive applications.

  • Durability:The material is highly durable and resistant to wear, tear, and impact. It is known for its long lifespan, even when exposed to tough operating conditions.

  • Thermal Stability:While G10 is not the most thermally stable material compared to other composites, it still offers a reasonable degree of resistance to heat. It is suitable for environments with moderate temperature fluctuations.

Cons of G10 Epoxy-Glass Composite:

  • Limited High-Temperature Performance:G10 performs well in moderate temperature ranges but may not withstand extreme heat as effectively as some other materials, such as phenolic composites.

  • Brittleness Under Extreme Stress:Although G10 is very strong, it can become brittle when subjected to excessive mechanical stress, especially at low temperatures. This may lead to cracking or breakage in certain applications.

  • Cost:While not excessively expensive, G10 can be more costly compared to other composites, particularly when custom fabrication is required. The costs can rise even higher with the need for specialized finishes or machining.

  • Difficult to Machine:Due to its strength and hardness, G10 epoxy-glass composite can be challenging to machine. Specialized tools and equipment are often necessary for precise cutting, shaping, and finishing.

What Is G10 Used For?

G10 epoxy-glass composite is used across a variety of industries and applications due to its unique properties. Below are some of the most common uses of G10:

1. Electrical Insulation:

G10 is widely used in the electrical industry due to its excellent insulating properties. It is commonly used in the manufacturing of circuit boards, connectors, relays, and other electrical components.

2. Aerospace:

In aerospace applications, G10 is used to make components that need to withstand high-stress and harsh environments. Its lightweight and strong characteristics make it an ideal material for structural parts, insulation, and protective coatings.

3. Automotive:

G10 is often used in automotive applications, particularly in electrical and engine components, where its strength and electrical insulating properties are essential for performance and safety.

4. Military and Defense:

Military applications make extensive use of G10 epoxy-glass composite, including in the production of radios, electrical wiring insulation, and various other durable, lightweight components.

5. Knives and Tools:

One of the most popular uses for G10 is in the making of knife handles, tool grips, and other items that require a durable and slip-resistant surface.

Can G10 be used in High-Temperature Environments?

G10 epoxy-glass composite can withstand temperatures up to about 120°C (248°F) continuously, though it is not considered to be a high-temperature material when compared to other composites such as phenolic or ceramic-based composites.

While G10 offers a good degree of thermal resistance, it is not recommended for applications involving extreme heat (above 200°C or 392°F). In these scenarios, materials designed to operate in high-temperature environments, like PPS (polyphenylene sulfide) or ceramic composites, would be better suited.

Does G10 Rust?

No, G10 epoxy-glass composite does not rust because it is made from non-metallic materials. The combination of epoxy resin and glass fibers is highly resistant to corrosion, which makes G10 an ideal choice for applications exposed to moisture, humidity, or corrosive environments. While it doesn't rust, it is still important to avoid exposure to extreme conditions that could degrade the composite material over time.

Conclusion

In summary, G10 epoxy-glass composite is an incredibly versatile material that is prized for its strength, durability, electrical insulating properties, and resistance to a variety of environmental factors. Whether used in electronics, aerospace, automotive, or military applications, G10 continues to prove its worth in high-performance environments. Understanding its manufacturing process, advantages, and limitations will help businesses and individuals make informed decisions when choosing materials for specific applications.

FAQs

What is the main use of G10?

The primary use of G10 epoxy-glass composite is in electrical insulation, but it is also commonly used in aerospace, automotive, and military applications, as well as in tools and knives.

Can G10 be used in high temperatures?

While G10 offers thermal resistance, it is not suitable for extreme high-temperature environments. It can withstand temperatures up to about 120°C (248°F), but other materials are better for extreme heat.

Is G10 waterproof?

Yes, G10 is highly resistant to moisture and is often used in applications exposed to water, such as in marine or outdoor environments.

Does G10 offer high electrical insulation?

Yes, G10 is an excellent electrical insulator, making it ideal for use in circuit boards, electrical connectors, and other electrical components.

Is G10 a cost-effective material?

While G10 is not the cheapest material available, its durability, strength, and versatility make it a worthwhile investment for industries requiring reliable performance.
