How strong is epoxy fiberglass tube?

Views: 0     Author: Site Editor     Publish Time: 2025-06-01      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Epoxy fiberglass tubes are known for their exceptional strength, but how strong are they really? In this article, we’ll dive into the impressive mechanical properties of epoxy fiberglass tubes. Understanding their strength is crucial for industries that rely on durable, lightweight materials. You’ll learn about the key strength characteristics of these tubes and how they perform in real-world applications.


What is an Epoxy Fiberglass Tube?

An epoxy fiberglass tube is a composite material made from epoxy resin and fiberglass. These tubes are known for their exceptional strength and durability. Let’s break down the key components.

Definition and Composition

Epoxy fiberglass tubes are created by combining epoxy resin with fiberglass reinforcement. Epoxy resin is a thermosetting polymer known for its strong adhesive properties. The fiberglass, made from fine glass fibers, adds strength and stability to the structure. Together, they create a tube that is lightweight yet incredibly strong.

The Role of Epoxy Resin and Fiberglass Reinforcement

● Epoxy Resin: The epoxy resin acts as the binding agent. It holds the glass fibers in place and transfers stress between them. This resin is also resistant to chemicals and provides excellent adhesion, making the tube durable and resistant to wear.

● Fiberglass Reinforcement: Fiberglass is the reinforcement material. The glass fibers give the tube strength and flexibility. Their arrangement inside the resin matrix determines the tube’s mechanical properties, such as tensile and flexural strength.

Variations of Epoxy Fiberglass Tubes

Epoxy fiberglass tubes come in various sizes, thicknesses, and customizations. These variations allow the tubes to be tailored for specific applications. For example, tubes can be made thicker for increased load-bearing capacity or customized in length to fit particular needs. They can also be produced in different shapes, depending on the intended application.

These customized tubes are used in a wide range of industries, from construction to aerospace, where strength and flexibility are crucial.

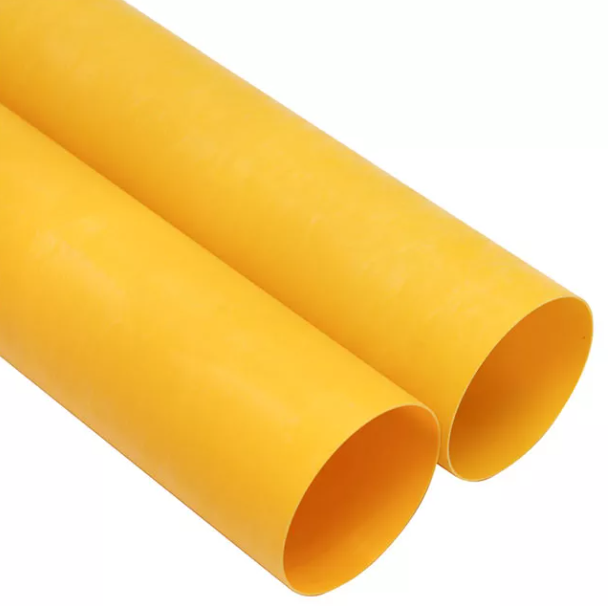

Electrical Insulation Epoxy Fiberglass Tube


Key Strength Characteristics of Epoxy Fiberglass Tubes

Epoxy fiberglass tubes stand out for their strength, making them ideal for various demanding applications. Let’s take a closer look at the key strength characteristics that define these tubes.

Tensile Strength

Tensile strength refers to a material’s ability to resist breaking under tension. It is a critical factor in the performance of epoxy fiberglass tubes, especially in applications where pulling or stretching forces are involved. A higher tensile strength means the tube can handle greater forces without cracking or breaking.

 Typical Range: The tensile strength of epoxy fiberglass tubes usually ranges from 200 to 400 MPa. This makes them well-suited for industries where resistance to pulling forces is crucial.

● Importance: For structural applications in aerospace, construction, and automotive industries, high tensile strength is essential for ensuring safety and durability.

Compressive Strength

Compressive strength is the ability of a material to resist compression or crushing forces. For epoxy fiberglass tubes, this strength is essential in applications where the tubes are subjected to heavy axial loads.

● Definition: Compressive strength measures the tube's capacity to endure weight or force that reduces its size without breaking.

● Typical Range: These tubes generally offer compressive strengths between 150 and 300 MPa.

● Applications: High compressive strength is necessary for structural components like support beams, columns, and load-bearing parts in construction and civil engineering projects.

Flexural Strength

Flexural strength indicates how well epoxy fiberglass tubes can resist bending forces. This property is important when the tubes are used in environments where bending or deformation might occur.

● Definition: Flexural strength refers to the ability of the tube to resist bending or breaking when a force is applied.

● Typical Range: The flexural strength for epoxy fiberglass tubes typically falls between 200 and 400 MPa.

● Applications: These tubes are often used in applications such as wind turbine blades, bridge supports, and piping systems, where they need to withstand bending forces without compromising integrity.

These strength characteristics make epoxy fiberglass tubes incredibly versatile and reliable for structural and industrial applications.


Factors Affecting the Strength of Epoxy Fiberglass Tubes

Several factors contribute to the overall strength of epoxy fiberglass tubes. These factors include the ratio of fiberglass to resin, the orientation of the fibers, and the manufacturing process. Let’s explore these elements in more detail.

Fiber Volume Fraction

The fiber volume fraction refers to the ratio of fiberglass to epoxy resin in the tube. This balance plays a crucial role in determining the tube’s strength and stiffness.

● Impact on Strength: A higher fiber volume fraction means there’s more fiberglass reinforcing the resin, resulting in a stronger, stiffer tube.

● Optimal Ratio: For maximum strength, the fiber volume fraction should generally be between 50% and 70%. Too much fiberglass can limit the resin’s ability to bond properly, while too little fiberglass reduces the tube’s strength.

Fiber Orientation

Fiber Orientation Type

Description

Impact on Strength

Unidirectional

Fibers aligned in a single direction.

High tensile strength in one direction.

Bidirectional

Fibers oriented at right angles to each other.

Balanced strength in two directions.

Multidirectional

Fibers oriented in several directions.

Balanced strength in multiple directions.

Manufacturing Process

Manufacturing Process

Description

Impact on Strength

Filament Winding

Fiberglass filaments coated with resin wound around a mandrel.

High hoop strength, suitable for high-stress applications.

Pultrusion

Fiberglass is pulled through a resin bath and heated.

Strong in the longitudinal direction, ideal for structural components.


Advantages of Using Epoxy Fiberglass Tubes

Epoxy fiberglass tubes are known for their strength and versatility, making them ideal for a variety of applications. Here are some key advantages of using these tubes:

High Strength-to-Weight Ratio

One of the most significant advantages of epoxy fiberglass tubes is their impressive strength-to-weight ratio. These tubes are lightweight but still maintain high strength, making them perfect for applications where weight is a concern.

● Why Preferred: In industries like aerospace, automotive, and construction, reducing weight without sacrificing strength is essential. Epoxy fiberglass tubes provide the ideal solution in these weight-sensitive applications.

● Comparison with Steel and Aluminum: Compared to metals like steel or aluminum, epoxy fiberglass tubes are much lighter while still offering similar strength, which makes them more efficient for high-performance applications.

Corrosion Resistance

Epoxy fiberglass tubes naturally resist corrosion, which is one of their most valuable features. This resistance makes them an excellent choice for environments where materials are exposed to harsh chemicals, moisture, or saltwater.

● Why It Matters: In industries like marine, chemical processing, and construction, corrosion can quickly degrade materials, leading to failures. Epoxy fiberglass tubes offer long-term performance even in tough environments.

● Comparison with Metals: Unlike metals such as steel or aluminum, which are prone to rust and corrosion, epoxy fiberglass tubes maintain their strength and appearance over time, reducing maintenance needs.

Durability and Longevity

The durability of epoxy fiberglass tubes is another major advantage. These tubes are designed to last, even in the most challenging conditions.

● Why Long Life Matters: The long life cycle of epoxy fiberglass tubes means fewer replacements, which reduces overall costs for industries that rely on reliable materials.

● Reduced Maintenance Costs: Since epoxy fiberglass tubes resist wear, impact, and corrosion, they need less maintenance, which ultimately leads to cost savings and increased efficiency.

By offering a high strength-to-weight ratio, corrosion resistance, and exceptional durability, epoxy fiberglass tubes stand out as a reliable and cost-effective material for a variety of industries.


Applications of Epoxy Fiberglass Tubes

Epoxy fiberglass tubes are highly valued for their strength and versatility across a range of industries. Let’s explore how these tubes are used in various sectors and some real-world examples of their applications.

Industries that Benefit from Epoxy Fiberglass Tubes

Several industries rely on epoxy fiberglass tubes for their superior mechanical properties. Here are some key sectors:

● Aerospace: In aerospace, weight reduction is crucial, and epoxy fiberglass tubes offer excellent strength without adding bulk. They are used in structural components and parts that need to withstand high forces without compromising performance.

● Construction: In construction, these tubes are used for support beams and reinforcement in areas where both strength and lightweight materials are required. Their resistance to corrosion also makes them ideal for outdoor and underwater structures.

● Automotive: The automotive industry uses epoxy fiberglass tubes in high-performance vehicles for applications like roll cages, structural supports, and lightweight components. The strength-to-weight ratio is crucial for vehicle performance and safety.

● Electrical: Epoxy fiberglass tubes are used in electrical systems for insulation purposes. Their resistance to heat and electrical conductivity makes them a perfect material for insulating wires and cables.

Real-World Examples

Epoxy fiberglass tubes are widely used in various real-world applications due to their durability and strength. Here are some examples:

● Insulation Rods: These tubes are used to insulate electrical systems, preventing electrical shorts and enhancing safety in high-voltage environments.

● Support Beams: In construction, epoxy fiberglass tubes are used as structural support elements, particularly in buildings and bridges that require both strength and resistance to corrosion.

● Piping Systems: These tubes are also used in piping systems for water, gas, and chemicals. Their ability to withstand pressure and resist corrosion makes them ideal for use in demanding environments such as offshore oil rigs or chemical plants.

● High-Load Applications: Epoxy fiberglass tubes are found in applications where they must bear heavy loads, such as in cranes, lifting systems, and scaffolding. Their ability to endure stress without bending or breaking makes them a top choice in heavy-duty settings.

In these industries and applications, epoxy fiberglass tubes provide strength, reliability, and long-lasting performance in challenging environments.


How to Choose the Right Epoxy Fiberglass Tube for Your Needs

Choosing the right epoxy fiberglass tube for your application is essential to ensure optimal performance. Several factors must be considered to make sure the tube meets your specific requirements.

Considerations When Selecting an Epoxy Fiberglass Tube

When selecting epoxy fiberglass tubes, it’s crucial to take into account the following factors:

● Strength Requirements: Different applications need different levels of strength. Whether you need high tensile, compressive, or flexural strength, understanding the forces your tube will encounter is essential.

● Environmental Conditions: The environment where the epoxy fiberglass tube will be used plays a key role in selection. Consider factors such as temperature, exposure to chemicals, moisture, and UV radiation. Tubes used outdoors or in industrial environments need extra durability and corrosion resistance.

● Manufacturing Processes: The method of production affects the tube’s final properties. For example, filament winding and pultrusion can produce tubes with varying strength profiles. Make sure the manufacturing process aligns with your tube’s intended use.

Customizing Epoxy Fiberglass Tubes

One of the advantages of epoxy fiberglass tubes is the ability to customize them for specific needs. Here are some customization options:

● Size: Epoxy fiberglass tubes can be customized to fit your desired length and diameter, ensuring the tube fits perfectly in your application.

● Thickness: Depending on your strength and load-bearing requirements, you can select different wall thicknesses for added strength or flexibility.

● Strength: If your application demands higher strength, you can adjust the fiber volume fraction or select a specific manufacturing process to enhance the tube's strength.

Customization ensures that epoxy fiberglass tubes meet the exact needs of your project, offering the perfect balance of performance and cost-effectiveness.


Epoxy Resin Fiberglass Cloth Electrical Insulation Tube


Conclusion

Epoxy fiberglass tubes offer impressive strength, including high tensile, compressive, and flexural strength. These properties make them ideal for demanding industries such as aerospace, construction, and automotive. Their high strength-to-weight ratio, corrosion resistance, and durability contribute to their widespread use in structural and high-performance applications. Overall, epoxy fiberglass tubes are essential for providing reliable and cost-effective solutions in various fields.

Explore more about epoxy fiberglass tubes and discover how they can enhance your engineering and industrial applications. With RDS Technology's advanced production lines, experienced engineers, and commitment to high-quality standards, we are your reliable partner for all your composite material needs. Let us help you find the perfect solution for your projects. Reach out today to learn more!


FAQs

Q1: What makes epoxy fiberglass tubes stronger than regular fiberglass tubes?

A: Epoxy fiberglass tubes are stronger than regular fiberglass tubes due to the epoxy resin that binds the fiberglass fibers. The resin provides superior adhesion, durability, and resistance to chemicals, improving the overall strength and structural integrity of the tube.

Q2: Are epoxy fiberglass tubes flexible?

A: Yes, epoxy fiberglass tubes are flexible, but not as much as materials like carbon fiber. They offer a balance between strength and flexibility, making them more adaptable than metals, which are generally stiffer but less flexible.

Q3: Can epoxy fiberglass tubes be used in high-temperature applications?

A: Epoxy fiberglass tubes are heat-resistant and can handle moderate temperatures, typically up to 250°F (121°C). However, they may not perform as well in extreme heat compared to materials like ceramics or carbon fiber.

Q4: How do I maintain and care for epoxy fiberglass tubes?

A: To maintain epoxy fiberglass tubes, clean them regularly with mild soap and water, and avoid harsh chemicals. Inspect for damage and store them in dry, cool conditions to prevent degradation from UV exposure or excessive moisture.
